STARTECH.COM | DVIDSMM2M

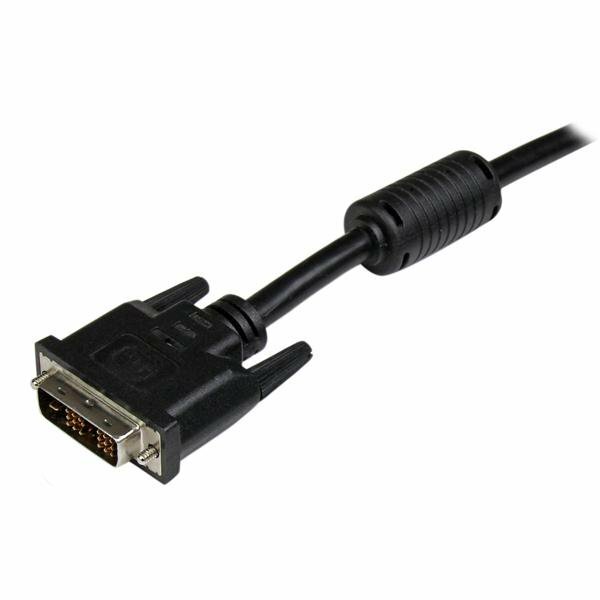

2m (6.6ft) DVI-D Single-Link Digital Video Cable

Connect a DVI-D single-link computer output to a compatible DVI-D monitor or projector with a 2m (6.6ft) male-to-male digital cable.

1920 × 1200 video

Supports digital resolutions up to 1920 × 1200 when the source and display support the selected mode.

Up to 4.95Gbps

Carries DVI-D single-link digital video at transmission rates up to 4.95Gbps.

Shielded construction

Ferrite cores plus aluminium-Mylar foil and braided shielding help reduce electromagnetic interference.

What to know

This cable carries digital DVI-D single-link video only. It does not convert analogue video, carry audio or provide dual-link bandwidth. Use a dual-link cable and compatible devices when 2560 × 1600 is required.

Australian supply and warranty: Supplied by DeviceDeal as an Australian-market product with the official lifetime StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal tax invoice; terms, eligibility and product assessment apply.

Frequently asked questions

What does the DVIDSMM2M connect?

It connects a DVI-D single-link output on a computer to a compatible DVI-D monitor or projector.

Which connectors are on the DVIDSMM2M?

It has a 19-pin DVI-D single-link male connector at each end.

What maximum resolution does the DVIDSMM2M support?

The exact product specification supports up to 1920 × 1200 when the source and display also support the mode.

What transmission rate does the DVIDSMM2M support?

It supports digital transmission rates up to 4.95Gbps.

How long is the DVIDSMM2M?

The cable is 2m (6.6ft) long.

Can the DVIDSMM2M be used for 2560 × 1600?

No. That mode requires dual-link DVI equipment and a dual-link DVI cable.

Does the DVIDSMM2M carry analogue video or audio?

No. It is a digital DVI-D video cable and does not carry analogue VGA or audio.

What warranty applies to the DVIDSMM2M?

It is supplied by DeviceDeal as an Australian-market product and is backed by a lifetime StarTech.com manufacturer warranty in Australia.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DVIDSMM2M)

Features and highlights

2m (6.6ft) DVI-D single-link male-to-male digital video cable
Two 19-pin DVI-D single-link male connectors
Supports resolutions up to 1920 × 1200
Digital transmission rate up to 4.95Gbps
Compliant with DVI DDWG standards
Supports hot-plugging of compatible DVI display devices
Ferrite cores help reduce EMI interference
Aluminium-Mylar foil with braided shielding
28 AWG copper conductors, nickel-plated connectors and black PVC jacket
Lifetime StarTech.com manufacturer warranty

Compatibility check: Confirm that both devices use digital DVI-D and that the requested mode is within single-link capability. This cable carries digital video only and does not support analogue VGA or dual-link bandwidth.

Specifications

Product type	DVI-D single-link digital video cable
Connector A	1 × DVI-D single-link male, 19-pin
Connector B	1 × DVI-D single-link male, 19-pin
Cable length	2m (6.6ft)
Maximum digital resolution	1920 × 1200
Maximum transmission rate	4.95Gbps
Industry standard	DVI DDWG
Hot-plug support	Yes, with compatible DVI display equipment
Conductor and gauge	Copper; 28 AWG
Connector plating	Nickel
Shielding	Aluminium-Mylar foil with braid
Construction	Moulded connectors with strain relief and ferrite cores
Jacket and colour	Black PVC
Product weight	approximately 230g in the supplied catalogue
Warranty	Lifetime StarTech.com manufacturer warranty

SKU	DVIDSMM2M
Barcode #	65030857406
Brand	Startech
Shipping Weight	0.2400kg
Shipping Width	0.200m
Shipping Height	0.010m
Shipping Length	0.210m
Shipping Cubic	0.000420000m3

Warranty and Australian supply

DVIDSMM2M is supplied by DeviceDeal as an Australian-market product and carries the official lifetime StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
