STARTECH.COM | DVISPL1DD

30cm DVI-D to Dual DVI-D Passive Splitter Cable

Mirror one DVI-D digital video source to two DVI-D monitors or projectors using a compact passive splitter cable.

Two mirrored displays

Sends the same image at the same resolution to two DVI-D displays; it cannot extend or span the desktop.

Passive digital splitter

Splits one DVI-D digital source to two DVI-D female outputs without external power or drivers.

30cm strain-relief lead

The integrated 30.48cm cable helps reduce leverage and strain on the source DVI port.

What to know

Both displays receive the same image and must use the same resolution. This passive splitter cannot create an extended desktop. StarTech does not recommend resolutions above 1920 × 1200 even though the technical maximum field lists 2560 × 1600, and compatibility may be limited with converted DVI outputs or docking stations.

Australian supply and warranty: Supplied by DeviceDeal as an Australian-market product with the official lifetime StarTech.com manufacturer warranty in Australia. Keep your DeviceDeal tax invoice; terms, eligibility and product assessment apply.

Frequently asked questions

What does the DVISPL1DD do?

It splits one DVI-D digital video source so the same image can appear on two DVI-D displays.

Can the DVISPL1DD extend the desktop?

No. It only mirrors the same image and cannot span or show different content on the two displays.

Which connectors are on the DVISPL1DD?

It has one 25-pin DVI-D male input and two 25-pin DVI-D female outputs.

What resolution should be used with the DVISPL1DD?

The technical field lists 2560 × 1600 at 60Hz, but StarTech recommends 1920 × 1200 or lower for this passive splitter.

Do both DVISPL1DD displays use the same resolution?

Yes. Both outputs show the same image at the same resolution.

Does the DVISPL1DD require power or drivers?

No. It is a passive splitter and requires no external power or software.

Will the DVISPL1DD work from a converted DVI output or dock?

Compatibility is not assured; StarTech says it is best suited to a native graphics-card DVI output.

What warranty applies to the DVISPL1DD?

It is supplied by DeviceDeal as an Australian-market product and is backed by a lifetime StarTech.com manufacturer warranty in Australia.

Not sure this is the right product for your setup? Visit the DeviceDeal Buying Guides.

(DVISPL1DD)

Features and highlights

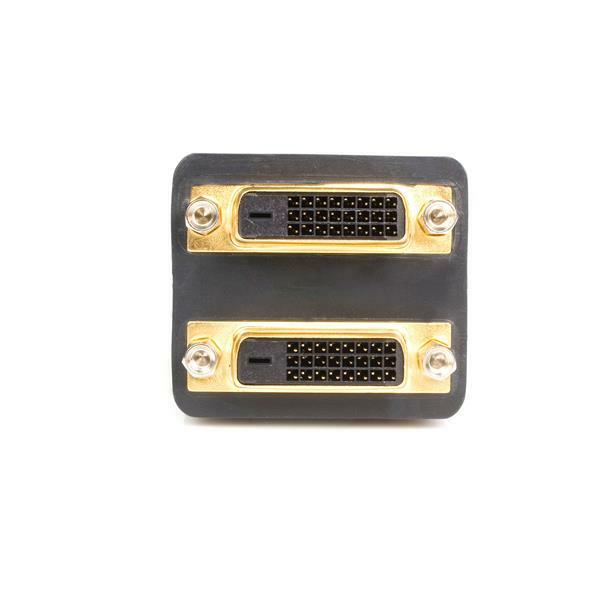

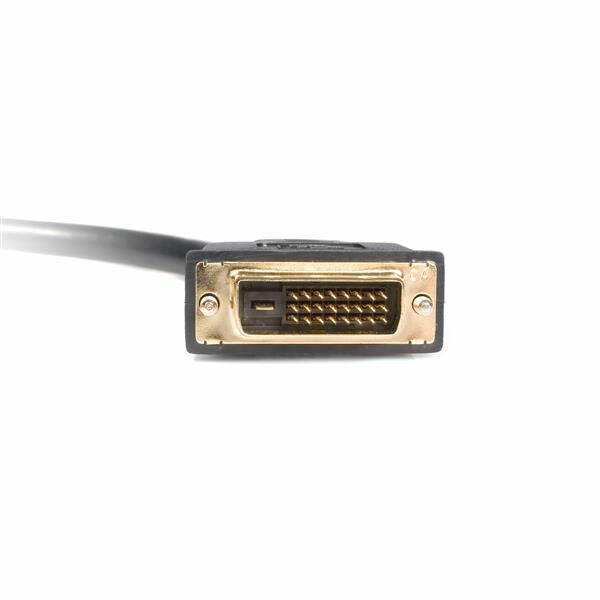

One DVI-D male input to two DVI-D female outputs
Mirrors one digital video signal to two displays
Cannot extend, span or show different images
Passive design with no power adapter or drivers
30.48cm (1ft) integrated splitter lead
Official technical field lists 2560 × 1600 at 60Hz
StarTech recommends using 1920 × 1200 or lower
Gold-plated connectors, 28 AWG copper and shielded PVC cable
Best suited to a native graphics-card DVI output
Lifetime StarTech.com manufacturer warranty

Compatibility check: Use only for two identical mirrored images. Do not use for an extended desktop. StarTech recommends 1920 × 1200 or lower and notes that converted DVI outputs and docking stations may not work.

Specifications

Product type	Passive two-way DVI-D digital video splitter cable
Source connector	1 × DVI-D male, 25-pin
Display connectors	2 × DVI-D female, 25-pin
Cable length	30.48cm (1ft)
Display mode	Mirror only: two identical images at the same resolution
Extended desktop	Not supported
Official maximum-resolution field	2560 × 1600 at 60Hz
Official usage recommendation	Resolutions above 1920 × 1200 are not recommended
Compatibility note	Best suited to a native graphics-card DVI output; converted outputs and docks may not work
Power and software	Passive; no external power or drivers
Conductor and gauge	Copper; 28 AWG
Connector plating	Gold
Jacket and shielding	Black PVC; aluminium-Mylar foil with braid
Product weight	Approximately 153g in the current official specification; supplied catalogue lists 150g
Warranty	Lifetime StarTech.com manufacturer warranty

SKU	DVISPL1DD
Barcode #	65030825870
Brand	Startech
Shipping Weight	0.1600kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.200m
Shipping Cubic	0.001000000m3

Warranty and Australian supply

DVISPL1DD is supplied by DeviceDeal as an Australian-market product and carries the official lifetime StarTech.com manufacturer warranty in Australia.

Keep your DeviceDeal tax invoice as proof of purchase. Warranty service is subject to StarTech.com terms, eligibility requirements and product assessment.
