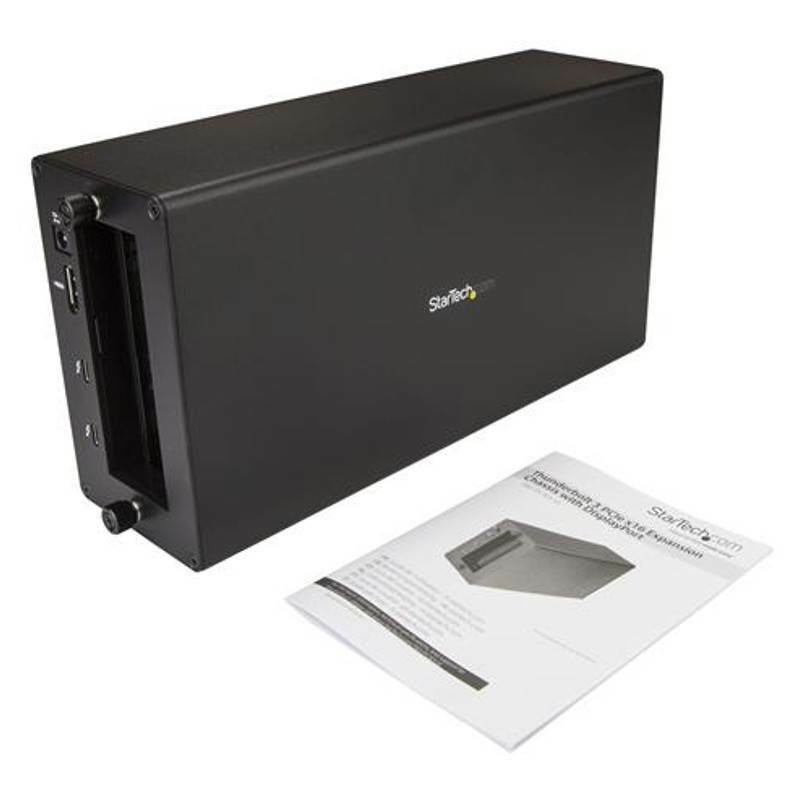

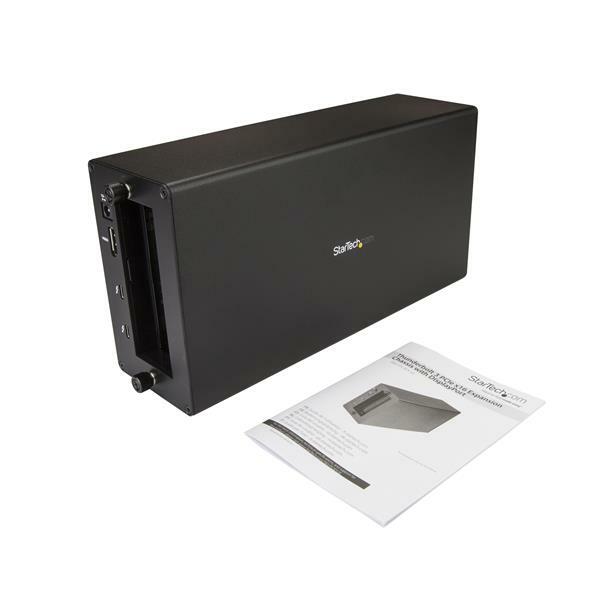

StarTech TB31PCIEX16

Thunderbolt 3 PCIe Expansion Chassis with DisplayPort

Add a desktop-style PCIe expansion slot to a Thunderbolt 3 computer while retaining DisplayPort output and downstream Thunderbolt connectivity.

PCIe x1640Gbps Thunderbolt 3DisplayPort2-year warranty

StarTech TB31PCIEX16 Thunderbolt 3 PCIe Expansion Chassis with DisplayPort

Key features

External PCIe expansion

Adds one physical PCIe x16 slot for compatible standard-profile expansion cards.

High-speed Thunderbolt

Thunderbolt 3 provides up to 40Gbps of connection bandwidth for the external chassis.

Display expansion

A dedicated DisplayPort output and downstream Thunderbolt port support additional display connectivity.

Expandable workstation

The downstream Thunderbolt port can be used for additional Thunderbolt, USB and DisplayPort devices.

Key highlights

One PCIe x16 physical slot with PCIe 3.0 x4 interface
Compatible card types include storage, networking, USB, FireWire and capture cards subject to power/size requirements
Supports Thunderbolt daisy chaining
65W universal power adapter included

What to know before buying

The chassis requires a Thunderbolt 3 host. It does not support GPU graphics cards, and compatible PCIe cards must fit the supported profile, size and power limits.

Product videos

Australian version and official StarTech warranty

This item is the Australian version supplied by DeviceDeal and is covered by the official StarTech.com 2-year manufacturer warranty in Australia.

Please retain your DeviceDeal tax invoice as proof of purchase. Warranty coverage and claims are subject to StarTech.com warranty terms, eligibility requirements and product assessment.

Frequently asked questions

What does the StarTech TB31PCIEX16 do?

It adds an external PCI Express slot to a Thunderbolt 3-equipped laptop or desktop and also provides DisplayPort output.

What PCIe slot does TB31PCIEX16 provide?

It provides one physical PCIe x16 slot using a PCIe 3.0 x4 interface for compatible standard-profile cards.

What is the maximum Thunderbolt data rate?

The Thunderbolt 3 connection supports up to 40Gbps.

Can I connect a monitor through the chassis?

Yes. It includes a DisplayPort output, and its downstream Thunderbolt 3 port can also be used for display connectivity when the required adapter or display is supported.

Can I daisy-chain other Thunderbolt devices?

Yes. The supplied product information supports daisy chaining up to six Thunderbolt 3 devices.

Does the chassis support a graphics card?

No. The official product specification states that GPU graphics cards are not supported.

What is included with TB31PCIEX16?

The package includes the expansion chassis, Thunderbolt 3 cable, rubber feet, a universal AC adapter with regional power cords including ANZ, and a quick-start guide.

What warranty applies in Australia?

TB31PCIEX16 is covered by a 2-year official StarTech.com manufacturer warranty in Australia, subject to StarTech.com warranty terms and product assessment.

(TB31PCIEX16)

Features and highlights

External PCIe expansion

Adds one physical PCIe x16 slot for compatible standard-profile expansion cards.

High-speed Thunderbolt

Thunderbolt 3 provides up to 40Gbps of connection bandwidth for the external chassis.

Display expansion

A dedicated DisplayPort output and downstream Thunderbolt port support additional display connectivity.

Expandable workstation

The downstream Thunderbolt port can be used for additional Thunderbolt, USB and DisplayPort devices.

Key highlights

One PCIe x16 physical slot with PCIe 3.0 x4 interface
Compatible card types include storage, networking, USB, FireWire and capture cards subject to power/size requirements
Supports Thunderbolt daisy chaining
65W universal power adapter included

2-year official StarTech.com warranty

Australian version supplied by DeviceDeal. Retain your DeviceDeal tax invoice; warranty coverage is subject to StarTech.com terms, eligibility and product assessment.

Specifications

StarTech TB31PCIEX16 Thunderbolt 3 PCIe Expansion Chassis with DisplayPort

General

Product type	Thunderbolt 3 PCIe expansion chassis
Warranty	2 Years

Hardware

Bus type	Thunderbolt 3
Expansion slot	1 × PCI Express x16 physical slot; PCIe 3.0 x4 interface
Card support	Standard-profile, single-width PCIe cards up to 20.3 cm long
Cooling	1 × 60 mm fan; 14.06 CFM; 24.55 dB
Enclosure	Aluminium and steel

Performance

Maximum data transfer rate	40 Gbps (Thunderbolt 3)
PCIe bandwidth	3.94 GB/s (x4 PCIe 3.0)
Display support	DisplayPort and Thunderbolt 3 outputs support 4K/5K video; 5K requires a Thunderbolt 3 5K display

Interfaces and Connectors

Internal ports	1 × PCI Express x16

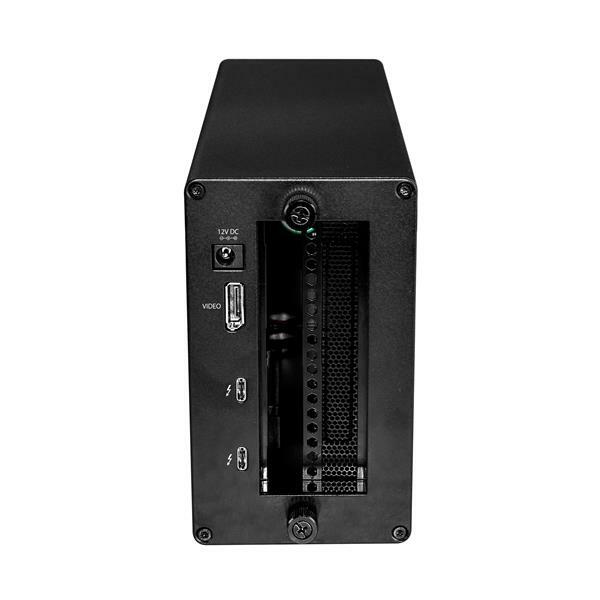

External ports	2 × Thunderbolt 3 USB-C (40Gbps); 1 × DisplayPort

Power

Power source	AC adapter included
PCIe slot power	Up to 25W
LP4 auxiliary power	Up to 30W across the 12V and 5V rails
Power adapter	12V DC, 5A class, 65W universal adapter

System Requirements and Notes

Host requirement	Computer equipped with a Thunderbolt 3 port
Important limitation	The expansion chassis does not support GPU graphics cards
Daisy chaining	Supports daisy chaining of multiple Thunderbolt 3/4 devices; up to six Thunderbolt 3 devices described in the supplied product content

Physical and Environmental

Cable length	500 mm [19.7 in]
Dimensions	28.0 × 14.2 × 8.2 cm [11.0 × 5.6 × 3.2 in]
Weight	1.6 kg [3.6 lb]
Operating temperature	5°C to 35°C
Storage temperature	-20°C to 50°C
Humidity	2080% RH

Packaging and In the Box

Included	Thunderbolt 3 PCIe expansion chassis; Thunderbolt 3 cable; 4 rubber feet; universal AC adapter with regional cords including ANZ; quick-start guide

SKU	TB31PCIEX16
Barcode #	65030868440
Brand	Startech
Shipping Weight	3.1100kg
Shipping Width	0.100m
Shipping Height	0.050m
Shipping Length	0.350m
Shipping Cubic	0.001750000m3
