Independent port voltages
Different passive PoE voltages can be assigned to different output ports.

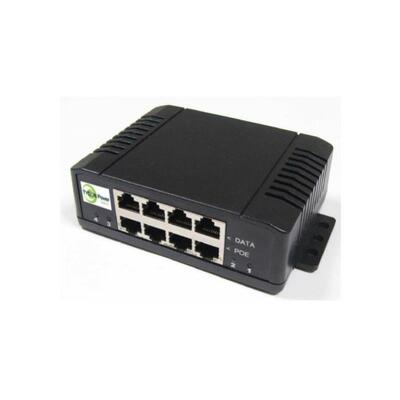

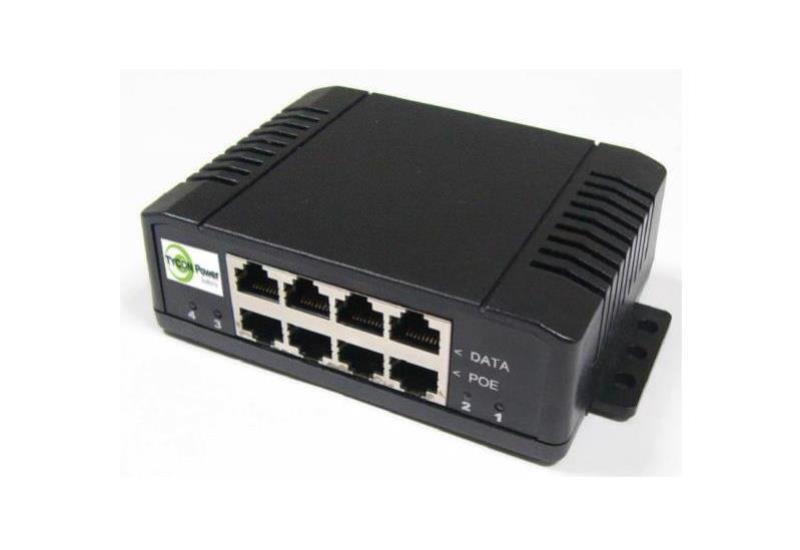

Tycon Power TP-MS4x4 4-Port Gigabit Multi-Voltage Passive PoE Midspan - 12-57VDC, 1A/Port
Model # TP-MS4X4
-
SKU: TP-MS4X4
- Pick Up Available
- Australian Warranty
- Checkout Securely
Tycon Power • TP-MS4X4
Tycon Power TP-MS4x4 4-Port Gigabit Multi-Voltage Passive PoE Midspan - 12-57VDC, 1A/Port
The Tycon Power TP-MS4x4 is a four-port Gigabit passive PoE midspan that allows different 12-57VDC input voltages and polarity arrangements to be assigned to individual ports, with up to 1A per port.
4 PoE ports 12-57VDC MultiVolt Different voltage per port Up to 1A/port Gigabit
Product highlights
Key supplied and exact-model details for the TP-MS4X4.
Reverse-polarity support
Individual ports can be configured for reverse-voltage passive PoE where required.
One amp per port
Maximum output current is stated as 1A per port.
Gigabit Ethernet
The midspan supports Gigabit data on all four channels.
Per-port protection
Outputs include over-current, over/under-voltage and short-circuit protection.
DIN-rail mounting
DIN-rail adapters are included.
Buy with confidence from DeviceDeal
DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.
Frequently asked questions
Helpful answers based on the supplied and exact-model product information.
Can different ports use different PoE voltages?
Yes. The TP-MS4x4 allows different input and output voltages to be assigned by port.
Can a port use reverse-polarity passive PoE?
Yes. Individual ports can be configured for reverse-voltage operation.
How much current is available per port?
The maximum stated output is 1A per port.
Does it support Gigabit Ethernet?
Yes. All four midspan channels support Gigabit data.
Does it automatically negotiate voltage?
No. It is passive PoE, so each port must be configured to match the connected device.
What warranty applies?
DeviceDeal is an authorised Tycon Power reseller. The applicable manufacturer warranty applies, subject to Tycon Powers terms and assessment.
(TP-MS4X4)
Technical specifications
Tycon Power TP-MS4X4
| Product details | |
|---|---|
| Brand | Tycon Power |
| Model | TP-MS4x4 |
| Supplied SKU | TP-MS4X4 |
| Product type | Four-port Gigabit multi-voltage passive PoE midspan |
| PoE port count | 4 |
| Power and PoE | |
| Supported DC / PoE voltage | 12-57VDC |
| PoE output type | Passive PoE |
| Maximum output current | 1A per port |
| Port voltage configuration | Same or different voltage per port |
| Reverse-polarity support | Yes, configurable by port |
| Protection | Over-current, over/under-voltage and short-circuit protection |
| Networking | |
| Network data rate | Gigabit Ethernet |
| Standard pair assignment | Pins 4,5 (+) and 7,8 (-); reverse polarity can be selected |
| Installation and environmental | |
| Mounting | DIN rail; adapters included |
| Operating temperature | -40°C to 75°C |
| Housing | UV-resistant ABS 94V-0 plastic |
| SKU | TP-MS4X4 |
| Brand | TYCON POWER |
| Shipping Weight | 0.5000kg |
