High-power output
Provides a rated 56V 100W passive PoE output for compatible four-pair powered equipment.

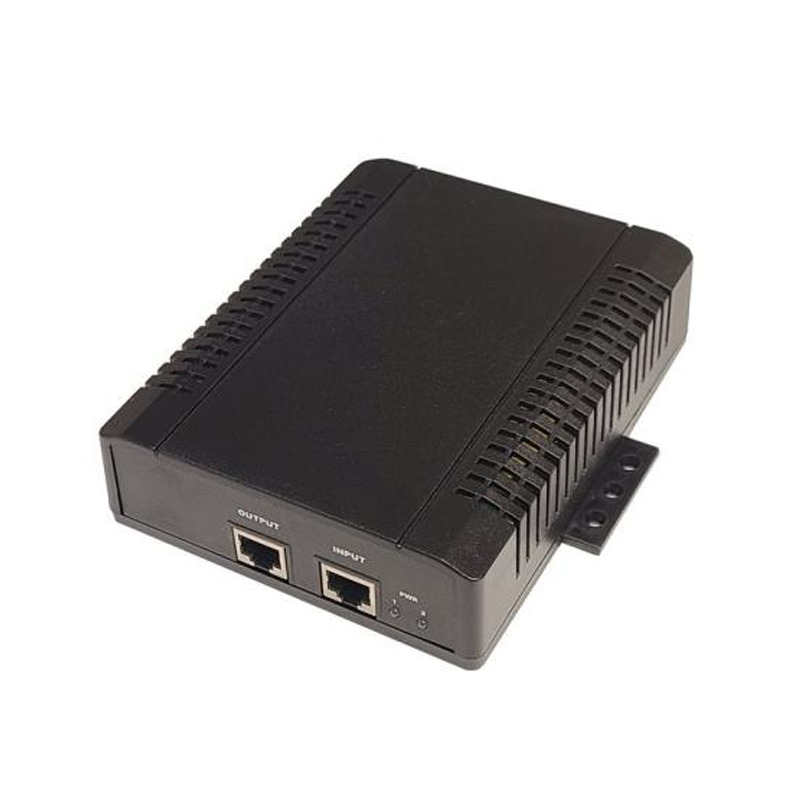

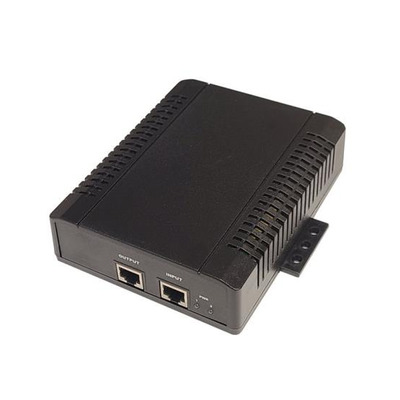

Tycon Power TP-POE-HP-56G 56V 100W High-Power Gigabit Passive PoE Injector
Model # TP-POE-HP-56G
-
SKU: TP-POE-HP-56G
- Pick Up Available
- Australian Warranty
- Checkout Securely
Tycon Power • TP-POE-HP-56G
Tycon Power TP-POE-HP-56G 56V 100W High-Power Gigabit Passive PoE Injector
The TP-POE-HP-56G is a legacy high-power AC PoE injector for compatible 56V four-pair passive PoE equipment. It accepts autoranging AC input and delivers a rated 100W PoE output over the Ethernet cable.
56V passive PoE 100W rated output Gigabit data Autoranging AC input
Product highlights
Key supplied and exact-model details for the TP-POE-HP-56G.
Autoranging AC supply
Designed for 100-240VAC installations, with a stated operating input range of 90-264VAC.
Remote power delivery
Power and Ethernet data can be carried over CAT5/6 cable for distances up to 100m.
Protected operation
Includes AC and Ethernet surge protection plus short-circuit, over-current and over-voltage protection.
Industrial use
The vendor specifies high-temperature operation and a compact enclosure.
Legacy model notice
The current vendor catalogue identifies TP-POE-HP-56G-100W as the replacement part number.
Buy with confidence from DeviceDeal
DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.
Frequently asked questions
Helpful answers based on the supplied and exact-model product information.
What type of PoE does the TP-POE-HP-56G provide?
It provides 56V four-pair passive PoE for compatible equipment.
What is the rated output power?
The current replacement reference lists a rated PoE output of 100W.
Does it accept Australian mains voltage?
It is designed for autoranging 100-240VAC input; the supplied cable arrangement should be checked for the installation.
Does it support Gigabit data?
Yes. The supplied and vendor information identify Gigabit Ethernet support.
Can it be used with any PoE device?
No. The powered device must specifically support the injectors 56V passive PoE method, voltage, polarity and power level.
What warranty applies?
DeviceDeal is an authorised Tycon Power reseller. The applicable Tycon Power manufacturer warranty applies, subject to the manufacturers terms and product assessment.
(TP-POE-HP-56G)
Technical specifications
Tycon Power TP-POE-HP-56G
| Product Details | |
|---|---|
| Brand | Tycon Power |
| Model | TP-POE-HP-56G |
| Product Type | High-power passive PoE injector |
| Current Replacement Reference | TP-POE-HP-56G-100W |
| Power and PoE | |
| AC Input | 100-240VAC; vendor operating range stated as 90-264VAC, 50/60Hz |
| PoE Output | 56VDC four-pair passive PoE |
| Rated PoE Output | 100W |
| Vendor Feature Reference | The replacement page also references up to 112W total power |
| Networking | |
| Network Speed | Gigabit Ethernet |
| Maximum Ethernet Distance | Up to 100m using suitable CAT5/6 cable |
| Protection and Environment | |
| Protection | AC/Ethernet surge, short circuit, over current and over voltage |
| Operating Temperature | -30°C to +60°C |
| Housing Material | UV ABS 94V0 plastic |
| SKU | TP-POE-HP-56G |
| Brand | TYCON POWER |
| Shipping Weight | 0.5000kg |
