A long-range point-to-point bridge with a 60 GHz primary link, integrated 5 GHz failover, 15+ km link range, 2.5+ Gbps throughput and 1/10G SFP+ connectivity.
15+ km2.5+ Gbps5 GHz failoverIPX6
Authorised Ubiquiti reseller1 Year Ubiquiti manufacturer warranty
15+ kmMaximum link range2.5+ GbpsThroughput1/10G SFP+High-speed interface24 WMaximum power
Long-distance multi-gigabit backhaul with integrated failover

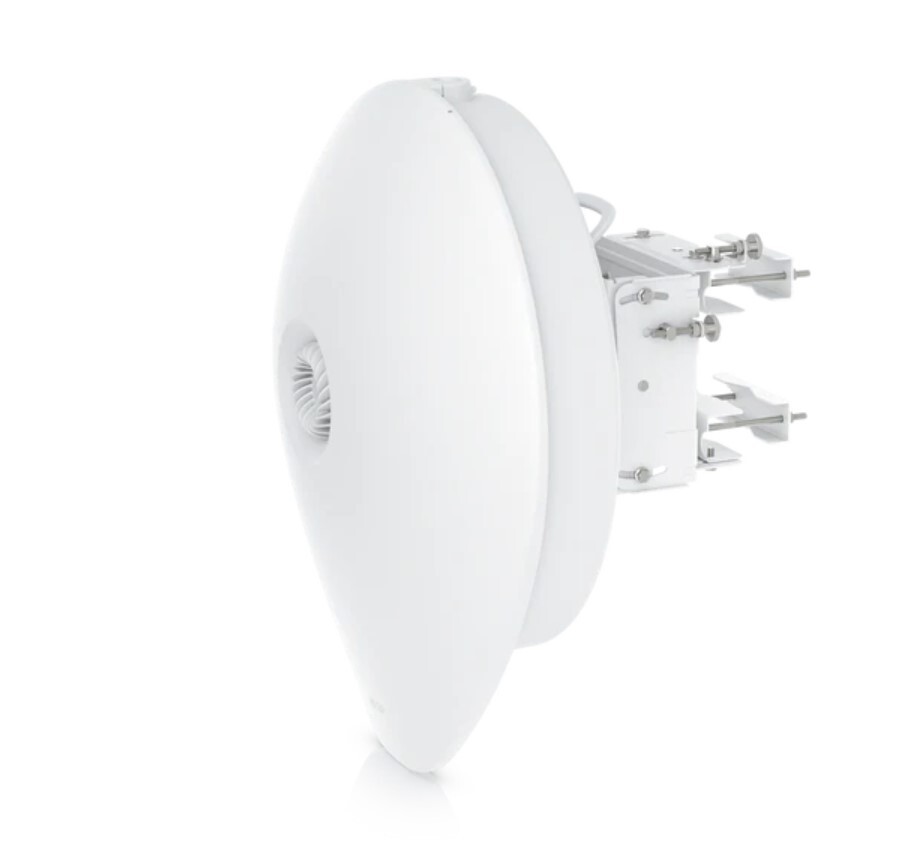

The AF60-XR is designed for long-distance point-to-point links and combines a focused 60 GHz path with a built-in 5 GHz backup radio.
15+ km link range
The AF60-XR is designed for links beyond 15 km when properly planned and aligned.
2.5+ Gbps throughput
Throughput is 2.5+ Gbps.
Integrated 5 GHz failover
A built-in 5 GHz radio provides a secondary path when required.
1/10G SFP+ uplink
The SFP+ interface supports 1G or 10G network connectivity.
Gigabit Ethernet
A separate Gigabit Ethernet RJ45 port is provided.
IPX6 enclosure rating
The enclosure carries an IPX6 rating.
GPS, Bluetooth and UISP
Integrated GPS, Bluetooth setup and UISP management support deployment.
Pair required for a link
Two compatible radios are required to create a complete point-to-point bridge.
i
Long-range deployment
The AF60-XR is an individual radio. A complete link requires two compatible units, accurate path planning and precise alignment.
1 YearUbiquiti manufacturer warranty
Authorised reseller & manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti AF60-XR is backed by a 1-year Ubiquiti manufacturer warranty, with support provided in accordance with Ubiquiti's warranty terms and conditions.
Frequently asked questions
Helpful answers for the Ubiquiti AF60-XR.
What is the Ubiquiti AF60-XR?
The AF60-XR is a long-range multi-gigabit point-to-point bridge with a 60 GHz primary radio and a 5 GHz backup radio.
What is the link range?
The maximum link range is 15+ km, subject to path planning, alignment and environmental conditions.
What throughput does it support?
Throughput is 2.5+ Gbps.
Does the AF60-XR include a backup link?
Yes. It includes a 5 GHz backup radio with 26 dBi gain.
Which wired network interfaces are provided?
It provides one Gigabit Ethernet RJ45 port and one 1/10G SFP+ interface.
What is the enclosure rating?
The AF60-XR carries an IPX6 weather rating.
How many radios are required?
Two compatible radios are required to create a complete point-to-point link.
What warranty does the Ubiquiti AF60-XR include?
The Ubiquiti AF60-XR is backed by a 1 Year Ubiquiti manufacturer warranty. DeviceDeal is an authorised Ubiquiti reseller.
(AF60-XR)
Features and highlights
A long-range point-to-point bridge with a 60 GHz primary link, integrated 5 GHz failover, 15+ km link range, 2.5+ Gbps throughput and 1/10G SFP+ connectivity.
✓
15+ km link range
The AF60-XR is designed for links beyond 15 km when properly planned and aligned.
✓
2.5+ Gbps throughput
Throughput is 2.5+ Gbps.
✓
Integrated 5 GHz failover
A built-in 5 GHz radio provides a secondary path when required.
✓
1/10G SFP+ uplink
The SFP+ interface supports 1G or 10G network connectivity.
✓
Gigabit Ethernet
A separate Gigabit Ethernet RJ45 port is provided.
✓
IPX6 enclosure rating
The enclosure carries an IPX6 rating.
✓
GPS, Bluetooth and UISP
Integrated GPS, Bluetooth setup and UISP management support deployment.
✓
Pair required for a link
Two compatible radios are required to create a complete point-to-point bridge.
Key product facts
15+ km: Maximum link range
2.5+ Gbps: Throughput
1/10G SFP+: High-speed interface
24 W: Maximum power
Long-range deployment: The AF60-XR is an individual radio. A complete link requires two compatible units, accurate path planning and precise alignment.
Technical specifications
Product specifications for Ubiquiti model AF60-XR.
Product details
Brand
Ubiquiti
Model / SKU
AF60-XR
Product type
Long-range multi-gigabit point-to-point bridge
Maximum link range
15+ km
Throughput
2.5+ Gbps
Wireless
Primary band
60 GHz
Frequency range
57-71 GHz
Backup radio
5 GHz, 26 dBi
Security
WPA2
Hardware and interfaces
Processor
Quad-core Arm Cortex-A53, 1.4 GHz
Memory
1 GB DDR3L
Ethernet
1 x Gigabit Ethernet RJ45
Optical interface
1 x 1/10G SFP+
Power and management
Power method
Passive PoE
Maximum power consumption
24 W
Included PoE adapter
48V, 0.65A
Management
UISP
Setup aids
Integrated GPS and Bluetooth
Physical and environmental
Dimensions
779 x 664 x 383 mm
Weight without mount
8.6 kg
Weight with mount
13 kg
Pole compatibility
Dia. 40-80 mm
Weather rating
IPX6
Operating temperature
-40 to 55 deg C
Mounting
Precision alignment kit
Warranty
Manufacturer warranty
1 year Ubiquiti manufacturer warranty
Authorised reseller
DeviceDeal
SKU
AF60-XR
Barcode #
810010076106
Brand
Ubiquiti
Shipping Weight
13.0000kg
Shipping Width
0.465m
Shipping Height
0.780m
Shipping Length
0.780m
