5-Port Gigabit Industrial PoE Switch with 4 1000BASE-T PoE ports and 1 SFP port



The DIS-100G Series Gigabit Industrial Unmanaged Switches are equipped with a variety of port combinations including 10/100/1000BASE-T non-PoE or PoE ports, and SFP ports. These switches feature a robust design making them ideal for deployment in industrial and outdoor cabinet surveillance settings, capable of withstanding the harshest environments. In addition, the DIS-100G Series are Plug-and-Play, allowing for effortless and swift deployment.





Features





Unmanaged Plug and Play

Plug in and go. The DIS-100G-5PSW reliably forwards Ethernet frames.





Gigabit Connectivity with PoE and SFP

Designed with 4 x Gigabit PoE ports and 1 x SFP slot to suit a range of network layouts.





Discrete Size

Small but mighty. To make the most of cabinet space, it measures: 139 x 29 x 107 mm.





Fast Deployment

For instant installation it features a snap-to-DIN-rail clip, and also supports wall mounting.





Officially Certified

Certifications for vibration, shock, free-fall, and electromagnetic compatibility.





Withstands Extreme Temperatures

Operates in harsh environments with temperatures from -40°C to +75°C.





Strong Build

The tough housing has been created to keep your network protected and reliably rugged.





Fanless Design

With no moving parts inside to reduce downtime and maintenance call outs.





PoE Support

With its 120 W PoE power budget, it’s been designed to supply data and PoE power.





Durable, Reliable, and Efficient



The DIS-100G Series switches are housed in a highly resistant IP30-rated metal casing to protect the switches from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-100G Series from unwanted effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of the DIS-100G Series while also being able to operate in a wide temperature range from -40 °C up to 75 °C. For increased flexibility, the DIS-100G Series can also be mounted on a DIN rail or conveniently mounted on a solid surface wall. In addition, the DIS-100G Series supports dual power input which allows for a redundant power supply configuration to make sure the switches continue to operate in the event of a primary power supply failure.









Power over Ethernet Support



The PoE-ready DIS-100G-5PSW features a total PoE budget of 120 W, capable of supplying up to 30 W of power per port to connected PoE-enabled devices leveraging existing conventional Ethernet cabling. This effectively cuts down deployment times, reduces cable clutter, and eliminates the need for dedicated power supplies to allow PoE-devices to be installed in remote locations.







(DIS-100G-5PSW)

  • 4 1000BASE-T PoE+ ports and 1 SFP port
  • Robust and High-Redundancy Design
  • Officially Certified for industrial environments
  • DIN Rail mountable
  • Fanless, passive cooling design

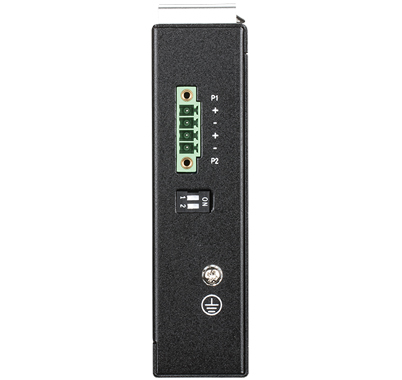

  • Dual power input for redundancy
  • High EMC endurance
  • 9 KB Jumbo Frame
  • Multicast/Unicast/Storm Control
1000BASE-T Ports : 4
SFP Ports : 1
PoE Type Required : PoE+
PoE Ports : 4
PoE+ (802.3at) Supported : Yes
PoE Budget : 120 Watts
Switching Capacity : 10 Gbps
MAC Address Table Size : 2K
Metal Housing : Yes
DIN Rail Mountable : Yes
Power Input : 48 to 58V DC terminal block dual input
Fans : Fanless
Operating Temperature : From -40° to 75°C
Management Options : Unmanaged



SKU DIS-100G-5PSW
Barcode # 790069437885
Brand D-Link
Shipping Weight 2.0000kg

Manufacturer Warranty

Limited Lifetime Warranty



  Manufacturer Contact Info

  http://www.dlink.com.au/tech/
  1300 766 868
