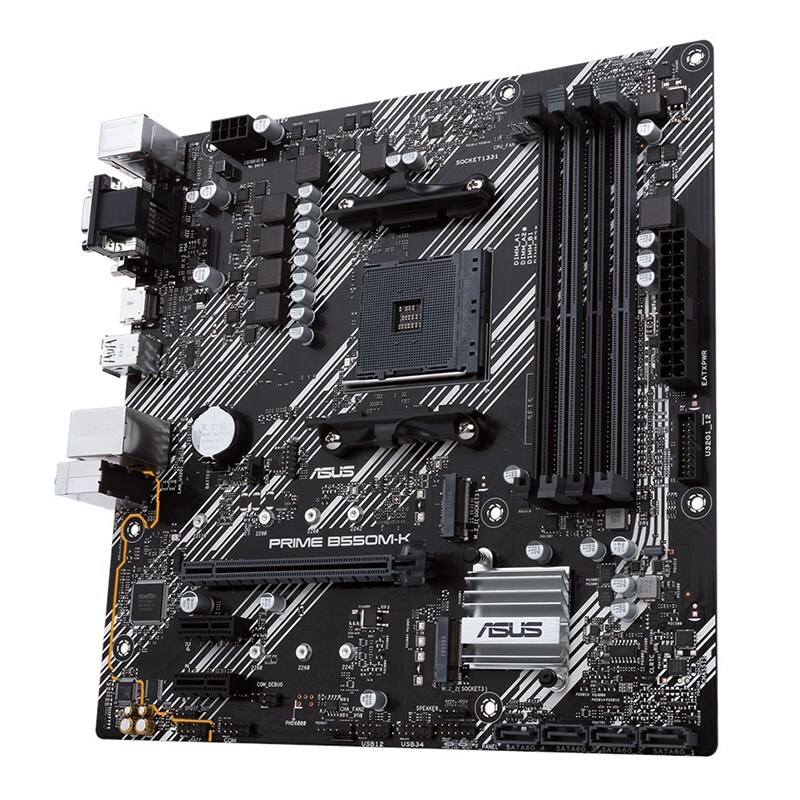

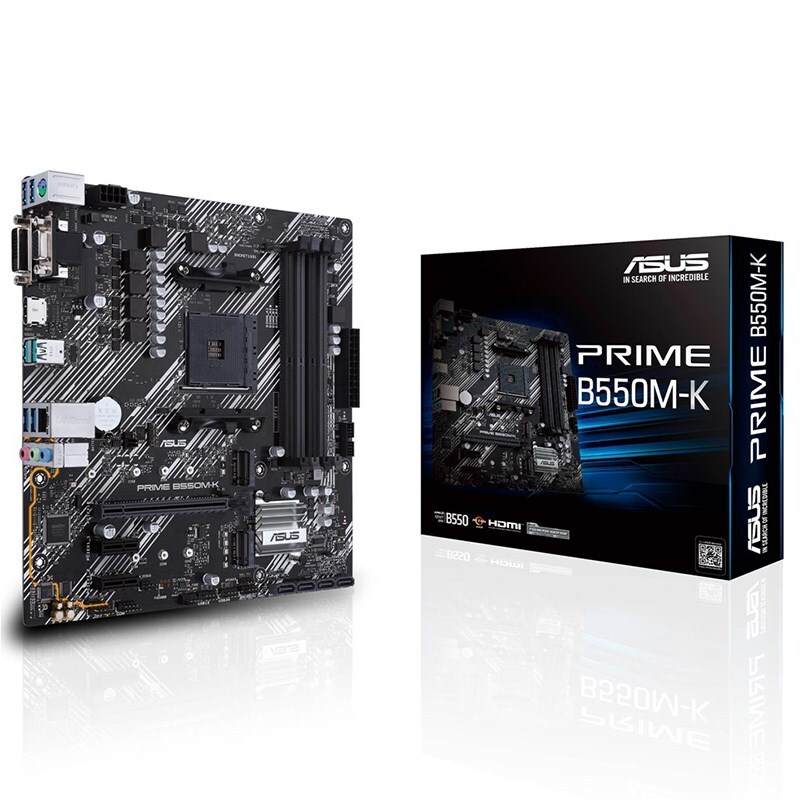

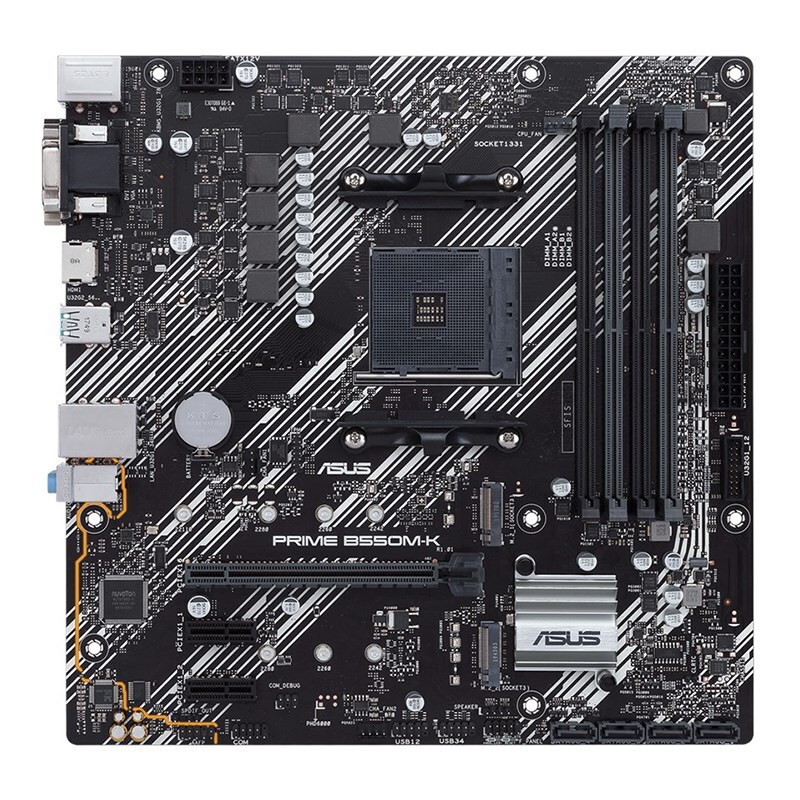

PRIME-B550M-K

ASUS PRIME B550M-K AM4 Micro-ATX Motherboard - Memory Support: 4x DDR4 DIMM Slots (128GB, 4400 MHz O.C) - Expansion Slots: 1x PCIe 4.0 x16, 2x PCIe 3.0 x1 - Storage Support: 2x M.2 Socket 3 & 4x SATA 6Gb/s Connectors - Network: Realtek RTL8111H 1Gb Ethernet - Realtek ALC887 7.1 Surround Sound High Definition Audio CODEC - Rear USB Ports: 2x USB-A 3.2 Gen 2 & 4x USB-A 3.2 Gen 1 - PRIME B550M-K - 3 Years Limited Warranty

(PRIME-B550M-K)

Model
Brand	ASUS
Model	PRIME B550M-K

Supported CPU
CPU Socket Type	AM4
CPU Type	BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list.

Chipsets
Chipset	AMD B550

Memory
Number of Memory Slots	4×288pin
Memory Standard	3rd Gen AMD Ryzen Processors DDR4 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory * Next Generation AMD Ryzen PRO Processors DDR4 4800(O.C.)/ 4600(O.C)/ 4466(O.C.)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3333(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory * ECC Memory (ECC mode) support varies by CPU. * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 4.0 x16	3rd Gen AMD Ryzen Processors 1 x PCIe 4.0 x16 (x16 mode)
PCI Express x1	AMD B550 Chipset 2 x PCIe 3.0 x1

Storage Devices
SATA 6Gb/s	4 x SATA 6Gb/s
M.2	3rd Gen AMD Ryzen Processors: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110 (PCIE 4.0 x4 and SATA modes) storage devices support AMD B550 Chipset: 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic: 1 x D-Sub 1 x DVI-D 1 x HDMI 2.1(4K@60HZ)

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek RTL8111H
Max LAN Speed	10/100/1000Mbps

Rear Panel Ports

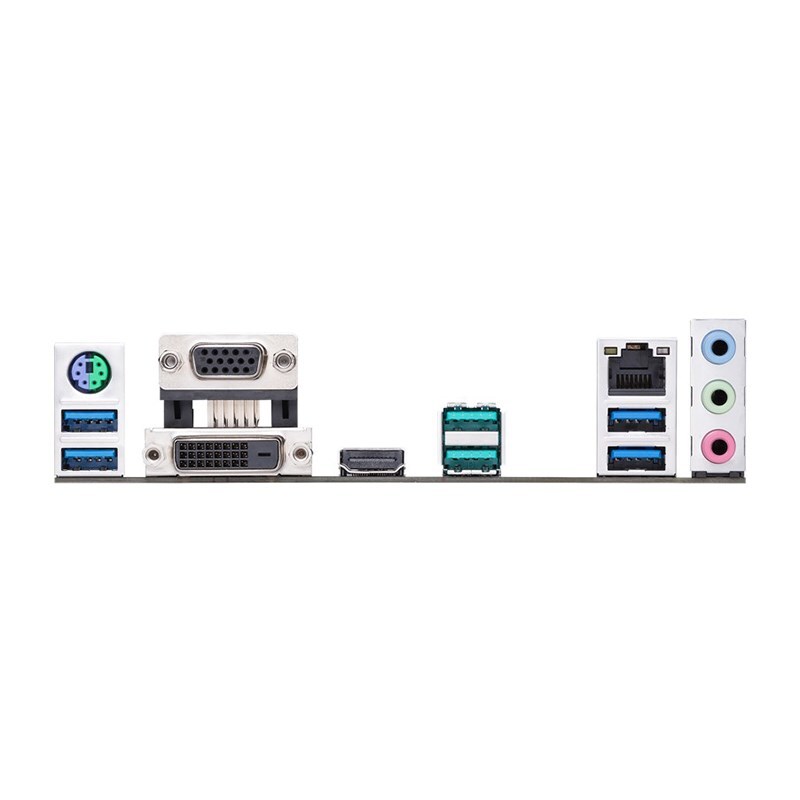

Back I/O Ports	1 x PS/2 keyboard/mouse combo port(s) 1 x DVI-D 1 x D-Sub 1 x HDMI 1 x LAN (RJ45) port(s) 2 x USB 3.2 Gen 2 (teal blue) (2 x Type-A) 4 x USB 3.2 Gen 1 (blue) Type-A 3 x Audio jack(s)

Internal I/O Connectors
Onboard USB	1 x USB 3.2 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
Other Connectors	1 x CPU Fan connector(s) 2 x Chassis Fan connector(s) 1 x SPI TPM header 1 x S/PDIF out header(s) 1 x Front panel audio connector(s) (AAFP) 1 x Clear CMOS jumper(s) 1 x System panel connector 1 x COM port header 1 x Speaker connector

Physical Spec
Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin EATX Power connector(s) 1 x 8-pin EATX 12V Power connectors

Features
Features	Software Features: ASUS Exclusive Software Armoury Crate AI Suite 3 - Performance And Power Saving Utility TurboV EVO EPU Digi+ VRM Fan Xpert 2+ - EZ update ASUS CPU-Z AI Charger DAEMON Tools Norton Anti-virus software (Free Trial for 60 days) WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode ASUS Special Features: ASUS 5X PROTECTION III - ASUS DIGI+ VRM - ASUS LANGuard - ASUS Overvoltage Protection - ASUS SafeSlot Core - ASUS Stainless-Steel Back I/O ASUS Q-Design - ASUS Q-DIMM - ASUS Q-Slot ASUS Thermal Solution - Aluminum heatsink design ASUS Lighting Control BIOS: 256MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PXE Operating System: Windows 10 64-bit
