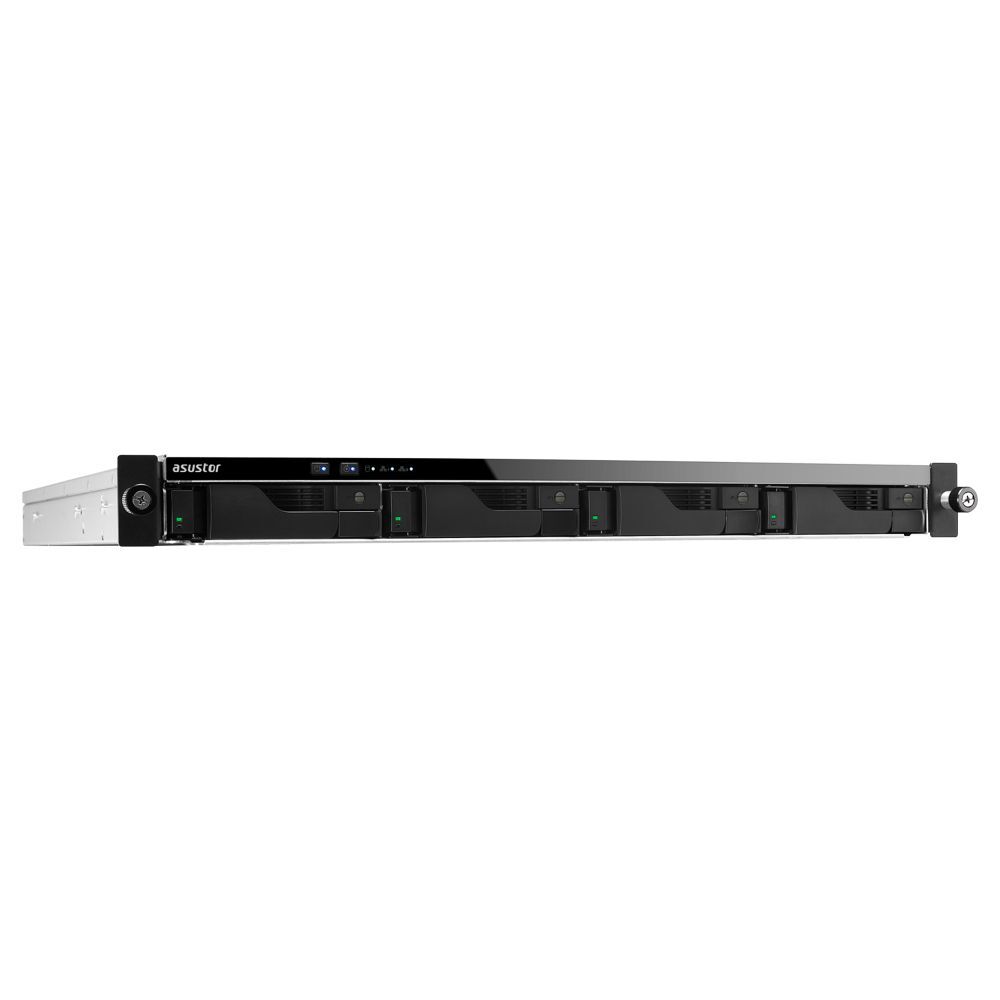

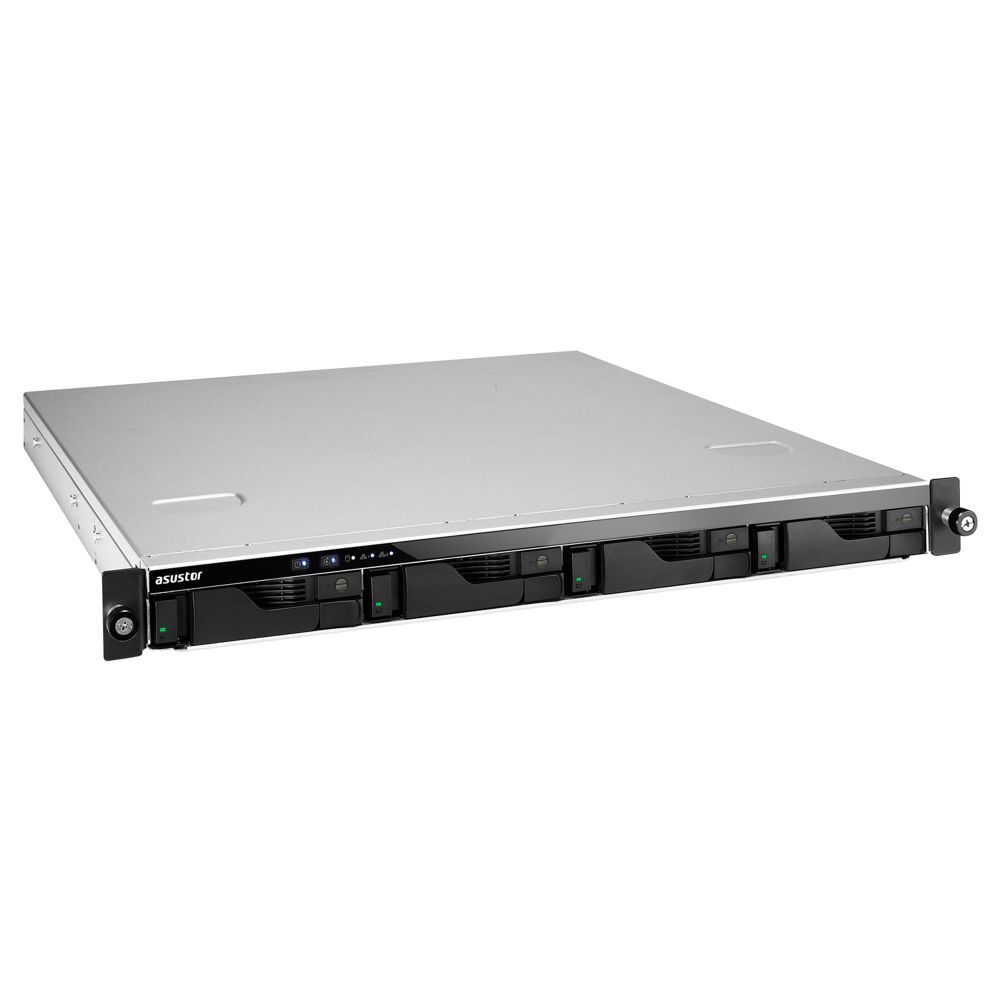

ASUSTOR AS6504RS Lockerstor 4 Bay NAS

For small and medium businesses, with an Intel Atom C3538 processor, 8GB DDR4-2133, four Ethernet ports and virtualization support.

2.1GHzQuad-Core CPU

8GBDDR4-2133

4 PortsEthernet Connectivity

Up to 5 GbpsWhen Aggregated

Key Features for Small and Medium Businesses

Intel Atom C3538 2.1GHz Quad-Core CPU
8 GB DDR4-2133 - 128 GB maximum
Two Gigabit Ethernet and two 2.5-Gigabit Ethernet ports. Can provide up to 5 gbps when aggregated.
Supports Wake-on-LAN and Wake-on-WAN
Complete iSCSI/IP-SAN and NFS support - Supports VMware, Citrix and Hyper-V - Supports virtual machines and Docker applications
Supports ACL and AD. Improves business application efficiency.
PCIe slot for 10-Gigabit Ethernet card

Processor	Intel Atom C3538 2.1GHz Quad-Core CPU
Memory	8 GB DDR4-2133 - 128 GB maximum
Network	Two Gigabit Ethernet and two 2.5-Gigabit Ethernet ports
Aggregated Performance	Can provide up to 5 gbps when aggregated
Remote Wake	Wake-on-LAN and Wake-on-WAN
Storage Protocols	Complete iSCSI/IP-SAN and NFS support
Virtualization	VMware, Citrix and Hyper-V; virtual machines and Docker applications
Business Features	ACL and AD support
Expansion	PCIe slot for 10-Gigabit Ethernet card

Frequently Asked Questions

Answers based on the product information supplied for this item.

Which processor does the ASUSTOR AS6504RS use?

The supplied description lists an Intel Atom C3538 2.1GHz quad-core CPU.

How much memory does the AS6504RS support?

It includes 8 GB DDR4-2133 and the supplied feature list states a 128 GB maximum.

Which network ports are included?

The supplied description lists two Gigabit Ethernet ports and two 2.5-Gigabit Ethernet ports.

Can the AS6504RS provide up to 5 Gbps?

The supplied information states that it can provide up to 5 gbps when the network ports are aggregated.

Does the AS6504RS support 10-Gigabit Ethernet expansion?

Yes. A PCIe slot for a 10-Gigabit Ethernet card is included in the supplied feature list.

Which virtualization platforms are supported?

The supplied information lists VMware, Citrix and Hyper-V, along with virtual machines and Docker applications.

Does the AS6504RS support Wake-on-LAN and Wake-on-WAN?

Yes. Both Wake-on-LAN and Wake-on-WAN are listed among the supplied features.

Does the AS6504RS support ACL and AD?

Yes. The supplied feature list states that it supports ACL and AD.

(AS6504RS)

Hardware Specifications
CPU	CPU Model	Intel ATOM C3538
	CPU Architecture	x64 64-bit
	CPU Frequency	Quad-Core 2.1GHz
Memory	Memory	8GB SO-DIMM DDR4
	Memory Module Pre-installed	8GB (1x 8GB)
	Total Memory Slots	4
	Memory Expandable up to	128GB (4x 32GB) Support mixed capacity
	Flash Memory	8GB eMMC
Storage	Drive Bays	4
	Compatible Drive Type	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
	Maximum Drive Bays with	20
	Supports Hot Swappable Drives

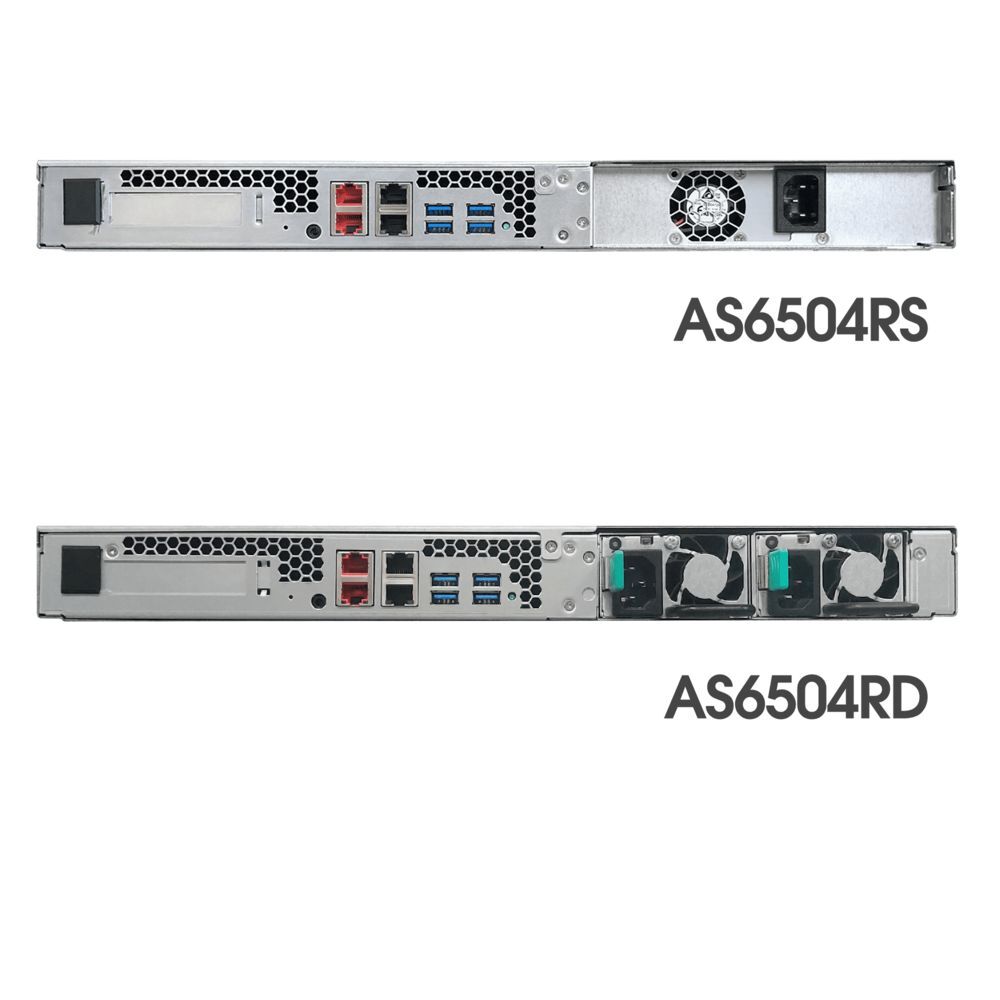

External Ports	Expansion	4x USB 3.2 Gen 1
	Network	2x Gigabit Ethernet (1G/100M) 2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
	PCIe Expansion Slots	PCIe 3.0 x8 slot (black, x4 link)
	Multimedia Output	N/A
Others	System Fan	2x 40mm
	Power Supply Unit / Adapter	AS6504RS: 250W x1 AS6504RD: 250W x2 AS6504RS x1 / AS6504RD x2
	Input Power Voltage	100V to 240V AC
	Redundant power supply
	Service LED Indicator
	Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS
	Warranty	3 Years
Operation	Power Consumption	AS6504RS: 47.7W (Operation) 28.4W (Disk Hibernation); AS6504RD: 65W (Operation) 42.4W (Disk Hibernation);
	Noise Level	-
	Operation Temperature	0°C~40°C (32°F~104°F)
	Storage Temperature	-20°C~70°C (-4°F~158°F)
	Humidity	5% to 95% RH
Size and Weight	Size	44(H) x 439(W) x 515(D) mm
	Weight	AS6504RS: 7.85kg / 17.27 lbs; AS6504RD: 9.3 kg / 20.46 lbs
