ASUSTOR Lockerstor 10 Bay NAS

ASUSTOR AS6510T Lockerstor 10 Bay NAS

Shift into overdrive with dual Intel 10GbE, M.2 SSD cache and 2.5GbE.

10 BaySATA HDD and SSD Support

Dual 10GbEIntel Ethernet Ports

Dual 2.5GbERealtek Ethernet Ports

8GBDDR4-2133 Memory

Key Features

Intel Denverton-based Atom C3538 Quad-Core CPU
8GB DDR4-2133 SO-DIMM - 30% faster than DDR3
Dual Intel 10-Gigabit Ethernet ports - Supports up to 20 Gbps under Link Aggregation
Dual Realtek 2.5-Gigabit Ethernet ports - Supports up to 5 Gbps under Link Aggregation
Supports 10x 3½" SATA hard drives and SSDs
Dual M.2 NVMe SSD ports for fast caching
Supports an extra capacity with the AS6004U
Thumbscrews for easy M.2 SSD installation
Supports Wake on LAN and Wake on WAN
Efficient cooling design
Best in class three year warranty

Processor	Intel Denverton-based Atom C3538 Quad-Core CPU
Memory	8GB DDR4-2133 SO-DIMM - 30% faster than DDR3
Drive Support	10x 3½" SATA hard drives and SSDs
10-Gigabit Ethernet	Dual Intel ports; up to 20 Gbps under Link Aggregation
2.5-Gigabit Ethernet	Dual Realtek ports; up to 5 Gbps under Link Aggregation
M.2 Support	Dual M.2 NVMe SSD ports for fast caching
Expansion	Supports extra capacity with the AS6004U
Remote Wake	Wake on LAN and Wake on WAN
Warranty	Best in class three year warranty

Frequently Asked Questions

Answers based only on the product information supplied for this item.

Which processor does the ASUSTOR AS6510T use?

The supplied description lists an Intel Denverton-based Atom C3538 quad-core CPU.

How much memory does the AS6510T include?

It includes 8GB DDR4-2133 SO-DIMM memory.

How many drive bays does the AS6510T support?

It supports ten 3½-inch SATA hard drives and SSDs.

Which Ethernet ports are included?

The supplied description lists dual Intel 10-Gigabit Ethernet ports and dual Realtek 2.5-Gigabit Ethernet ports.

What link aggregation speeds are listed?

It supports up to 20 Gbps under Link Aggregation on the dual 10-Gigabit Ethernet ports and up to 5 Gbps on the dual 2.5-Gigabit Ethernet ports.

Does the AS6510T support M.2 NVMe SSD caching?

Yes. It includes dual M.2 NVMe SSD ports for fast caching and thumbscrews for easier installation.

Can storage be expanded with the AS6004U?

Yes. The supplied feature list states that it supports extra capacity with the AS6004U.

Does the AS6510T support Wake on LAN and Wake on WAN?

Yes. Both are included in the supplied feature list.

What warranty is listed?

The supplied description states a best-in-class three-year warranty.

(AS6510T)

Hardware Specifications
CPU	CPU Model	Intel ATOM C3538
	CPU Architecture	x64 64-bit
	CPU Frequency	Quad-Core 2.1GHz
Memory	Memory	8GB SO-DIMM DDR4
	Memory Module Pre-installed	8GB (1x 8GB)
	Total Memory Slots	2
	Memory Expandable up to	64GB (2x 32GB) Support mixed capacity
	Flash Memory	4GB eMMC
Storage	Drive Bays	10
	M.2 Drive Slots	2
	Compatible Drive Type	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe M.2 2280 SATA 3 M.2 2260 SATA 3 M.2 2242 SATA 3
	M.2 PCIe Interface	PCIe 3.0 x2
	Maximum Drive Bays with	18
	Supports Hot Swappable Drives
External Ports	Expansion	2x USB 3.2 Gen 1
	Network	2x 10 Gigabit Ethernet(10G/1G) 2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
	Multimedia Output	N/A

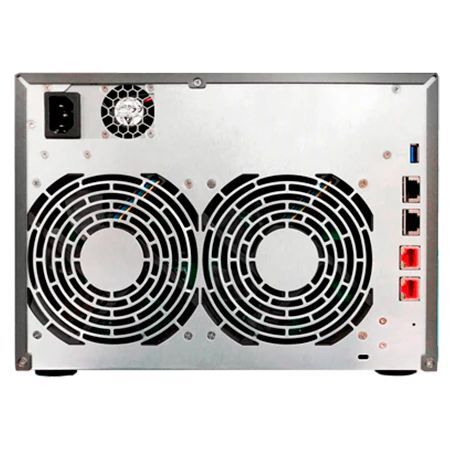

Others	System Fan	2x 120mm
	LCD Panel
	Power Supply Unit / Adapter	250W x1
	Input Power Voltage	100V to 240V AC
	Certification	FCC, CE, VCCI, BSMI, C-TICK
	Warranty	3 Years
Operation	Power Consumption	76.8W (Operation); 41.1W (Disk Hibernation);
	Noise Level	22dB (HDD idle)
	Operation Temperature	0°C~40°C (32°F~104°F)
	Storage Temperature	-20°C~70°C (-4°F~158°F)
	Humidity	5% to 95% RH
Size and Weight	Size	215.5(H) x 293(W) x 230(D) mm
	Weight	6.4 (kg) / 14.1 (lb)
