ASUSTOR AS6512RD Lockerstor 12 Bay NAS, Intel ATOM C3538 Quad-Core 2.1GHz, 8GB DDR4
Model # AS6512RD
-
SKU: AS6512RD
- Pick Up Available
- Australian Warranty
- Checkout Securely

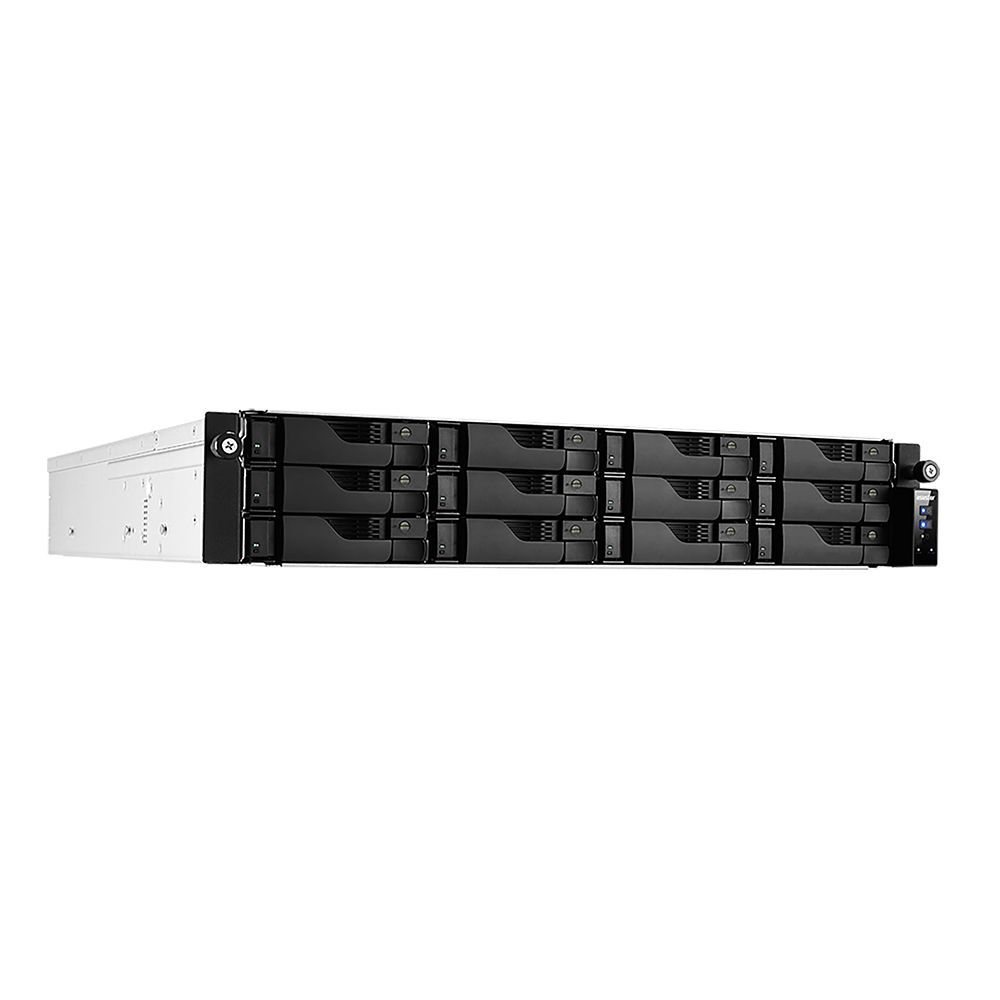

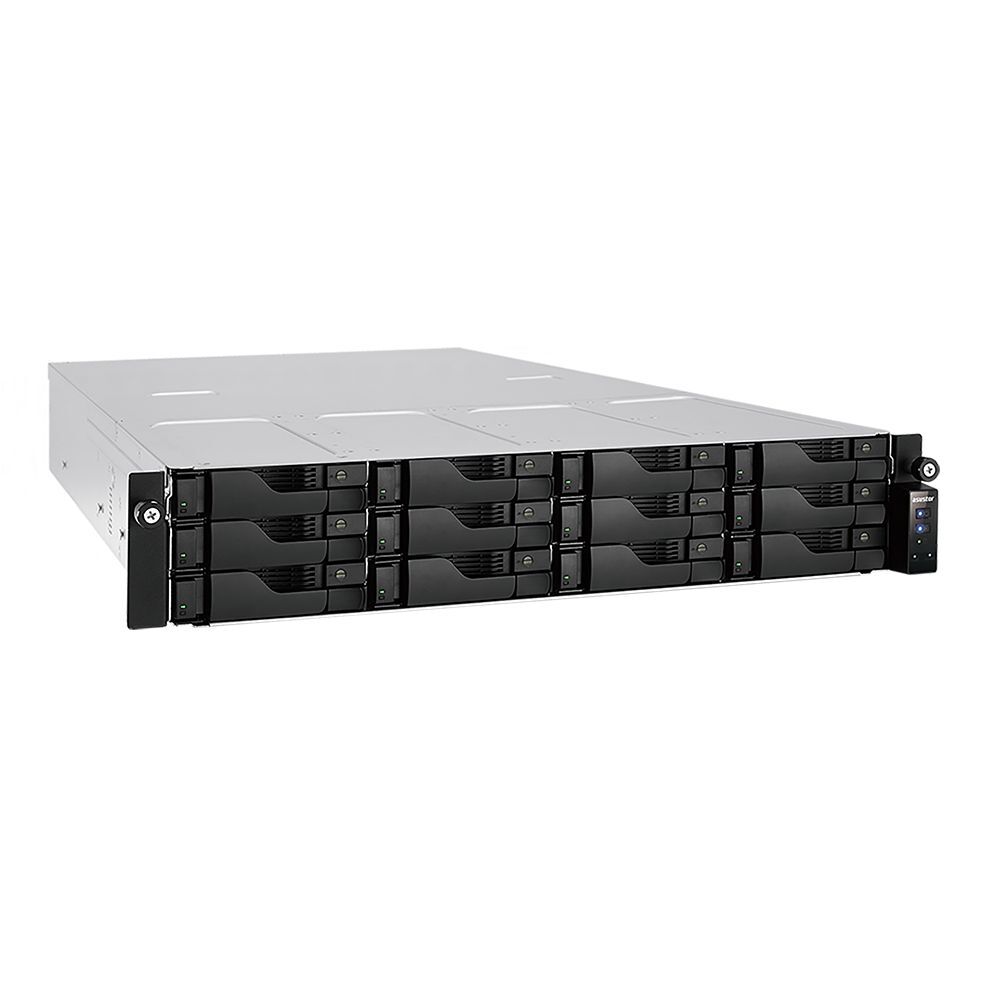

ASUSTOR AS6512RD Lockerstor 12 Bay NAS
For small and medium businesses, with an Intel Atom C3538 2.1GHz quad-core CPU, 8 GB DDR4-2133 and multi-port Ethernet connectivity.
For Small and Medium Businesses
- Intel Atom C3538 2.1GHz Quad-Core CPU
- 8 GB DDR4-2133 - 128 GB maximum
- Two Gigabit Ethernet and two 2.5-Gigabit Ethernet ports. Can provide up to 5 gbps when aggregated.
- Supports Wake-on-LAN and Wake-on-WAN
- Complete iSCSI/IP-SAN and NFS support - Supports VMware, Citrix and Hyper-V - Supports virtual machines and Docker applications
- Supports ACL and AD. Improves business application efficiency.
- PCIe slot for 10-Gigabit Ethernet card
Technical Overview
| Processor | Intel Atom C3538 2.1GHz Quad-Core CPU |
|---|---|
| Memory | 8 GB DDR4-2133 - 128 GB maximum |
| Network | Two Gigabit Ethernet and two 2.5-Gigabit Ethernet ports |
| Aggregated Performance | Can provide up to 5 gbps when aggregated |
| Remote Wake | Wake-on-LAN and Wake-on-WAN |
| Storage Protocols | Complete iSCSI/IP-SAN and NFS support |
| Virtualization | VMware, Citrix and Hyper-V; virtual machines and Docker applications |
| Business Features | ACL and AD support |
| Expansion | PCIe slot for 10-Gigabit Ethernet card |
Product FAQs
Answers based only on the product information supplied for this item.
Which processor does the ASUSTOR AS6512RD use?
The supplied description lists an Intel Atom C3538 2.1GHz quad-core CPU.
How much memory does the AS6512RD include?
It includes 8 GB DDR4-2133 memory, with a supplied maximum of 128 GB.
Which Ethernet ports are included?
The supplied description lists two Gigabit Ethernet ports and two 2.5-Gigabit Ethernet ports.
What aggregated network speed is listed?
The supplied information states that the Ethernet ports can provide up to 5 gbps when aggregated.
Does the AS6512RD support Wake-on-LAN and Wake-on-WAN?
Yes. Both are included in the supplied feature list.
Which storage protocols are supported?
The supplied description lists complete iSCSI/IP-SAN and NFS support.
Which virtualization platforms are listed?
The supplied information lists VMware, Citrix and Hyper-V, along with virtual machines and Docker applications.
Does the AS6512RD support ACL and AD?
Yes. ACL and AD support is included in the supplied feature list.
Can a 10-Gigabit Ethernet card be installed?
Yes. The supplied description lists a PCIe slot for a 10-Gigabit Ethernet card.
(AS6512RD)
Hardware Specifications |
||
|---|---|---|
CPU |
CPU Model | Intel ATOM C3538 |
| CPU Architecture | x64 64-bit | |
| CPU Frequency | Quad-Core 2.1GHz | |
Memory |
Memory | 8GB SO-DIMM DDR4 |
| Memory Module Pre-installed | 8GB (1x 8GB) | |
| Total Memory Slots | 4 | |
| Memory Expandable up to | 128GB (4x 32GB)
|
|
| Flash Memory | 8GB eMMC | |
Storage |
Drive Bays | 12 |
| Compatible Drive Type |
|
|
| Maximum Drive Bays with | 28 | |
| Supports Hot Swappable Drives | ||

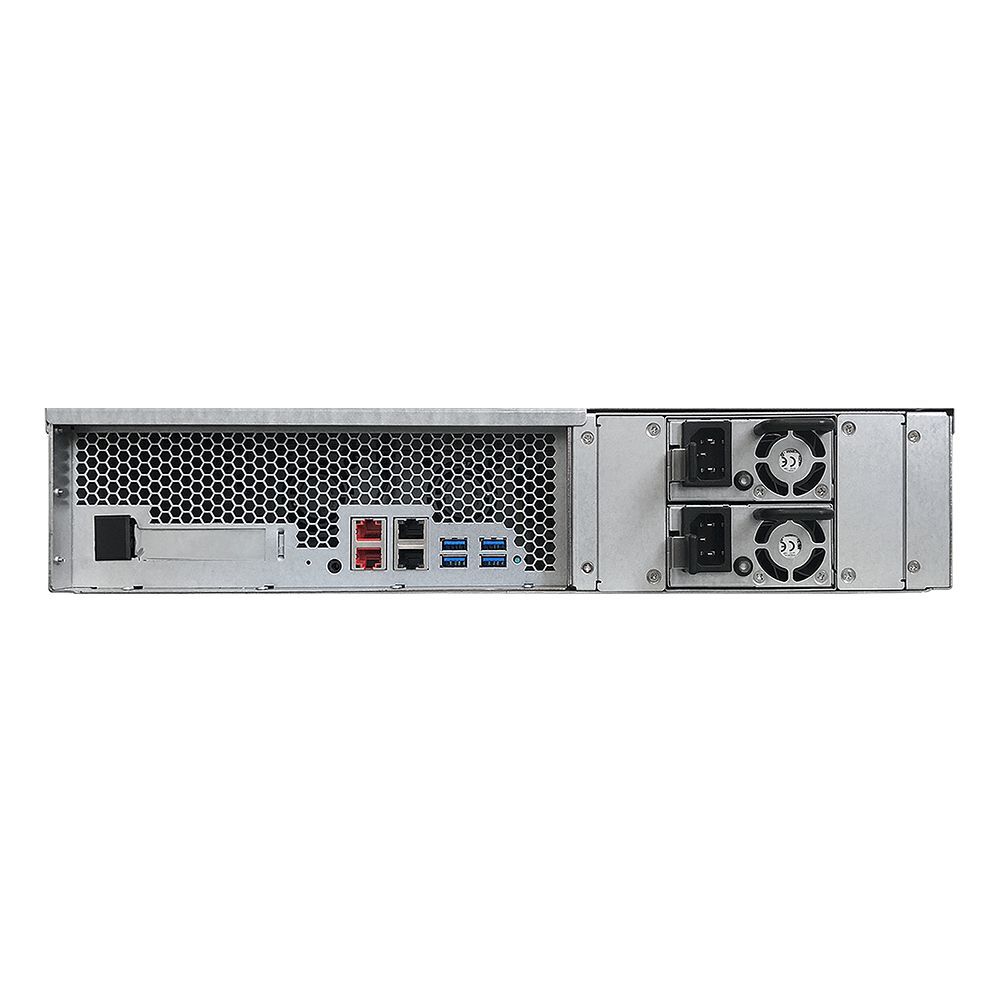

External Ports |
Expansion | 4x USB 3.2 Gen 1 |
| Network |
|
|
|
|
PCIe Expansion Slots | PCIe 3.0 x8 slot (black, x4 link) |
|
|
Multimedia Output | N/A |
Others |
System Fan | 2x 60mm |
| Power Supply Unit / Adapter | 350W x2 | |
| Input Power Voltage | 100V to 240V AC | |
| Redundant power supply | ||
| Service LED Indicator | ||
| Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS | |
| Warranty | 3 Years | |
Operation |
Power Consumption | 115W (Operation) 67W (Disk Hibernation) |
| Noise Level | - | |
| Operation Temperature | 0°C~40°C (32°F~104°F) | |
| Storage Temperature | -20°C~70°C (-4°F~158°F) | |
| Humidity | 5% to 95% RH | |
Size and Weight |
Size | 88(H) x 439(W) x 535(D) mm |
| Weight | 11.7kg / 25.74lb | |
| SKU | AS6512RD |
| Barcode # | 887372138407 |
| Brand | ASUSTOR |
| Shipping Weight | 11.7000kg |
