Enthusiast-Grade NAS

The No-Compromises 2.5GbE NAS

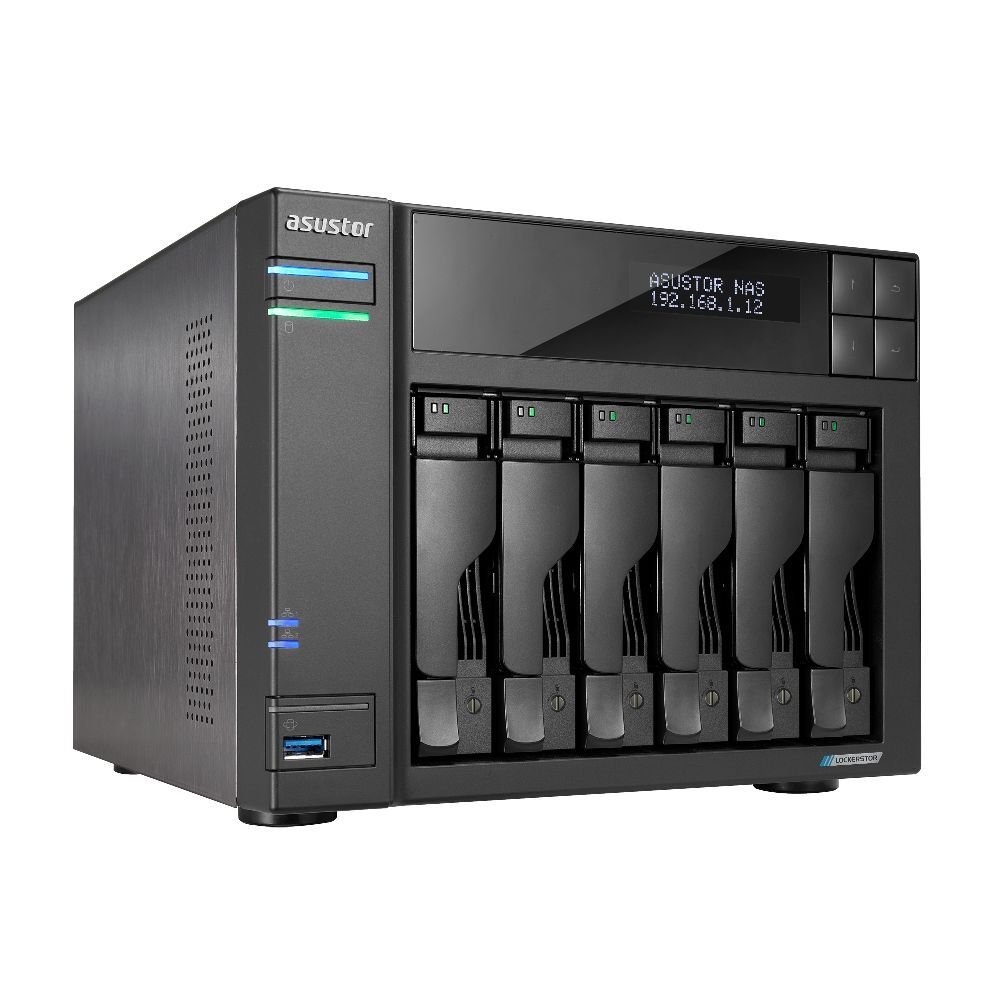

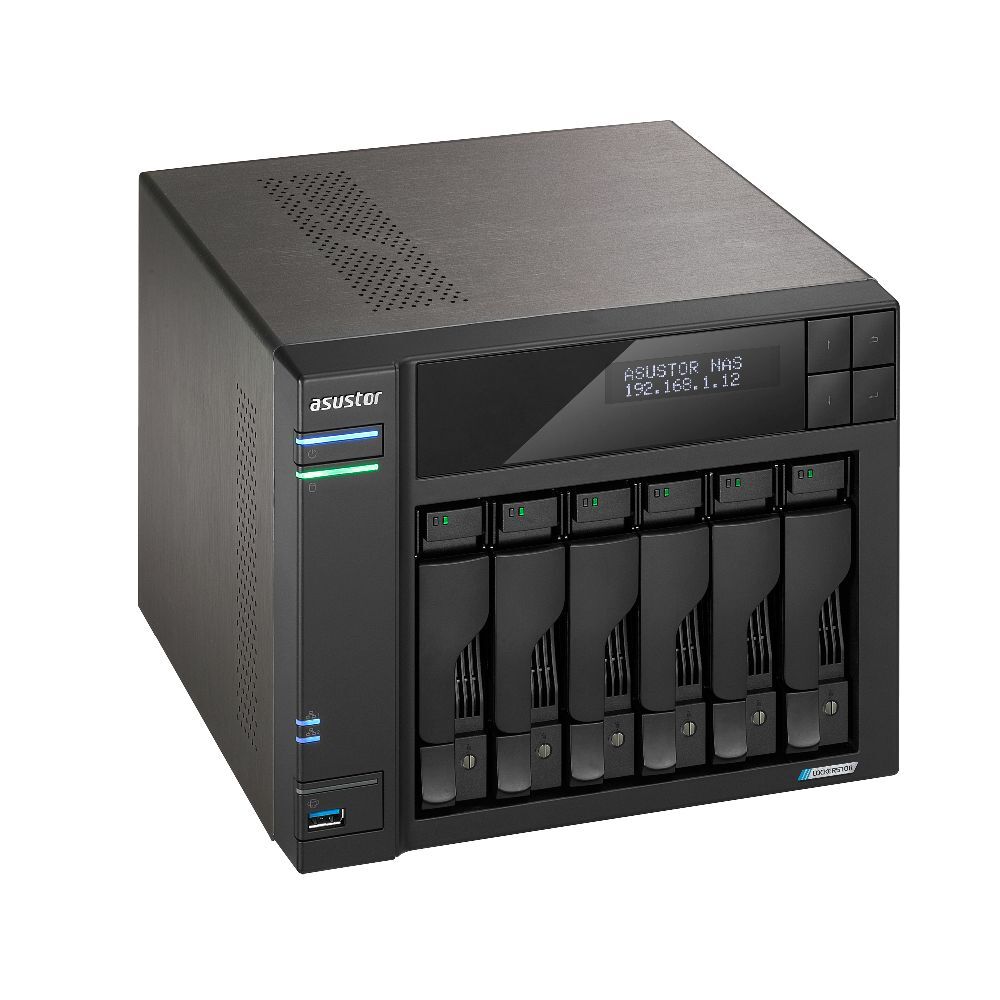

ASUSTOR AS6706T Lockerstor six-bay NAS with an Intel Celeron N5105 quad-core processor, 8GB DDR4 and flexible PCIe expansion.

6 BayLockerstor NAS

2.0GHzIntel Celeron N5105

8GBDDR4 Memory

2.5GbEEthernet Ports

Key Features

Processor	Quad-Core 10 nm Intel Celeron N5105 CPU brings 31% more performance
Memory	DDR4-2933 with 40% more performance; product name lists 8GB DDR4
Ethernet	Superfast 2.5-Gigabit Ethernet ports
PCIe Slot	Flexible PCIe slot for 10GbE NICs or M.2 SSDs
SSD Support	PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0
USB	USB 3.2 Gen2 ports – 10Gbps speed
Multimedia	Download, upload and stream content with 4K transcoding
Cooling	Increased ventilation for SSDs
Remote Wake	Wake on LAN and Wake on WAN

Frequently Asked Questions

Answers based only on the product information supplied for this item.

Which processor does the ASUSTOR AS6706T use?

The supplied description lists a quad-core 10 nm Intel Celeron N5105 CPU that brings 31% more performance.

How much memory does the AS6706T include?

The product name lists 8GB DDR4, and the supplied feature list states DDR4-2933 with 40% more performance.

Which Ethernet connectivity is listed?

The supplied feature list includes superfast 2.5-Gigabit Ethernet ports.

What can the flexible PCIe slot support?

The supplied description states that it supports 10GbE NICs or M.2 SSDs.

Does the AS6706T support PCIe 3.0 SSDs?

Yes. The supplied description states support for PCIe 3.0 SSDs for up to twice the performance of PCIe 2.0.

Which USB speed is listed?

The supplied description lists USB 3.2 Gen2 ports at 10Gbps speed.

Does the AS6706T support 4K transcoding?

Yes. The supplied description includes downloading, uploading and streaming content with 4K transcoding.

Does the AS6706T support Wake on LAN and Wake on WAN?

Yes. Both are included in the supplied feature list.

(AS6706T)

Hardware Specifications
CPU	CPU Model	Intel Celeron N5105
	CPU Architecture	x64 64-bit
	CPU Frequency	Quad-Core 2.0GHz (burst up 2.90 GHz)
Memory	Memory	8GB SO-DIMM DDR4
	Memory Module Pre-installed	8GB (1x 8GB)
	Total Memory Slots	2
	Memory Expandable up to	16GB (2x 8GB) Support mixed capacity
	Flash Memory	8GB eMMC
Storage	Drive Bays	6
	M.2 Drive Slots	4
	Compatible Drive Type	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe
	M.2 PCIe Interface	PCIe 3.0 x1
	Maximum Drive Bays with	14
	Supports Hot Swappable Drives

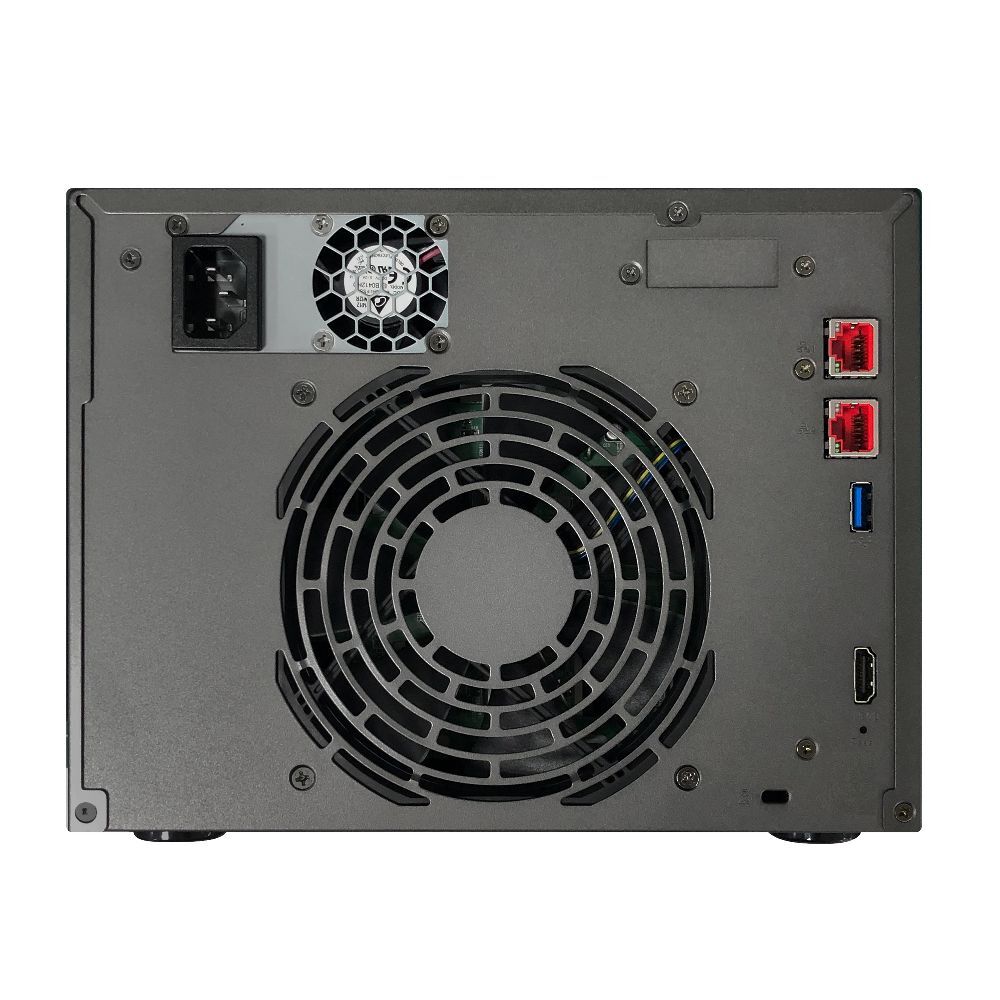

External Ports	Expansion	2x USB 3.2 Gen 2 (10Gbps)
	Network	2x 2.5 Gigabit Ethernet (2.5G/1G/100M)
	PCIe Expansion Slots	1x for optional expansion 10 GbE card
	Multimedia Output	1x HDMI 2.0b
Others	System Fan	1x 120mm
	LCD Panel
	Infrared Receiver
	Power Supply Unit / Adapter	250W x1
	Input Power Voltage	100V to 240V AC
	Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
	Warranty	3 Years
Operation	Power Consumption	48.5 W (Operation); 27.7 W (Disk Hibernation); 0.81 W (Sleep Mode)
	Noise Level	18.1dB (HDD idle)
	Operation Temperature	0°C~40°C (32°F~104°F)
	Storage Temperature	-20°C~70°C (-4°F~158°F)
	Humidity	5% to 95% RH
Size and Weight	Size	185.5 (H) x 233 (W) x 230 (D) mm
	Weight	4.4 kg / 9.7 lb
