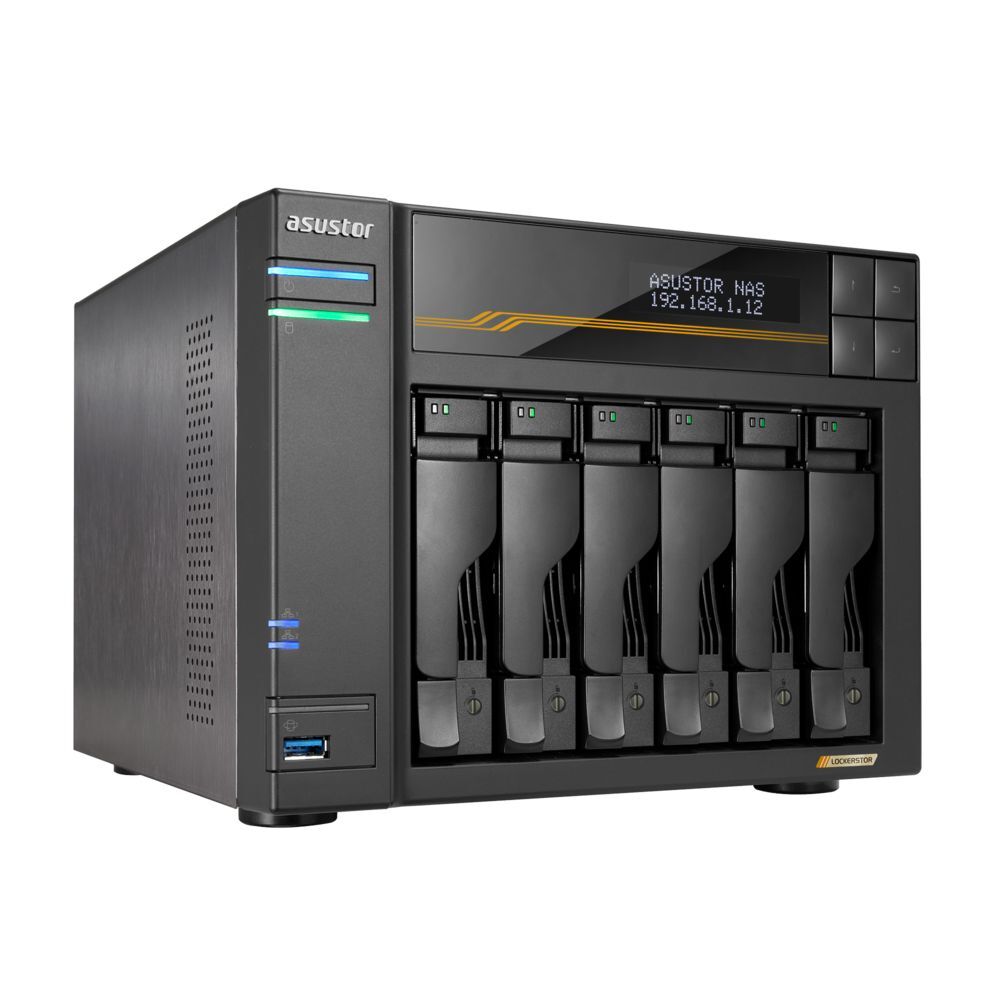

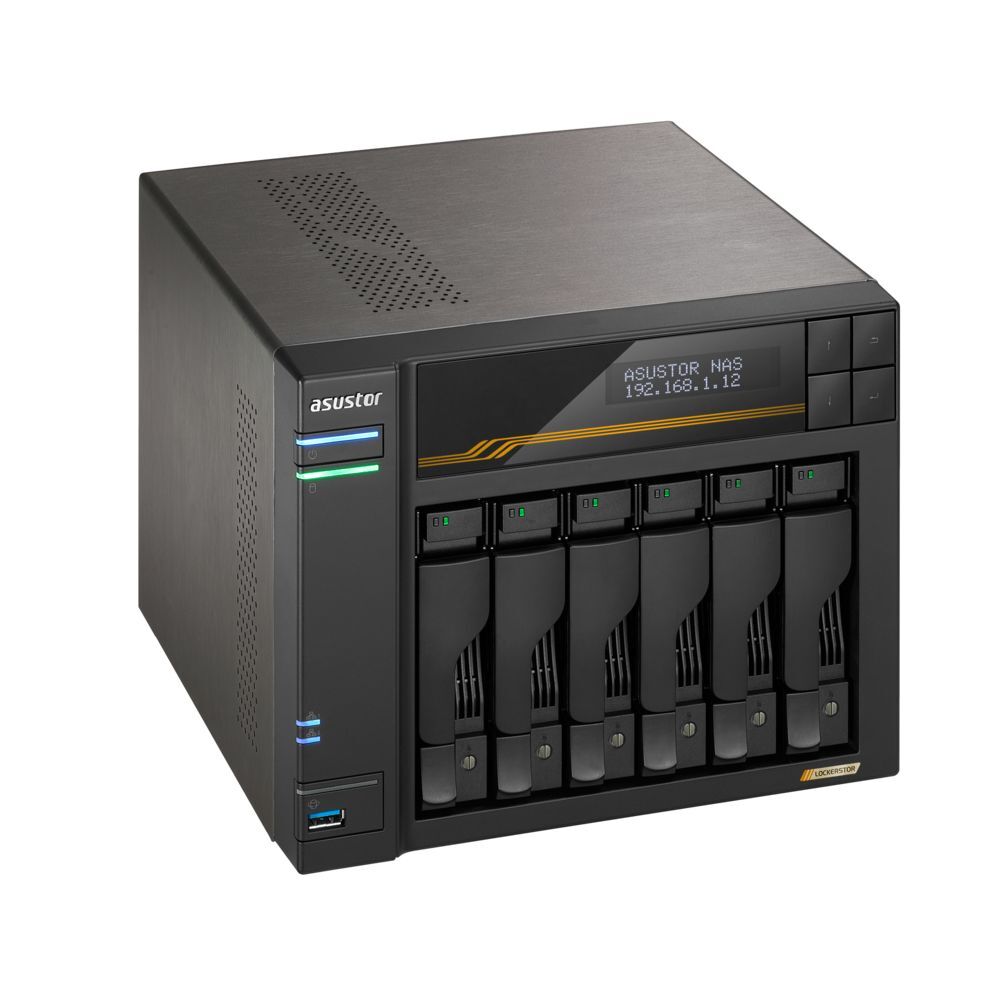

ASUSTOR AS6806T Lockerstor 6 Bay NAS, AMD Ryzen V3C14 Quad-Core 2.3GHz, 16G ECC DDR5
Model # AS6806T
-
SKU: AS6806T
- Pick Up Available
- Australian Warranty
- Checkout Securely
Ryzen up to the challenge!
ASUSTOR AS6806T Lockerstor 6-bay NAS with AMD Ryzen Embedded processing, 16GB ECC DDR5, PCIe 4.0 M.2 slots, USB4 and multi-gigabit Ethernet.
Key Features
- Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz - 3.8 GHz Turbo
- 16GB of server-grade DDR5-4800 ECC memory (Max 64GB)
- Quad M.2 slots for NVMe SSDs – Doubled Performance with PCIe 4.0
- 2x USB4 ports at 40 Gbps
- 3x USB 3.2 Gen 2 Type-A at 10 Gbps
- 2x 10-Gigabit Ethernet
- 2x 5-Gigabit Ethernet
- Supports Wake on LAN and Wake on WAN (5 GbE)
Technical Overview
| Processor | Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz - 3.8 GHz Turbo |
|---|---|
| Memory | 16GB server-grade DDR5-4800 ECC memory (Max 64GB) |
| M.2 | Quad M.2 slots for NVMe SSDs – PCIe 4.0 |
| USB4 | 2x USB4 ports at 40 Gbps |
| USB Type-A | 3x USB 3.2 Gen 2 Type-A at 10 Gbps |
| Ethernet | 2x 10-Gigabit Ethernet and 2x 5-Gigabit Ethernet |
| Remote Wake | Wake on LAN and Wake on WAN (5 GbE) |
Post-Quantum Cryptography (PQC) Ready: ADM Prepared for Future Threats
ASUSTOR has officially upgraded ADM to support PQC Hybrid TLS encryption certified by the US NIST. This fully adopts the official version of the Kyber algorithm, X25519+ML-KEM 768, and in ADM 5.1 and later, is automatically enables this feature through TLS 1.3 without requiring any configuration. This protects against the Harvest Now, Decrypt Later threat. As long as your browser supports PQC, it will immediately establish a post-quantum cryptography (PQC) encrypted secure connection, and the connection status will be clearly displayed through the ADM interface, ensuring that data stored on your ASUSTOR NAS can withstand future quantum computer threats.
Ryzen Up to the Challenge!
AMD’s Ryzen Embedded SoCs are so efficient, that they bring both energy savings and uncompromised desktop-class performance. Four cores at up to 3.8 GHz helps you transfer, store, create and more at unbelievable efficiency.
Server-grade ECC memory
ECC memory is memory usually used in servers for detection and correction of the most common kinds of data corruption. This can help prevent data loss due to electromagnetic interference or crashes, making the NAS the Lockerstor 16R pro our most stable NAS ever.
Speeds keep Ryzen and Ryzen!
The Lockerstor Gen3 series is ASUSTOR’s fastest NAS ever! The combination of AMD’s Ryzen Embedded SoC, M.2 SSDs using PCIe 4.0, USB4, and dual 10GbE to ensure everything you want to do with your NAS is nothing short of extremely fast. With four M.2 slots for NVMe SSDs and up to ten bays for HDDs, the Lockerstor Gen3 series ensure that you get the best of both speed and capacity.
PCI Express 4.0 Brings Doubled Performance
The Lockerstor Gen3 series is equipped with four M.2 slots for NVMe SSDs. These newly upgraded M.2 slots now support the PCI Express 4.0 bus which doubles the performance over PCI Express 3.0. ADM supports both caching and storage for faster random I/O performance done your way.
USB4 – The 4 Stands for 40 Gbps!
The Lockerstor Gen3 is equipped with two USB4* Type-C ports providing ultra-high speeds of up to 40 Gbps. Plug in USB4, Thunderbolt 3 or Thunderbolt 4 storage devices to transfer your work and personal data at speeds never before seen on an ASUSTOR NAS.
The Hottest NAS Ever is also the Coolest
With all these features packed into a small footprint, the Lockerstor Gen3 series and the installed AMD Ryzen Embedded SoCs require the best cooling solution. The heat dissipation solution in the Lockerstor Gen3 uses heat pipes and fins to dissipate waste heat from the CPU, enabling the Lockerstor Gen3 to chew through virtually any storage task you throw at it.
Product FAQs
Answers based only on the product information supplied for this item.
Which processor does the ASUSTOR AS6806T use?
The supplied description lists a quad-core AMD Ryzen Embedded V3C14 CPU at 2.3 GHz with up to 3.8 GHz Turbo.
How much memory does it include?
It includes 16GB of server-grade DDR5-4800 ECC memory, with a supplied maximum of 64GB.
How many M.2 slots are listed?
The supplied description includes four M.2 slots for NVMe SSDs with PCI Express 4.0.
Which USB4 connectivity is included?
The supplied description lists two USB4 Type-C ports with speeds of up to 40 Gbps.
Which Ethernet ports are included?
The supplied feature list includes two 10-Gigabit Ethernet ports and two 5-Gigabit Ethernet ports.
Does the supplied description include PQC support?
Yes. It states that ADM supports PQC Hybrid TLS encryption and automatically enables X25519+ML-KEM 768 through TLS 1.3 in ADM 5.1 and later when the browser supports PQC.
Does it support Wake on LAN and Wake on WAN?
Yes. The supplied feature list includes Wake on LAN and Wake on WAN on 5 GbE.
What does the supplied description say about cooling?
It describes heat pipes and fins used to dissipate CPU heat and help maintain high performance under heavy loads.
(AS6806T)
Hardware Specifications |
||
|---|---|---|
CPU |
CPU Model | AMD Ryzen V3C14 |
| CPU Architecture | x64 64-bit | |
| CPU Frequency | Quad-Core 2.3GHz (burst up 3.8 GHz) | |
Memory |
Memory | 16GB ECC DDR5-4800 SO-DIMM |
| Memory Module Pre-installed | 16GB (1x 16GB) | |
| Total Memory Slots | 2 | |
| Memory Expandable up to | 64GB
|
|
| Flash Memory | 8GB eMMC | |
Storage |
Drive Bays | 6 |
| M.2 Drive Slots | 4 | |
| Compatible Drive Type |
|
|
| M.2 PCIe Interface | PCIe 4.0 x1 | |
| Maximum Drive Bays with | 18 | |
| Supports Hot Swappable Drives | ||

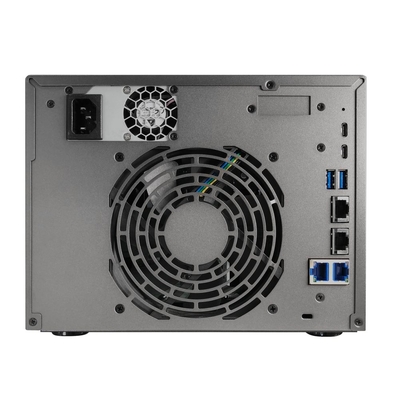

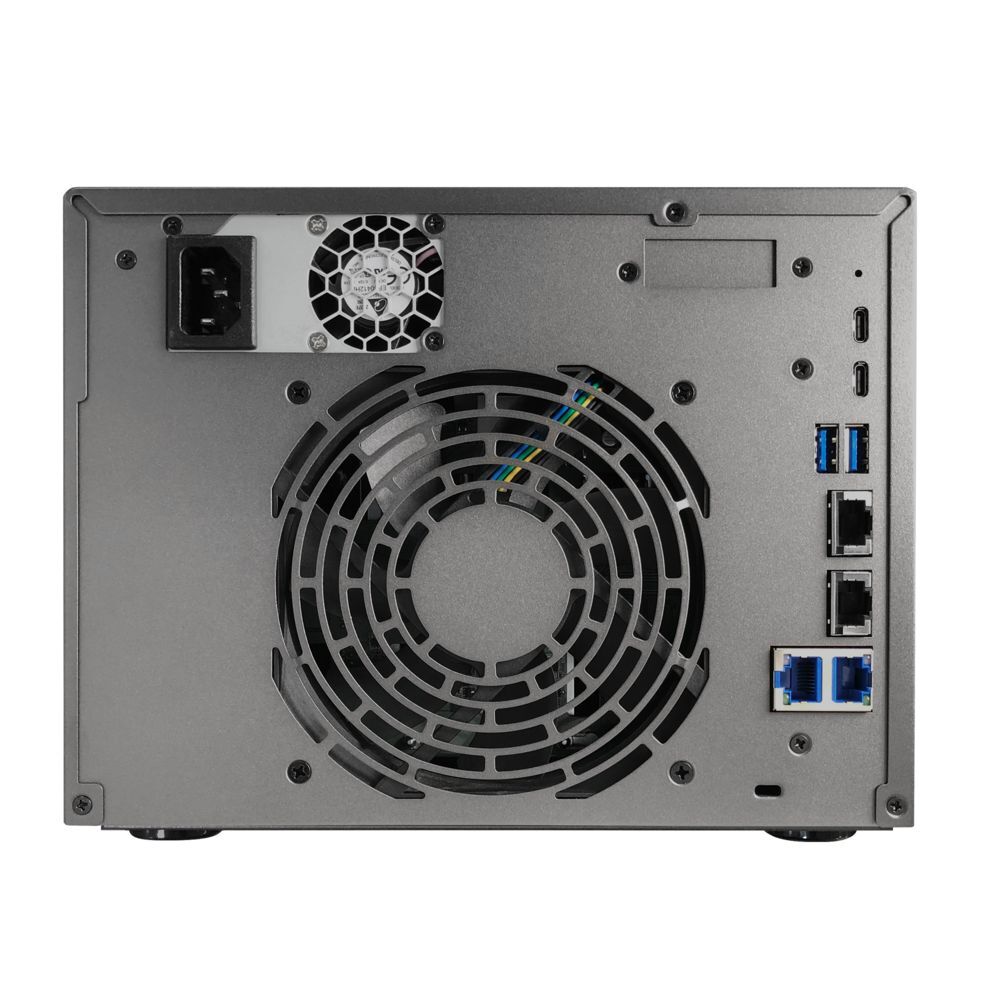

External Ports |
Expansion |
|
| Network |
|
|
|
|
PCIe Expansion Slots | PCIe 4.0, x4 link, (for optional 10 GbE card) |
|
|
Multimedia Output | N/A |
Others |
System Fan | 1x 120mm |
| LCD Panel | ||
| Power Supply Unit / Adapter | 250W x1 | |
| Input Power Voltage | 100V to 240V AC | |
| Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA | |
| Warranty | 3 Years | |
Operation |
Power Consumption | 45 W (Operation); 2.3 W (Sleep Mode) |
| Noise Level | 18.1dB (HDD idle) | |
| Operation Temperature | 0°C~40°C (32°F~104°F) | |
| Storage Temperature | -20°C~70°C (-4°F~158°F) | |
| Humidity | 5% to 95% RH | |
Size and Weight |
Size | 185.5 (H) x 233 (W) x 230 (D) mm |
| Weight | 4.4 kg / 9.7 lb | |
| SKU | AS6806T |
| Brand | ASUSTOR |
| Shipping Weight | 4.4000kg |
