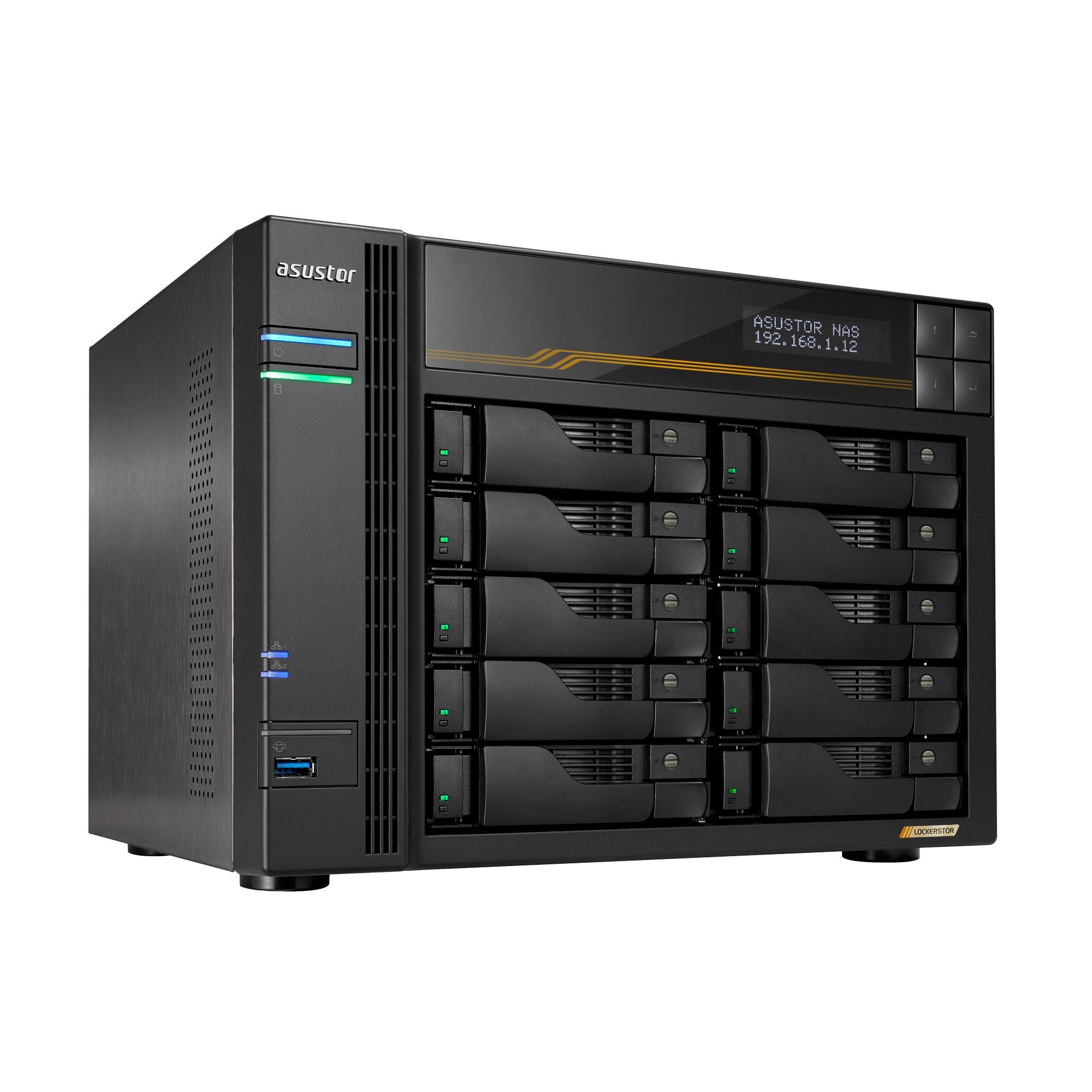

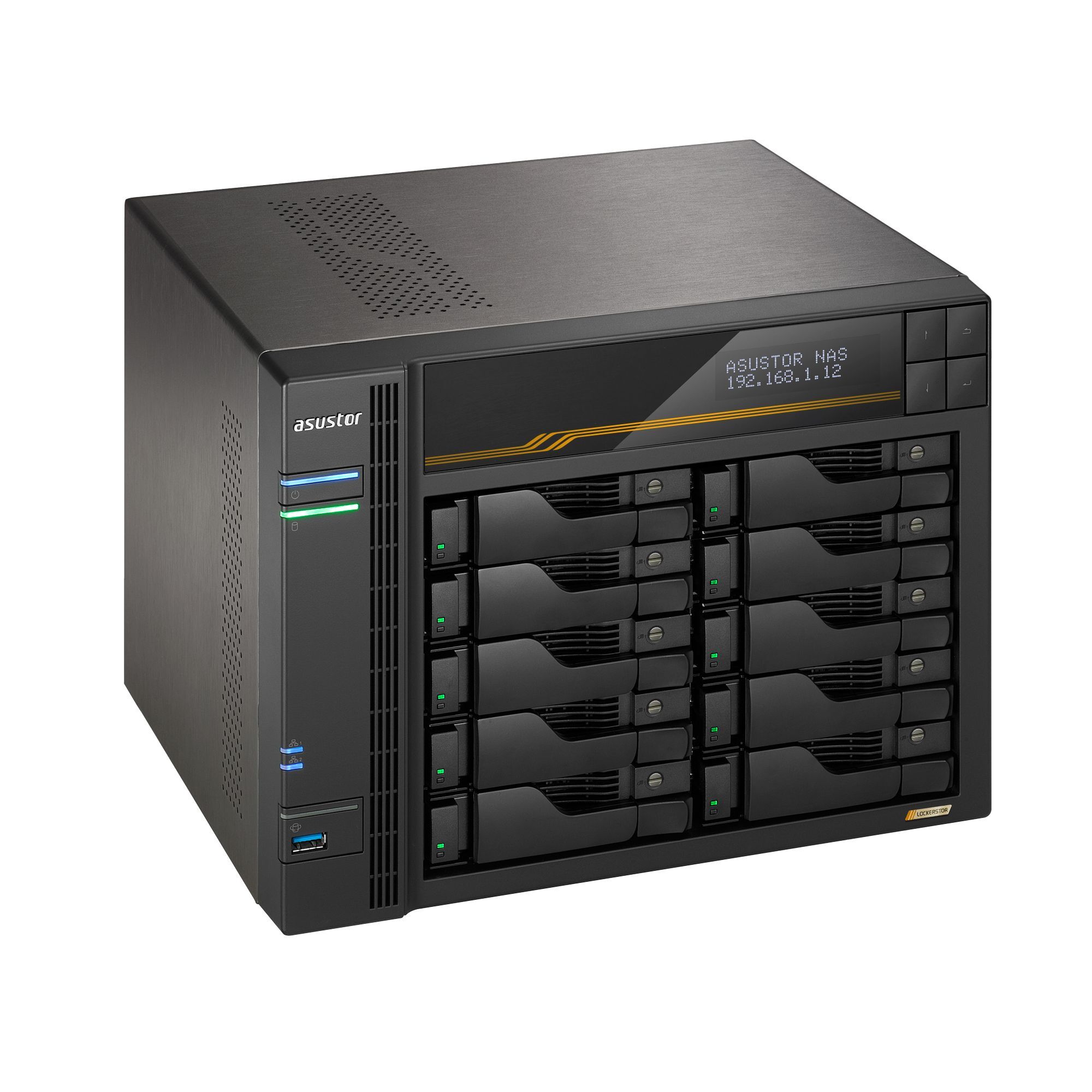

ASUSTOR AS6810T Lockerstor, 10 Bay NAS, AMD Ryzen V3C14 Quad-Core 2.3GHz, 16G ECC DDR5
Model # AS6810T
-
SKU: AS6810T
- Pick Up Available
- Australian Warranty
- Checkout Securely
Ryzen up to the challenge!
ASUSTOR AS6810T Lockerstor ten-bay NAS with AMD Ryzen Embedded processing, 16GB ECC DDR5, PCIe 4.0 M.2 slots, USB4 and multi-gigabit Ethernet.
Key Features
- Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz - 3.8 GHz Turbo
- 16GB of server-grade DDR5-4800 ECC memory (Max 64GB)
- Quad M.2 slots for NVMe SSDs – Doubled Performance with PCIe 4.0
- 2x USB4 ports at 40 Gbps
- 3x USB 3.2 Gen 2 Type-A at 10 Gbps
- 2x 10-Gigabit Ethernet
- 2x 5-Gigabit Ethernet
- Supports Wake on LAN and Wake on WAN (5 GbE)
Technical Overview
| Processor | Quad-Core AMD Ryzen Embedded V3C14 CPU @ 2.3 GHz - 3.8 GHz Turbo |
|---|---|
| Memory | 16GB server-grade DDR5-4800 ECC memory (Max 64GB) |
| M.2 | Quad M.2 slots for NVMe SSDs – PCIe 4.0 |
| USB4 | 2x USB4 ports at 40 Gbps |
| USB Type-A | 3x USB 3.2 Gen 2 Type-A at 10 Gbps |
| Ethernet | 2x 10-Gigabit Ethernet and 2x 5-Gigabit Ethernet |
| Remote Wake | Wake on LAN and Wake on WAN (5 GbE) |
Efficiently Large and In Charge
Built with dual-redundant 80 PLUS Platinum certified power supplies, providing stable power delivery with up to 92% power conversion efficiency. This ensures optimal energy use even under high workloads, helping businesses save on electricity costs while supporting eco-friendly operations.
Ryzen Up to the Challenge!
AMD’s Ryzen Embedded SoCs are so efficient, that they bring both energy savings and uncompromised desktop-class performance. Four cores at up to 3.8 GHz helps you transfer, store, create and more at unbelievable efficiency.
Server-grade ECC memory
ECC memory is memory usually used in servers for detection and correction of the most common kinds of data corruption. This can help prevent data loss due to electromagnetic interference or crashes, making the NAS the Lockerstor 16R pro our most stable NAS ever.
PCI Express 4.0 Brings Doubled Performance
The Lockerstor Gen3 series is equipped with four M.2 slots for NVMe SSDs. These newly upgraded M.2 slots now support the PCI Express 4.0 bus which doubles the performance over PCI Express 3.0. ADM supports both caching and storage for faster random I/O performance done your way.
USB4 – The 4 Stands for 40 Gbps!
The Lockerstor Gen3 is equipped with two USB4* Type-C ports providing ultra-high speeds of up to 40 Gbps. Plug in USB4, Thunderbolt 3 or Thunderbolt 4 storage devices to transfer your work and personal data at speeds never before seen on an ASUSTOR NAS.
The Hottest NAS Ever is also the Coolest
With all these features packed into a small footprint, the Lockerstor Gen3 series and the installed AMD Ryzen Embedded SoCs require the best cooling solution. The heat dissipation solution in the Lockerstor Gen3 uses heat pipes and fins to dissipate waste heat from the CPU, enabling the Lockerstor Gen3 to chew through virtually any storage task you throw at it.
Exclusive MyArchive Cold Backup Technology Unlimited Capacity Expansion
MyArchive cold backup technology turns NAS hard disks into removable storage archives. Directly insert a MyArchive hard disk into the NAS to easily access, backup and share terabytes of content.
Product FAQs
Answers based only on the product information supplied for this item.
Which processor does the ASUSTOR AS6810T use?
The supplied description lists a quad-core AMD Ryzen Embedded V3C14 CPU at 2.3 GHz with up to 3.8 GHz Turbo.
How much memory does it include?
It includes 16GB of server-grade DDR5-4800 ECC memory, with a supplied maximum of 64GB.
Which networking is included?
The supplied feature list includes two 10-Gigabit Ethernet ports and two 5-Gigabit Ethernet ports.
Which USB4 connectivity is included?
The supplied description lists two USB4 Type-C ports with speeds of up to 40 Gbps.
What M.2 support is listed?
It includes four M.2 slots for NVMe SSDs with PCI Express 4.0.
What power-supply information is provided?
The supplied description states dual-redundant 80 PLUS Platinum certified power supplies with up to 92% power conversion efficiency.
Does it support Wake on LAN and Wake on WAN?
Yes. The supplied feature list includes Wake on LAN and Wake on WAN on 5 GbE.
What backup feature is described?
The supplied description includes MyArchive cold backup technology, which turns NAS hard disks into removable storage archives.
(AS6810T)
Hardware Specifications |
||
|---|---|---|
CPU |
CPU Model | AMD Ryzen V3C14 |
| CPU Architecture | x64 64-bit | |
| CPU Frequency | Quad-Core 2.3GHz (burst up 3.8 GHz) | |
Memory |
Memory | 16GB ECC DDR5-4800 SO-DIMM |
| Memory Module Pre-installed | 16GB (1x 16GB) | |
| Total Memory Slots | 2 | |
| Memory Expandable up to | 64GB
|
|
| Flash Memory | 8GB eMMC | |
Storage |
Drive Bays | 10 |
| M.2 Drive Slots | 4 | |
| Compatible Drive Type |
|
|
| M.2 PCIe Interface | PCIe 4.0 x1 | |
| Maximum Drive Bays with | 22 | |
| Supports Hot Swappable Drives | ||
External Ports |
Expansion |
|
| Network |
|
|
|
|
PCIe Expansion Slots | PCIe 4.0, x4 link, (for optional 10 GbE card) |
|
|
Multimedia Output | N/A |
Others |
System Fan | 2x 120mm |
| LCD Panel | ||
| Power Supply Unit / Adapter | 250W x1 | |
| Input Power Voltage | 100V to 240V AC | |
| Certification | FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA | |
| Warranty | 3 Years | |
Operation |
Power Consumption | 68 W (Operation); 2.4 W (Sleep Mode) |
| Noise Level | 22dB (HDD idle) | |
| Operation Temperature | 0°C~40°C (32°F~104°F) | |
| Storage Temperature | -20°C~70°C (-4°F~158°F) | |
| Humidity | 5% to 95% RH | |
Size and Weight |
Size | 215.5(H) x 293(W) x 230(D) mm |
| Weight | 6.55 kg / 14.44 lb | |
| SKU | AS6810T |
| Barcode # | 887372001688 |
| Brand | ASUSTOR |
| Shipping Weight | 6.5500kg |
