Flashstor 6 Gen2

ASUSTOR FS6806X Flashstor 6 Gen2 NVMe NAS

A six-slot M.2 NVMe NAS with an AMD Ryzen Embedded V3C14 processor, 8GB DDR5-4800 memory, 10-Gigabit Ethernet, USB4 and support for PCIe 4.0 x4 SSD connectivity.

6xM.2 NVMe Slots

Ryzen V3C14Quad-Core CPU

8GBDDR5-4800 RAM

10GbEEthernet

Key Features

AMD Quad-Core 6 nm Ryzen Embedded V3C14 Processor
Six M.2 slots for NVMe SSDs - Supports up to PCIe 4.0 x4
10-Gigabit Ethernet
Powered by 8 GB of DDR5-4800 RAM – ECC RAM supported
2 x USB 4.0 (Type-C)
3 x USB 3.2 Gen 2 (Type-A)
Suitable for 4K editing, enthusiasts, and content creation

Technical Overview

Processor	AMD Quad-Core 6 nm Ryzen Embedded V3C14 processor; supplied product name lists 2.3GHz
M.2 NVMe Slots	Six
PCIe Support	Up to PCIe 4.0 x4
Ethernet	10-Gigabit Ethernet
Memory	8 GB DDR5-4800 RAM
ECC Memory	Supported; supplied description states a maximum of 64 GB
USB4	2 x USB 4.0 Type-C; supplied description states speeds up to 40 Gbps
USB Type-A	3 x USB 3.2 Gen 2 Type-A
Suggested Use	4K editing, enthusiasts and content creation
Expansion Unit	AS5004U support is stated for connecting hard drives through USB 3 ports

Post-Quantum Cryptography (PQC) Ready: ADM Prepared for Future Threats

ASUSTOR has officially upgraded ADM to support PQC Hybrid TLS encryption certified by the US NIST. This fully adopts the official version of the Kyber algorithm, X25519+ML-KEM 768, and in ADM 5.1 and later, automatically enables this feature through TLS 1.3 without requiring any configuration. This protects against the Harvest Now, Decrypt Later threat. As long as your browser supports PQC, it will immediately establish a post-quantum cryptography (PQC) encrypted secure connection, and the connection status will be clearly displayed through the ADM interface, ensuring that data stored on your ASUSTOR NAS can withstand future quantum computer threats.

Ryzen + Flash = Fast

The AMD Ryzen™ Embedded V3C14 processor integrates high-performance Zen 3 cores into a cool and quiet CPU. The exceptional processing efficiency and high-speed I/O connectivity of the Ryzen Embedded CPU ensures efficient operation, enabling fast data transfer and high-speed computing while sipping minimal power.

Breaking the 10 Gbps Barrier

The Flashstor 6 Gen2 series features 10-Gigabit Ethernet, allowing for high speed transfers when paired with a 10GbE-enabled device and a compatible router or switch.

ECC RAM Supported

ECC (Error-Correcting Code) can detect and correct memory errors, enhancing system stability and reliability. It reduces the risk of data errors, ensuring data integrity in enterprise environments. For businesses that require high reliability, consider upgrading your Flashstor Gen2 to the maximum of 64 GB of memory for enterprise servers and workstations.

USB4 – The 4 Stands for 40 Gbps!

The Lockerstor Gen3 is equipped with two USB4* Type-C ports providing ultra-high speeds of up to 40 Gbps. Plug in USB4, Thunderbolt 3 or Thunderbolt 4 storage devices to transfer your work and personal data at speeds never before seen on an ASUSTOR NAS.

Keeping Cool

The Flashstor Gen2 series now incorporate an improved thermal dissipation design that includes strategically placed fans that are efficient and silent to cool every high performance component in the Flashstor Gen2 series. This optimized cooling efficiency ensures sustained high performance while maintaining low noise levels.

Hard Drives Welcome!

The all-SSD Flashstor continues ADM’s amazing support for hard drives when connecting an AS5004U expansion unit to the USB 3 ports on your NAS. When raw capacity is needed, the Flashstor enables the best of both worlds.

Source-text note: The supplied USB4 section refers to “Lockerstor Gen3” even though this product is named as a Flashstor model. That wording has been retained and flagged rather than corrected using external information.

Frequently Asked Questions

Product FAQs

Answers based only on the product information supplied for this item.

Which processor does the ASUSTOR FS6806X use?

The supplied description lists an AMD quad-core 6 nm Ryzen Embedded V3C14 processor with high-performance Zen 3 cores.

How many M.2 NVMe slots are included?

The FS6806X includes six M.2 slots for NVMe SSDs with support up to PCIe 4.0 x4.

Which network connection is listed?

The supplied description lists 10-Gigabit Ethernet.

How much memory is included?

It is powered by 8 GB of DDR5-4800 RAM.

Does the FS6806X support ECC RAM?

Yes. ECC RAM support is listed, and the supplied description states a maximum of 64 GB of memory.

Which USB ports are included?

The supplied feature list includes two USB 4.0 Type-C ports and three USB 3.2 Gen 2 Type-A ports.

What is the stated USB4 speed?

The supplied description states speeds of up to 40 Gbps for the two USB4 Type-C ports.

Can hard drives be connected through an expansion unit?

Yes. The supplied description states that an AS5004U expansion unit can be connected to the USB 3 ports.

What workloads is this model described as suitable for?

The supplied feature list describes it as suitable for 4K editing, enthusiasts and content creation.

(FS6806X)

Hardware Specifications
CPU	CPU Model	AMD Ryzen V3C14
	CPU Architecture	x64 64-bit
	CPU Frequency	Quad-Core 2.3GHz (burst up 3.80 GHz)
Memory	Memory	8GB DDR5-4800 SO-DIMM
	Memory Module Pre-installed	8GB (1x 8GB)
	Total Memory Slots	2
	Memory Expandable up to	64GB Support mixed capacity Supports ECC memory ECC functionality will be disabled if non-ECC memory is installed or mixed with ECC memory
	Flash Memory	8GB eMMC
Storage	M.2 Drive Slots	6
	Compatible Drive Type	M.2 2280 NVMe
	M.2 PCIe Interface	1x PCIe 4.0 x4 3x PCIe 4.0 x2 2x PCIe 4.0 x1
	Maximum Drive Bays with	12

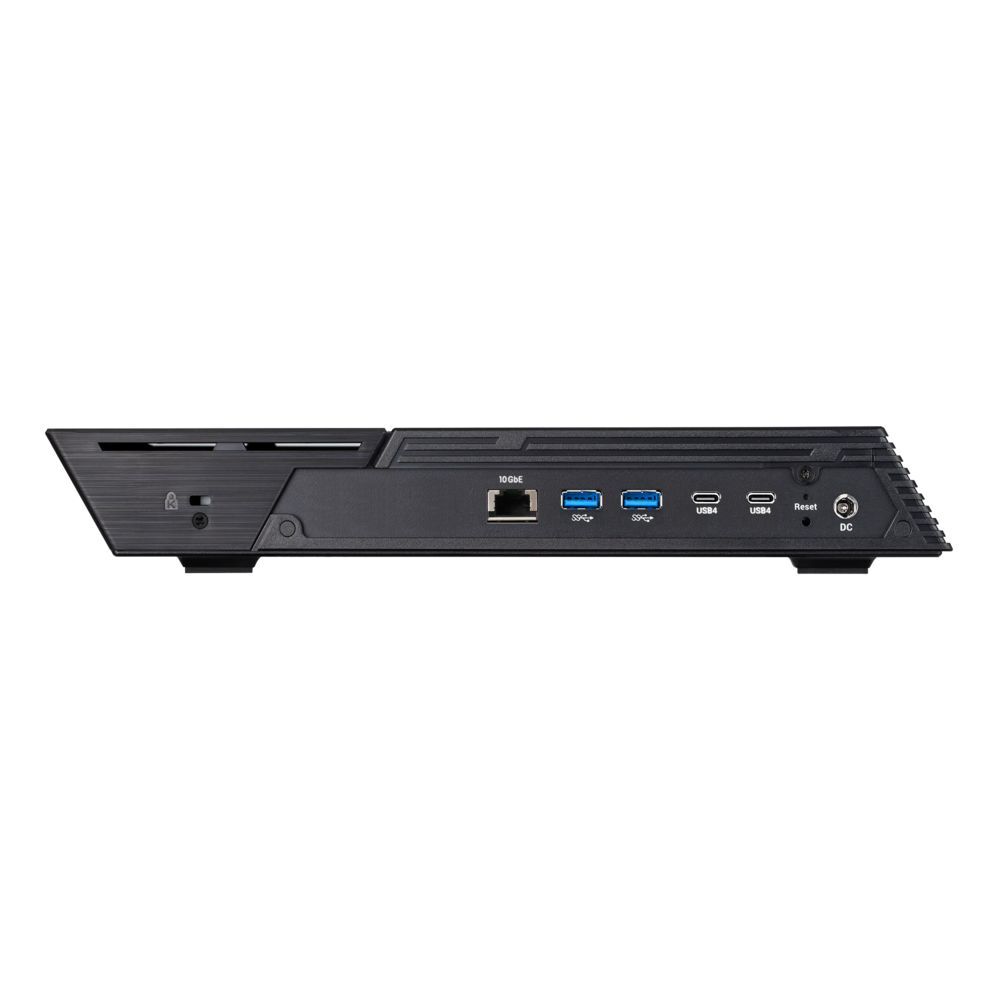

External Ports	Expansion	3 x USB 3.2 Gen 2 ( 10Gbps ) Type-A; 2x USB4 ports (20Gbps per channel, 40Gbps per port) Host-to-Host connectivity is not supported Backwards compatible with USB 3.2 Gen 1 and USB 3.2 Gen 1
	Network	1 x 10 Gigabit Ethernet (10G/2.5G/1G/100M)
	Multimedia Output	N/A
Others	System Fan	1 x 80mm
	Power Supply Unit / Adapter	90W x1
	Input Power Voltage	100V to 240V AC
	Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, CCC, UKCA
	Warranty	3 Years
Operation	Power Consumption	17.9 W (Operation); 1.2 W (Sleep Mode)
	Noise Level	18.6dB
	Operation Temperature	0°C~40°C (32°F~104°F)
	Storage Temperature	-20°C~70°C (-4°F~158°F)
	Humidity	5% to 95% RH
Size and Weight	Size	48.3 (H) x 308.26 (W) x 193 (D) mm
	Weight	1.4 kg / 3.08 lb
