ATEN PE0116SG-AT-G 0U Basic PDU with Surge Protection
Model # PE0116SG-AT-G
-
SKU: PE0116SG-AT-G
- Pick Up Available
- Australian Warranty
- Checkout Securely
ATEN’s Basic PDU family is extended with 0U members containing 16 outlets and available in IEC or NEMA socket configurations. The compact aluminum housing gives a sleek, yet robust look while minimizing installation space for work space efficiency. Thanks to the built-in surge protection module, the IT devices connected to the PDU are well-protected from sudden surges in electricity; plus, the equipment downtime is reduced as a result of the overcurrent protection design. The Basic PDUs are tailored made for individuals who are in need of industrial-grade, easy-to-deploy power distribution unit in data centers, server rooms, and network wiring closets.
Package Contents
- 1 x power distribution unit
- 1 x power cord
- 1 x L-shaped mounting kit
- 1 x user instructions
(PE0116SG-AT-G)

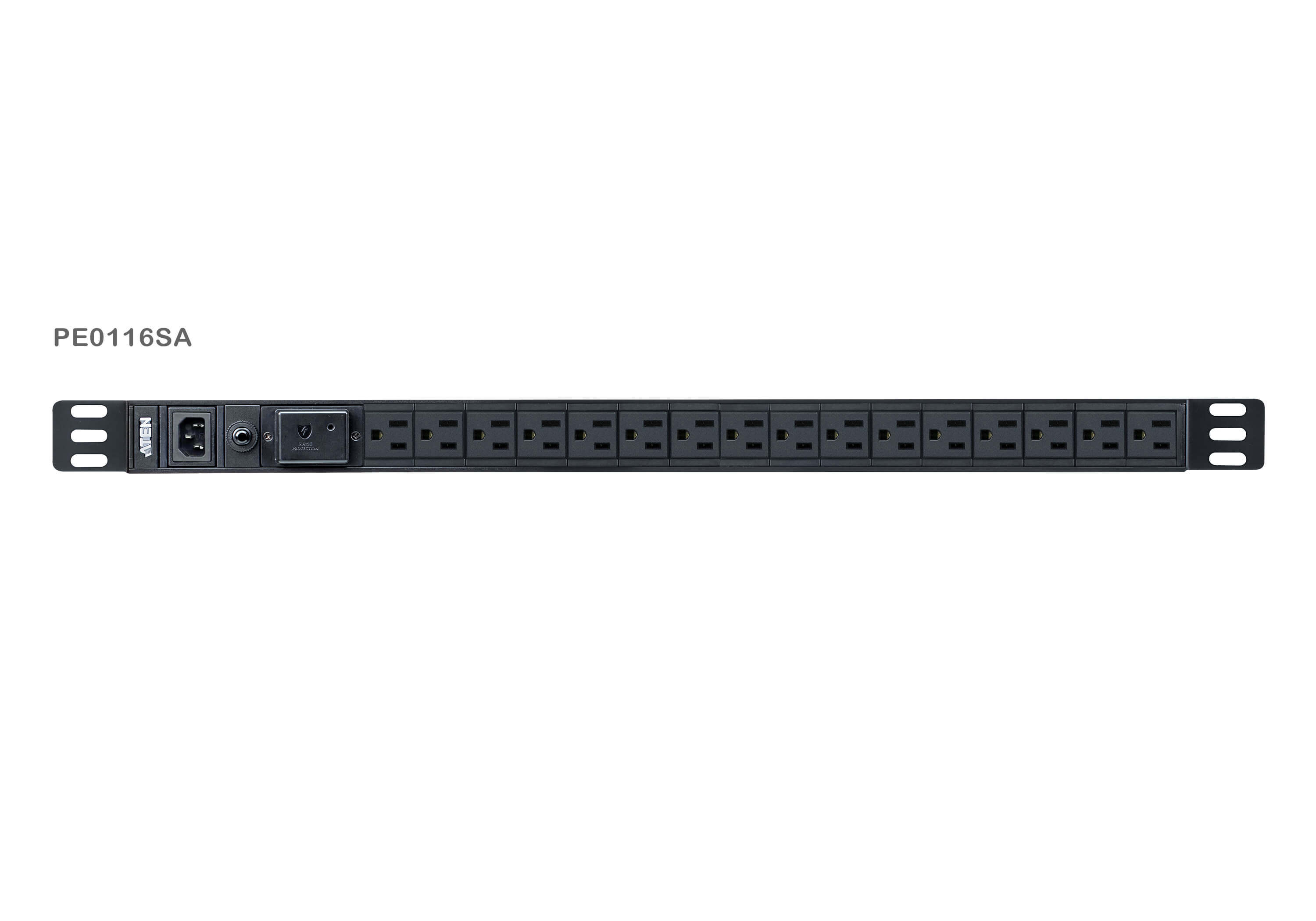

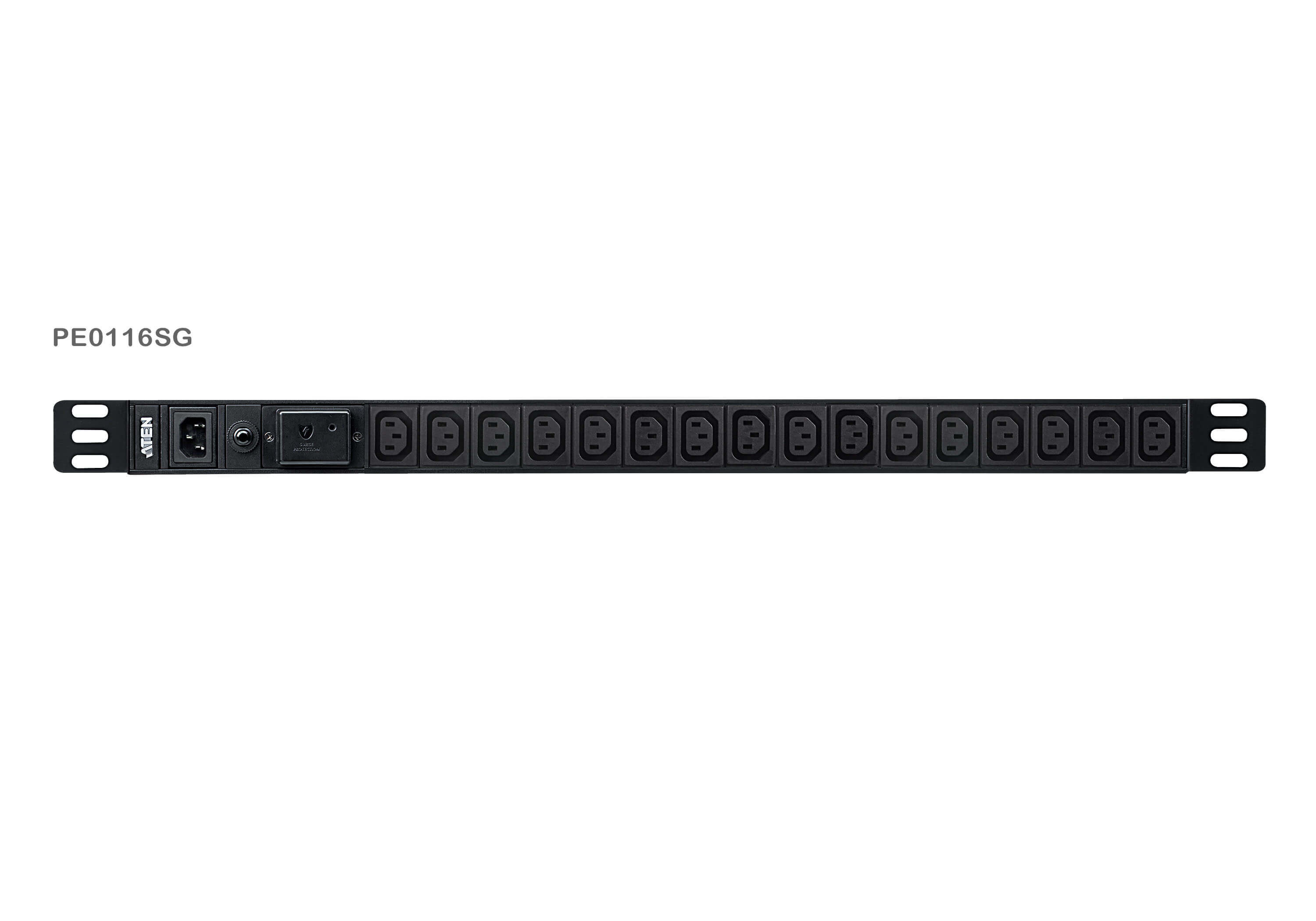

| Function | PE0116SA | PE0116SG |
| Electrical | ||
| Nominal Input Voltage | 100-120 VAC | 100-240 VAC |
| Maximum Input Current | 15A Max (UL de-rated 12A Max) (PSE 10A) | 10A Max |
| Input Frequency | 50-60 Hz | 50-60 Hz |
| Input Connection | NEMA 5-15P | IEC-320 C14 |
| Input Power | 1800VA(Max); 1440VA(UL de-rated) | 2400VA(Max) |
| Outlet Type | (16) NEMA 5-15R | (16) IEC 320 C13 |
| Maximum Output Current (Outlet) | 15A Max (UL de-rated 12A Max) (PSE 10A) | 10A Max |
| Maximum Output Current (Bank) | 15A Max (UL de-rated 12A Max) (PSE 10A) | 10A Max |
| Maximum Output Current (Total) | 15A Max (UL de-rated 12A Max) (PSE 10A) | 10A Max |
| OPD(Overcurrent Protection Device) | Yes | Yes |
| Physical Properties | ||
| Dimensions (L x W x H) | 71.56 x 4.44 x 6.00 cm (28.17 x 1.75 x 2.36 in.) | 71.56 x 4.44 x 6.00 cm (28.17 x 1.75 x 2.36 in.) |
| Weight | 1.10 kg ( 2.42 lb ) | 1.10 kg ( 2.42 lb ) |
| Power Cord Length | 10ft(14#) | 10ft(3×1.0mm2) |
| Environmental | ||
| Temperature (Operating / Storage) | 0 – 40? / -20 – 60? | 0 – 40? / -20 – 60? |
| Elevation (Operating / Storage) | 3000m | 3000m |
| Compliance | ||
| EMC Verification | FCC Class A | CE Class A |
| Safety Verification | By Request | CE,LVD |
| Note | For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. | |
| SKU | PE0116SG-AT-G |
| Barcode # | 4719264649110 |
| Brand | ATEN |
| Shipping Weight | 1.1000kg |
