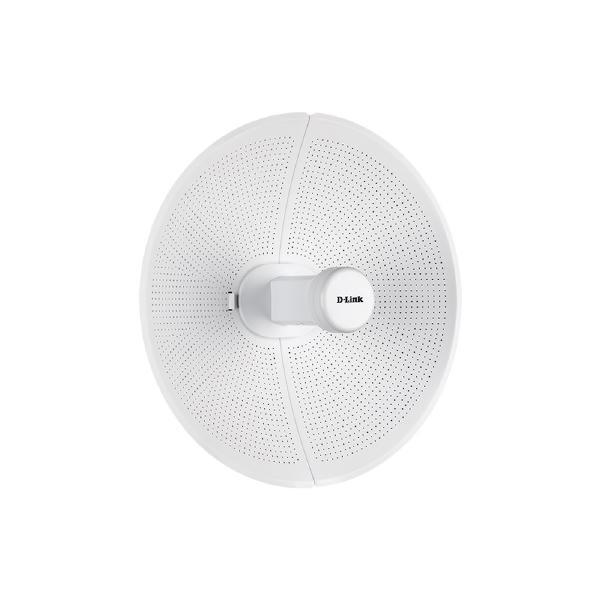

D-Link Long Range Wi-Fi 5 Wireless Bridge (20km)
DAP-3712
Network - Wireless Access Point & Bridge
Features
The DAP-3712 provides reliable, long-distance connectivity between multiple sites such as office branches, construction sites or transportation hubs, in both rural or busy city areas. Using proven Wi-Fi 5 technology with speeds of up to 867Mbps and it’s easy to install design, the DAP-3712 Long Range Wireless Bridge from D-Link’s Business Solutions range offers a compelling connectivity solution versus expensive Fibre-based offerings.
- Point-to-Point or Point-to-Multipoint connection
- Up to 20 km distance
- 802.11ac wireless technology on 5GHz band
- TDMA technology for better performance
- High power 27 dBm design
- 23 dBi directional antenna
- Weather Proof outdoor design (IP66 rated)
- 8 kV surge protection
- Supports standard IEEE 802.3at PoE
Technical Details
| Product type | Point-to-Point |
|---|---|
| Mounting options | Wall Mount |
| Wi-Fi Protocol | 5 |
| Radio count | NA |
| Application | Outdoor |
| IP Rating | IP66 |
| Frequency Band | 20/40/80 MHz |
| Number of network ports | 1 |
| Platform Integration | NA |
| Licence required | No |
| Cloud Managed | No |
| Bluetooth | No |
| Mesh | No |
| Power Requirement | PoE+ 48 V |
| Uplink Ports speed | NA |
| Media Type Supported | Twisted Pair |
| Compliance certifications | CE, FCC |
| Aggregate Data Rate | Up to 867 Mbps |
| Load balancing | No |
| Ambient operating temperature | -40Ā°C to 65Ā°C |
| Warranty | LTD L'TIME |
Resources
High resolution Image
Links and Download
(DAP-3712)
Technical Details
| Product type | Point-to-Point |
|---|---|
| Mounting options | Wall Mount |
| Wi-Fi Protocol | 5 |
| Radio count | NA |
| Application | Outdoor |
| IP Rating | IP66 |
| Frequency Band | 20/40/80 MHz |
| Number of network ports | 1 |
| Platform Integration | NA |
| Licence required | No |
| Cloud Managed | No |
| Bluetooth | No |
| Mesh | No |
| Power Requirement | PoE+ 48 V |
| Uplink Ports speed | NA |
| Media Type Supported | Twisted Pair |
| Compliance certifications | CE, FCC |
| Aggregate Data Rate | Up to 867 Mbps |
| Load balancing | No |
| Ambient operating temperature | -40Ā°C to 65Ā°C |
| Warranty | LTD L'TIME |
| SKU | DAP-3712 |
| Barcode # | 790069461538 |
| Brand | D-LINK |
| Shipping Weight | 1.2000kg |
| Shipping Width | 0.220m |
| Shipping Height | 0.410m |
| Shipping Length | 0.200m |
