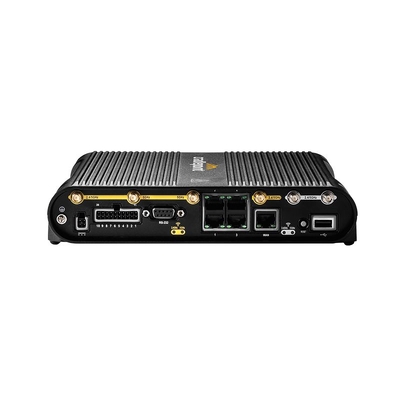

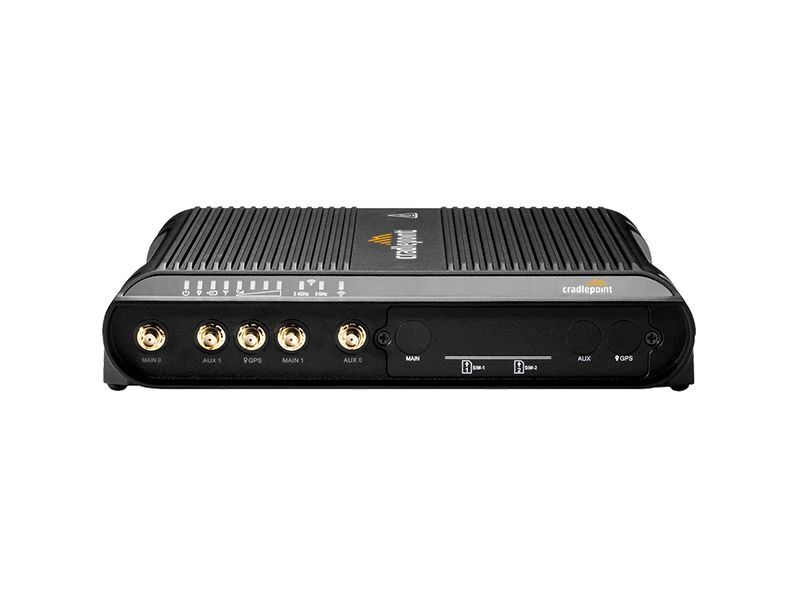

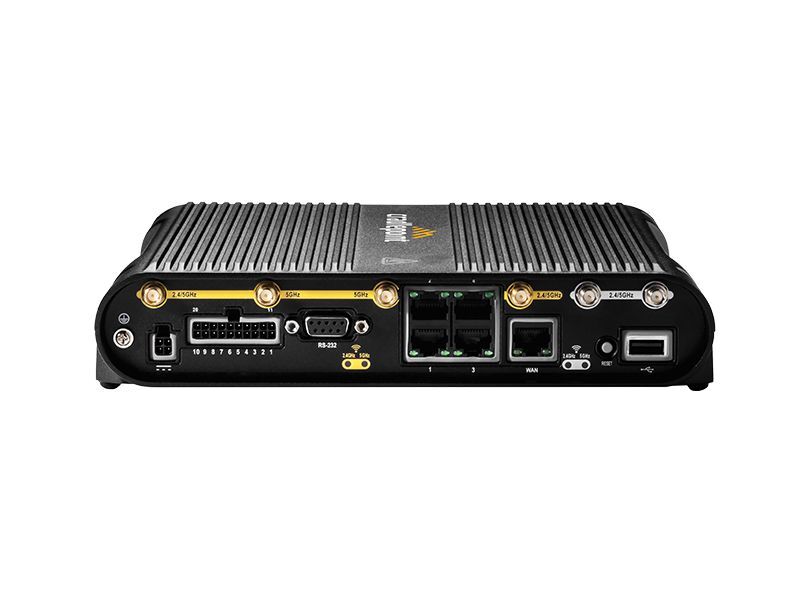

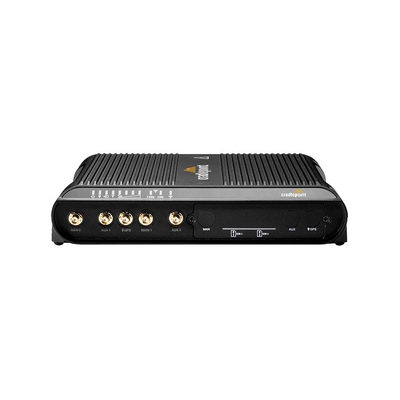

Ericsson Cradlepoint IBR1700 Ruggedized LTE and security appliance for vehicle deployments
Model# ibr1700
-
SKU: ibr1700
- Pick Up Available
- Australian Warranty
- Checkout Securely
Ericsson Cradlepoint IBR1700
Ruggedized LTE and security appliance for vehicle deployments
Firewall Throughput:
940 Mbps
WAN Connectivity:
4G Cat 11 or Cat 18, GbE
LAN Connectivity:
Wi-Fi 5, GbE
Management:
Ericsson NetCloud
Manage connectivity and security from anywhere through Ericsson NetCloud Manager
Ericsson NetCloud Manager allows you to accomplish more, faster, and with fewer resources. It’s an intuitive, easy-to-use cloud management and orchestration platform designed to simplify the configuration, deployment, operation, and troubleshooting of far-flung wireless routers. With browser and mobile application access, Ericsson NetCloud Manager enables effective management — from anywhere!
Hardware specs
 | Category | Mobile |
 | Cloud management | Yes |
 | Wireless connectivity | Gigabit-Class LTE |
 | 5G status | 5G-enabled with Cradlepoint 5G Adapter |
 | Form factor | Ruggedized Metal |
 | Ethernet ports | 5 GbE (LAN/WAN switchable) |
 | USB ports | 1 |
 | Serial ports | 1 |
 | Dual-modem support | Yes |
 | Network operator standards | PTCRB (U.S.), GCF (global) |
 | Network operator certifications | AT&T, Verizon |
 | Regions | North America, Latin America, Europe, Africa & Middle East, Asia-Pacific |
 | Public safety networks | ESN, FirstNet Trusted, Verizon Frontline |
 | Throughput | 940 Mbps (Firewall) |
 | VPN tunnel count | 10 |
 | Wi-Fi | Dual-band, tri-radio Wi-Fi; 802.11ac Wave 2 (Wi-Fi 5) |
 | GNSS | Active |
 | PoE | No |
 | Operating temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
 | Rack mountable | Yes |
 | Private cellular network | Yes — CBRS, 4G LTE |
Benefits
- Field-upgradable with second modem for continuous connectivity (with second wireless carrier)
- Precision GPS with dead-reckoning enables advanced location-based applications
- OBD-II support with accessory cable for vehicle health and diagnostics reporting
- Extensibility with GPIOs, NetCloud SDK and API for customizable solutions
- Unified edge security including multi-zone firewalls, IDS/IPS, and Internet security
- Certified on multiple public safety networks
- 5G ready and able to act as controller for external 5G adapters
Ericsson Cradlepoint IBR1700
Ruggedized LTE and security appliance for vehicle deployments
The purpose-built router
Hardware specs
Software features
Want to learn more about how we help organizations connect beyond traditional wired networks?
(ibr1700)
Hardware specs
| Category | Mobile |
| Cloud management | Yes |
| Wireless connectivity | Gigabit-Class LTE |
| 5G status | 5G-enabled with Cradlepoint 5G Adapter |
| Form factor | Ruggedized Metal |
| Ethernet ports | 5 GbE (LAN/WAN switchable) |
| USB ports | 1 |
| Serial ports | 1 |
| Dual-modem support | Yes |
| Network operator standards | PTCRB (U.S.), GCF (global) |
| Network operator certifications | AT&T, Verizon |
| Regions | North America, Latin America, Europe, Africa & Middle East, Asia-Pacific |
| Public safety networks | ESN, FirstNet Trusted, Verizon Frontline |
| Throughput | 940 Mbps (Firewall) |
| VPN tunnel count | 10 |
| Wi-Fi | Dual-band, tri-radio Wi-Fi; 802.11ac Wave 2 (Wi-Fi 5) |
| GNSS | Active |
| PoE | No |
| Operating temperature | -30 °C to 70 °C (-22 °F to 158 °F) |
| Rack mountable | Yes |
| Private cellular network | Yes — CBRS, 4G LTE |
| SKU | ibr1700 |
| Brand | ERICSSON |
| Shipping Weight | 3.3000kg |
