NETGEAR WAX630-100EUS
NETGEAR (WAX630) AX6000 TRI BAND ACESS POINT,WIFI-6, 5Y

No. of Max Users : 600

No. of Concurrent Users : 100

Ethernet port : 1 x 2.5G port and 1 x 1G port

NETGEAR Insight Remote Management

Overview:

High Performance WiFi 6 Access Points Insight WAX615 for the Small and Medium Size Businesses

The WAX630 is industry's highest performance WiFi 6 access point for the small and medium size businesses. The access point is a tri-band 4x4 design delivering up to 6Gbps total WiFi through-put, supported by a 2.5Gbps Power-over-Ethernet port, an industry leader of performance and cost effectiveness in its product class.

In the past several years, the WiFi industry has made progress in increasing speeds by leaps and bounds. However, capacity continues to be a challenge, namely, supporting a large number of concurrent users. This requirement is particularly acute for businesses, where very high throughput to each individual device may not be the paramount requirement. Rather, it is providing network connectivity to a large number of client devices, with good throughput, stable connection, and robust responses to environmental changes that is most important.

The WAX630, a WiFi 6 business access point, combined with Insight, helps small and medium businesses with an easy way to manage their network without an IT expert, providing great WiFi connection leaving each of their customers satisfied as a network user. NETGEAR empowers businesses with an all new WiFi 6 business access point for high performance and high coverage for the years to come. The WAX630 is compatible with other Pro WiFi Insight managed access points to form a scalable wireless network.

Business Features for higher speed, greater coverage and higher density WiFi

Easy to Configure

• Business class WiFi based on next generation 802.11ax WiFi 6 technology on both 5.0GHz and 2.4GHz bands. (Backward compatible to 802.11b/g/n/a/ac)
• Tri-band 4x4 (2.4GHz, 5.0GHz Low, 5.0GHz High) 12 streams of data for an aggregate throughput of up to 6.0Gbps
• Instant WiFi Mesh forming wireless backhaul with other Pro WiFi Insight managed access points to form a WiFi mesh network
• 40% more throughput in 4-stream 5.0GHz band and 100% more throughput in 4-stream 2.4GHz band compared to previous generation
• 4 times more client device supported
• Enterprise security and Enhanced Open security, such as WPA3, WPA2 Enterprise, WPA3 Enterprise, 8x SSID and VLAN
• Basic Service Set Coloring (BSS Coloring) enabling significant improvement in radio frequency channel effeciency and reduction of interference
• Orthogonal Frequency Division Multiple Access (OFDMA) allowing simultaneous services to multiple devices in the same channel thus improving bandwidth efficiency and reducing latency
• 2.5GbE port, backward compatible with 100/1000Mbps Ethernet, supported by NETGEAR MS510TXUP and other multigig Ethernet switches
• One additional 1GbE port for network redundancy or link aggregation to enhance reliability or throughput
• Target Wake Time (TWT) allows more efficient power usage resulting in longer battery life in WiFi 6 client devices
• Beamforming+; Advanced 6th generation WiFi technology such as up and downstream MU-MIMO
• One 802.3bt 2.5Gbps PoE port. Remote management and monitoring from NETGEAR Insight app or Cloud portal for unrivaled management experience of your wireless network.
• App managed. Faster installation through NETGEAR Insight app or Cloud portal. No additional hardware needed.
• Market leading 5-year warranty with 24/7 chat support for peace of mind

Features:

Performance Features

High-Performance Business WiFi

Faster and more reliable tri -band WiFi 6 with 12 streams and up to 6 Gbps total bandwidth

Ideal for High Density Environments

Ultimate WiFi performance for schools, hotels, restaurants, and conference centers.

Greater Network Capacity

Enjoy 4x more connection capacity than your current WiFi and improved efficiency for longer battery life.

Seamless Wireless Mesh

Wire-free installation with other WAX630, WAX620, WAX610, WAX610Y, or WAC540 creates the perfect seamless business network.

Multi-Gigabit Speed

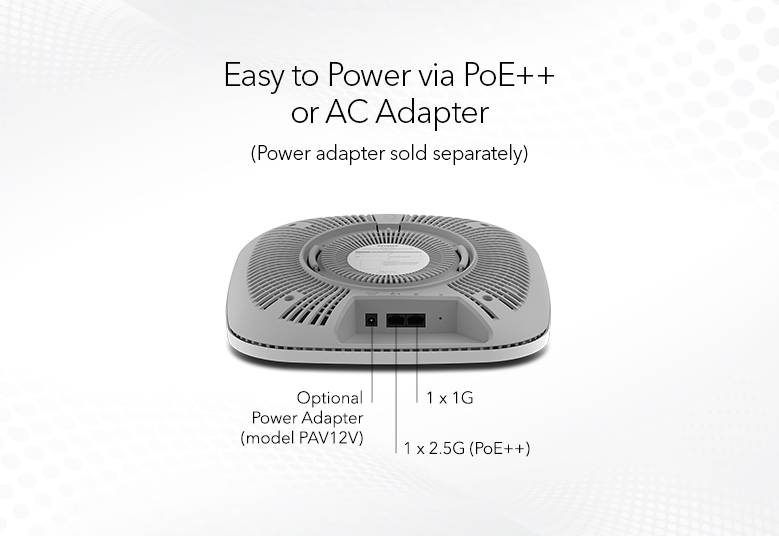

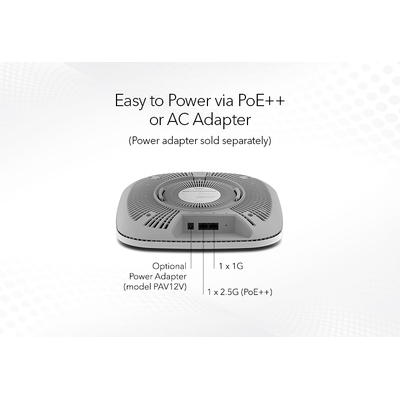

Includes a 2.5 Gbps Ethernet port with PoE++ for high speed and easy wiring and an additional Gbps Ethernet port for wired extension to an WiFi access point or a switch (Ideal switches to power WAX630 are GSM4210P, MS510TXPP, MS510TXUP)

Ease of Use

Easy Setup

Set up, configure, and manage with NETGEAR Insight

Remote Management

Remote Cloud monitoring and management with NETGEAR Insight for single pane of glass management of all your Insight Managed devices. 1-Year Insight subscription included

Flexible Mounting

Easy to securely install on the wall of a suspended ceiling with the hardware included

Security Features

Business-Level Security

WPA3 for the highest level of WiFi connection security

8 Wireless Networks (SSIDs)

Separate VLANs and WPA3 makes WAX630 the ideal network configuration for SMBs for security and manageability

Separate VLANs

Keep admin, employee, visitor, HR, Finance department networks safely separated from each other

(WAX630-100EUS)

Specifications:

NETGEAR WAX630-100EUS Specifications
Physical Specification	Dimensions (WxDxH) @mm : 10.63 x 10.63 x 1.57 in Weight (kg) : 2.10 lbs
Technical Specification	Speed : AX6000 # of Max Users : 600 # of Concurrent Users : 100 Ideal Use : Small and Medium Business Ethernet port : 1 x 2.5G port and 1 x 1G port PoE : Yes Remote management : NETGEAR Insight Remote Management Third party support : Domotz
