SKU: ES2486AFdc-2142IT-128G

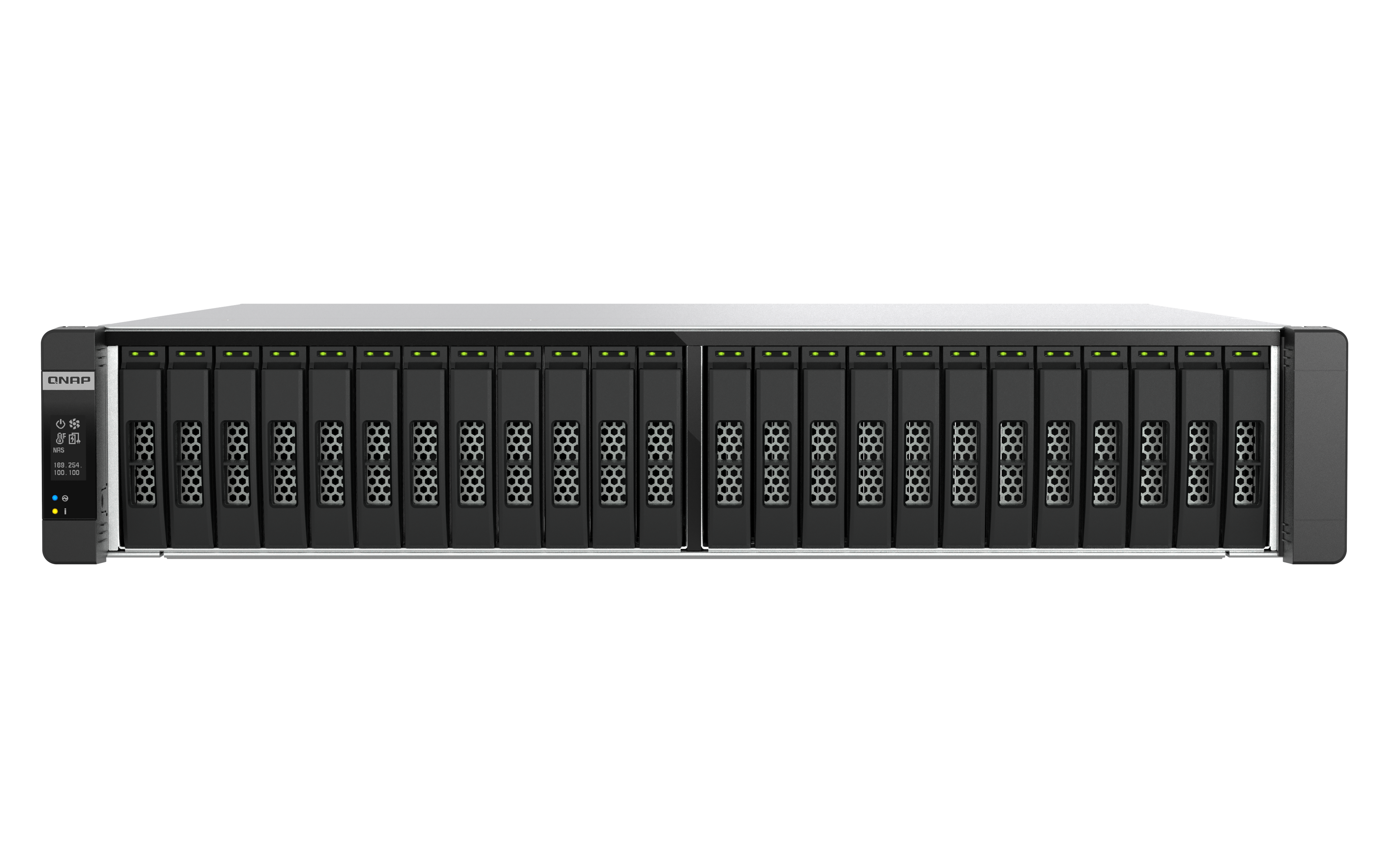

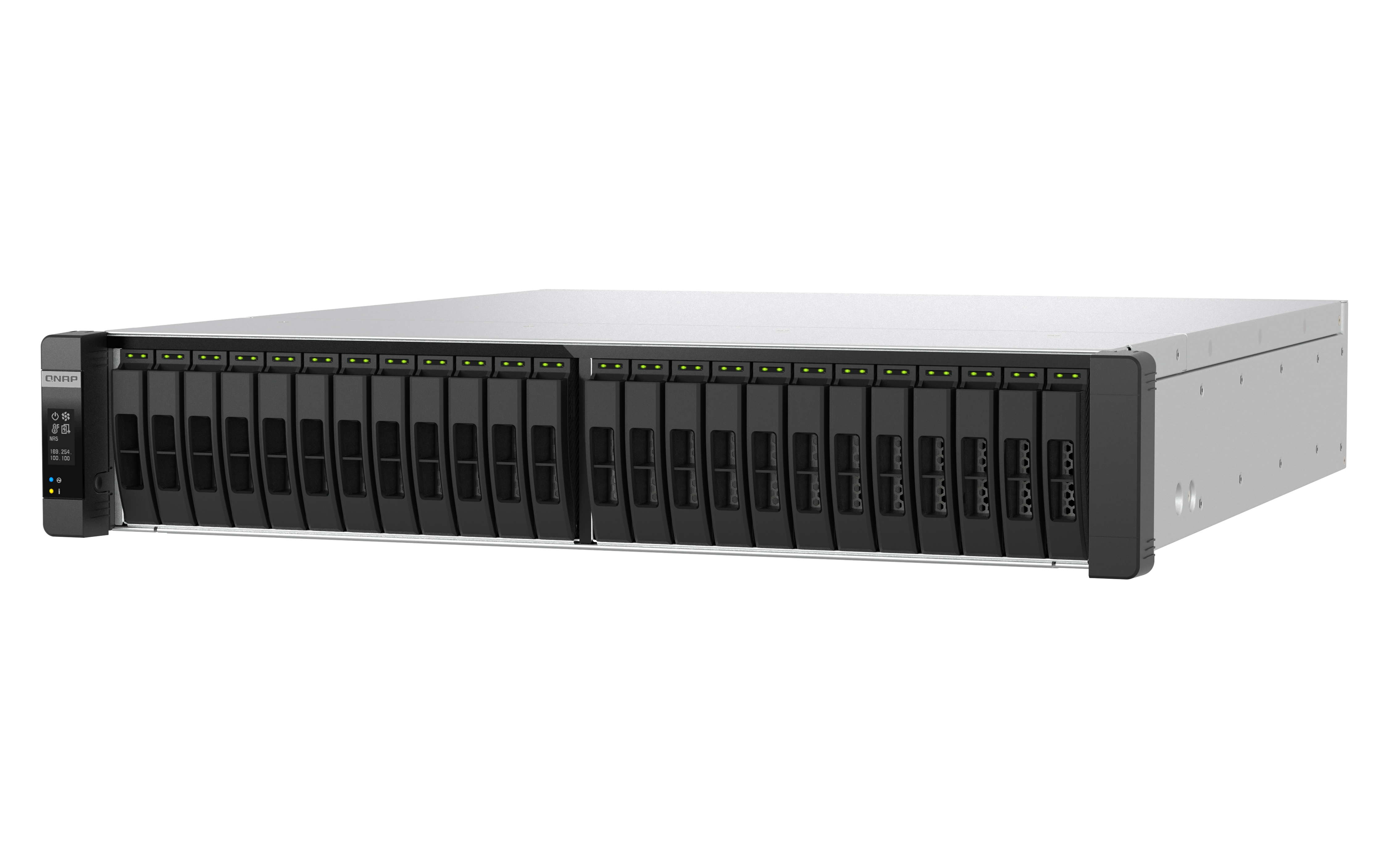

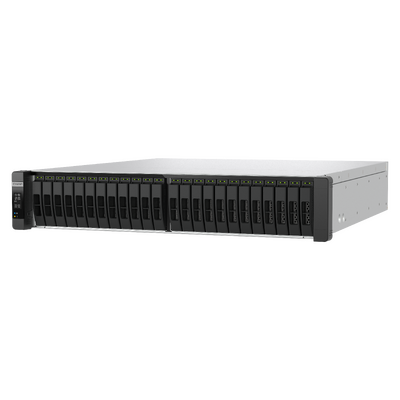

The QNAP ES2486AFdc combines an Active-Active dual-controller architecture with 24 hot-swappable 2.5-inch dual-port U.2/U.3 NVMe PCIe SSD bays. Powered by Intel® Xeon® D-2142IT processors and the ZFS-based QES operating system, it is designed for high availability, consistent low latency and enterprise data protection.
It is a 2U enterprise all-flash storage system with two independent controllers that process I/O concurrently. This configuration includes 64GB RDIMM DDR4 ECC memory per controller, for 128GB total system memory, alongside built-in 10GbE SFP+ connectivity, Copy-to-Flash protection and dual-port U.2/U.3 NVMe SSD support.
Both controllers operate simultaneously to provide redundancy, system bandwidth and computational capability.
Two independent controllers process I/O requests at the same time rather than using a traditional Active-Standby configuration.
If one controller fails, the other controller takes over the NVMe drives and network IPs through the PCIe Non-Transparent Bridge internal connection.
The supplied product information states that NAS services including SMB, NFS, iSCSI and Fibre Channel remain available without front-end reconnection.
Battery-backed Copy-to-Flash protection works with the ZFS-based QES operating system.
Each controller includes a 64GB M.2 SSD for Copy-to-Flash protection. During an unexpected power outage, the BBU helps securely write cached DRAM data to the M.2 SSD protection area to prevent data loss.
QES is based on the FreeBSD kernel and ZFS file system. The supplied product information highlights end-to-end data integrity and support for up to 65,535 snapshots for iSCSI LUNs and shared folders using Copy-on-Write technology.
Dual-port NVMe storage is designed to reduce latency and remove SAS 12Gb/s bandwidth limitations.
Each hot-swappable 2.5-inch bay supports dual-port U.2/U.3 NVMe PCIe SSDs.
The NVMe protocol reduces command queue wait times for latency-sensitive database and transaction workloads.
The supplied description states performance of over 616,000 iSCSI 4K random read IOPS and throughput of up to 15GB/s.
Built-in high-speed networking and expansion options support enterprise storage deployments.

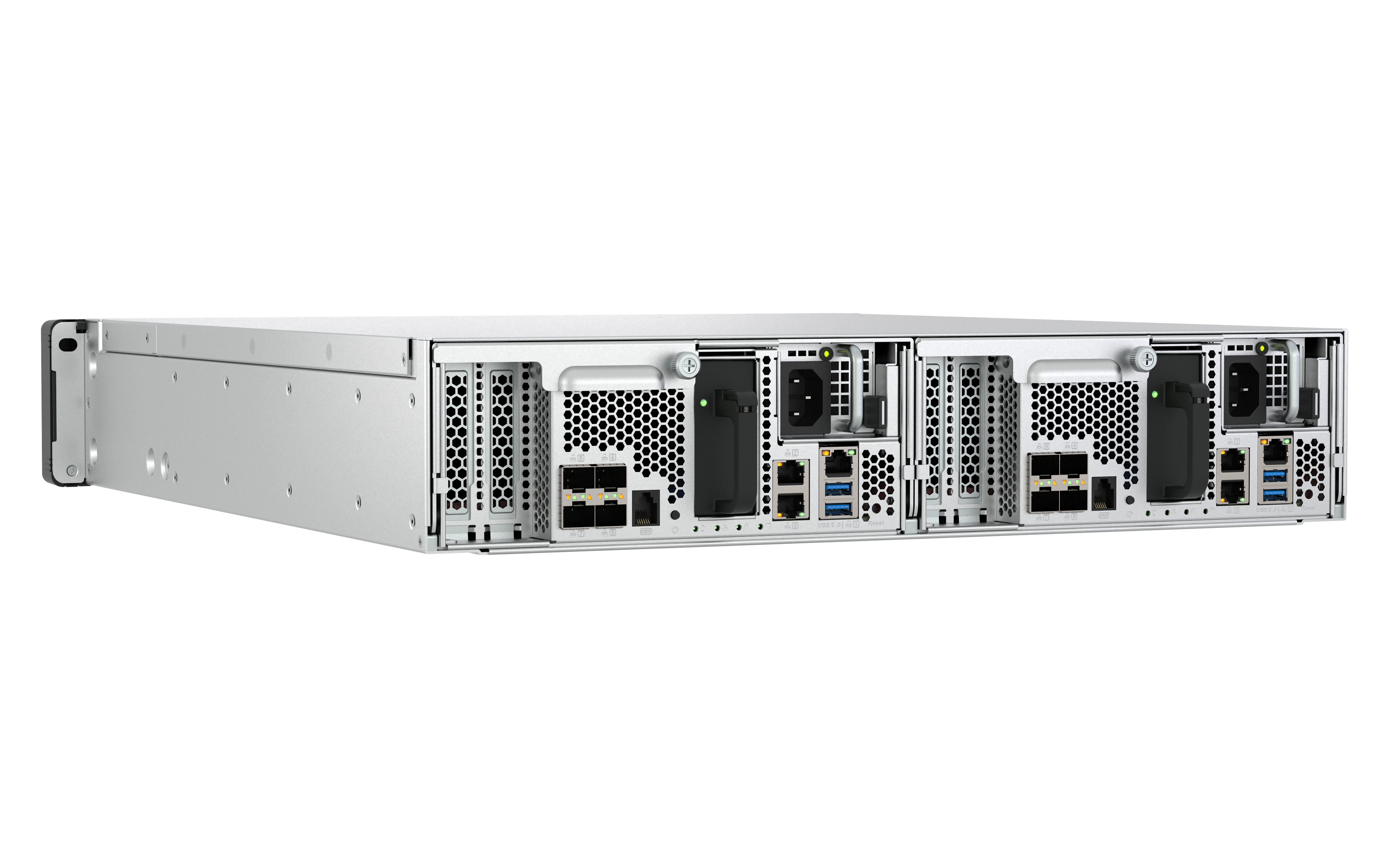

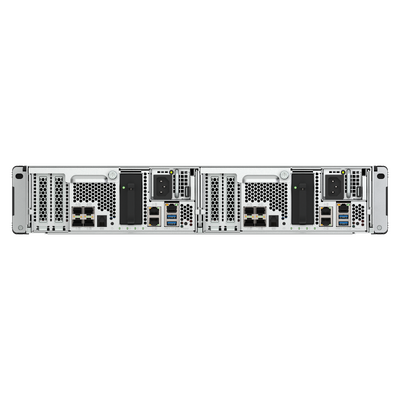

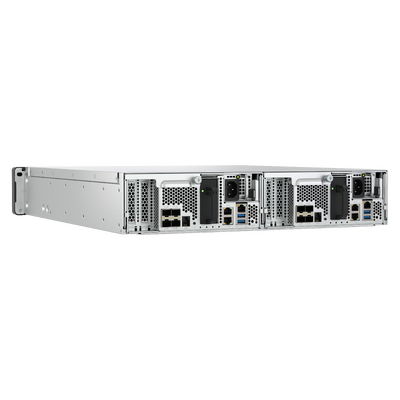

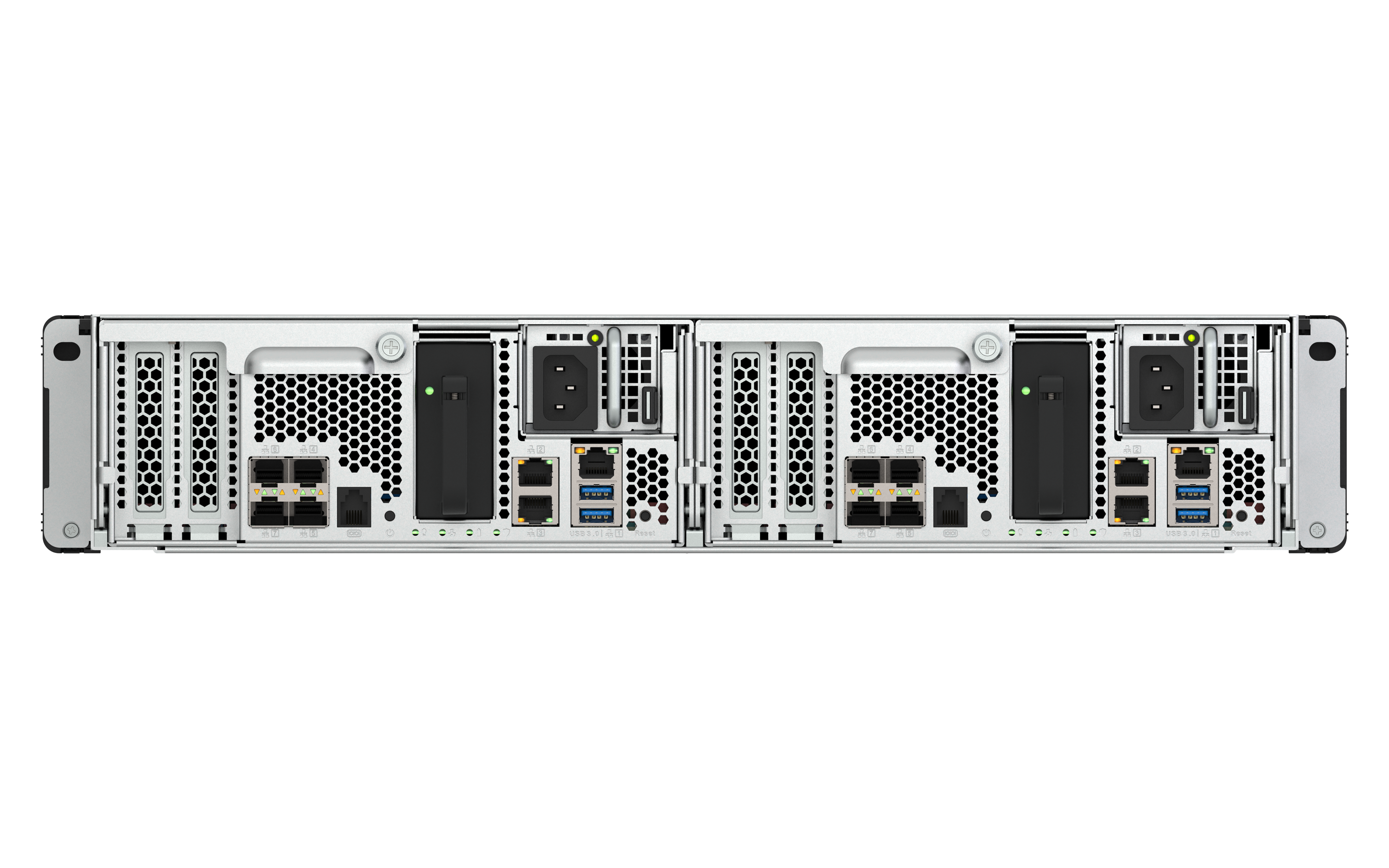

Each controller includes four 10GbE SFP+ ports and three Gigabit Ethernet RJ45 ports, with one Gigabit Ethernet port assigned for remote management. Two PCIe expansion slots are also provided per controller.
QNAP Storage QoS is designed to deliver stable and predictable performance from a single storage pool. The ES2486AFdc can also complement the ES1686AFdc by pairing Tier 1 mission-critical all-flash storage with Tier 2 general-purpose and capacity storage.
Quick answers about the QNAP ES2486AFdc-2142IT-128G.
It includes two independent controllers operating in an Active-Active configuration.
This configuration includes 64GB RDIMM DDR4 ECC memory per controller, for 128GB total.
The 24 hot-swappable 2.5-inch bays support dual-port U.2/U.3 NVMe PCIe SSDs.
Each controller includes four 10GbE SFP+ ports and three Gigabit Ethernet RJ45 ports, with one Gigabit Ethernet port assigned for remote management.
The built-in BBU and Copy-to-Flash technology help write cached DRAM data to a dedicated 64GB M.2 SSD protection area on each controller.
The supplied product information states support for up to 65,535 snapshots for iSCSI LUNs and shared folders.
The supplied datasheet lists a standard five-year warranty.
Memory note: Use only one DIMM type at a time. Do not mix RDIMM and LRDIMM memory. Use compatible QNAP memory modules with identical specifications and refer to the hardware user manual.
Product images are for illustrative purposes only. Designs and specifications are subject to change without notice.
(ES2486AFdc-2142IT-128G)
Review the controller, processor, memory, storage, networking, expansion, physical and environmental specifications.
| Specification | Details |
|---|---|
| Controller, Processor and Memory | |
| Controller Modules | 2 |
| CPU | Intel® Xeon® D-2142IT 8-core 1.90GHz processor, up to 3.0GHz, per controller |
| CPU Architecture | 64-bit x86 |
| Encryption Engine | Yes (AES-NI) |
| System Memory | 64GB RDIMM DDR4 ECC per controller; 128GB total |
| Maximum Memory | 1024GB total (16 × 64GB) 512GB per controller (8 × 64GB) |
| Memory Slots | 16 × R-DIMM/LR-DIMM DDR4 total 8 × R-DIMM/LR-DIMM DDR4 per controllerUse only one DIMM type at a time. Do not mix RDIMM and LRDIMM memory. |
| Storage | |
| Drive Bays | 24 × 2.5-inch |
| Drive Compatibility | 2.5-inch dual-port U.2/U.3 NVMe PCIe SSD |
| Hot-Swappable | Yes |
| SSD Cache Acceleration | Supported L1 ARC read cache: RAM L2 ARC read cache: SSD ZIL write cache: NVRAM (C2F) |
| Copy-to-Flash Cache | 1 per controller (64GB M.2 SSD) |
| Networking | |
| Gigabit Ethernet | 3 × RJ45 ports per controllerAssign one port for remote management. |
| 10 Gigabit Ethernet | 4 × 10GbE SFP+ ports per controller |
| Wake on LAN | Yes |
| Jumbo Frame | Supported |
| Expansion and Connectivity | |
| PCIe Slots | 2 per controller Slot 1: PCIe Gen 3 x8 (CPU) Slot 2: PCIe Gen 3 x8 (CPU)Card dimensions for slots 1–2: 215 × 68.9 × 18.76mm / 8.46 × 2.71 × 0.74 inches. Wider cards can be installed if the next PCIe slot is not used. |
| USB 3.2 Gen 1 Ports | 2 per controllerFor engineering purposes only. External devices such as storage drives and UPS units are not supported. |
| Physical Specifications | |
| Form Factor | 2U rackmount |
| LED Indicators | System Power LED (green): on/off System Status (green/red): operation, system errors, low power, degraded RAID mode, memory failure, fan or power supply failure, excessive system or disk temperature, storage pool threshold, system take-over, or unplugged power supply unit LCD status display (two-digit number): JBOD connection status |
| Buttons | Power and reset |
| Dimensions (H × W × D) | 88.3 × 483 × 525.18mm |
| Net Weight | 22kg |
| Gross Weight | 26.91kg |
| Power and Cooling | |
| Power Supply | Redundant, hot-swappable, 700W; input 90–264VAC |
| Typical Operating Power Consumption | 754.61WTested with drives fully populated. |
| Fan | Hot-swappable fan module, 60 × 60 × 38mm, 16,000RPM, 12V, 2.8A × 3 |
| System Warning | Buzzer |
| Operating Environment | |
| Operating Temperature | 0–40°C (32–104°F) |
| Storage Temperature | -20–70°C (-4–158°F) |
| Relative Humidity | 5–95% RH non-condensing, wet bulb: 27°C (80.6°F) |
| Warranty, Connections and Standards | |
| Standard Warranty | 5 years |
| Maximum Concurrent CIFS Connections | 10,000 with maximum memory |
| Safety Standards | FCC Class A (USA only) CE Mark (EN55022 Class A, EN55024) EN60950 BSMI VCCI CB LVD |
| SKU | ES2486AFdc-2142IT-128G |
| Brand | QNAP |
| Shipping Weight | 28.0000kg |
| Shipping Width | 0.500m |
| Shipping Height | 0.100m |
| Shipping Length | 0.500m |
| Shipping Cubic | 0.025000000m3 |
Maunfacturer Warranty: 5 Years Maunfacturer Warranty
