QNAP TS-h1065eU-8G 8+2 Bay Short-Depth QuTS hero NAS

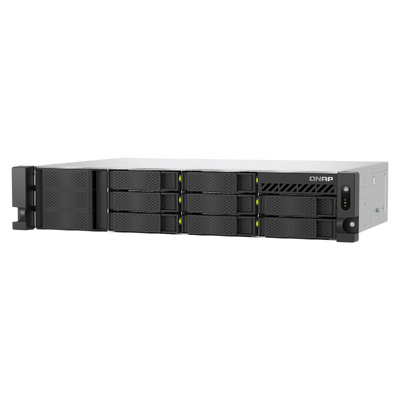

The QNAP TS-h1065eU-8G is a 297.4mm-deep 2U rackmount NAS with eight front SATA bays, two rear E1.S/M.2 NVMe slots, an Intel 4-core processor, 8GB DDR5 memory, dual 2.5GbE and PCIe expansion.

8 + 2 drive positions297.4mm depth8GB DDR53-year warranty

QNAP TS-h1065eU-8G 8+2 bay short-depth rackmount NAS

What is the QNAP TS-h1065eU-8G?

It is a compact QuTS hero NAS that combines eight front SATA bays with two rear E1.S or M.2 NVMe slots for storage, caching and space-constrained rack deployment.

8 + 2 BaysSATA plus E1.S/M.2 NVMe

8GB DDR5Expandable to 16GB

2 × 2.5GbEMulti-gigabit networking

297.4mmShort-depth 2U chassis

Need help choosing a NAS?

Explore the DeviceDeal NAS Buying Guide

Compare NAS types, storage considerations and practical features before selecting your next network storage system.

Read NAS Buying Guide

Eight SATA bays plus two rear NVMe slots

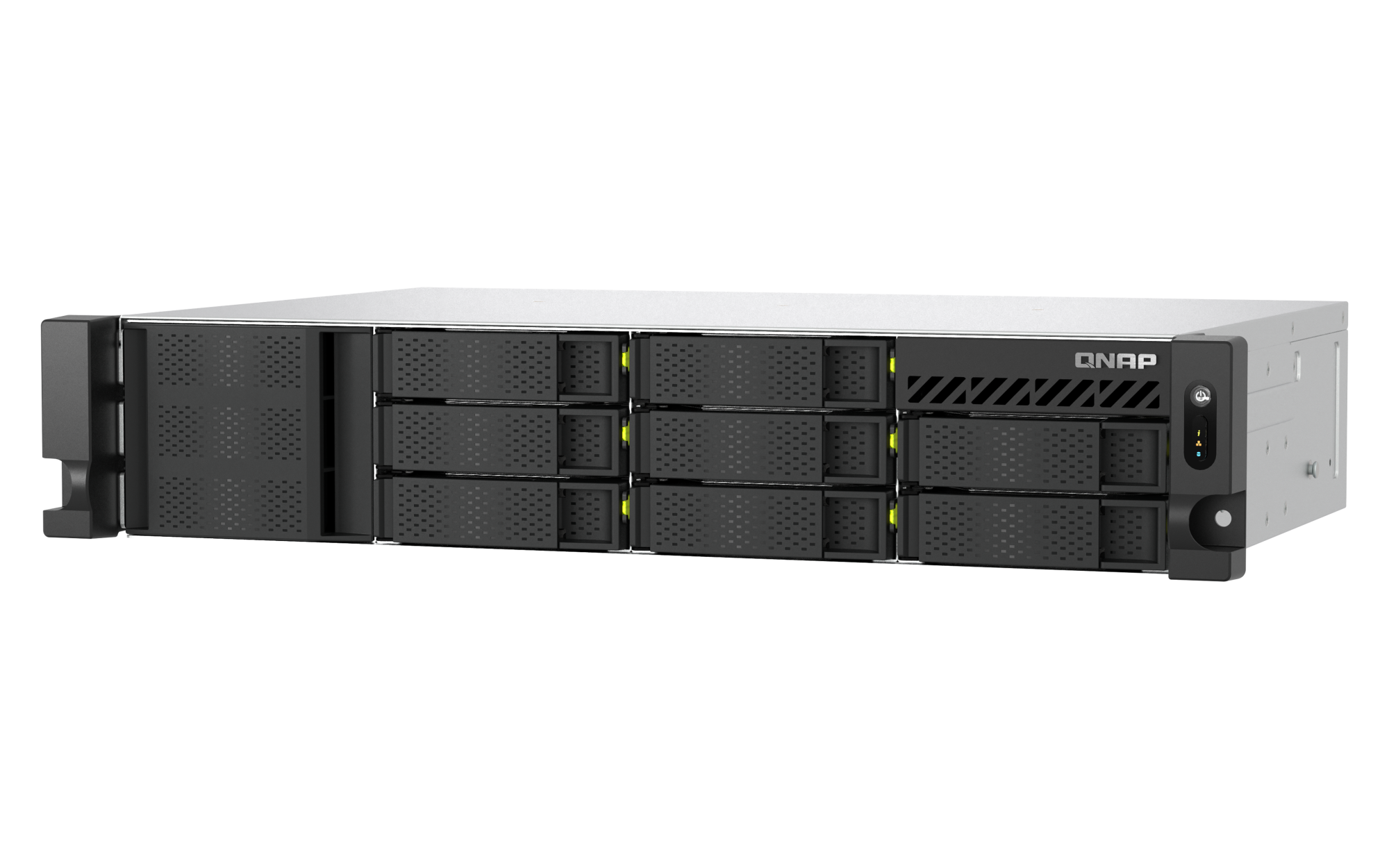

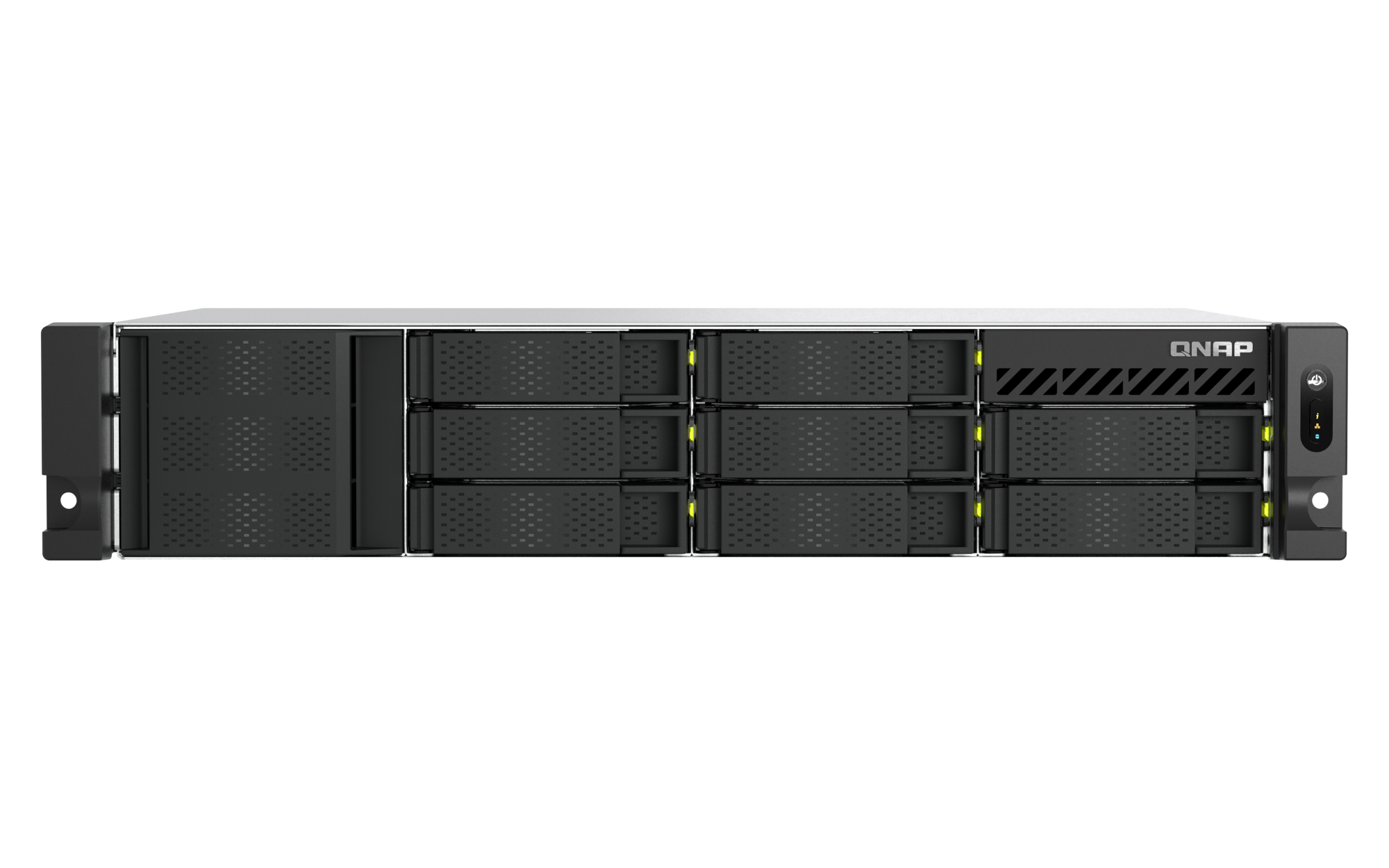

The front provides eight 3.5-inch bays for compatible 3.5-inch SATA hard drives and 2.5-inch SATA solid state drives.

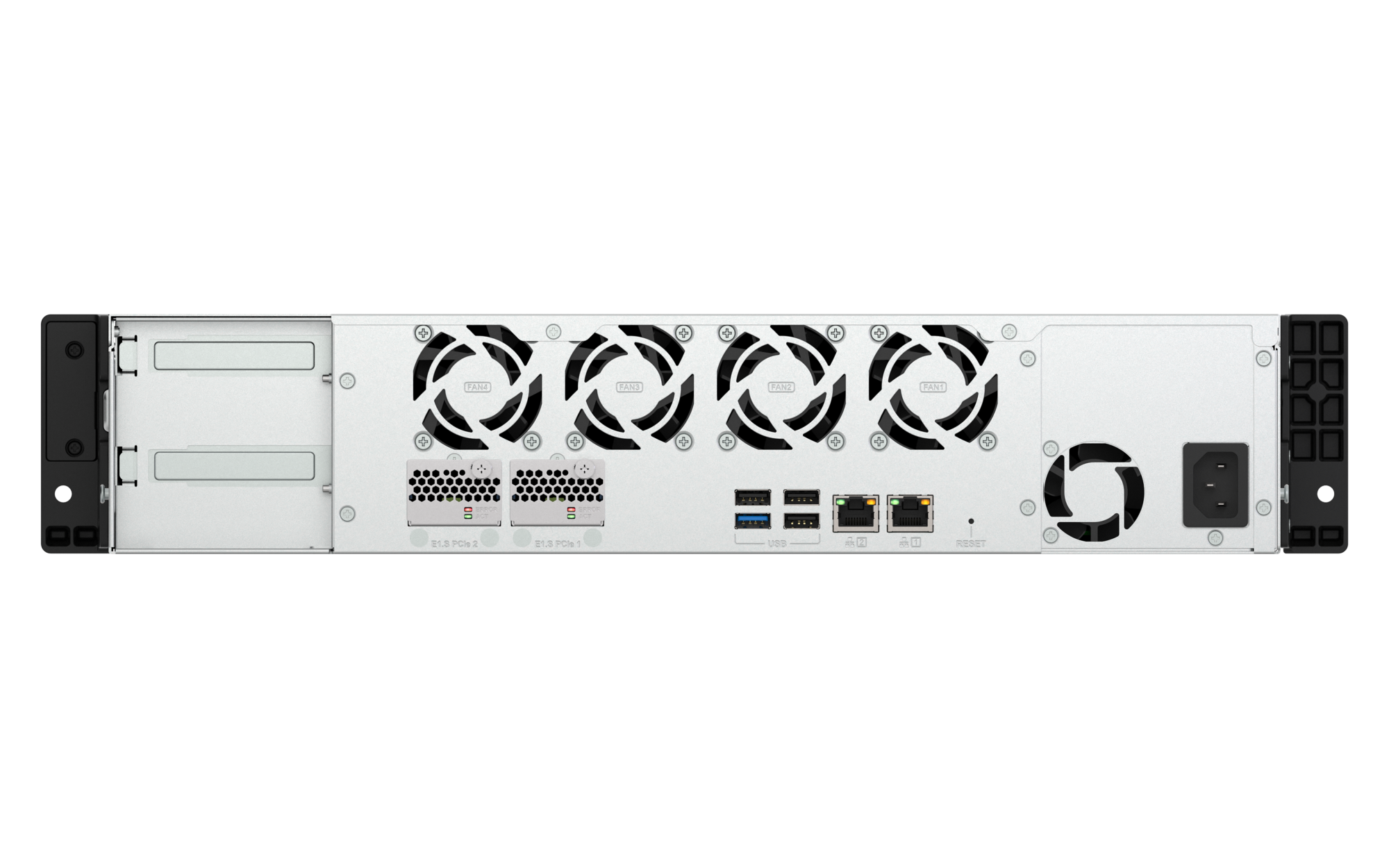

Two rear E1.S/M.2 NVMe PCIe Gen 3 x1 slots support compatible E1.S NVMe SSDs or M.2 NVMe SSDs and can be configured for SSD caching.

The supplied specifications list the drive positions as hot-swappable.
SSD cache acceleration is supported.
The description also identifies the QXG-ES10G1T network module as an option for an E1.S/M.2 slot.

Intel processing and DDR5 memory

The supplied specifications identify an Intel 4-core, 64-bit x86 processor with AES-NI encryption support and hardware-accelerated transcoding.

This configuration includes 8GB SODIMM DDR5 memory and supports a maximum of 16GB through one memory slot.

The supplied description states support for In-Band ECC.
Use compatible QNAP memory and refer to the hardware user manual before installation.
Maximum concurrent CIFS connections are listed as 1,500 with maximum memory installed.

Dual 2.5GbE and PCIe expansion

Two 2.5GbE ports support 2.5G, 1G, 100M and 10M network speeds, with Port Trunking or SMB Multichannel available for accelerated transfers and backups.

One PCIe Gen 3 x2 slot supports compatible 5GbE or 10GbE network cards and QM2 expansion cards.

Optional 5GbE and 10GbE connectivity are listed through network adapters.
One Type-A USB 3.2 Gen 2 port supports up to 10Gbps, together with three USB 2.0 ports.
Wake on LAN and Jumbo Frame support are included.

QuTS hero and short-depth deployment

The built-in QuTS hero operating system uses ZFS and includes supplied features such as self-healing of static data, WORM, data deduplication and snapshot backups.

The 2U chassis measures 88.6 × 432 × 297.4mm and is designed for small cabinets and other depth-constrained environments.

The supplied product information lists factories, small offices, surveillance rooms, audiovisual rooms and in-vehicle applications as deployment examples.
RAIL-B02 and RAIL-S01 are listed as compatible rail-kit references in the supplied description.
The supplied information states planned availability and support up to 2031.

Important purchasing and deployment notes

The supplied information does not identify whether storage drives are included; confirm the configured package before purchase.
The processor is identified only as an Intel 4-core processor; no more specific model was supplied.
The rear E1.S/M.2 slots and the separate optional M.2-through-PCIe wording should be matched to the planned media and adapter.
Confirm drive, rail-kit, network-module and expansion-card compatibility before deployment.

Frequently asked questions

What is the QNAP TS-h1065eU-8G?

It is a 2U short-depth QuTS hero NAS with eight front SATA bays, two rear E1.S/M.2 NVMe slots, 8GB DDR5 memory and dual 2.5GbE.

Are storage drives included?

The supplied information does not identify whether drives are included, so the configured package should be confirmed before purchase.

Which processor is installed?

The supplied specifications identify an Intel 4-core, 64-bit x86 processor but do not provide a more specific model.

How much memory is installed and supported?

It includes 8GB SODIMM DDR5 memory and supports up to 16GB using one 16GB module.

How are the drive positions arranged?

It has eight front 3.5-inch SATA bays and two rear E1.S/M.2 NVMe Gen 3 x1 slots.

Which drives are compatible?

The front bays support compatible 3.5-inch SATA hard drives and 2.5-inch SATA solid state drives, while the rear slots support E1.S and M.2 NVMe SSDs.

Are the drive positions hot-swappable?

Yes. The supplied specifications list the storage positions as hot-swappable.

Which network ports are included?

It includes two 2.5GbE ports supporting 2.5G, 1G, 100M and 10M speeds.

Can 10GbE connectivity be added?

Yes. The supplied information lists optional 10GbE through a network adapter, a PCIe expansion card or the QXG-ES10G1T module in an E1.S/M.2 slot.

Which operating system is installed?

The TS-h1065eU-8G includes the ZFS-based QuTS hero operating system.

How deep is the chassis?

The 2U short-depth chassis measures 297.4mm deep.

What manufacturer warranty applies?

The supplied specifications list a three-year QNAP manufacturer warranty.

(TS-h1065eU-8G)

Features and highlights

Key capabilities below are organised from the supplied product information for TS-h1065eU-8G.

Eight SATA plus two NVMe slots

Eight front bays are paired with two rear E1.S/M.2 NVMe Gen 3 x1 positions.

297.4mm short-depth chassis

The compact 2U design supports rack installations with limited cabinet depth.

8GB DDR5 memory

The installed memory supports expansion to 16GB through one SODIMM slot.

Dual 2.5GbE networking

Two multi-gigabit ports support Port Trunking or SMB Multichannel.

PCIe Gen 3 x2 expansion

Compatible network interface cards and QM2 cards can be installed.

QuTS hero with ZFS

The supplied software features include self-healing, WORM, deduplication and snapshots.

Important: Drive inclusion is not identified in the supplied data. The processor is specified only as an Intel 4-core model, and compatibility should be confirmed for E1.S/M.2 media, rail kits and expansion cards.

TS-h1065eU-8G specifications

Specifications below are organised from the supplied QNAP product information for TS-h1065eU-8G.

Processor and Memory

CPU	Intel 4-core processor
CPU Architecture	64-bit x86
Encryption Engine	Yes (AES-NI)
Hardware-Accelerated Transcoding	Yes
System Memory	8GB SODIMM DDR5
Maximum Memory	16GB (1 x 16GB)
Memory Slot	1 x SODIMM DDR5

Storage

Drive Bays	Front: 8 x 3.5-inch Rear: 2 x E1.S/M.2 NVMe Gen 3 x1 slots
Drive Compatibility	3.5-inch bays: 3.5-inch SATA hard disk drives 2.5-inch SATA solid state drives E1.S/M.2 slots: E1.S NVMe SSD M.2 NVMe SSD
Hot-Swappable	Yes
M.2 Slot	Optional via a PCIe adapter
SSD Cache Acceleration Support	Yes

Networking

2.5 Gigabit Ethernet	2 x ports (2.5G/1G/100M/10M)
5 Gigabit Ethernet	Optional via network adaptor
10 Gigabit Ethernet	Optional via network adaptor Optional via PCIe expansion card
Wake on LAN	Yes
Jumbo Frame	Yes

Expansion and Connectivity

PCIe Slot	1 x PCIe Gen 3 x2 Slot 1: PCIe Gen 3 x2 Card dimensions for PCIe slot 1: 97 x 68.9 x 18.76mm / 3.82 x 2.71 x 0.74 inches.
USB 2.0 Ports	3
USB 3.2 Gen 2 Port	1 x Type-A USB 3.2 Gen 2 (10Gbps)

Physical Specifications

Form Factor	2U short-depth rackmount
LED Indicators	HDD 1-8, E1.S/M.2 1-2, status, LAN, expansion and power
Buttons	Power and reset
Dimensions (H x W x D)	88.6 x 432 x 297.4mm
Net Weight	9.21kg
Gross Weight	10.71kg

Power and Cooling

Power Supply Unit	250W, 100-240V
Disk Standby Power Consumption	31.742W
Typical Operating Power Consumption	55.83W Tested with drives fully populated.
Fan	3 x 60mm, 12VDC
System Warning	Buzzer

Environmental

Operating Temperature	0-40 °C (32-104 °F)
Storage Temperature	-20-70 °C (-4-158 °F)
Relative Humidity	5-95% RH non-condensing, wet bulb: 27 °C (80.6 °F)

Warranty and Connections

Standard Warranty	3 years
Maximum Concurrent CIFS Connections	1,500 with maximum memory installed

SKU	TS-h1065eU-8G
Model #	TS-h1077AFU
Brand	QNAP
Shipping Weight	14.0000kg
Shipping Width	0.150m
Shipping Height	0.350m
Shipping Length	0.500m
Shipping Cubic	0.026250000m3
