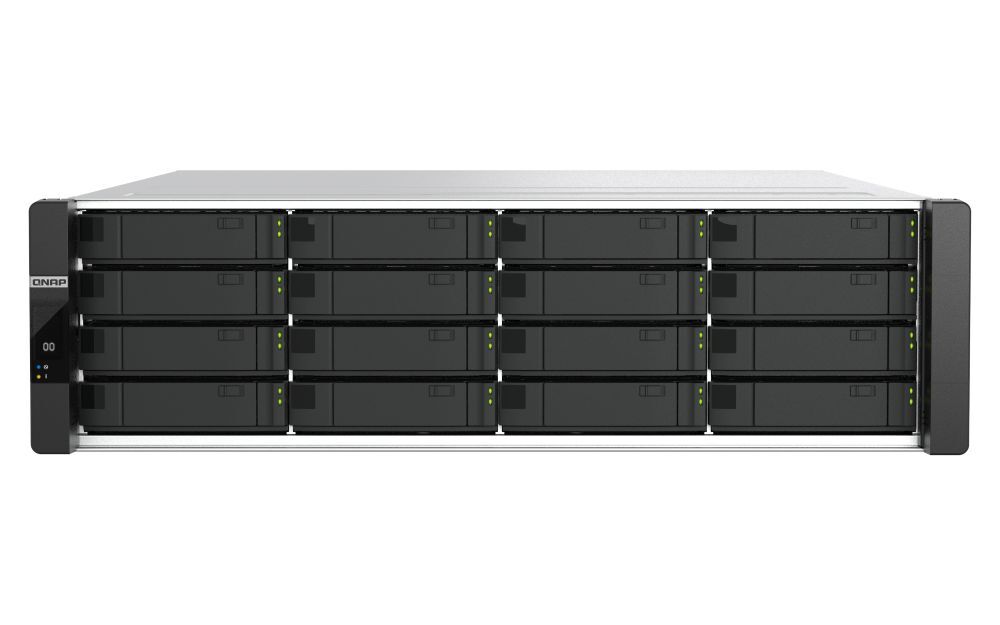

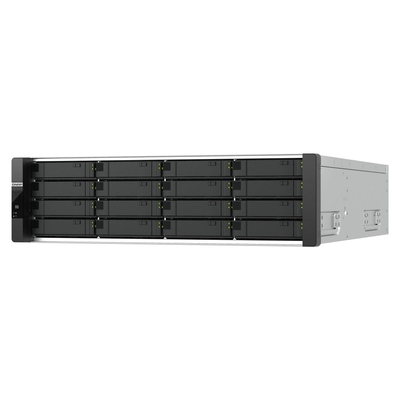

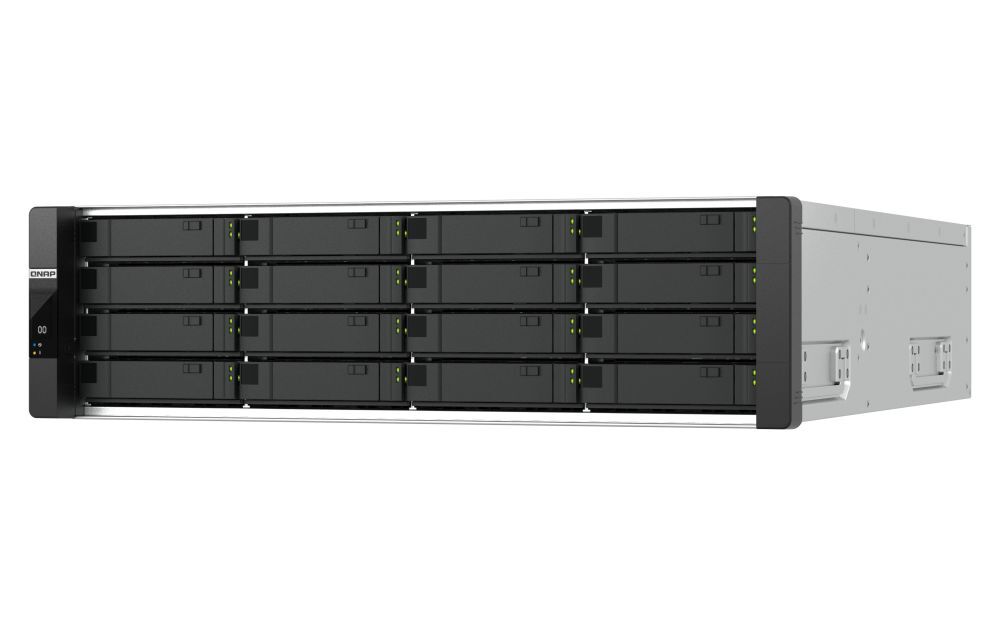

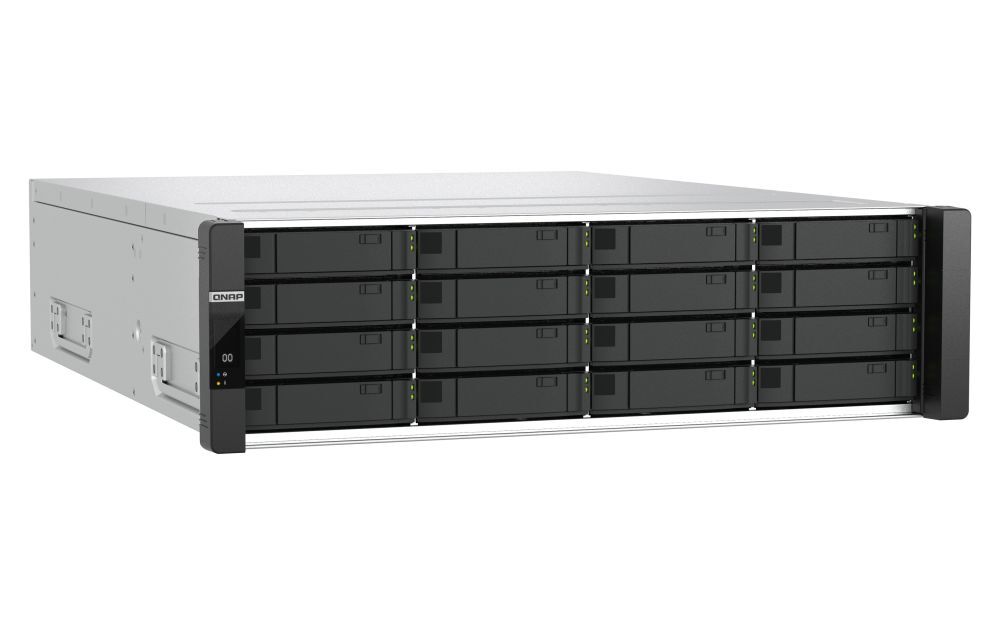

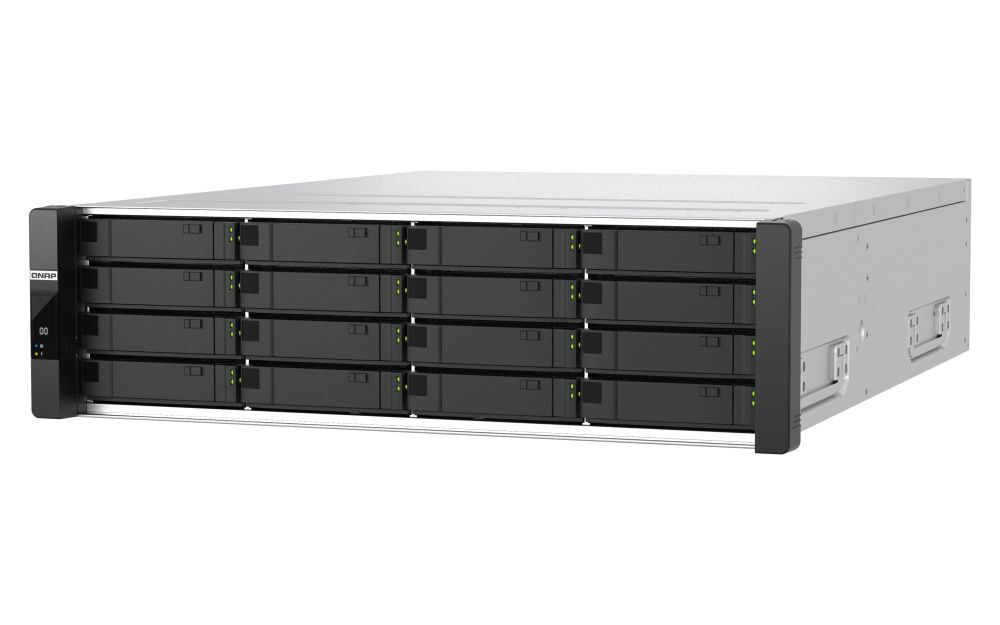

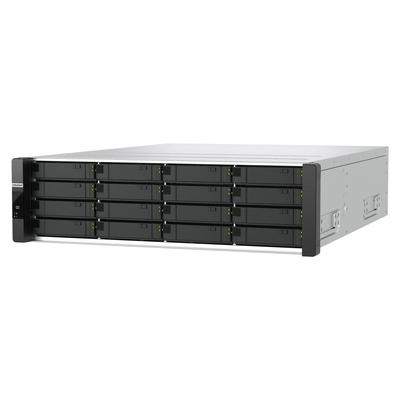

Ensure uninterrupted mission-critical business operations with the high-availability ES1686dc R2 NAS. With redundant controllers and power supplies, it minimizes downtime, allowing seamless component replacement without disruption, ensuring reliability and continuity for enterprises.



  • Dual active-active controllers

    Dual active-active controllers provide supreme uptime and redundancy to ensure high availability.

  • NVRAM module

    NVRAM reduces the risk of losing write cache data if unexpected power failure occurs.

  • QES operating system

    Supports ZFS near-limitless snapshots, SnapSync, block-level data deduplication, and inline data compression.

  • Storage for virtualization

    Supports VMware® vSphere®, Windows Server® and Citrix® XenServer® for storage virtualization.

  • 10GbE SFP+ ports

    Four 10GbE SFP+ ports (per controller) accelerate virtualization, large file sharing, and intensive data transfer.

  • PCIe Gen 3 slots

    Two PCIe slots (per controller) allow for adding 10GbE/25GbE networking cards to increase application performance.

(ES1686dc-R2-2142IT-128G)

CPU Intel® Xeon® D-2142IT 8-core 1.90 GHz processor (burst up to 3.0 GHz) per controller
CPU Architecture 64-bit x86
Floating Point Unit
Encryption Engine  (AES-NI)
System Memory 64 GB RDIMM DDR4 ECC (4 x 16 GB) per controller
Maximum Memory 512 GB (8 x 64GB)
Memory Slot 8 x R-DIMM/LR-DIMM DDR4

IMPORTANT: You can only use one type of dual in-line memory module (DIMM) at a time. Do not use registered DIMM (RDIMM) with load-reduction DIMM (LRDIMM) memory.
Flash Memory 4GB (Dual boot OS protection)
Drive Bay 16 x 3.5-inch

SAS 12Gb/s, backward-compatible to SAS 6Gb/s
Drive Compatibility 3.5-inch bays:
3.5-inch SAS hard disk drives
2.5-inch SAS hard disk drives
2.5-inch SAS solid state drives
Hot-swappable
SSD Cache Acceleration Support
Read cache only
Cache for Copy To Flash (C2F) 1 per each controller (64GB M.2 SSD)

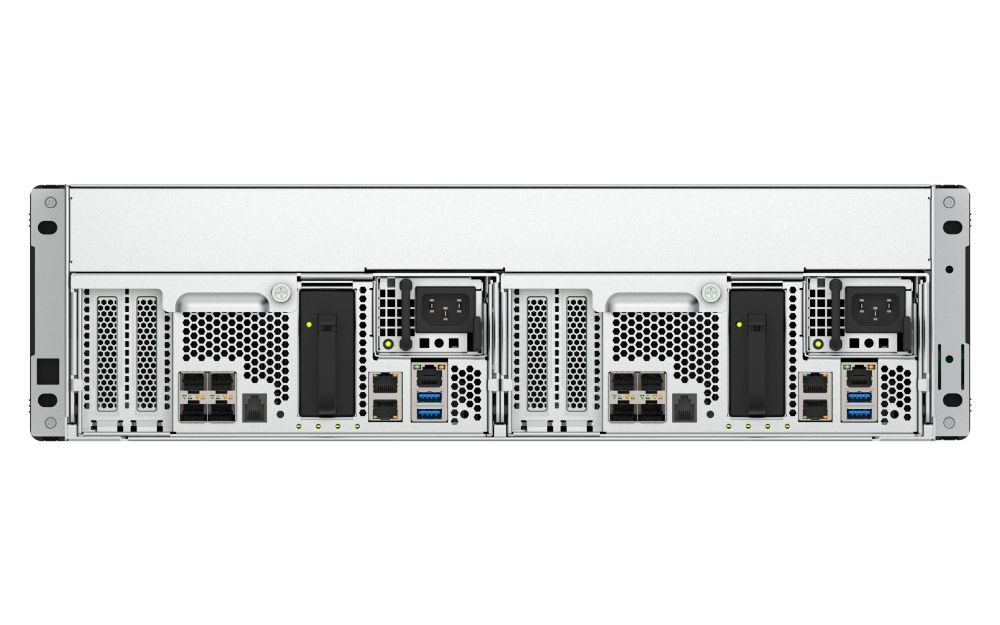

Gigabit Ethernet Port (RJ45) 3 for each controller (assign one for remote management)
10 Gigabit Ethernet Port 4 x 10GbE SFP+ for each controller
Wake on LAN (WOL)
Jumbo Frame
PCIe Slot 2 per controller
Slot 1: PCIe Gen 3 x8 (CPU)
Slot 2: PCIe Gen 3 x8 (CPU)

Card dimensions for PCIe slot 1~Slot 2：215 x 68.9 x 18.76 mm / 8.46 x 2.71 x 0.74 inches.
Wider cards can be installed if the next PCIe slot will not be used.
USB 3.2 Gen 1 port 2 per each controller

Note: The USB ports are for engineering purpose only. No external devices such as storage drives or UPS are supported.

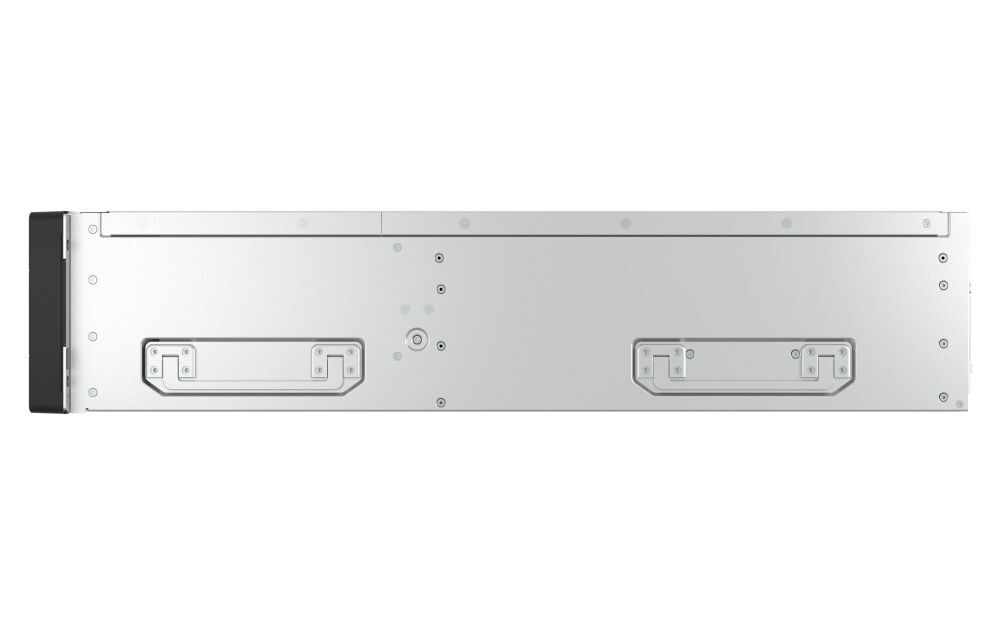

Form Factor 3U Rackmount
LED Indicators System Power LED (Green): on/off
System Status (Green/ Orange): in operation, system errors, low power, degraded RAID mode, memory failure, fan/power supply failure, system/disk temperature too high, storage pool reaching threshold value, system performing take-over, power supply unit unplugged
LCD Status Display (Two-digit number): Status of JBOD connection
Buttons Power, Reset
Dimensions (HxWxD) 132 × 446.2 × 587.75 mm
Weight (Net) 30.22 kg
Weight (Gross) 34.92 kg
Operating Temperature 0 - 40 °C (32°F - 104°F)
Storage Temperature -20 - 70°C (-4°F - 158°F)
Relative Humidity 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F)
Power Supply Unit Redundant/ Hot Swap Power Vin:90~264VAC;700W
Power Consumption: Operating Mode, Typical 500.87 W

Tested with drives fully populated.
Fan Hot-swappable fan module (60*60*38mm; 16000RPM/12v/2.8A x 3)
System Warning Buzzer
Standard Warranty 5
Max. Number of Concurrent Connections (CIFS) - with Max. Memory 10000
Safety Standard FCC Class A (USA only)
CE Mark ( EN55022 Class A, EN55024)
EN60950
BSMI
VCCI
CB
LVD
SKU ES1686dc-R2-2142IT-128G
Brand QNAP
Shipping Weight 35.0000kg
Manufacturer Warranty
5 Years Limited Warranty


Be The First To Review This Product!

Help other Device Deal users shop smarter by writing reviews for products you have purchased.

Write a product review

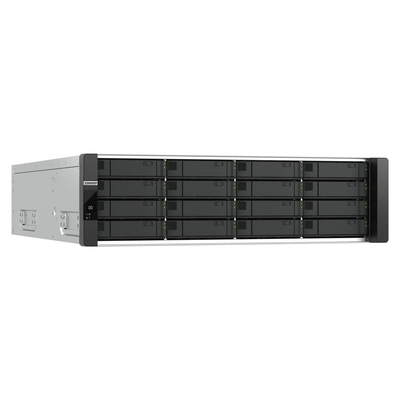

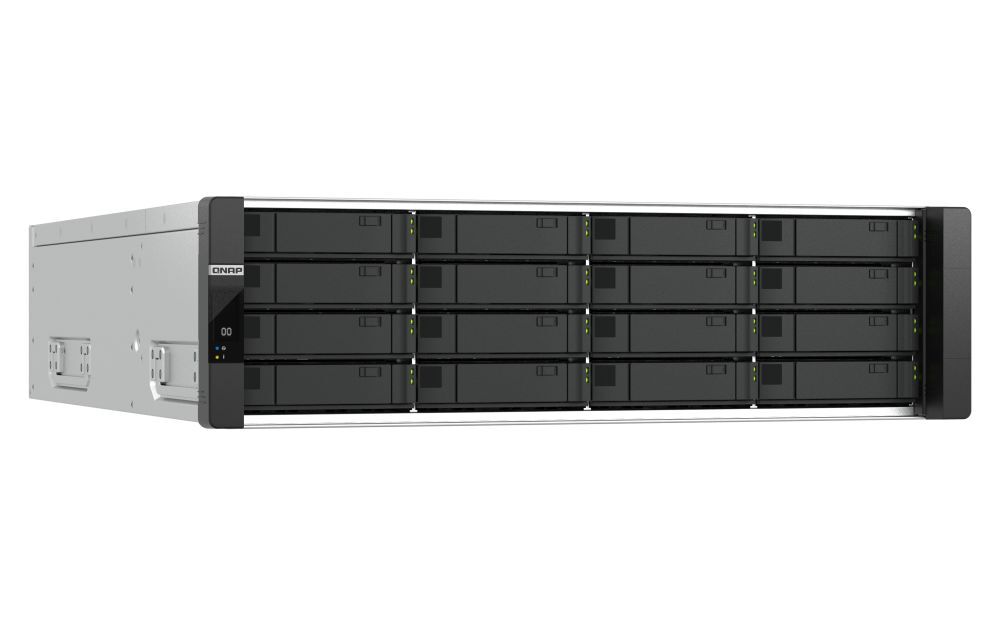

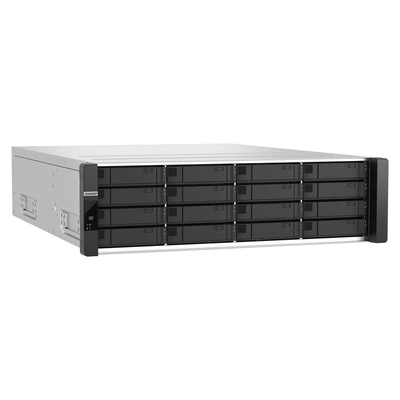

QNAP ES1686dc-R2-2142IT-128G 16-Bay Intel® Xeon® 8-core 1.90GHz 64GB DDR4 Active-Active Dual Controller
