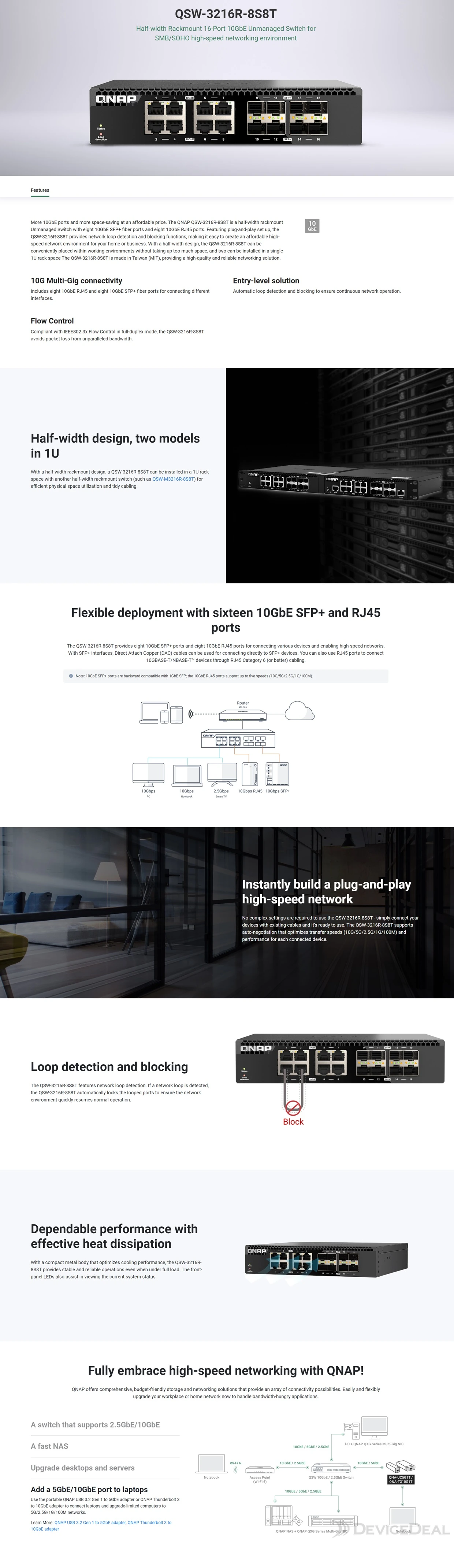

View PDF Brochure
Eight SFP+ ports
Supports 10GbE and 1GbE fibre or compatible direct-attach connections.

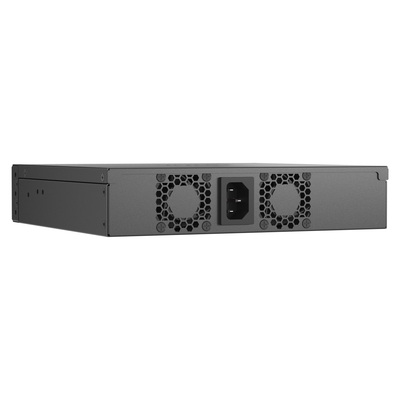

QNAP QSW-3216R-8S8T 8-PORT 10GbE SFP+ half-width rackmount unmanaged switch
Model # QSW-3216R-8S8T
-
SKU: QSW-3216R-8S8T
- Pick Up Available
- Australian Warranty
- Checkout Securely
QNAP half-width 16-port 10GbE switch

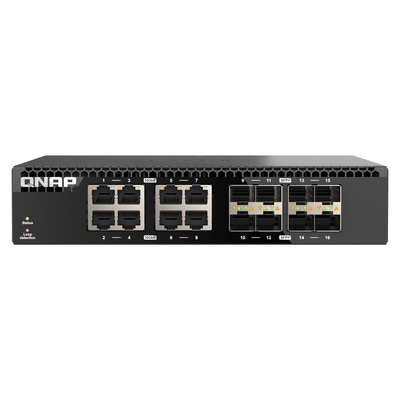

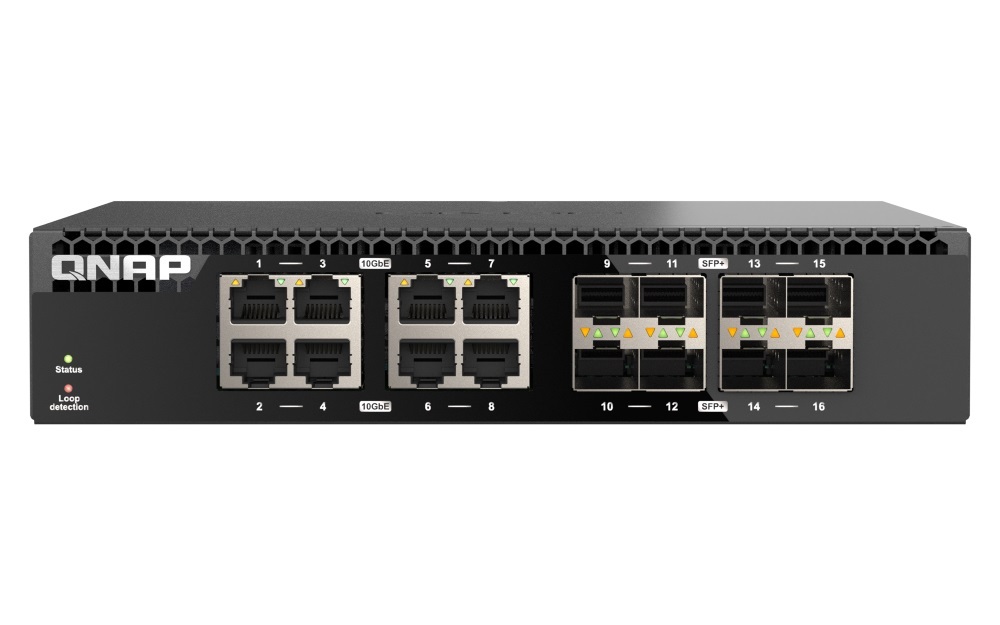

QNAP QSW-3216R-8S8T 16-Port 10GbE Half-Width Rackmount Unmanaged Switch
A half-width rackmount unmanaged switch with eight 10GbE SFP+ ports and eight multi-speed 10GBASE-T RJ45 ports for high-speed fibre and copper networks.
SFP+ ports8 × 10GbE
RJ45 ports8 × 10GbE Multi-Gig
Switching capacity320Gbps
Form factorHalf-width rackmount
Sixteen 10GbE fibre and copper ports
The eight SFP+ ports support 10G and 1G, while the eight RJ45 ports support 10G, 5G, 2.5G, 1G and 100M. The unmanaged design uses automatic link-speed negotiation with no complex switch configuration.
High-throughput rack deployment
- 160Gbps total non-blocking throughput and 320Gbps switching capacity.
- 9K jumbo frames, 16K MAC address table and IEEE 802.3x flow control.
- Automatic loop detection and blocking are described in the supplied product information.

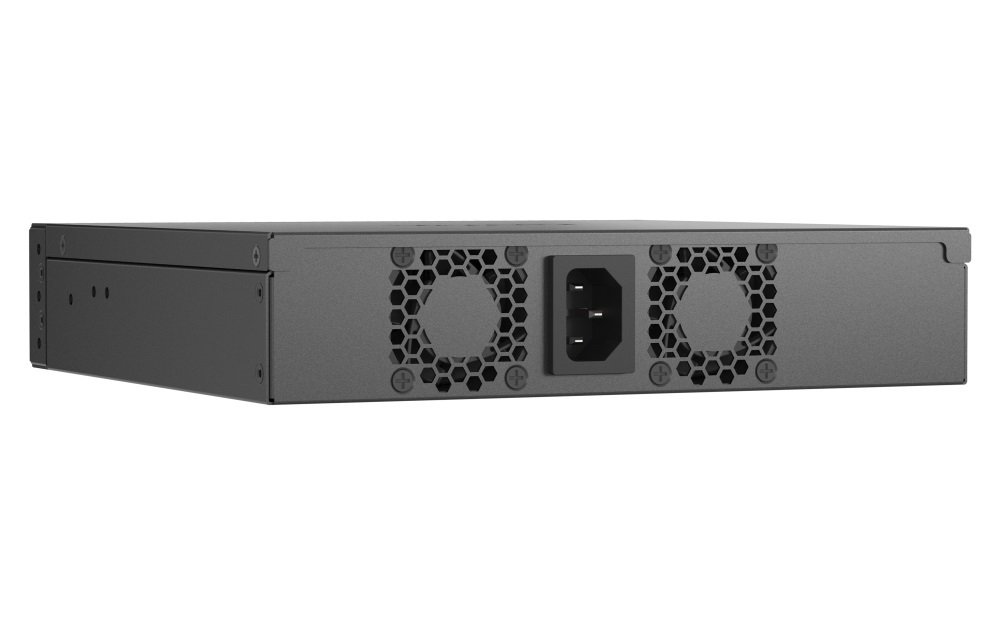

- Two PWM VAPO bearing fans provide active cooling.
- Two compatible half-width switches can be mounted side by side using the optional SP-EAR-QSW2FOR1-01 rackmount kit.
Rack kit and console field
The two-switch side-by-side installation requires the optional SP-EAR-QSW2FOR1-01 kit. The specification table also states Console: Yes but does not identify the console interface or function.
Frequently asked questions
Answers below are based only on the supplied product information for QSW-3216R-8S8T.
Is the QSW-3216R-8S8T a managed switch?
No. It is an unmanaged switch designed for plug-and-play operation.
How many 10GbE ports does it provide?
It provides sixteen ports: eight 10GbE SFP+ ports and eight multi-speed 10GBASE-T RJ45 ports.
Which speeds do the RJ45 ports support?
Each RJ45 port supports 10G, 5G, 2.5G, 1G and 100M.
Can the SFP+ ports use 1GbE connections?
Yes. The supplied specifications list 10G and 1G support for the SFP+ ports.
Can two switches fit side by side in 1U?
The supplied description states that two compatible half-width switches can share one 1U space using the optional SP-EAR-QSW2FOR1-01 kit.
What warranty applies to this switch?
The supplied specifications state a 2-year QNAP manufacturer warranty.
(QSW-3216R-8S8T)
Features and highlights
QNAP QSW-3216R-8S8T 16-Port 10GbE Half-Width Rackmount Unmanaged Switch
Eight Multi-Gig RJ45 ports
Supports 10G, 5G, 2.5G, 1G and 100M copper Ethernet.
320Gbps switching
Provides 160Gbps total non-blocking throughput.
Half-width rack design
Allows side-by-side 1U installation with the optional compatible rack kit.
Key details to check before purchase
- Jumbo frames: 9K
- MAC address table: 16K
- Power: internal 100240VAC supply
- Cooling: 2 × PWM VAPO bearing fans
QNAP QSW-3216R-8S8T 16-Port 10GbE Half-Width Rackmount Unmanaged Switch specifications
Technical information below is organised from the supplied product data.
| Specification | Details |
|---|---|
| Product Details | |
| Brand | QNAP |
| SKU | QSW-3216R-8S8T |
| Product Type | 16-port half-width rackmount unmanaged 10GbE switch |
| Model | QSW-3216R-8S8T |
| Management Type | Unmanaged |
| Management Interface | Unmanaged |
| Number of Ports | 16 |
| Console | Yes (interface and function not specified in supplied data) |
| Network Interfaces | |
| 10GbE SFP+ | 8 ports (10G/1G) |
| 10GbE BASE-T (RJ45) | 8 ports (10G/5G/2.5G/1G/100M) |
| Switching Performance | |
| MAC Address Table | 16K |
| Total Non-Blocking Throughput | 160Gbps |
| Switching Capacity | 320Gbps |
| Jumbo Frames | 9K |
| Flow Control | IEEE 802.3x Full-Duplex Flow Control |
| Supported Standards | |
| Networking Standards | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-T IEEE 802.3ab 1000BASE-T IEEE 802.3bz 2.5G/5GBASE-T IEEE 802.3z 1000BASE-SX/LX IEEE 802.3an 10GBASE-T IEEE 802.3ae 10G Fibre IEEE 802.3x Full-Duplex Flow Control |
| Power and Cooling | |
| Power Supply | Internal power supply unit |
| Input Power Type | AC |
| Input Voltage Range | 100240VAC, 50/60Hz |
| Maximum Power Consumption | 48.632W |
| Fans | 2 × PWM VAPO bearing fans |
| Physical Specifications | |
| Form Factor | Half-width rackmount |
| Dimensions (H × W × D) | 43.3 × 207 × 199.5mm |
| Net Weight | 1.52kg |
| Gross Weight | 2.23kg |
| LED Indicators | Per port: Speed, link and activity Per system: Power and status |
| Operating Environment | |
| Operating Temperature | 0°C to 40°C (32°F to 104°F) |
| Relative Humidity | 595% non-condensing |
| Electromagnetic Compliance | Class A |
| Certifications and Warranty | |
| Certifications | CE, FCC, VCCI, BSMI |
| Warranty | 2 years |
The supplied Specifications cell states Console: Yes but does not identify an interface or management function. The switch remains described as unmanaged.
Side-by-side installation of two compatible half-width switches requires the optional SP-EAR-QSW2FOR1-01 rackmount kit.
| SKU | QSW-3216R-8S8T |
| Model # | QSW-3216R-8S8T |
| Brand | QNAP |
| Shipping Weight | 1.0000kg |
QNAP2-year
QNAP manufacturer warranty
The QNAP QSW-3216R-8S8T is supplied with a 2-year QNAP manufacturer warranty.
Warranty coverage, eligibility and claim assessment are subject to QNAP terms. Please retain your DeviceDeal tax invoice as proof of purchase.
