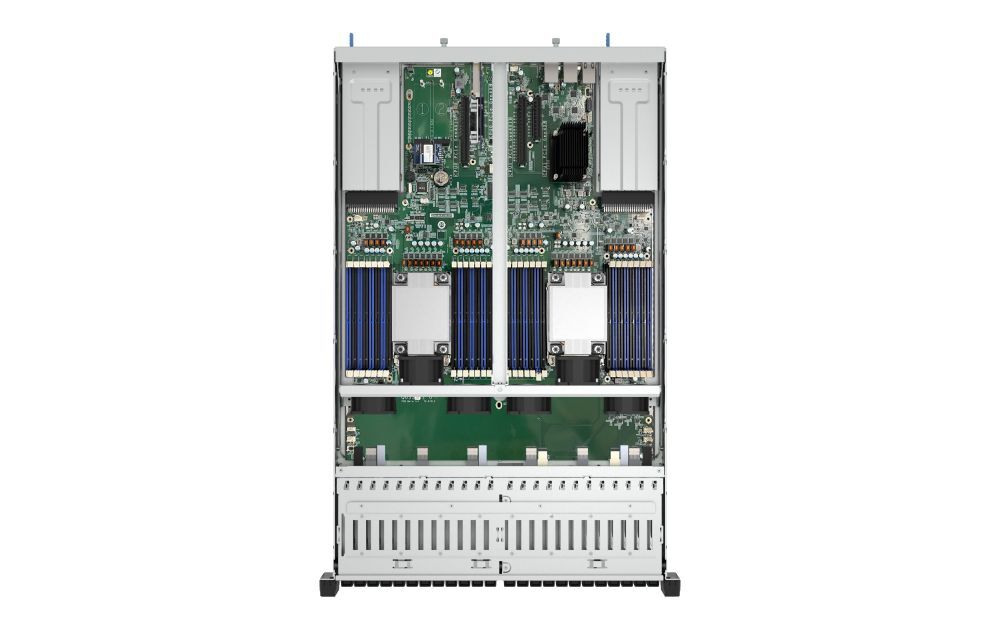

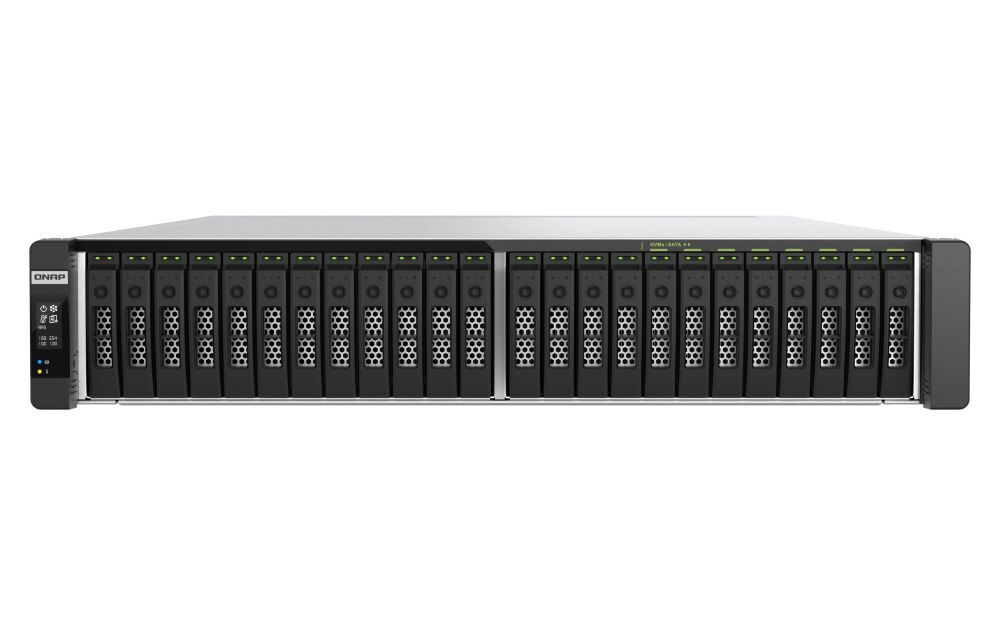

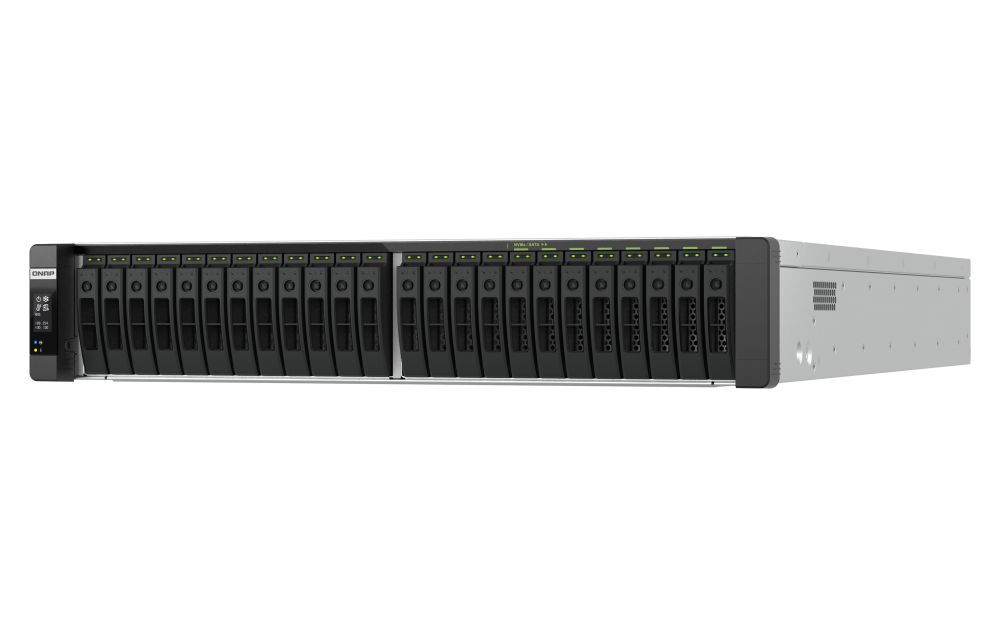

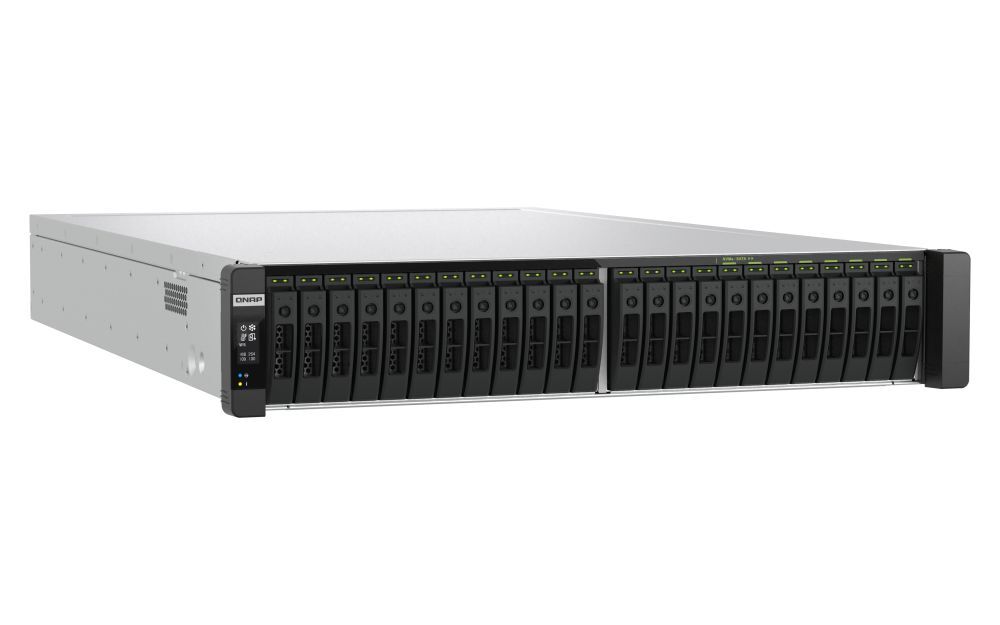

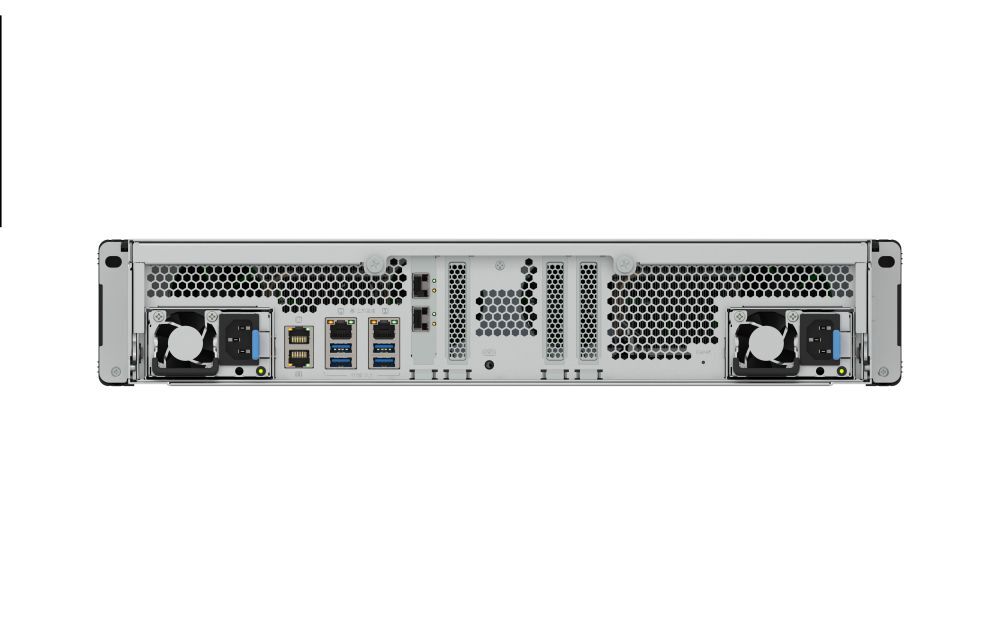

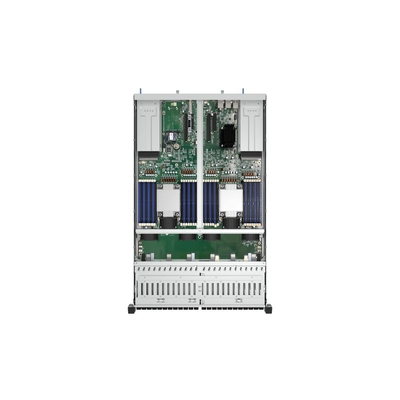

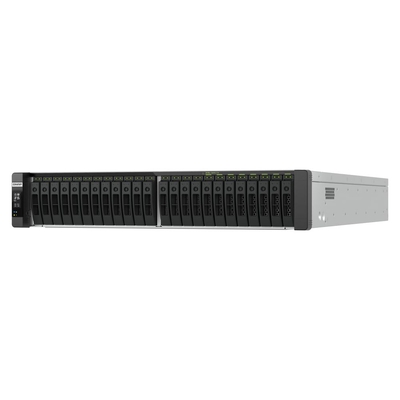

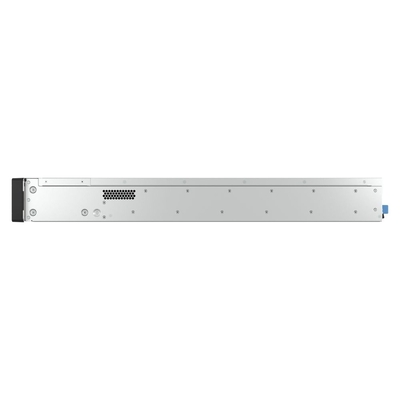

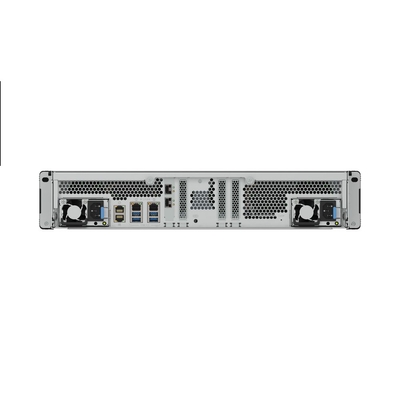

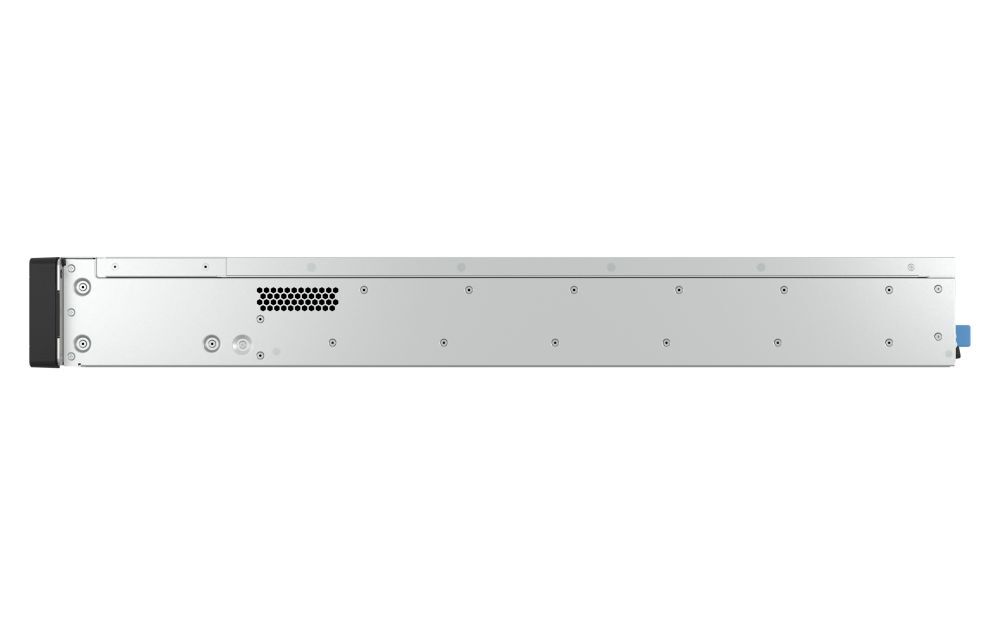

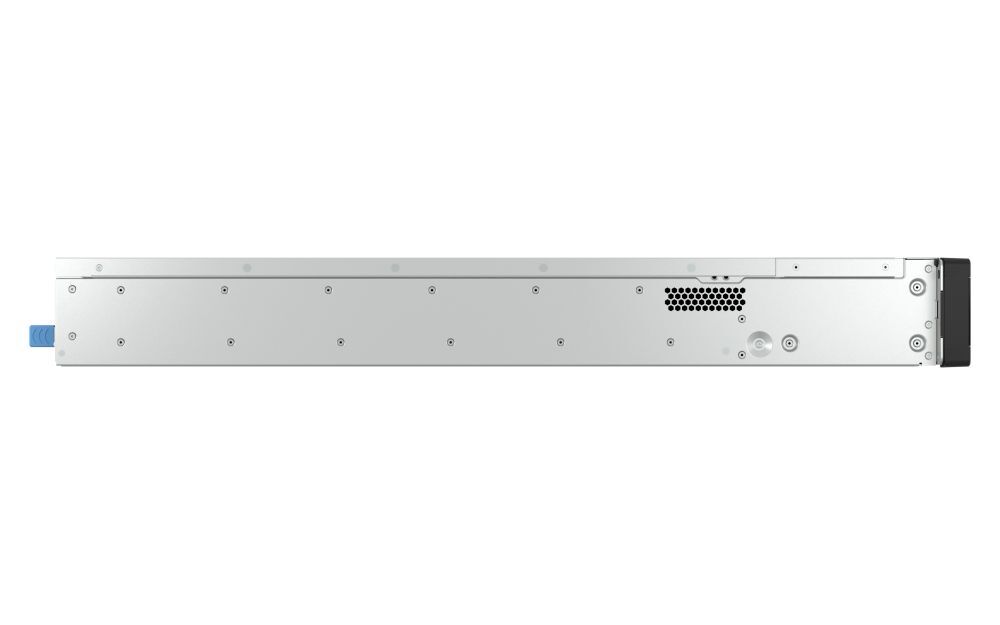

The flagship TDS-h2489FU R2 U.2 NVMe all-flash rackmount NAS, powered by dual Intel® Xeon® Silver 4300 series processors in 16/32-core configurations, delivers a highly efficient, secure, and reliable enterprise storage solution. Its robust performance meets the demands of virtualization, data centers, AI Big Data storage, cloud-based applications, and 3D rendering workstations, addressing the need for low-latency and high-load multitasking applications. The 24-bay TDS-h2489FU R2 comes with sixteen 2.5-inch U.2 PCIe NVMe slots and eight 2.5-inch U.2 PCIe NVMe / SATA 6Gbps slots, along with four PCIe Gen 4 expansion slots for quickly upgrading to 25GbE / 100GbE networking and PB-level storage, supporting high-speed data access and data growth. Dual redundant power supplies minimize the risk of unexpected hardware failure, ensuring stable system operation.

• Scalable ECC RDIMM memory up to 1TB

  Equipped with error-correcting DDR4 ECC RDIMM memory, expandable up to 1TB, boosting multitasking performance.

• 25GbE as standard and upgradable to 100GbE

  Enable Port Trunking and connect to a network switch to expand bandwidth for more devices and workstations.

• High expandability with PCIe Gen 4

  Has four PCIe Gen 4 slots, allowing installing high-speed network cards (10/25/100GbE), M.2 SSD expansion cards, Fibre Channel cards, and storage expansion cards.

• Petabyte-scale storage

  Flexibly connect QNAP PCIe JBOD or SAS JBOD for higher capacity, exceptional performance, and flexible expandability.

• M.2 SSD caching

  Two M.2 PCIe NVMe / SATA slots for cache acceleration or high-speed storage pools, enhancing performance and data access speed.

• Immutability

  Uses the ZFS-based QuTS hero operating system, which ensures high data integrity with immutable storage, snapshot protection, data deduplication, and SSD optimization.
