10-bay 1U U.2 NVMe all-flash NAS

QNAP TS-h1090FU-7302P-128G 10-Bay 25GbE NVMe NAS

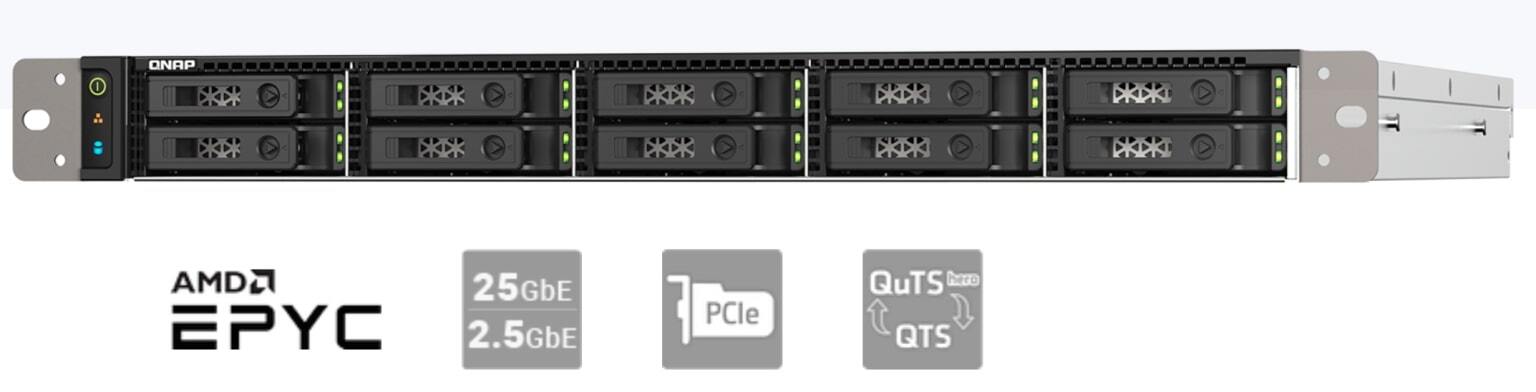

The QNAP TS-h1090FU-7302P-128G is a diskless 10-bay 1U all-flash NAS with an AMD EPYC 7302P 16-core/32-thread processor, 128GB RDIMM DDR4 ECC memory, dual 25GbE SFP28, dual 2.5GbE and dual PCIe Gen 4 x16.

Diskless 10-bay NAS128GB ECC memoryDual 25GbE SFP285-year warranty

QNAP TS-h1090FU-7302P-128G 10-bay 25GbE NVMe all-flash NAS

What is the QNAP TS-h1090FU-7302P-128G?

It is a high-density U.2 NVMe and SATA all-flash NAS designed for low-latency file access, virtualisation, data-centre storage, media transfer and large backup or restoration workloads.

10 BaysU.2 NVMe Gen 4 or SATA SSD

16 CoresAMD EPYC 7302P

128GB ECC12 RDIMM slots

2 × 25GbESFP28 SmartNIC ports

Need help choosing a NAS?

Explore the DeviceDeal NAS Buying Guide

Compare NAS types, storage considerations and practical features before selecting your next network storage system.

Read NAS Buying Guide

AMD EPYC 16-core processing and ECC memory

The AMD EPYC 7302P provides sixteen cores, thirty-two threads and speeds up to 3.3GHz.

This configuration includes 128GB RDIMM DDR4 ECC memory and provides twelve RDIMM slots, with a supplied maximum listed as 1TB+ using 12 × 128GB modules.

The CPU uses a 64-bit x86 architecture.
AES-NI hardware encryption support is included.
Use compatible QNAP memory modules and follow the hardware user manual for installation.

Ten U.2 NVMe or SATA SSD bays

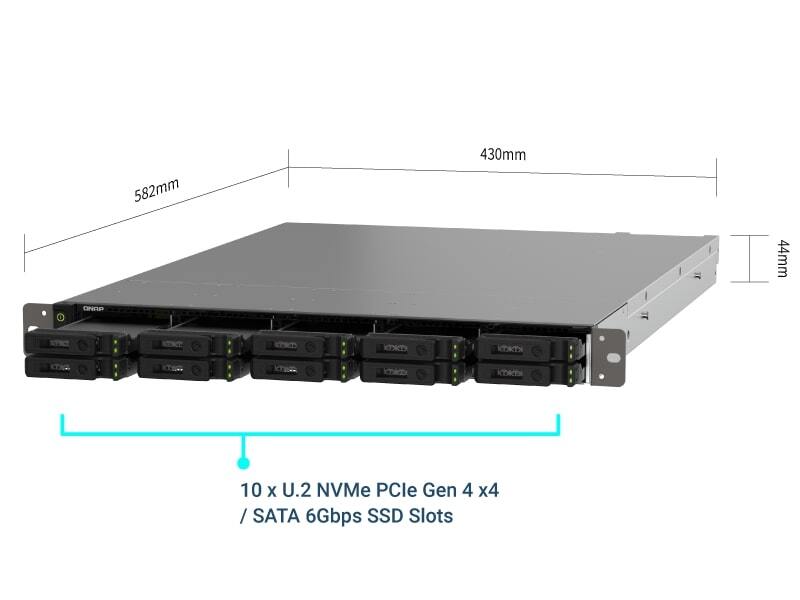

Ten 2.5-inch bays support compatible U.2 NVMe Gen 4 x4 solid state drives and 2.5-inch SATA solid state drives.

The supplied product information describes the platform as high-density all-flash storage for high random I/O and low-latency workloads.

The system is shipped without SSDs.
The drive bays are listed as hot-swappable.
SSD cache acceleration is supported.

Dual 25GbE, dual 2.5GbE and SR-IOV

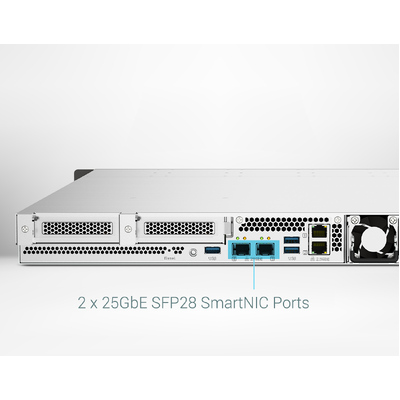

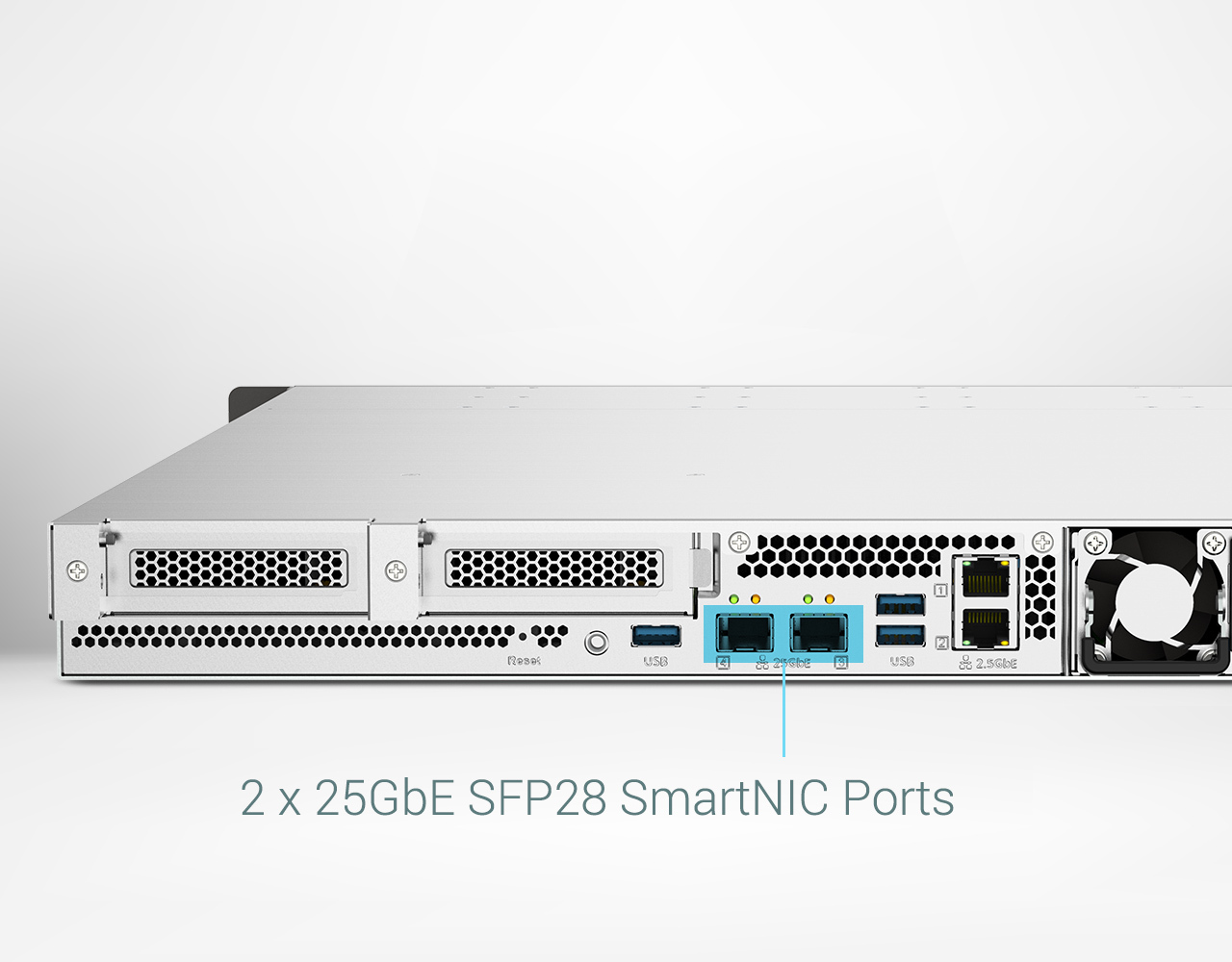

Two 25GbE SFP28 SmartNIC ports support bandwidth-intensive access, while two 2.5GbE ports provide additional multi-gigabit connectivity.

SR-IOV support is listed for compatible virtualisation deployments.

Wake on LAN is supported through the 2.5GbE ports.
Jumbo Frame support is included.
Three USB 3.2 Gen 1 ports are listed.

Dual PCIe Gen 4 x16 and dual 550W power

Two PCIe Gen 4 x16 slots support low-profile expansion cards for compatible 10/25/40/100GbE networking, QM2 or Fibre Channel.

Two 550W power supply units with 100240V input are listed for the 1U rackmount chassis.

Slot 1 supports cards up to 198 × 68.9 × 18.76mm.
Slot 2 supports cards up to 250 × 68.9 × 18.76mm.
The chassis measures 44 × 430 × 582mm.

Important purchasing and deployment notes

This model is supplied without SSDs; compatible U.2 NVMe or SATA SSDs must be purchased separately.
This configuration includes 128GB RDIMM DDR4 ECC memory.
Only low-profile PCIe cards are supported, with slot-specific size limits.
Confirm transceiver, cable, drive, memory and expansion-card compatibility before deployment.

Frequently asked questions

What is the QNAP TS-h1090FU-7302P-128G?

It is a diskless 10-bay 1U U.2 NVMe and SATA all-flash NAS with an AMD EPYC 7302P processor, 128GB ECC memory and dual 25GbE.

Does this model include SSDs?

No. The supplied specifications state that the system is shipped without SSDs.

Which drives are supported?

It supports compatible 2.5-inch U.2 NVMe Gen 4 x4 solid state drives and 2.5-inch SATA solid state drives.

Which processor is installed?

It uses an AMD EPYC 7302P sixteen-core, thirty-two-thread processor with speeds up to 3.3GHz.

How much memory is installed?

The SKU, description and detailed specifications identify this as the 128GB RDIMM DDR4 ECC configuration.

Are the drive bays hot-swappable?

Yes. The supplied specifications list the ten drive bays as hot-swappable.

What is the maximum memory capacity?

The supplied specifications list 1TB+ using twelve 128GB RDIMM modules.

Which network ports are included?

It includes two 25GbE SFP28 SmartNIC ports and two 2.5GbE ports.

Does it support SR-IOV?

Yes. SR-IOV support is listed in the supplied specifications.

How many PCIe slots are included?

It includes two low-profile PCIe Gen 4 x16 slots.

What are the chassis dimensions?

The 1U rackmount chassis measures 44 × 430 × 582mm.

What manufacturer warranty applies?

The supplied specifications list a five-year QNAP manufacturer warranty.

(TS-h1090FU-7302P-128G)

Features and highlights

Key capabilities below are organised from the supplied product information for TS-h1090FU-7302P-128G.

AMD EPYC 16-core CPU

The 7302P processor provides thirty-two threads and speeds up to 3.3GHz.

128GB RDIMM ECC

The supplied configuration includes 128GB memory across a platform with twelve RDIMM slots.

Ten U.2 NVMe or SATA bays

The hot-swappable 2.5-inch bays support compatible U.2 NVMe Gen 4 x4 and SATA SSDs.

Dual 25GbE SFP28

Two SmartNIC ports support bandwidth-intensive storage and virtualisation workloads.

Dual PCIe Gen 4 x16

Two low-profile slots support compatible networking, QM2 and Fibre Channel expansion.

Dual 550W power

Two power supply units are listed for the compact 1U rackmount chassis.

Important: This system is supplied without SSDs. Confirm compatible U.2 NVMe or SATA drives, SFP28 transceivers and cables, memory and low-profile PCIe cards before purchase.

TS-h1090FU-7302P-128G specifications

Specifications below are organised from the supplied QNAP product information for TS-h1090FU-7302P-128G.

Processor and Memory

CPU	AMD EPYC 7302P 16-core/32-thread processor, up to 3.3GHz
CPU Architecture	64-bit x86
Encryption Engine	Yes (AES-NI)
System Memory	128GB RDIMM DDR4 ECC
Maximum Memory	1TB+ (12 x 128GB)
Memory Slots	12 x RDIMM DDR4

Storage

Drive Bays	10 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps The system is shipped without SSDs.
Compatible Drives	2.5-inch U.2 NVMe Gen 4 x4 solid state drives 2.5-inch SATA solid state drives
Hot-Swappable	Yes
SSD Cache Acceleration	Supported

Networking

2.5 Gigabit Ethernet	2 x 2.5GbE ports (2.5G/1G/100M/10M)
25 Gigabit Ethernet	2 x 25GbE SFP28 SmartNIC ports
Wake on LAN	Yes Supported through the 2.5GbE ports only.
Jumbo Frame	Supported
SR-IOV	Yes

Expansion and Connectivity

PCIe Slots	2 x PCIe Gen 4 x16 slots Low-profile PCIe cards only. Slot 1 card dimensions: 198 x 68.9 x 18.76mm. Slot 2 card dimensions: 250 x 68.9 x 18.76mm. Wider cards can be installed if the next PCIe slot is not used.
USB Ports	3 x USB 3.2 Gen 1 ports

Physical Specifications

Form Factor	1U rackmount
LED Indicators	Disk, status, LAN and storage expansion port status
Buttons	Power and reset
Dimensions	44 x 430 x 582mm
Net Weight	11.6kg
Gross Weight	13.4kg

Power and Cooling

Power Supply	550W PSU x 2, AC 100240V
Typical Operating Power Consumption	157.97W Tested with drives fully populated.
Cooling Fans	5 x 60mm, 12VDC
System Warning	Buzzer

Environmental

Operating Temperature	040°C (32104°F)
Storage Temperature	-2070°C (-4158°F)
Relative Humidity	595% RH non-condensing, wet bulb: 27°C (80.6°F)

Warranty and Connections

Standard Warranty	5 years
Maximum Concurrent CIFS Connections	10,000 with maximum memory installed

SKU	TS-h1090FU-7302P-128G
Model #	TS-h1090FU
Barcode #	885022024483
Brand	QNAP
Shipping Weight	13.4700kg

5 YearsQNAP manufacturer warranty

5-year QNAP manufacturer warranty

The supplied specifications list a 5-year standard manufacturer warranty for the QNAP TS-h1090FU-7302P-128G.

Warranty coverage, eligibility and claim assessment are subject to QNAPs applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
