12-bay desktop U.2 NVMe all-flash NAS

QNAP TS-h1290FX-7302P-256G 12-Bay 25GbE All-Flash NAS

The QNAP TS-h1290FX-7302P-256G is a diskless 12-bay U.2 NVMe and SATA all-flash tower NAS with an AMD EPYC 7302P 16-core/32-thread processor, 256GB RDIMM DDR4 ECC memory, dual 25GbE SFP28, dual 2.5GbE and four PCIe Gen 4 slots.

Diskless 12-bay NAS256GB ECC memoryDual 25GbE SFP285-year warranty

QNAP TS-h1290FX-7302P-256G 12-bay 25GbE all-flash tower NAS

What is the QNAP TS-h1290FX-7302P-256G?

It is a desktop all-flash NAS designed for low-latency storage, collaborative media workflows, 4K and 8K editing, virtualisation and large file transfer.

12 BaysU.2 NVMe Gen 4 or SATA SSD

16C / 32TAMD EPYC 7302P

256GB ECCExpandable to 1TB

4 × PCIeGen 4 expansion slots

Need help choosing a NAS?

Explore the DeviceDeal NAS Buying Guide

Compare NAS types, storage considerations and practical features before selecting your next network storage system.

Read NAS Buying Guide

Twelve hot-swappable U.2 NVMe or SATA bays

Twelve 2.5-inch bays support compatible U.2 NVMe PCIe Gen 4 x4 solid state drives and 2.5-inch SATA solid state drives.

The supplied product information positions the tower system for demanding backup, collaboration and real-time 4K or 8K media workflows.

The system is shipped without SSDs.
The drive bays are listed as hot-swappable.
SSD cache acceleration is supported.

AMD EPYC 7302P and 256GB ECC memory

The AMD EPYC 7302P provides sixteen cores, thirty-two threads and speeds up to 3.3GHz.

This configuration includes 256GB RDIMM DDR4 ECC memory and supports a supplied maximum of 1TB across eight RDIMM slots.

The CPU uses a 64-bit x86 architecture.
AES-NI hardware encryption support is included.
GPU pass-through and SR-IOV support are listed.

Dual 25GbE and four PCIe Gen 4 slots

Two 25GbE SFP28 SmartNIC ports support high-bandwidth access, and two 2.5GbE ports provide additional multi-gigabit connectivity.

Four PCIe Gen 4 slots support compatible network, graphics and other expansion cards.

Wake on LAN is supported through the 2.5GbE ports only.
Jumbo Frame support is included.
Three USB 3.2 Gen 1 ports are listed.

QuTS hero data integrity and scalable storage

The ZFS-based QuTS hero feature set includes self-healing, WORM, inline deduplication, inline compression, Pool Over-provisioning and TRIM.

The supplied product information lists TR-002, TR-004, TL-D800C and TL-D800S expansion enclosures for increasing capacity.

Compatible NVIDIA graphics cards are listed for video processing or GPU pass-through.

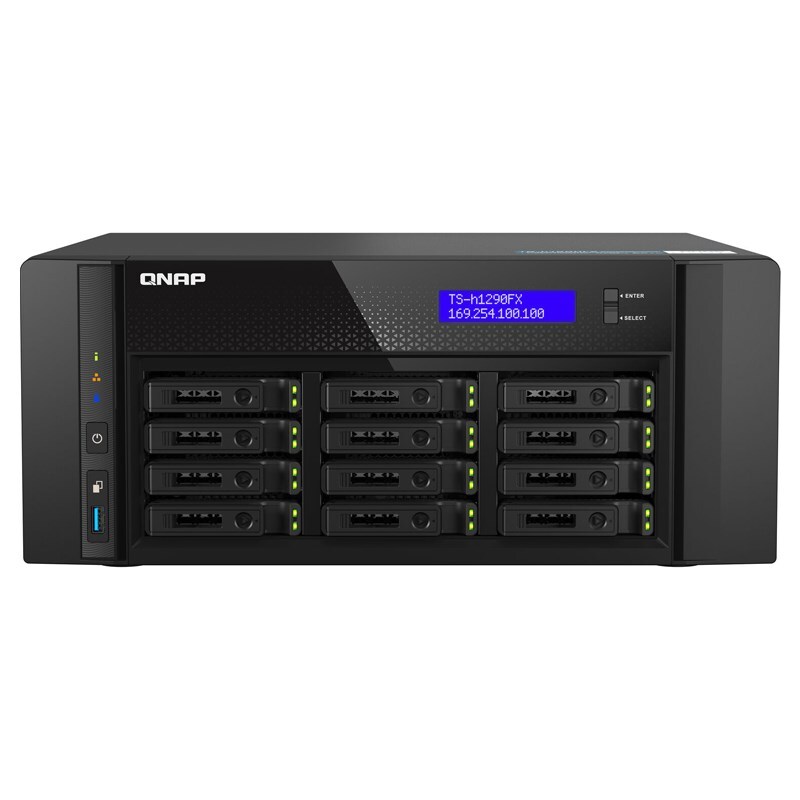

The tower chassis includes an LCD display, USB Auto Copy button and Kensington security slot.
Typical operating power consumption is listed as 134.41W.

Important purchasing and deployment notes

This model is supplied without SSDs; compatible U.2 NVMe or SATA SSDs must be purchased separately.
The supplied dimensions exclude a foot pad that may add up to 30mm depending on the model.
Graphics-card and expansion-enclosure support depends on compatible hardware and required accessories.
Confirm SSD, SFP28 transceiver, cable, memory and PCIe-card compatibility before deployment.

Frequently asked questions

What is the QNAP TS-h1290FX-7302P-256G?

It is a diskless 12-bay U.2 NVMe and SATA all-flash tower NAS with an AMD EPYC 7302P processor, 256GB ECC memory and dual 25GbE.

Does this NAS include SSDs?

No. The supplied specifications state that the system is shipped without SSDs.

Which drives are supported?

It supports compatible 2.5-inch U.2 NVMe PCIe Gen 4 x4 solid state drives and 2.5-inch SATA solid state drives.

Which processor is installed?

It uses an AMD EPYC 7302P sixteen-core, thirty-two-thread processor with speeds up to 3.3GHz.

How much memory is installed and supported?

It includes 256GB RDIMM DDR4 ECC memory and supports up to 1TB across eight RDIMM slots.

Are the drive bays hot-swappable?

Yes. The supplied specifications list the twelve 2.5-inch drive bays as hot-swappable.

Which network ports are included?

It includes two 25GbE SFP28 SmartNIC ports and two 2.5GbE ports.

Does it support graphics cards?

The supplied product information lists compatible NVIDIA graphics cards for video processing or GPU pass-through to virtual machines.

How many PCIe slots are included?

It provides four PCIe Gen 4 slots with supplied x16 and x8 lane configurations.

Which expansion enclosures are listed?

The supplied product information lists TR-002, TR-004, TL-D800C and TL-D800S expansion enclosures.

What dimensions are supplied?

The dedicated specifications list 157.2 × 368 × 362mm, excluding a foot pad that may add up to 30mm.

What manufacturer warranty applies?

The supplied specifications list a five-year QNAP manufacturer warranty.

(TS-h1290FX-7302P-256G)

Features and highlights

Key capabilities below are organised from the supplied product information for TS-h1290FX-7302P-256G.

Twelve U.2 NVMe or SATA bays

The hot-swappable 2.5-inch bays support compatible U.2 NVMe Gen 4 x4 and SATA SSDs.

AMD EPYC 16-core CPU

The 7302P processor provides thirty-two threads and speeds up to 3.3GHz.

256GB RDIMM ECC

The installed memory can be expanded to a supplied maximum of 1TB.

Dual 25GbE SFP28

Two SmartNIC ports support high-bandwidth media and data workflows.

Four PCIe Gen 4 slots

The slots support compatible networking, graphics and other expansion cards.

QuTS hero all-flash features

The supplied feature set includes self-healing, WORM, deduplication and compression.

Important: This system is supplied without SSDs. Confirm compatible U.2 NVMe or SATA drives, SFP28 equipment, memory and PCIe expansion hardware before purchase.

TS-h1290FX-7302P-256G specifications

Specifications below are organised from the supplied QNAP product information for TS-h1290FX-7302P-256G.

Processor and Memory

CPU	AMD EPYC 7302P 16-core/32-thread processor, up to 3.3GHz
CPU Architecture	64-bit x86
Encryption Engine	Yes (AES-NI)
System Memory	256GB RDIMM DDR4 ECC
Maximum Memory	1TB (8 x 128GB)
Memory Slots	8 x RDIMM DDR4

Storage

Drive Bays	12 x 2.5-inch U.2 PCIe NVMe / SATA 6Gbps The system is shipped without SSDs.
Drive Compatibility	2.5-inch SATA solid state drives 2.5-inch U.2 NVMe PCIe Gen 4 x4 solid state drives
Hot-Swappable	Yes
SSD Cache Acceleration	Supported
GPU Pass-Through	Yes
SR-IOV	Yes

Networking

2.5 Gigabit Ethernet	2 x 2.5GbE ports (2.5G/1G/100M/10M)
25 Gigabit Ethernet	2 x 25GbE SFP28 SmartNIC ports
Wake on LAN	Yes Supported through the 2.5GbE ports only.
Jumbo Frame	Yes

Expansion and Connectivity

PCIe Slots	4 Slot 1: PCIe Gen 4 x16 Slot 2: PCIe Gen 4 x16 Slot 3: PCIe Gen 4 x8 Slot 4: PCIe Gen 4 x16 Slots 1 and 2 support cards up to 185 x 111.15 x 18.76mm. Slots 3 and 4 support cards up to 280 x 111.15 x 18.76mm. Wider cards can be installed if the next PCIe slot is not used.
USB Ports	3 x USB 3.2 Gen 1 ports

Physical Specifications

Form Factor	Tower
LED Indicators	Power/status, LAN, USB and SSD 1-12
LCD Display / Button	Yes
Buttons	Power, reset and USB Auto Copy
Dimensions (H x W x D)	157.2 x 368 x 362mm Dimensions do not include the foot pad, which may be up to 30mm high depending on the model.
Net Weight	10.4kg
Gross Weight	11.3kg
Kensington Security Slot	Yes

Power and Cooling

Power Supply	750W, 100240V
Typical Operating Power Consumption	134.41W
Fans	2 x 92mm, 12VDC
System Warning	Buzzer

Environmental

Operating Temperature	040°C (32104°F)
Storage Temperature	-2070°C (-4158°F)
Relative Humidity	595% RH non-condensing, wet bulb: 27°C (80.6°F)

Warranty and Connections

Standard Warranty	5 years
Maximum Concurrent CIFS Connections	10,000 with maximum memory installed

SKU	TS-h1290FX-7302P-256G
Model #	TS-h1290FX
Barcode #	885022022885
Brand	QNAP
Shipping Weight	9.0000kg

5 YearsQNAP manufacturer warranty

5-year QNAP manufacturer warranty

The supplied specifications list a 5-year standard manufacturer warranty for the QNAP TS-h1290FX-7302P-256G.

Warranty coverage, eligibility and claim assessment are subject to QNAPs applicable warranty terms. Please retain your DeviceDeal tax invoice as proof of purchase.
