Add high-performance external data storage to your USB-C laptop, tablet or desktop computer, with this SATA M.2 SSD enclosure. It lets you use your SATA M.2 drive as an ultra-fast external storage solution over a USB 3.1 Gen 2 connection. It’s ideal for your MacBook, Dell XPS, Chromebook Pixel or other USB Type-C device.
Truly Portable

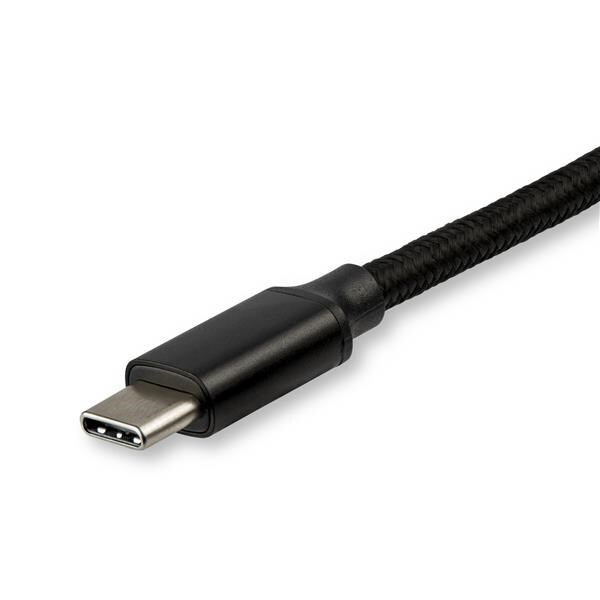

The compact M.2 SATA to USB adapter is easily portable and gives you high-speed access to your data, wherever you go. The integrated USB-C cable (6"/15.2 cm), means you’re always ready to plug it in, without having to remember to bring along a cable.

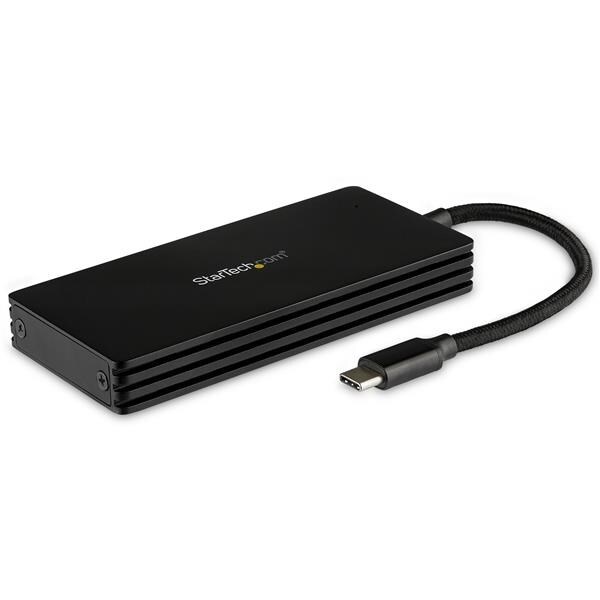

Durable Aluminum Design
The sturdy aluminum and plastic enclosure encases your M.2 SATA SSD and features built-in ventilation that improve heat dissipation to help keep your drive at a suitable operating temperature.
Use your M.2 SATA Drive for External Storage
Easily use your M.2 SATA drive as external data storage. This M.2 NGFF SSD enclosure provides a simple connection to your M.2 SATA SSD over USB 3.1 Gen 2. You can transfer files quickly, without bottlenecks, using a SATA M.2 SSD as your external drive.
Broad Compatibility

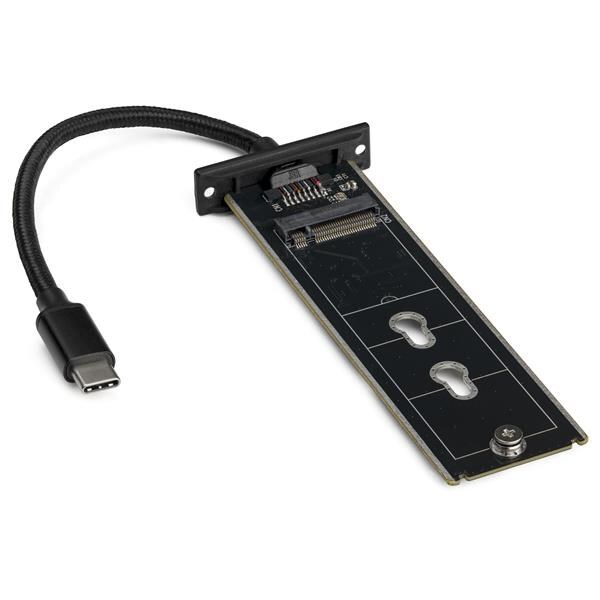

The enclosure supports common M.2 SATA SSDs and multiple drive lengths, including: 42 mm (2242), 60 mm (2260), and 80 mm (2280). The USB to M.2 SATA enclosure works with USB-C host devices and is also compatible with Thunderbolt 3 USB-C ports.
SM21BMU31CI3 is backed by a 2-year StarTech.com warranty and free lifetime technical support.
(SM21BMU31CI3)
Specifications
| Warranty Information | Warranty | 2 Years |
|---|---|---|
| Connector(s) | 1 - Drive Connectors | M.2 (SATA, B-Key, NGFF) |
| 1 - Host Connectors | USB Type-C (24 pin) USB 3.1 (10Gbps) | |
| Environmental | Operating Temperature | 5°C to 35°C (41°F to 95°F) |
| Storage Temperature | -20°C to 50°C (-4°F to 122°F) | |
| Humidity | 20% ~ 80% RH | |
| Hardware | Interface | USB 3.1 Gen 2 |
| Bus Type | USB 3.1 Gen 2 | |
| Number of Drives | 1 | |
| Drive Size | 22mm - M.2 SATA | |
| Compatible Drive Types | M.2 (SATA, B-Key, NGFF) | |
| Drive Installation | Fixed | |
| Compatible Drive Types | M.2 SATA (NGFF, B+M-Key) | |
| Supported Drive Height(s) | 2242 | |
| 2260 | ||
| 2280 | ||
| Chipset ID | JMicron - JMS580 | |
| Indicators | 1 - LED Indicators | Power & Activity |
| Packaging Information | Package Height | 1.2 in [30.0 mm] |
| Package Length | 6.9 in [17.5 cm] | |
| Shipping (Package) Weight | 6.6 oz [188.0 g] | |
| Package Width | 5.7 in [14.5 cm] | |
| Performance | Maximum Data Transfer Rate | 6 Gbps |
| Type and Rate | USB 3.1 Gen 2 - 10 Gbit/s | |
| UASP Support | Yes | |
| Type and Rate | SATA III (6 Gbps) | |
| TRIM Support | Yes | |
| MTBF | 50,000 hours | |
| General Specifications | Not compatible with M.2 NVMe or AHCI PCI-Express SSDs | |
| Physical Characteristics | Product Height | 0.5 in [13.0 mm] |
| Product Length | 4.3 in [11.0 cm] | |
| Weight of Product | 3.7 oz [105.0 g] | |
| Product Width | 2.0 in [50.0 mm] | |
| Color | Black | |
| Material | Aluminum | |
| Cable Length | 6.3 in [16 cm] | |
| Power | Power Source | USB-Powered |
| Software | OS Compatibility | OS independent; No software or drivers required |
| Special Notes / Requirements | Note | Windows 7 and earlier Windows versions do not support TRIM with USB to SATA devices. |
| What's in the Box | 1 - Included in Package | M.2 SATA Enclosure with Integrated USB-C Cable |
| Screwdriver | ||
| 4 - Included in Package | Assembly Screws | |
| 1 - Included in Package | Set of Drive-Mounting Hardware | |
| Quick-Start Guide |
| SKU | SM21BMU31CI3 |
| Barcode # | 65030883047 |
| Brand | Startech |
| Shipping Weight | 0.1300kg |
