FlashStation

FS3600

Enterprise-grade flashstation storage solution

FS3600

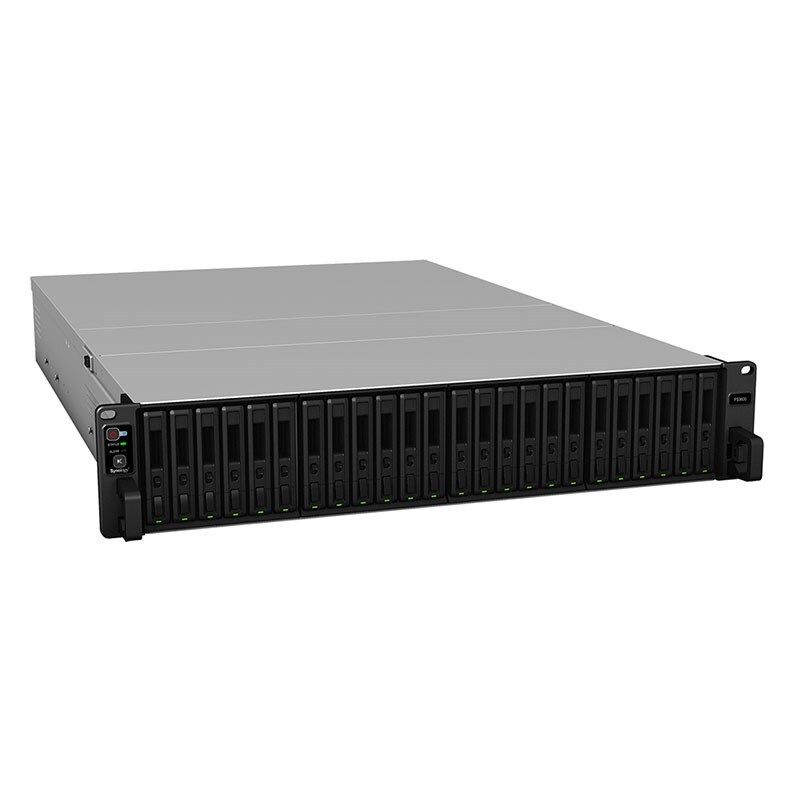

FS3600 is a 24-bay all-flash Synology NAS for enterprise use that boosts the performance of I/O sensitive applications, such as databases, virtual machines, or online transaction processing (OLTP).

Uncompromising performance

Throughput
Throughput
2x 10GbE LAN ports
Scalability
Scalability
Up to 72 drive bays with FX2421
CPU
CPU
12-core Intel Xeon D-1567 @ 2.1 (base) / 2.7 (turbo) GHz
Memory
Memory
16 GB DDR4 ECC RDIMM, expandable to 128 GB (32 GB x 4)

Who is using Synology?

Watch how our solutions empower businesses around the world with limitless possibilities.

Next-generation file system for better data protection

The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overheads. It offers flexible, efficient data protection and recovery tools while ensuring high-level data integrity.Learn more

Flash volume deduplication

Remove duplicate data on all-flash arrays with volume-wide deduplication to greatly increase storage efficiency. Eliminate redundant data to save up to 65% in storage space use in applications like virtual desktop infrastructure, and virtual machine.

5-year warranty

At Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.Learn more

Powered by Synology DiskStation Manager

Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.

Performance backed by Synology drives

Engineered to handle high-intensity workloads, Synology hard drives consistently deliver top-grade performance.

Powered by Synology DiskStation Manager

Enterprise-grade software solutions included

Synology High Availability

Seamless transition between clustered servers in the event of a server failure to minimize the impact on applications.

Active Backup Suite

Integrated, modern, and license-free backup & instant recovery solution for VMware, Windows, Microsoft 365, and Google Workspace.

Virtual Machine Manager

Run various operating systems in isolated sandboxes. Seamlessly clone, store, and migrate virtual machines.

Synology MailPlus

Secure, reliable, and private mail server solution with an intuitive and modern mail client.

Security

Secure data with comprehensive built-in security tools to protect your devices against evolving threats.

Snapshot Replication

Schedulable and instantaneous data protection for shared folders and iSCSI LUNs for disaster prevention.

(FS3600)

Technical Specifications

Complete hardware and software specifications

CPU

CPU Model Intel Xeon D-1567
CPU Quantity 1
CPU Cores 12
CPU Threads 24
CPU Architecture 64-bit
CPU Frequency 2.1 (base) / 2.7 (turbo) GHz
Hardware Encryption Engine Yes

Memory

System Memory 16 GB DDR4 ECC RDIMM
Total Memory Slots 4
Maximum Memory Capacity 128 GB (32 GB x 4)
Notes Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations.

Storage

Drive Bays 24
Maximum Drive Bays with Expansion Unit 72 (FX2421 x 2)
Drive Type(See all supported drives) 2.5" SAS SSD* 2.5" SAS HDD* 2.5" SATA SSD
Hot Swappable Drive* Yes
Notes 2.5" SAS HDD and 2.5" SAS SSD only indicate the drive types that may be compatible with Synology devices. For supported drive models, please refer to the device’s compatibility list .

External Ports

RJ-45 1GbE LAN Port 4
RJ-45 10GbE LAN Port 2
USB 3.2 Gen 1 Port 2
Expansion Port 1
Expansion Port Type Mini-SAS HD

PCIe

PCIe Expansion 1 x Gen3 x8 slot (x8 link)

Appearance

Form Factor (RU) 2U
Size (Height x Width x Depth) 88 mm x 482 mm x 724 mm
Weight 14.9 kg
Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-02 )
Notes The rail kit is sold separately

Others

System Fan 80 mm x 80 mm x 4 pcs
Fan Speed Mode Full-Speed Mode Cool Mode Quiet Mode
Easy Replacement System Fan Yes
Power Recovery Yes
Noise Level* 57 dB(A)
Scheduled Power On / Off Yes
Wake on LAN / WAN Yes
Power Supply Unit / Adapter 500 watts
Redundant Power Supply Yes
AC Input Power Voltage 100V to 240V AC
Power Frequency 50/60 Hz, Single Phase
Power Consumption 258.23 watts (Access) 127.99 watts (HDD Hibernation)
British Thermal Unit 881.12 BTU/hr (Access) 436.72 BTU/hr (HDD Hibernation)
Notes Noise Level Testing Environment: Fully loaded with Toshiba 600GB AL14SEB060N hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% Power consumption is measured when it is fully loaded with HGST 1.8TB HUC101818CS4204 hard drive(s).

Temperature

Operating Temperature 0°C to 35°C (32°F to 95°F)
Storage Temperature -20°C to 60°C (-5°F to 140°F)
Operating Humidity 8% to 80% RH
Storage Humidity 5% to 95% RH

Certification

Certification FCC CE BSMI VCCI RCM EAC CCC

Warranty

Warranty 5 Years
Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

Environment RoHS Compliant

Packaging Content

Packaging Content Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1

Optional Accessories

Optional Accessories DDR4 ECC RDIMM: D4ER01-16G / D4ER02-32G Expansion Units: FX2421* / RX1222sas Enterprise Series 2.5" SATA SSD: SAT5200 Series 25GbE Network Interface Card: E25G30-F2 10GbE Network Interface Card: E10G30-F2 / E10G30-T2 / E10G18-T1 Rail Kit Sliding: RKS-02
Notes For multi-module memory configurations, all modules must be identical and share the same model number. Check the Product Manual of your Synology product for recommended memory configurations. Expansion Unit FX2421 can only be used with identical expansion units.

Storage Management

Maximum Single Volume Size 1 PB (64 GB memory required, for RAID 6 groups only) 200 TB (32 GB memory required) 108 TB
Maximum Internal Volume Number 256
SSD Read/Write Cache(Determining cache size) Yes
SSD TRIM Yes
RAID Group Yes
Supported RAID Type RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10
RAID Migration Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6
Volume Expansion with Larger HDDs RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
Volume Expansion by Adding a HDD RAID F1 JBOD RAID 5 RAID 6
Global Hot Spare Supported RAID Type RAID F1 RAID 1 RAID 5 RAID 6 RAID 10
Notes Volumes over 108 TB require 32 GB of memory or more. Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration. Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. When Peta Volume is enabled, validated services and packages are required. Please refer to this article for more information on limitations.

File System

Internal Drives Btrfs ext4
External Drives Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT

File Services

File Protocol SMB AFP NFS FTP WebDAV Rsync
Maximum Number of SMB Connections (FSCT-Based) 2,700
Windows Access Control List (ACL) Integration Yes
NFS Kerberos Authentication Yes
Notes Connection value of this model is tested with Synology SATA SSD fully populated and up to four 10GbE network ports Models with expandable memory are tested with the maximum supported quantity installed. SMB performance was evaluated using Microsoft File Server Capacity Tool (FSCT) version 1.3, with the following configuration: Test workload: HomeFolder scenario provided by the FSCT tool Test duration: 600 seconds Domain controller & FSCT controller: Windows Server 2022 FSCT clients: 8 × Windows 10 machines SMB feature: Directory leasing enabled

Account & Shared Folder

Maximum Local User Accounts 10,240
Maximum Local Groups 512
Maximum Shared Folder 512
Maximum Shared Folder Sync Tasks 32

Hybrid Share

Hybrid Share Folder Number 30

Hyper Backup

Data & Folder Backup Yes
Entire System Backup Yes
Notes Full-system backup requires DSM 7.2 or later.

High Availability

Synology High Availability Yes

Log Center

Syslog Events per Second 3,000

Virtualization

VMware vSphere ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5
Microsoft Hyper-V Windows Server 2022, Windows Server 2019, Windows Server 2016
Citrix XenServer XenServer 8, Citrix Hypervisor 8.2 LTSR CU1
OpenStack Cinder

General Specifications

Supported Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV
Supported Browsers Chrome Firefox Edge Safari
Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
Notes For an updated list of supported browser versions, check the DSM Technical Specifications .

Central Management System

Central Management System Yes

Synology AI Console

Third-Party AI Model Integration Yes
Maximum De-Identification Rate 2,700 words per second
Notes De-identification performance measurement: Filters for Credit Card Numbers, IBAN, Individual Taxpayer Identification Number, SSN, and Names applied to a 4,355-word English text. To enable de-identification, your device must have at least 8 GB of memory and Container Manager installed.

Synology Chat

Maximum Number of Users 600
Notes Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds. Models with expandable memory are tested with the maximum supported quantity installed.

SAN Manager

Maximum iSCSI Target Number 256
Maximum LUN 512
LUN Clone/Snapshot, Windows ODX Yes

Synology MailPlus / MailPlus Server

Free Email Accounts 5 (Additional accounts require purchase of licenses)
Maximum Number of Users 5,800
Notes The suggested maximum number of users is based on the following workload: 20% of users with a 20,000 item mailbox randomly performing actions and receiving 240 emails per day, and 80% of users receiving 20 emails per day. Learn more Models with SSD support are tested with a single SSD volume. Models with expandable memory are tested with the maximum supported quantity installed. Learn more about memory requirements . Operating in high-availability mode will incur additional overhead. Features enabled during evaluation: anti-spam, anti-virus, DNSBL, greylist, content scanning, and full-text search (English).

Snapshot Replication

Maximum Snapshots per Shared Folder 1,024
Maximum Snapshots per LUN 256
Maximum Snapshots per System 65,536
Maximum Replication Tasks for Shared Folders 128
Maximum Replication Tasks for LUNs 64
Maximum Replication Tasks per System 128

Surveillance Station

Default Licenses 2 (Additional cameras require purchase of licenses)
Maximum IP Cameras and Total FPS (H.264) 1080p: 160 channels, 3840 FPS 3M: 160 channels, 1600 FPS 5M: 120 channels, 1200 FPS 4K: 80 channels, 800 FPS
Maximum IP Cameras and Total FPS (H.265) 1080p: 200 channels, 6000 FPS 3M: 160 channels, 2800 FPS 5M: 160 channels, 1600 FPS 4K: 120 channels, 1200 FPS
Notes Surveillance Station 9.1.3 or above is required to support the maximum IP cameras and FPS figures listed. Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads. Use NVR Selector to quickly find a suitable model based on your requirements. The number of video channels that can be viewed simultaneously is double the maximum number of cameras for the same codec and resolution.

Synology Drive

Maximum Number of Users 5,000
Maximum Number of Hosted Files 50,000,000 (applies to files indexed or hosted by Synology Drive . For file access through other standard protocols, refer to the File Services section above)
Notes The suggested maximum number of users is based on the following workload: 20% of users randomly perform file operations (upload, download, move, and delete), and 80% of users are logged in but idle. Learn more Models with SSD support are tested with a single SSD volume. Models with expandable memory are tested with the maximum supported quantity installed. Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.

Synology Office

Maximum Number of Users 4,800
Notes The suggested maximum number of users is based on the following workload: 20% of users are executing random actions at an average of 30-second intervals, and 80% of users are logged in and viewing a file. Learn more Models with SSD support are tested with a single SSD volume. Models with expandable memory are tested with the maximum supported quantity installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM

Virtual Machine Manager

Recommended Virtual Machine Instances 24 (Learn more)
Recommended Virtual DSM Number(Licenses required) 24 (including 1 Free License)
Notes The specifications vary depending on system configuration and memory size.

VPN Server

Maximum Connections 32
SKU FS3600
Barcode # 846504003617
Brand SYNOLOGY
Shipping Weight 15.0000kg

Manufacturer Warranty: 5 Years Limited Warranty
