RackStation

RS1619xs+

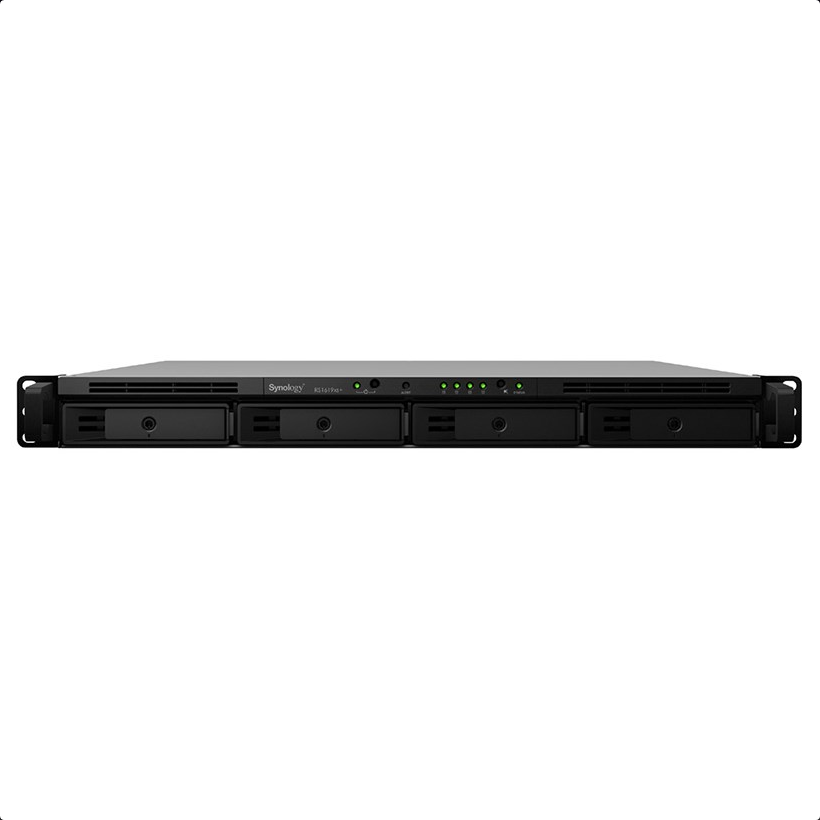

Name: Synology RackStation RS1619xs+ 4 Bay 1U Diskless Scalable NAS Xeon Quad Core CPU
Brand: SYNOLOGY
SKU: RS1619xsPLUS
Price: 4139 AUD
Availability: OutOfStock

Enterprise-grade rackstation storage solution

RS1619xs+ is a high-performance and scalable 1U rackmount NAS designed with upgradable memory and M.

Uncompromising performance

Throughput

4x 1GbE LAN ports

Scalability

Up to 16 drive bays with RX1217

CPU

4-core Intel Xeon D-1527 @ 2.2 (base) / 2.7 (turbo) GHz

Memory

8 GB DDR4 ECC UDIMM, expandable to 64 GB (16 GB x 4)

Variable options to boost system computing performance

Equipped with a PCIe 3.0 slot, RS1619xs+ supports installing a 10GbE/25GbE NIC for fast data transmission. Built-in M.2 2280 SSD cache slots further benefit IO-intensive tasks, such as virtualization or mail server deployment.

5-year warranty

At Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.

Next-generation file system for better data protection

The Btrfs file system introduces advanced storage technologies and optimized snapshots to prevent data corruption and reduce maintenance overhead. While ensuring high-level data integrity, it also offers flexible, efficient data protection and recovery tools.Learn more

Ultimate Backup Solution

RS1619xs+ integrates various backup applications into an intuitive user interface, offering durable storage technologies to safeguard your valuable data on any device.

Digital asset protection

Powered by Synology DiskStation Manager (DSM), Synology NAS offers advanced security measures to protect against sudden data loss and potential security holes.Learn more

Powered by Synology DiskStation Manager

Award-winning operating system with an intuitive user interface and powerful capabilities.

Powered by Synology DiskStation Manager

Enterprise-grade software solutions included

M.2 SSD support

Dual M.2 2280 slots supporting NVMe/SATA SSDs

10GbE/25GbE support

optional high-speed network capacity for bandwidth-intensive environments

Active Backup for Business

Centralize backup tasks for VMware, Windows, and file servers. Restore whatever you want fast and reliably when needed.

Hyper Backup

Comprehensively back up your data to a local shared folder, an external device, another Synology NAS, an rsync server, or a public cloud to ensure data safety.

Synology Drive

Safeguard your computer with Synology Drive Client. Effortlessly perform real-time data backups and point-in-time file recovery.

Active Backup forMicrosoft 365 / Google Workspace

Protect corporate data stored on the cloud. On-premise backup solution with a centralized dashboard. Optimize storage efficiency with single instancing and block-level deduplication technology.

(RS1619xsPLUS)

Technical Specifications

Complete hardware and software specifications

CPU

CPU Model Intel Xeon D-1527

CPU Quantity 1

CPU Cores 4

CPU Threads 8

CPU Architecture 64-bit

CPU Frequency 2.2 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine Yes

Memory

System Memory 8 GB DDR4 ECC UDIMM

Total Memory Slots 4

Maximum Memory Capacity 64 GB (16 GB x 4)

Notes Synology may revise pre-installed memory module specifications in response to component lifecycle and supply conditions. All revised components undergo the same rigorous validation to ensure equivalent compatibility, stability, and performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion. For more information on the recommended memory configurations, visit here .

Storage

Drive Bays 4

Maximum Drive Bays with Expansion Unit 16 (RX1217 x 1)

M.2 Drive Slots 2 (NVMe & SATA)

Drive Type(See all supported drives) 3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe & SATA SSD

Hot Swappable Drive* Yes

Notes The hot swappable drive feature is not supported by M.2 SSD slots.

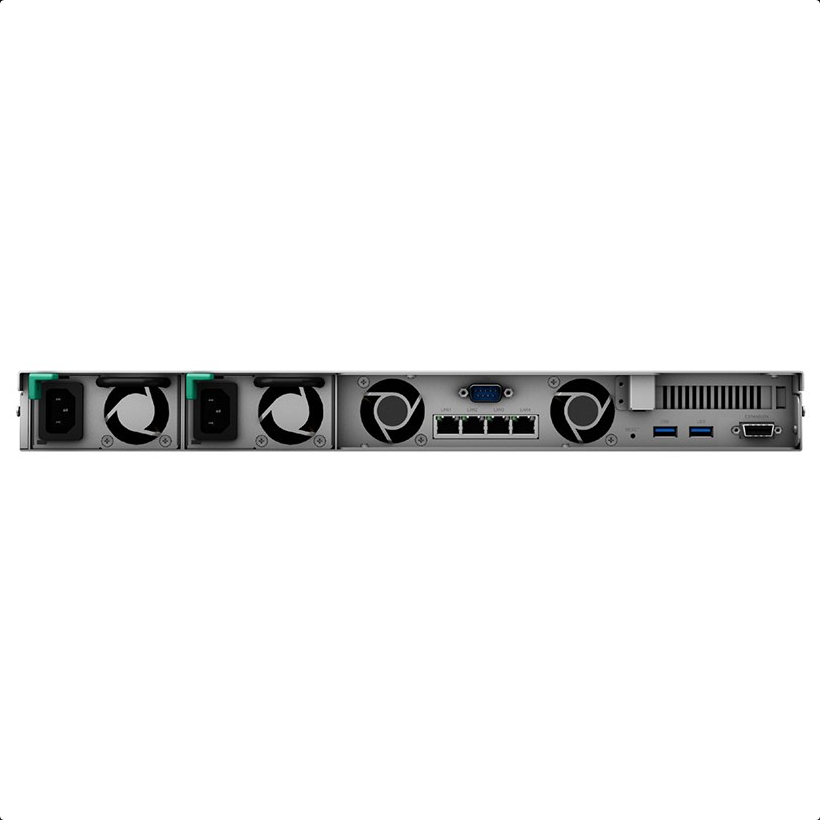

External Ports

RJ-45 1GbE LAN Port 4

USB 3.2 Gen 1 Port 2

Expansion Port 1

Expansion Port Type Infiniband

PCIe

PCIe Expansion 1 x Gen3 x8 slot (x8 link)

Appearance

Form Factor (RU) 1U

Size (Height x Width x Depth) 44 mm x 480 mm x 518.6 mm

Weight 8.16 kg

Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKM114 / RKS-02 )

Notes The rail kit is sold separately

Others

System Fan 40 mm x 40 mm x 2 pcs

Fan Speed Mode Full-Speed Mode Cool Mode Quiet Mode

Power Recovery Yes

Noise Level* 39.3 dB(A)

Scheduled Power On / Off Yes

Wake on LAN / WAN Yes

Power Supply Unit / Adapter 150 watts

Redundant Power Supply Yes

AC Input Power Voltage 100V to 240V AC

Power Frequency 50/60 Hz, Single Phase

Power Consumption 68.68 watts (Access) 34.78 watts (HDD Hibernation)

British Thermal Unit 234.35 BTU/hr (Access) 118.67 BTU/hr (HDD Hibernation)

Notes Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate 2TB ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%

Temperature

Operating Temperature 5°C to 35°C (40°F to 95°F)

Storage Temperature -20°C to 60°C (-5°F to 140°F)

Operating Humidity 8% to 80% RH

Storage Humidity 5% to 95% RH

Certification

Certification FCC CE BSMI VCCI RCM EAC CCC KC BIS

Warranty

Warranty 5 Years

Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

Environment RoHS Compliant

Packaging Content

Packaging Content Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1

Optional Accessories

Optional Accessories DDR4 ECC UDIMM: D4EC-2666-8G / D4EC-2666-16G Expansion Units: RX1217 / RX1217RP Enterprise Series 3.5" SATA HDD: HAT5300 Series Enterprise Series 2.5" SATA SSD: SAT5200 Series 25GbE Network Interface Card: E25G30-F2 10GbE Network Interface Card: E10G30-F2 / E10G30-T2 / E10G18-T1 Rail Kit Sliding: RKS-02 Rail Kit Mounted: RKM114*

Notes Certain items may not be available in your location. Please contact your local distributors for more information. All memory modules will operate at the maximum frequency specified by the CPU manufacturer.

Storage Management

Maximum Single Volume Size 1 PB (64 GB memory required, for RAID 6 groups only) 200 TB (32 GB memory required) 108 TB

Maximum Internal Volume Number 256

SSD Read/Write Cache(Determining cache size) Yes

SSD TRIM Yes

RAID Group Yes

Supported RAID Type RAID F1 Basic JBOD RAID 0 RAID 1 RAID 5 RAID 6 RAID 10

RAID Migration Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5 RAID 5 to RAID 6

Volume Expansion with Larger HDDs RAID F1 RAID 1 RAID 5 RAID 6 RAID 10

Volume Expansion by Adding a HDD RAID F1 JBOD RAID 5 RAID 6 (with Expansion Unit)

Global Hot Spare Supported RAID Type RAID F1 RAID 1 RAID 5 RAID 6 (with Expansion Unit) RAID 10 (with Expansion Unit)

Notes Volumes over 108 TB require 32 GB of memory or more. Actual maximum storage pool and volume sizes depend on drive sizes used, the number of drive bays available, and the RAID configuration. Usable capacity for each volume will be lower than the maximum volume size and is dependent on the filesystem and the amount of system metadata stored. When Peta Volume is enabled, validated services and packages are required. Please refer to this article for more information on limitations.

File System

Internal Drives Btrfs ext4

External Drives Btrfs ext4 ext3 FAT32 NTFS HFS+ exFAT

File Services

File Protocol SMB AFP NFS FTP WebDAV Rsync

Maximum Number of SMB Connections (FSCT-Based) 400

Windows Access Control List (ACL) Integration Yes

NFS Kerberos Authentication Yes

Notes Connection value of this model is tested with Synology SATA SSD fully populated and up to four 10GbE network ports Models with expandable memory are tested with the maximum supported quantity installed. SMB performance was evaluated using Microsoft File Server Capacity Tool (FSCT) version 1.3, with the following configuration: Test workload: HomeFolder scenario provided by the FSCT tool Test duration: 600 seconds Domain controller & FSCT controller: Windows Server 2022 FSCT clients: 8 × Windows 10 machines SMB feature: Directory leasing enabled

Account & Shared Folder

Maximum Local User Accounts 2,048

Maximum Local Groups 512

Maximum Shared Folder 512

Maximum Shared Folder Sync Tasks 12

Hybrid Share

Hybrid Share Folder Number 15

Hyper Backup

Data & Folder Backup Yes

Entire System Backup Yes

Notes Full-system backup requires DSM 7.2 or later.

High Availability

Synology High Availability Yes

Log Center

Syslog Events per Second 3,000

Virtualization

VMware vSphere ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5

Microsoft Hyper-V Windows Server 2022, Windows Server 2019, Windows Server 2016

Citrix XenServer XenServer 7

OpenStack Cinder

General Specifications

Supported Protocols SMB1 (CIFS), SMB2, SMB3, NFSv3, NFSv4, NFSv4.1, NFS Kerberized sessions, iSCSI, Fibre Channel, HTTP, HTTPs, FTP, SNMP, LDAP, CalDAV

Supported Browsers Chrome Firefox Edge Safari

Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文

Notes For an updated list of supported browser versions, check the DSM Technical Specifications .

Central Management System

Central Management System Yes

Synology AI Console

Third-Party AI Model Integration Yes

Maximum De-Identification Rate 400 words per second

Notes De-identification performance measurement: Filters for Credit Card Numbers, IBAN, Individual Taxpayer Identification Number, SSN, and Names applied to a 4,355-word English text. To enable de-identification, your device must have at least 8 GB of memory and Container Manager installed.

Synology Chat

Maximum Number of Users 400

Notes Measured with simulated users, each with an average record of 20,000 messages, emojis, or stickers. The required server response time is below ten seconds. Models with expandable memory are tested with the maximum supported quantity installed.

Download Station

Maximum Concurrent Download Tasks 80

SAN Manager

Maximum iSCSI Target Number 64

Maximum LUN 128

LUN Clone/Snapshot, Windows ODX Yes

Synology MailPlus / MailPlus Server

Free Email Accounts 5 (Additional accounts require purchase of licenses)

Maximum Number of Users 800

Notes The suggested maximum number of users is based on the following workload: 20% of users with a 20,000 item mailbox randomly performing actions and receiving 240 emails per day, and 80% of users receiving 20 emails per day. Learn more Models with SSD support are tested with a single SSD volume. Models with expandable memory are tested with the maximum supported quantity installed. Learn more about memory requirements . Operating in high-availability mode will incur additional overhead. Features enabled during evaluation: anti-spam, anti-virus, DNSBL, greylist, content scanning, and full-text search (English).

Media Server

DLNA Compliance Yes

Synology Photos

Facial Recognition Yes

Object Recognition Yes

Snapshot Replication

Maximum Snapshots per Shared Folder 256

Maximum Snapshots per LUN 64

Maximum Snapshots per System 4,096

Maximum Replication Tasks for Shared Folders 32

Maximum Replication Tasks for LUNs 16

Maximum Replication Tasks per System 32

Surveillance Station

Default Licenses 2 (Additional cameras require purchase of licenses)

Maximum IP Cameras and Total FPS (H.264) 1080p: 75 channels, 1050 FPS 3M: 60 channels, 600 FPS 5M: 40 channels, 400 FPS 4K: 28 channels, 280 FPS

Maximum IP Cameras and Total FPS (H.265) 1080p: 75 channels, 2250 FPS 3M: 75 channels, 1125 FPS 5M: 70 channels, 700 FPS 4K: 49 channels, 490 FPS

Notes Performance figures are obtained from testing conducted with the device fully populated with drives, with their default memory configuration, and under a continuous recording setup. Actual system capabilities may vary based on configuration, drive performance, enabled features, and the presence of additional workloads. Use NVR Selector to quickly find a suitable model based on your requirements. The number of video channels that can be viewed simultaneously is double the maximum number of cameras for the same codec and resolution.

Synology Drive

Maximum Number of Users 700

Maximum Number of Hosted Files 5,000,000 (applies to files indexed or hosted by Synology Drive . For file access through other standard protocols, refer to the File Services section above)

Notes The suggested maximum number of users is based on the following workload: 20% of users randomly perform file operations (upload, download, move, and delete), and 80% of users are logged in but idle. Learn more Models with SSD support are tested with a single SSD volume. Models with expandable memory are tested with the maximum supported quantity installed. Exceeding the recommended numbers above will not block application operations, but may result in longer response time. Btrfs file system and non-encrypted shared folders were used during the aforementioned testing.

Synology Office

Maximum Number of Users 700

Notes The suggested maximum number of users is based on the following workload: 20% of users are executing random actions at an average of 30-second intervals, and 80% of users are logged in and viewing a file. Learn more Models with SSD support are tested with a single SSD volume. Models with expandable memory are tested with the maximum supported quantity installed. Client performance may affect maximum simultaneous editing users. Client PCs used for testing: Intel Core i3-3220 / 8GB RAM

Virtual Machine Manager

Recommended Virtual Machine Instances 8 (Learn more)

Recommended Virtual DSM Number(Licenses required) 8 (including 1 Free License)

Notes The specifications vary depending on system configuration and memory size.

VPN Server

Maximum Connections 12

SKU	RS1619xsPLUS
Barcode #	846504003068
Brand	SYNOLOGY
Shipping Weight	17.5000kg
Shipping Width	0.580m
Shipping Height	0.600m
Shipping Length	0.200m
Shipping Cubic	0.069600000m3
