NAS

UC3200

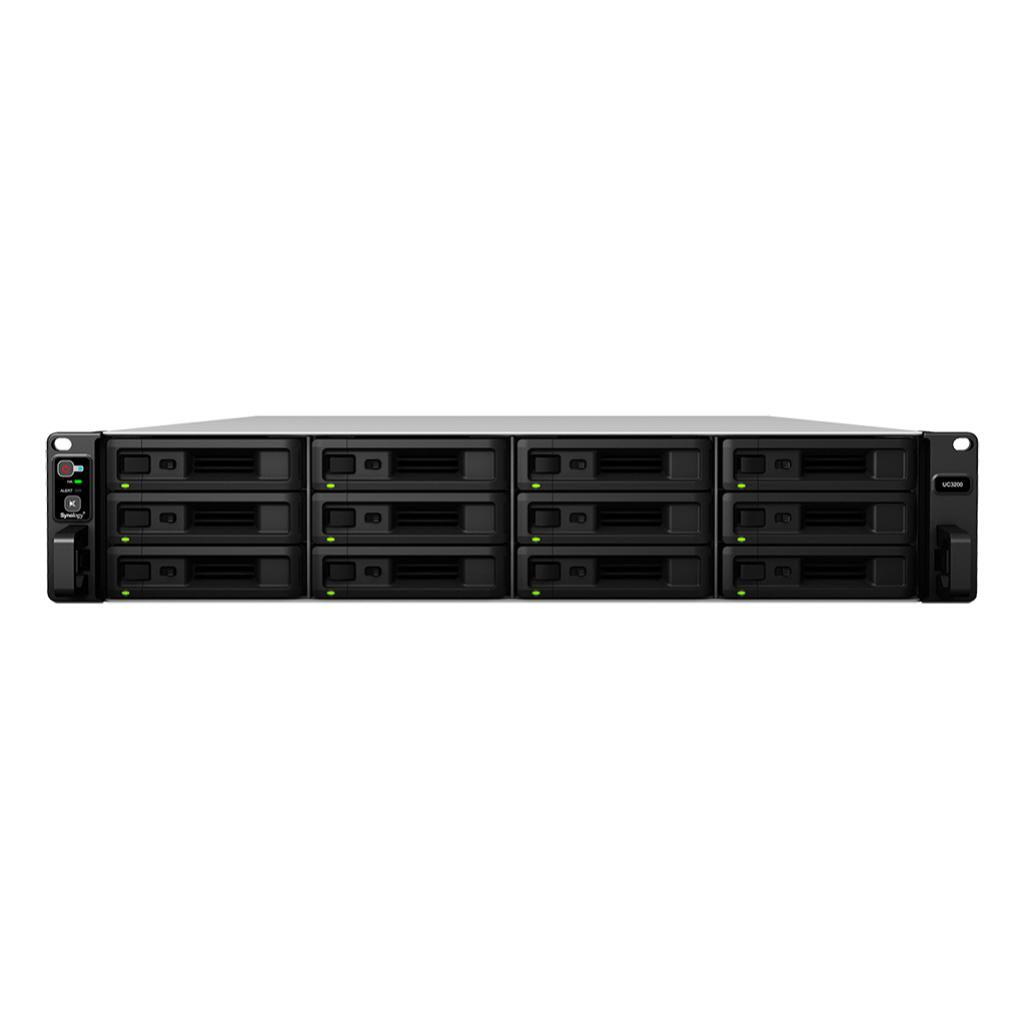

Name: Synology UC3200 12 Bay Unified Controller SAS
Brand: SYNOLOGY
SKU: UC3200
Price: 11999 AUD
Availability: OutOfStock

Enterprise-grade nas storage solution

Realizing high-availability architecture in just one single chassis, the two controllers in Synology UC3200 work simultaneously and can automatically fail over to each other in the event of disaster, delivering services without any interruptions.

Uncompromising performance

Throughput

1 (per controller)x 10GbE LAN ports

Scalability

Up to 36 drive bays with RXD1219sas

CPU

Intel Xeon D-1521 @ 2.4 (base) / 2.7 (turbo) GHz

Memory

8 GB DDR4 ECC UDIMM (per controller), expandable to 64 GB (16 GB x 4) (per controller)

Delivering reliable, highly available SAN services

A system built for iSCSI and Fibre Channel

DSM UC, an operating system designed to ease the learning curve, allows you to manage the two controllers from one single portal. The built-in monitor applications display the status at a glance and send prompt notifications when important events occur, so that IT administrators can stay alert to potential problems and respond in the shortest time possible.

A unified interface for intuitive management

Advanced LUN functionality significantly improves VM performance and offers lightning-fast snapshot creation, recovery, and cloning, as well as VMware VAAI and Windows ODX support.

Disaster-proof your critical data

Snapshot Replication is put in place with the support of Btrfs file system, offering schedulable and near-instantaneous data protection. Supporting up to 4,096 system-wide snapshots for local volumes or offsite servers, UC3200 brings application-aware snapshot protection and instant recovery of virtual machines in iSCSI LUNs in the event of a disaster.

5-year warranty

At Synology, we are committed to product innovation and quality. Synology guarantees a robust and reliable data management experience with a 5-year limited warranty, providing responsive technical support and hardware replacement services to maximize your return on investment.

More resources

This guide will walk you through the process of the initial setup and optimal deployment of UC3200.

Powered by Synology DiskStation Manager

Enterprise-grade software solutions included

12 x 3.5”/2.5” HDD/SSD

High-performance SAS interface drive slots with maximum 576TB raw capacity. Supporting SED (Self Encrypting Drive) to encrypt all data to hard drives, UC3200 provides upmost data security at the hardw

Cutting-edge LUN features

Advanced LUN functionality significantly improves VM performance and offers lightning-fast snapshot creation, recovery, and cloning, as well as VMware VAAI and Windows ODX support.

Intuitive management

A streamlined management interface makes connection and permission management exceptionally easy, even in large-scale SAN environments.

For large and small deployments

Support for iSCSI as well as Fibre Channel means that Synology storage systems integrate as easily in smaller setups as in enterprise environments.

Administrator’s Guide

This guide will walk you through the process of the initial setup and optimal deployment of UC3200.

Tutorials & FAQ

We offer a variety of tutorial and troubleshooting articles for UC3200 on our tutorials & FAQ page.

(UC3200)

TECHNICAL DETAILS

Model	Unfied Controller UC3200 (SAS)
Classification	Enterprise
Form Factor	2U Rack Mount
Scalable	Yes
HDD Pre-Installed	Diskless
Drive Bays	12 ( Expand upto 36 Bays with 2 x RXD1219SAS)
Drive Bay Configuration (#)	12 x 3.5/2.5" SAS HDD/SSD
Storage Capacity (Installed)	None
Hot Swap Bays	Yes
Processor	Intel Xeon D-1521 4-core
CPU Clock Speed	2.4GHz
Memory DRAM (Installed / Max)	8GB / 64GB
Memory Type	DDR4 ECC UDIMM
USB Port	No
eSATA Port	No
LAN	2 x 1GbE RJ-45 + 1 x 10GbE RJ-45 (10GBASE-T) ) Per Controller
Cooling Fan	4 x (60 x 60 x 51 mm)
Package Contents	Main Unit (1), AC Power Adapter (1), RJ45 Cable (2), Accessory Pack (1)
Packaging	Retail
Warranty	5 years

Technical Specifications

Complete hardware and software specifications

Controller

Number of Controller Module 2

CPU

CPU Model Intel Xeon D-1521

CPU Quantity 1 (per controller)

CPU Core 4

CPU Architecture 64-bit

CPU Frequency 2.4 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine Yes

Memory

System Memory 8 GB DDR4 ECC UDIMM (per controller)

Memory Module Pre-installed 8 GB (8 GB x 1) (per controller)

Total Memory Slots 4 (per controller)

Maximum Memory Capacity 64 GB (16 GB x 4) (per controller)

Notes Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

Storage

Drive Bays 12

Maximum Drive Bays with Expansion Unit 36 (RXD1219sas x 2)

Compatible Drive Type*(See all supported drives) 2.5” dual port SAS SSD 2.5” dual port SAS HDD 3.5” dual port SAS HDD

Hot Swappable Drive* Yes

Notes Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list . The use of non-validated components may limit certain functionality and result in data loss and system instability. "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

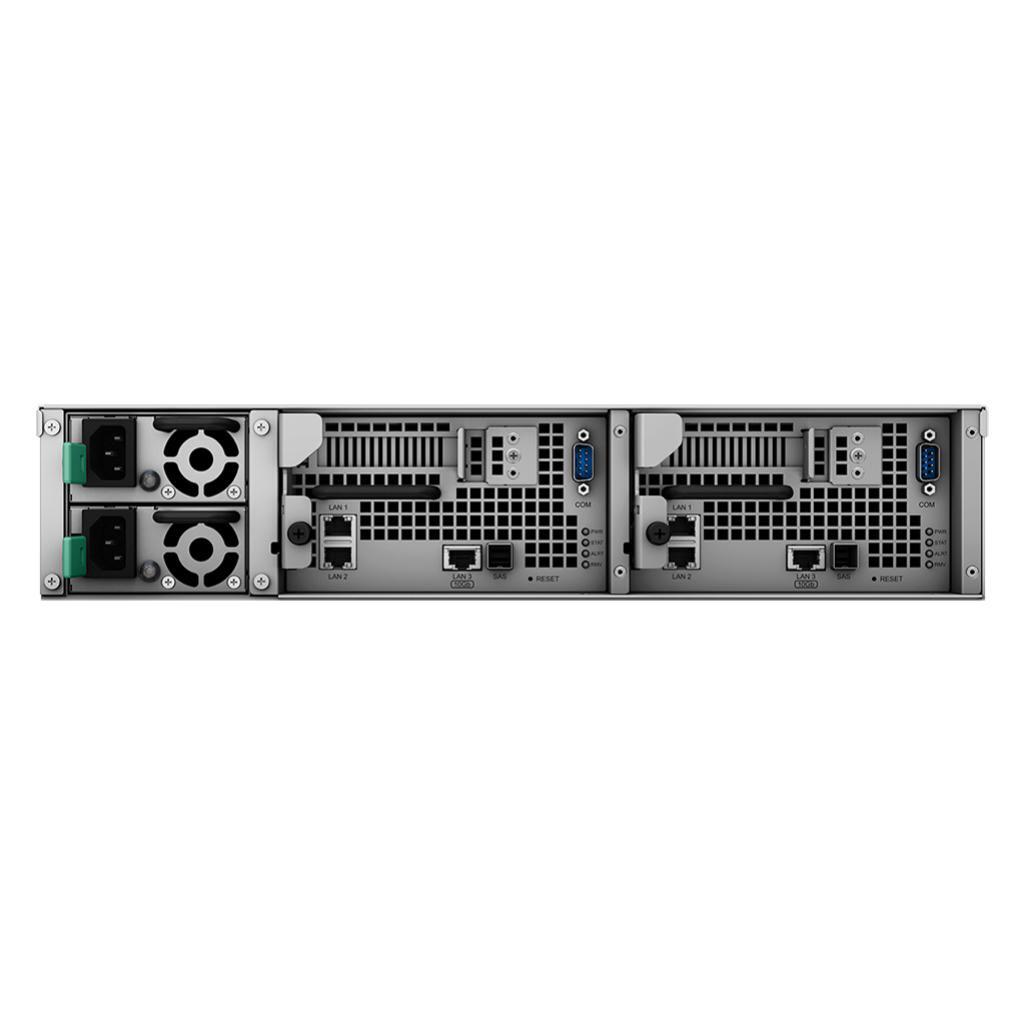

External Ports

RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support) (per controller)

RJ-45 10GbE LAN Port 1 (per controller)

PCIe

PCIe Expansion 1 x Gen3 x8 slot (x8 link) (per controller)

Add-In-Card Support 10GbE NIC 25GbE NIC FC HBA

File System

Internal Drives Btrfs

Appearance

Size (Height x Width x Depth) 88 mm x 430.5 mm x 692 mm

Size (Height x Width x Depth) (with server ears) 88 mm x 482 mm x 724 mm

Weight 19.7 kg

Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-02 )

Notes The rail kit is sold separately

Others

System Fan 60 mm x 60 mm x 2 (per controller)

Fan Speed Mode Full-Speed Mode Cool Mode Quiet Mode

Easy Replacement System Fan Yes

Power Recovery Yes

Noise Level* 51.3 dB(A)

Power Supply Unit / Adapter 500W

Redundant Power Supply Yes

AC Input Power Voltage 100 V to 240 V AC

Power Frequency 50/60Hz, Single Phase

Power Consumption* 417.48 W (Access)

British Thermal Unit 1425.45 BTU/hr (Access)

Notes Power consumption is measured when it is fully loaded with Seagate ST3600057SS hard drive(s). Noise Level Testing Environment: Fully loaded with Seagate ST8000NM0075 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology server at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8%.

Temperature

Operating Temperature 0°C to 35°C (32°F to 95°F)

Storage Temperature -20°C to 60°C (-5°F to 140°F)

Relative Humidity 5% to 95% RH

Certification

Certification CE FCC BSMI VCCI RCM UKCA KC EAC CCC

Warranty

Warranty 5 Years

Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

Environment RoHS Compliant

Packaging Content

Packaging Content Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1

Optional Accessories

Optional Accessories DDR4 ECC UDIMM: D4EC-2666-8G / D4EC-2666-16G Expansion Units: RXD1219sas Enterprise Series 3.5" SAS HDD: HAS5300 Series 25GbE Network Interface Card: E25G30-F2 10GbE Network Interface Card: E10G30-F2 / E10G30-T2 / E10G18-T1 Rail Kit Sliding: RKS-02

Notes All memory modules will operate at the maximum frequency specified by the CPU manufacturer.

Storage Management

Maximum Single Volume Size 200 TB (32 GB memory required) 108 TB

Maximum Internal Volume Number 32

Maximum iSCSI Target Number 128

Maximum LUN 128

Advanced LUN (Clone/Snapshot) Support Yes

Maximum Number of Snapshots per Advanced LUN 256

SSD Read/Write Cache(Determining cache size) Yes

SSD TRIM Yes

RAID Group Yes

Supported RAID Type Basic JBOD RAID F1 RAID 0 RAID 1 RAID 5 RAID 6 RAID 10

RAID Migration Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5

Volume Expansion with Larger HDDs RAID F1 RAID 1 RAID 5 RAID 6 RAID 10

Volume Expansion by Adding a HDD JBOD RAID F1 RAID 5 RAID 6

Global Hot Spare Supported RAID Type RAID F1 RAID 1 RAID 5 RAID 6 RAID 10

Notes Volumes over 108 TB require DSM UC 3.1.3-23076 or above and 32 GB of memory or more.

Account & Shared Folder

Maximum Local User Accounts 65

Virtualization

VMware vSphere ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5

Microsoft Hyper-V Windows Server 2022, Windows Server 2019, Windows Server 2016

Citrix XenServer XenServer 7

OpenStack Cinder

Snapshot Replication

Maximum Number of Replication 32

Maximum of System Snapshots 4,096

General Specifications

Networking Protocols iSCSI Telnet SSH SNMP Fibre Channel

Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文

SKU	UC3200
Barcode #	846504003129
Brand	SYNOLOGY
Shipping Weight	30.0000kg
Shipping Width	0.600m
Shipping Height	0.830m
Shipping Length	0.240m
Shipping Cubic	0.119520000m3
