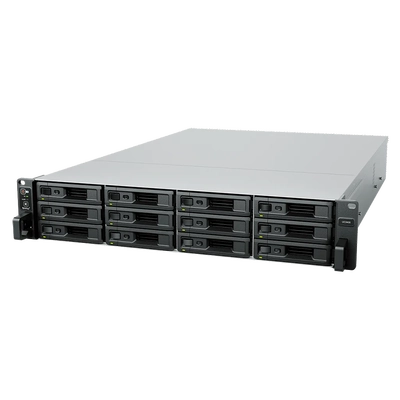

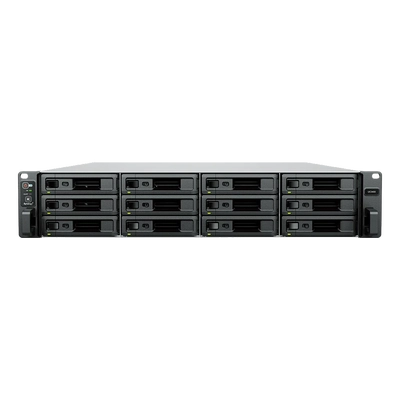

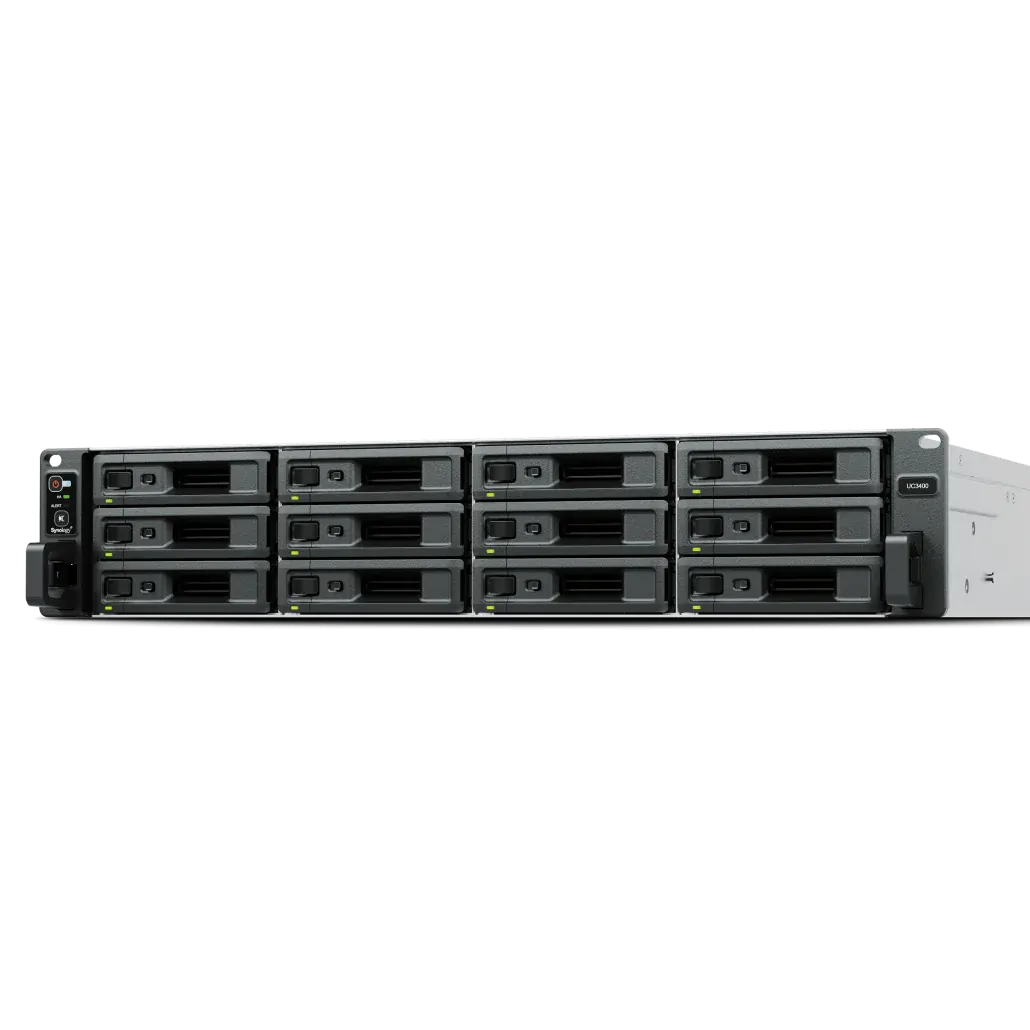

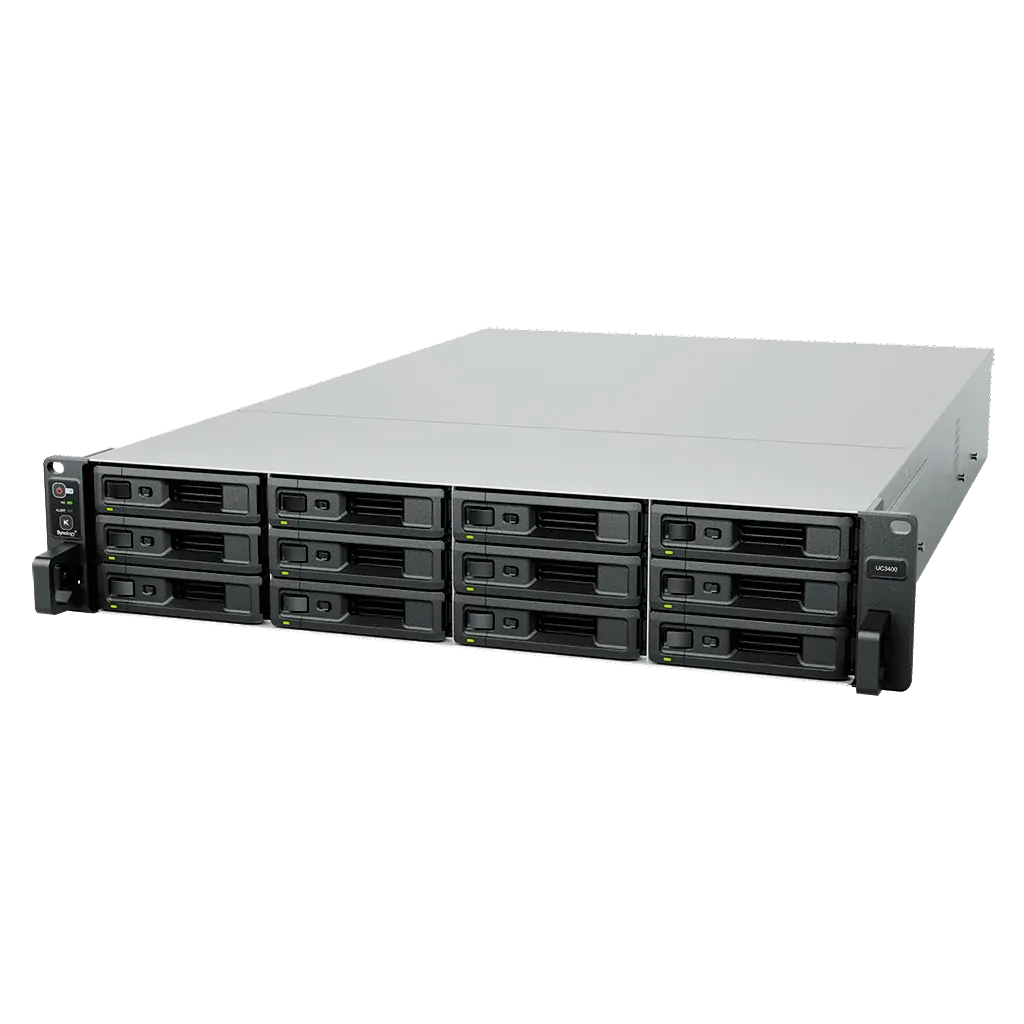

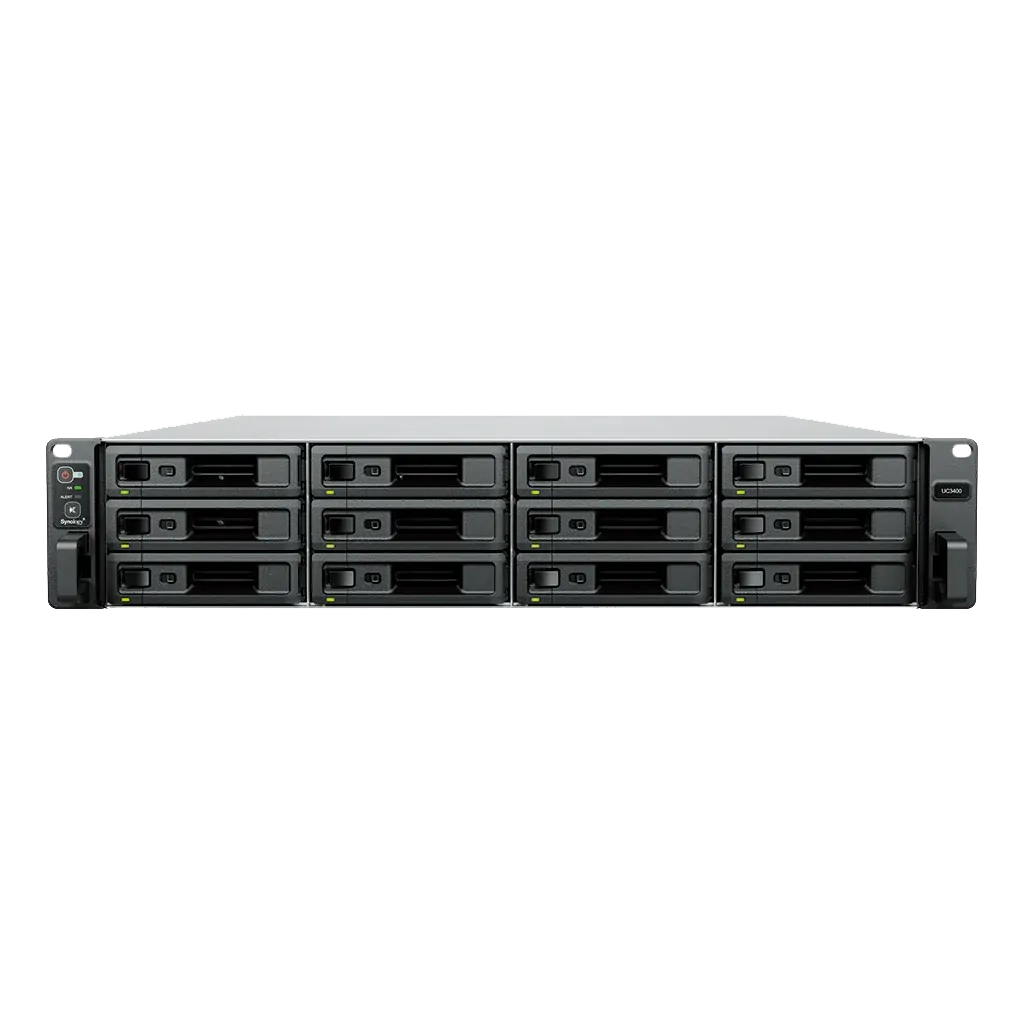

Name: Synology UC3400 12-Bay Active-Active SAN Enclosure with Dual Controllers
Brand: SYNOLOGY
SKU: UC3400
Price: 17249 AUD
Availability: OutOfStock

Enterprise-grade nas storage solution

UC3400 is a high-availability SAN solution supporting Fibre Channel (FC) and iSCSI protocols.

Uncompromising performance

Throughput

Over 180,000 4K Random Write IOPS, and up to 576 TB of storage

Non-disruptive block storage services

Ensure interruption-free iSCSI and FC services

Reliability and High Availability

Active-active dual controllers work simultaneously to ensure zero downtime in the event of a controller failure while the non-transparent bridge (NTB) enables inter-domain communication to maximize the protection of in-flight data.

Active-Active SAN with enterprise-class performance

Designed for mission-critical environments, UC3400 is a high-availability SAN solution supporting Fibre Channel (FC) and iSCSI protocols. With over 180,000 4K random write IOPS,it supports a wide range of demanding workloads.

Flexible network options

Boost network from 10GbE and dual 1GbE RJ-45 ports to 10/25 Gb Ethernet cards or 16 Gb Fibre channel host bus adapters on each controller.

Storage expansion

Simple capacity expansion of up to 576 TB of raw storage is available with two Synology RXD1219sas Expansion Units.

Performance backed by Synology drives

Leverage high sustained performance and reliability with enterprise-grade drives with built-in protection designed for Synology systems.

Powered by Synology DiskStation Manager

Enterprise-grade software solutions included

Dual Controller Module

Ensure interruption-free iSCSI and FC services

High Performance

Over 180,000 4K Random Write IOPS, and up to 576 TB of storage

Virtualization-ready

Full support for mainstream virtualization systems

(UC3400)

Technical Specifications

Complete hardware and software specifications

Controller

Number of Controller Module 2

CPU

CPU Model Intel Xeon D-1541

CPU Quantity 1 (per controller)

CPU Core 8

CPU Architecture 64-bit

CPU Frequency 2.1 (base) / 2.7 (turbo) GHz

Hardware Encryption Engine Yes

Memory

System Memory 8 GB DDR4 ECC UDIMM (per controller)

Memory Module Pre-installed 8 GB (8 GB x 1) (per controller)

Total Memory Slots 4 (per controller)

Maximum Memory Capacity 64 GB (16 GB x 4) (per controller)

Notes Synology reserves the right to replace memory modules with the same or higher frequency based on supplier's product life cycle status. Rest assured that the compatibility and stability have been strictly verified with the same benchmark to ensure identical performance. Please select Synology memory modules for optimum compatibility and reliability. Synology will not provide complete product warranty or technical support if non-Synology memory modules are used for memory expansion.

Storage

Drive Bays 12

Maximum Drive Bays with Expansion Unit 36 (RXD1219sas x 2)

Compatible Drive Type*(See all supported drives) 2.5” dual port SAS SSD 3.5” dual port SAS HDD

Hot Swappable Drive* Yes

Notes Synology only guarantees full functionality, reliability, and performance for Synology drives listed on the compatibility list . The use of non-validated components may limit certain functionality and result in data loss and system instability. "Compatible drive type" indicates drives that have been tested to be compatible with Synology products. This term does not indicate the maximum connection speed of each drive bay.

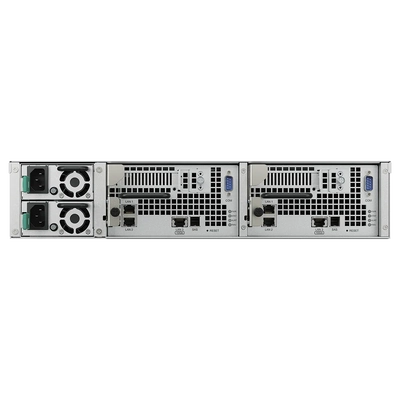

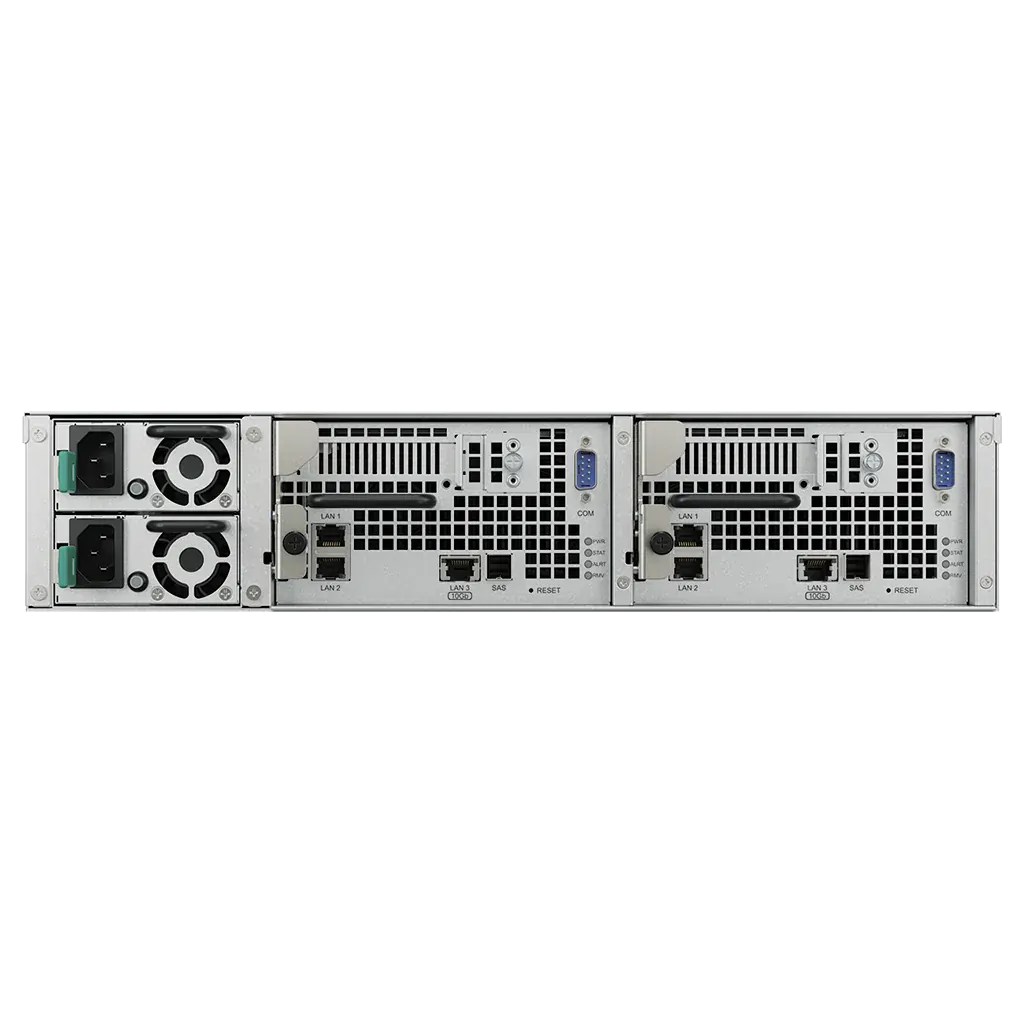

External Ports

RJ-45 1GbE LAN Port 2 (with Link Aggregation / Failover support) (per controller)

RJ-45 10GbE LAN Port 1 (per controller)

PCIe

PCIe Expansion 1 x Gen3 x8 slot (x8 link) (per controller)

Add-In-Card Support 10GbE NIC 25GbE NIC FC HBA

File System

Internal Drives Btrfs

Appearance

Size (Height x Width x Depth) 88 mm x 430.5 mm x 692 mm

Size (Height x Width x Depth) (with server ears) 88 mm x 482 mm x 724 mm

Weight 19.7 kg

Rack Installation Support* 4-post 19" rack (Synology Rail Kit - RKS-02 )

Notes The rail kit is sold separately

Others

System Fan 60 mm x 60 mm x 2 (per controller)

Fan Speed Mode Full-Speed Mode Cool Mode Quiet Mode

Easy Replacement System Fan Yes

Power Recovery Yes

Noise Level* 51.3 dB(A)

Power Supply Unit / Adapter 500W

Redundant Power Supply Yes

AC Input Power Voltage 100 V to 240 V AC

Power Frequency 50/60Hz, Single Phase

Power Consumption* 239.25 W (Access)

British Thermal Unit 816.35 BTU/hr (Access)

Notes Noise Level Testing Environment: Fully loaded with Synology HAS5300-8T hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology NAS at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75˚C; Humidity: 58.2-61.8% Power consumption is measured when it is fully loaded with Synology 12TB HAS5300-12T hard drive(s).

Temperature

Operating Temperature 0°C to 35°C (32°F to 95°F)

Storage Temperature -20°C to 60°C (-5°F to 140°F)

Relative Humidity 5% to 95% RH

Certification

Certification CE FCC BSMI VCCI RCM UKCA KC EAC

Warranty

Warranty 5 Years

Notes The warranty period starts from the purchase date as stated on your purchase receipt. (Learn more)

Environment

Environment RoHS Compliant

Packaging Content

Packaging Content Main Unit X 1 Accessory Pack X 1 AC Power Cord X 2 Quick Installation Guide X 1

Optional Accessories

Optional Accessories DDR4 ECC UDIMM: D4EC-2666-8G / D4EC-2666-16G Expansion Units: RXD1219sas Enterprise Series 3.5" SAS HDD: HAS5300 Series 25GbE Network Interface Card: E25G30-F2 10GbE Network Interface Card: E10G30-F2 / E10G30-T2 / E10G18-T1 Rail Kit Sliding: RKS-02

Notes All memory modules will operate at the maximum frequency specified by the CPU manufacturer.

Storage Management

Maximum Single Volume Size 200 TB (32 GB memory required) 108 TB

Maximum Internal Volume Number 32

Maximum iSCSI Target Number 128

Maximum LUN 128

Advanced LUN (Clone/Snapshot) Support Yes

Maximum Number of Snapshots per Advanced LUN 256

SSD Read/Write Cache(Determining cache size) Yes

SSD TRIM Yes

RAID Group Yes

Supported RAID Type Basic JBOD RAID F1 RAID 0 RAID 1 RAID 5 RAID 6 RAID 10

RAID Migration Basic to RAID 1 Basic to RAID 5 RAID 1 to RAID 5

Volume Expansion with Larger HDDs RAID F1 RAID 1 RAID 5 RAID 6 RAID 10

Volume Expansion by Adding a HDD JBOD RAID F1 RAID 5 RAID 6

Global Hot Spare Supported RAID Type RAID F1 RAID 1 RAID 5 RAID 6 RAID 10

Notes Volumes over 108 TB require DSM UC 3.1.3-23076 or above and 32 GB of memory or more.

Account & Shared Folder

Maximum Local User Accounts 65

Virtualization

VMware vSphere ESXi 8.0 U2, ESXi 8.0 U1, ESXi 8.0, ESXi 7.0 U3, ESXi 7.0 U2, ESXi 7.0 U1, ESXi 7.0, ESXi 6.7 U3, ESXi 6.7 U2, ESXi 6.7 U1, ESXi 6.7, ESXi 6.5 U3, ESXi 6.5 U2, ESXi 6.5 U1, ESXi 6.5

Microsoft Hyper-V Windows Server 2022

Citrix XenServer XenServer 8, Citrix Hypervisor 8.2 LTSR CU1

OpenStack Cinder

Snapshot Replication

Maximum Number of Replication 64

Maximum of System Snapshots 4,096

General Specifications

Networking Protocols iSCSI Telnet SSH SNMP Fibre Channel

Supported Language English, Deutsch, Français, Italiano, Español, Dansk, Norsk, Svenska, Nederlands, Русский, Polski, Magyar, Português do Brasil, Português Europeu, Türkçe, Český, ภาษาไทย, 日本語, 한국어, 繁體中文, 简体中文
