Tycon Power • TP-SSW5-NC

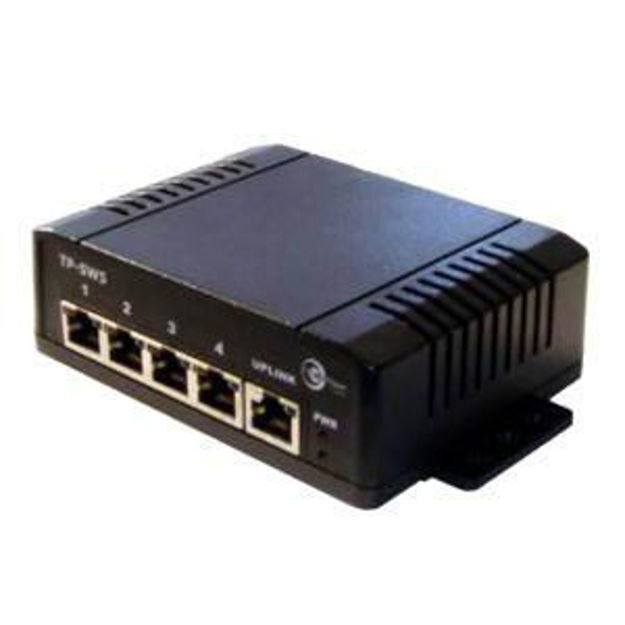

Tycon Power TP-SSW5-NC 5-Port 10/100 Passive PoE Switch 12-56VDC

The TP-SSW5-NC is a compact five-port 10/100Mbps passive PoE switch for 12-56VDC systems. Its PoE output voltage follows the input voltage, supporting compatible remote devices at up to 2A per port.

5 × 10/100 ports 12-56VDC input Passive PoE output Up to 2A per port

Product highlights

Key supplied and exact-model details for the TP-SSW5-NC.

Compact five-port switching

Provides five 10/100Mbps Ethernet ports in a compact enclosure.

Universal input voltage

Accepts a wide 12-56VDC input range for DC and battery-powered systems.

Voltage-follows-input PoE

Passive PoE output voltage equals the applied input voltage.

High current per port

The exact model information states up to 2A per port.

Automatic Ethernet operation

Supports automatic speed, duplex and MDI/MDI-X crossover.

Built-in surge protection

Includes surge protection for field-oriented network installations.

Buy with confidence from DeviceDeal

DeviceDeal is an authorised Tycon Power reseller. This product is supplied with the applicable Tycon Power manufacturer warranty in Australia, subject to the manufacturer’s current terms, eligibility requirements and product assessment.

Frequently asked questions

Helpful answers based on the supplied and exact-model product information.

What type of switch is the TP-SSW5-NC?

It is a compact five-port 10/100Mbps passive PoE switch.

What input voltage does it accept?

The exact product page states 12-56VDC, while family text references operation up to 57VDC.

What voltage appears at the PoE outputs?

The passive PoE output voltage follows the input voltage.

How much current is available per port?

The exact model information states up to 2A per port.

Can it power IEEE 802.3af/at devices automatically?

No. It is passive PoE and does not provide automatic IEEE voltage negotiation.

What warranty applies?

DeviceDeal is an authorised Tycon Power reseller. The applicable Tycon Power manufacturer warranty applies, subject to the manufacturer’s terms and product assessment.

(TP-SSW5-NC)

Technical specifications

Tycon Power TP-SSW5-NC

Product Details
Brand Tycon Power
Model TP-SSW5-NC
Product Type Compact passive PoE switch
Networking
Ports 5 × Ethernet
Network Speed 10/100Mbps
Maximum Ethernet Distance Up to 100m per link
Power and PoE
Input Voltage 12-56VDC; family detail references up to 57VDC
PoE Output Passive PoE; output voltage equals input voltage
Maximum Current Up to 2A per port
Operation and Physical
Ethernet Features Automatic MDI/MDI-X, speed and duplex sensing
Protection Built-in surge protection
Approximate Size 4 × 5 × 1.5 inches
Mounting DIN-rail adapters included in the product family
SKU TP-SSW5-NC
Brand TYCON POWER
Shipping Weight 1.0000kg
