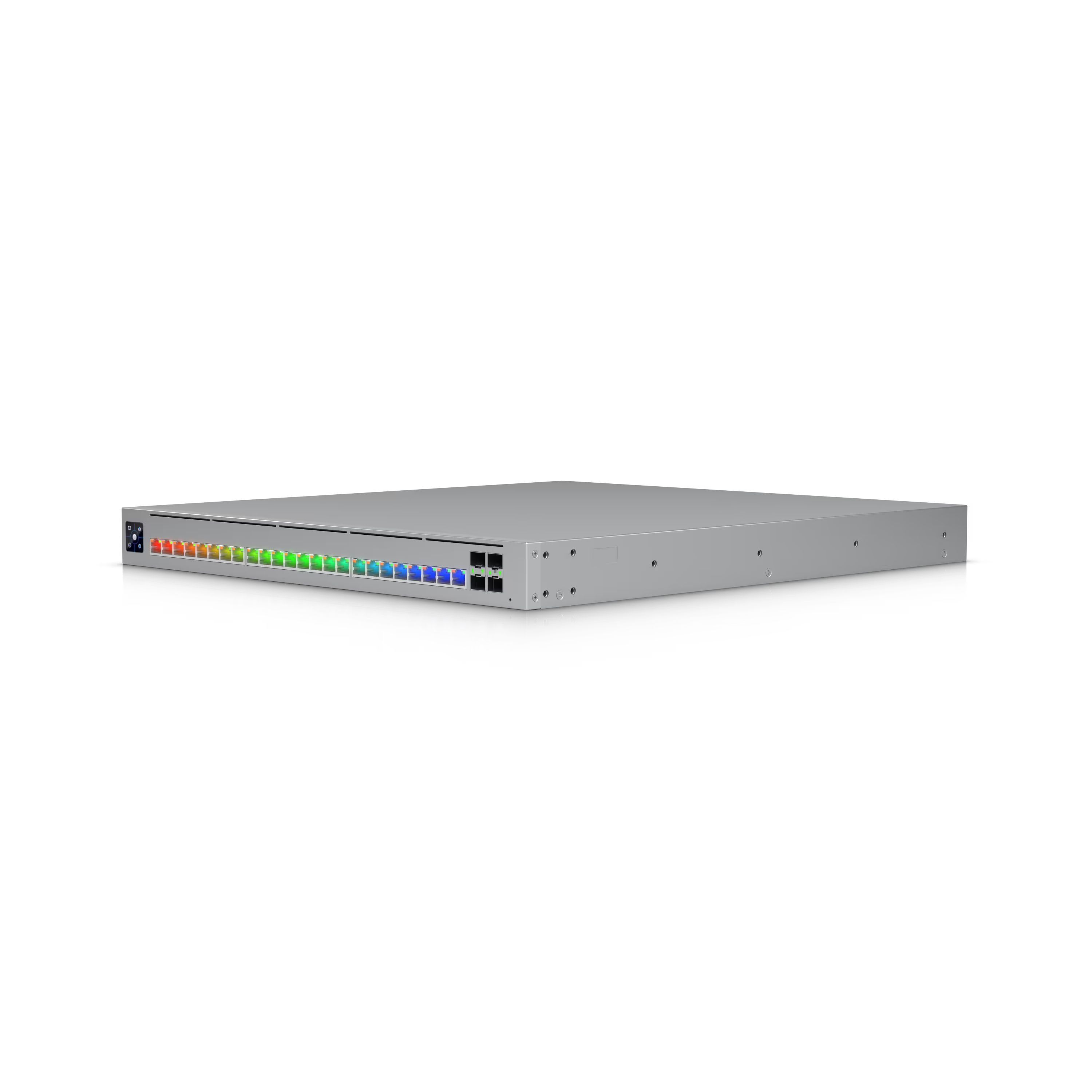

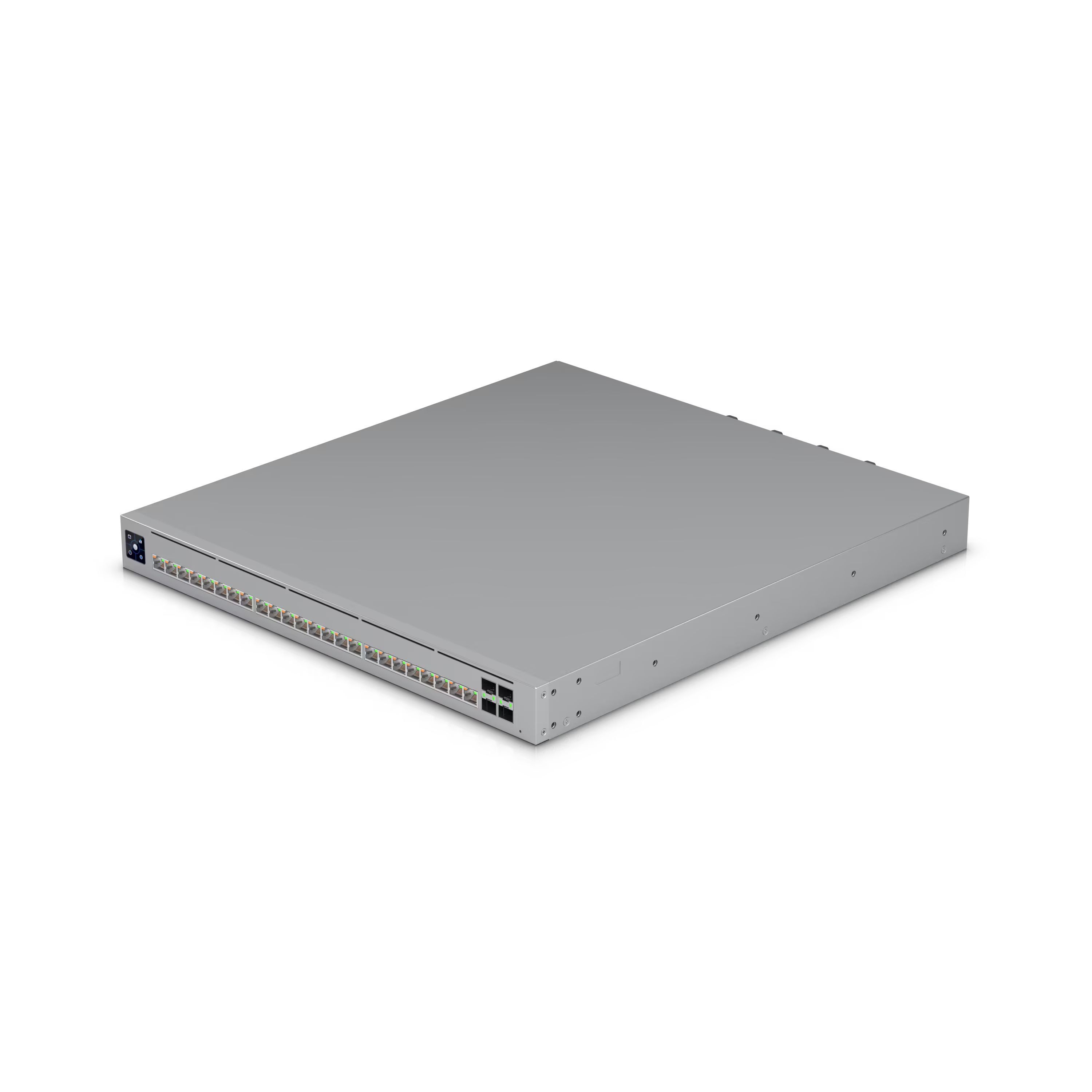

Enterprise-grade 24-port, Layer 3 Etherlighting™ PoE+++ switch with Stacking support and high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.

(ECS-24S-PoE)

General Specifications

Item	Specification
Dimensions	442.4 x 44 x 496 mm (17.4 x 1.7 x 19.5")
Form Factor	Rack Mount (1U, Full-Depth)
Etherlighting™	✓

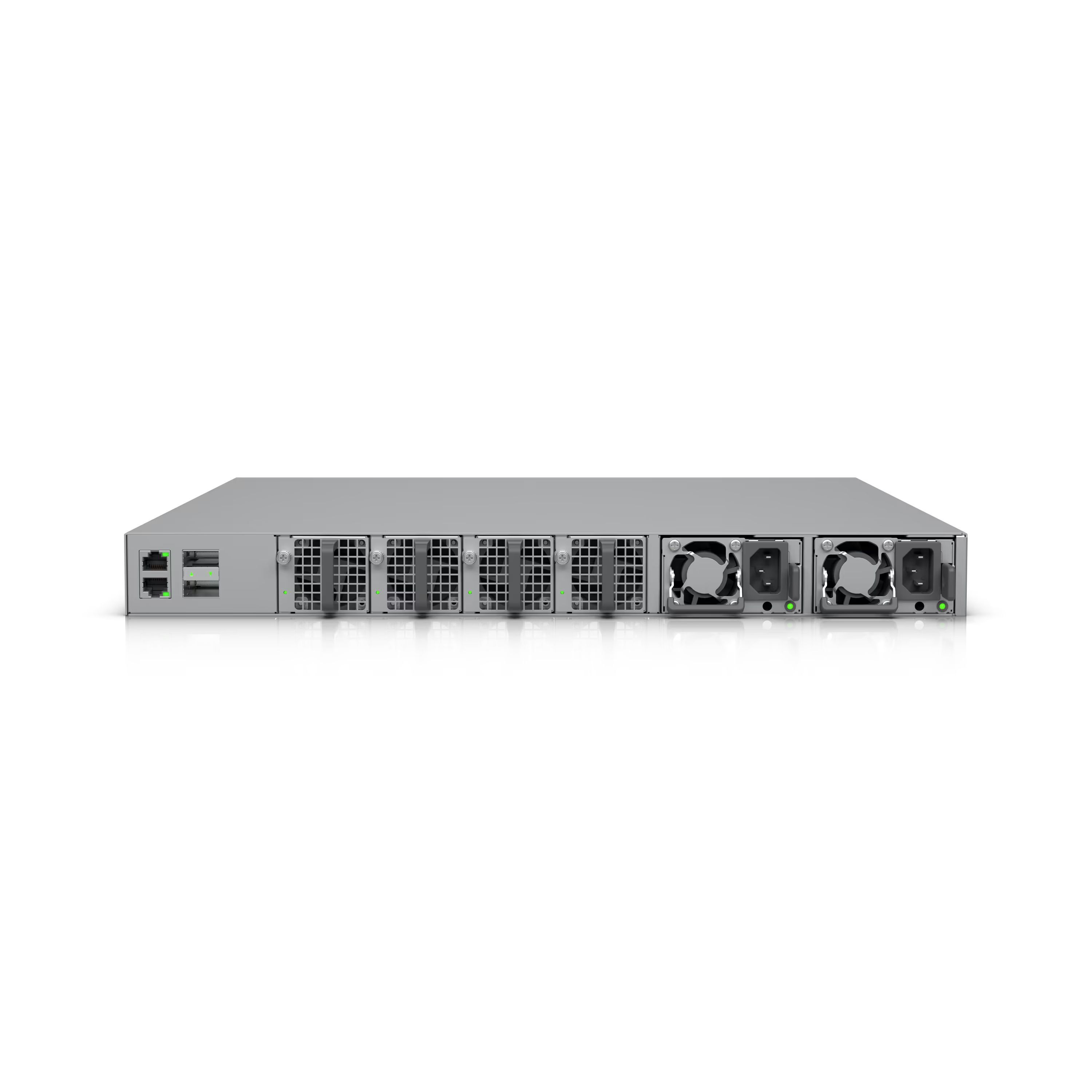

Redundancy	(2) Hot-swappable PSUs, (4) Hot-swappable Fans
Layer 3	✓

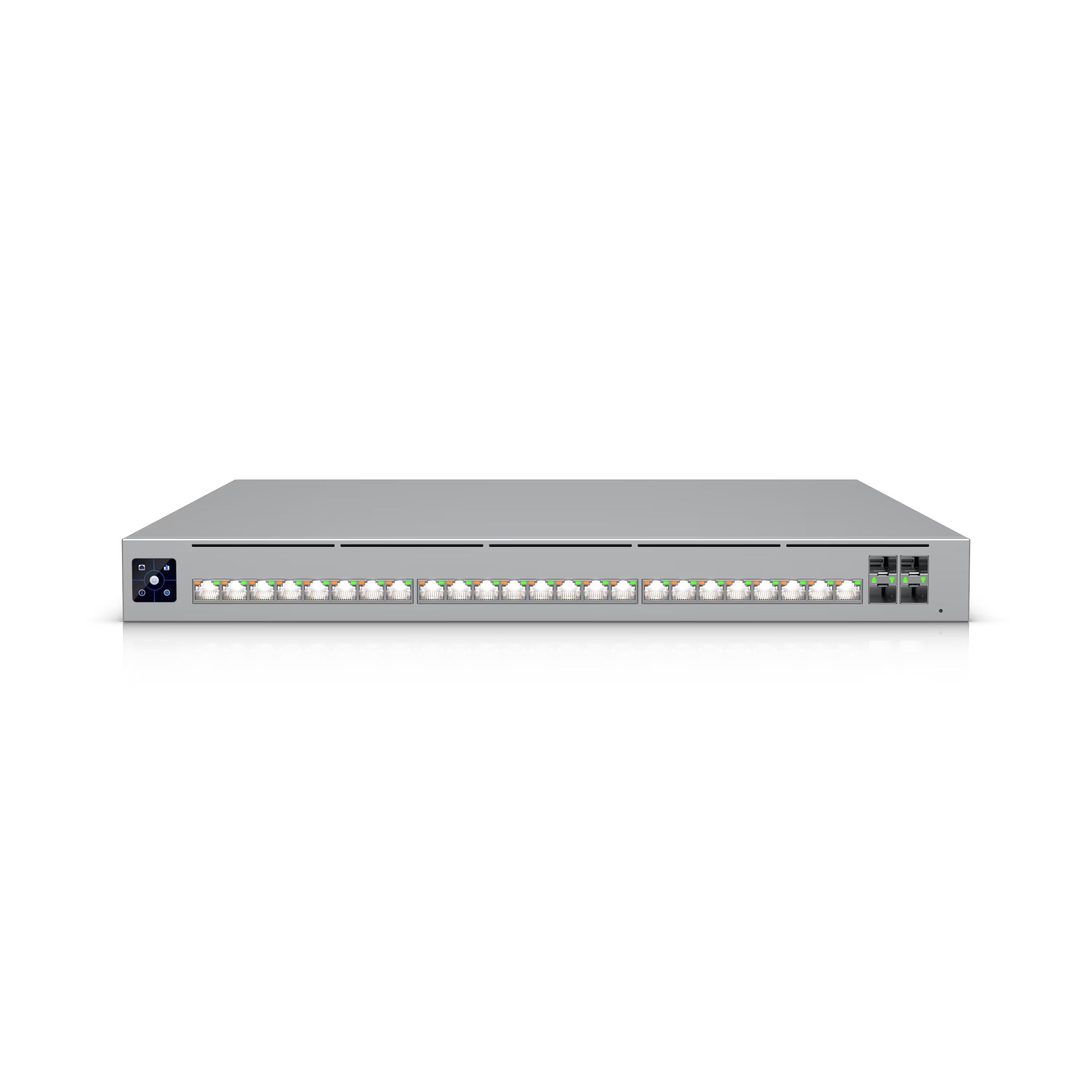

Port Layout

Port Type	Quantity	Speed
1 GbE RJ45	1	1G/100M/10M
2.5 GbE RJ45 (All PoE+++)	8	2.5G/1G/100M/10M
10 GbE RJ45 (All PoE+++)	16	10G/5G/2.5G/1G/100M/10M
25G SFP28	4	25G/10G/1G
100G QSFP28	2	100G
Console	1	—

PoE Power Specifications

Item	Specification
Max. PoE Output	Up to PoE+++
PoE Availability (100–240V AC Shared Mode, 600W modules)	1,050W
PoE Availability (100–240V AC Redundant Mode, 600W modules)	450W
PoE Availability (200–240V AC Shared Mode, 1,200W modules)	2,250W
PoE Availability (100–120V AC Shared Mode, 1,200W modules)	1,850W
PoE Availability (200–240V AC Redundant Mode, 1,200W modules)	1,050W
PoE Availability (100–120V AC Redundant Mode, 1,200W modules)	850W

Performance

Item	Specification
Switching Capacity	460 Gbps
Total Non-Blocking Throughput	230 Gbps
Forwarding Rate	342 Mpps
Supported VLANs	1,000
MAC Address Table	128,000
L3 Table – ARP Entries	128,000
L3 Table – IPv4 Routes	256,000
Packet Buffer Size	8 MB
Access Lists – IPv4	256
Access Lists – MAC	256

Layer 3 Features

Feature	Supported
DHCP Server (Local Networks)	✓
DHCP Relay	✓
Inter-VLAN Routing (Local Networks)	✓
Static Routing (Local Networks)	✓

Layer 2 Features

Feature	✓
LACP Port Aggregation	✓
STP & RSTP	✓
QoS (DSCP)	✓
Pro AV Profiles	✓
Advanced IGMP Configuration	✓
IGMP Snooping	✓
802.1X Control	✓
MAC-Based ACLs & Device Isolation	✓
DHCP Snooping & Guarding	✓
Egress Rate Limit	✓
Flow Control	✓
Storm Control	✓
Multicast & Broadcast Rate Limiting	✓
MAC Address Blocking	✓
IP-Based ACLs & Network Isolation	✓
MAC-Based Port Restriction	✓
Port Isolation	✓
Port Mirroring	✓
Jumbo Frames	✓
LLDP-MED	✓
Voice VLAN	✓
Loop Protection	✓

Hardware Specifications

Item	Specification
PoE Ports	24 (PoE+++)
Max PoE Wattage per Port (PoE)	15.4W
Max PoE Wattage per Port (PoE+)	30W
Max PoE Wattage per Port (PoE++)	60W
Max PoE Wattage per Port (PoE+++)	90W
Max Power Consumption (No PoE)	150W
Max Power Consumption (With PoE)	2,400W
Power Method	(2) Universal input, 100–240V AC
Power Input Method	(2) AC input, Hot-swappable modules
Power Supply	(2) Hot-swappable 600W AC/DC modules
Supported Voltage Range	100–240V AC
Management Ports	Ethernet (OOB), Serial Console, AR
Heat Dissipation	512 BTU/hr (Excluding PoE)
Weight	9.2 kg (20.3 lb) without brackets; 9.3 kg (20.5 lb) with brackets
Enclosure Material	SGCC steel
Mount Material	SGCC steel

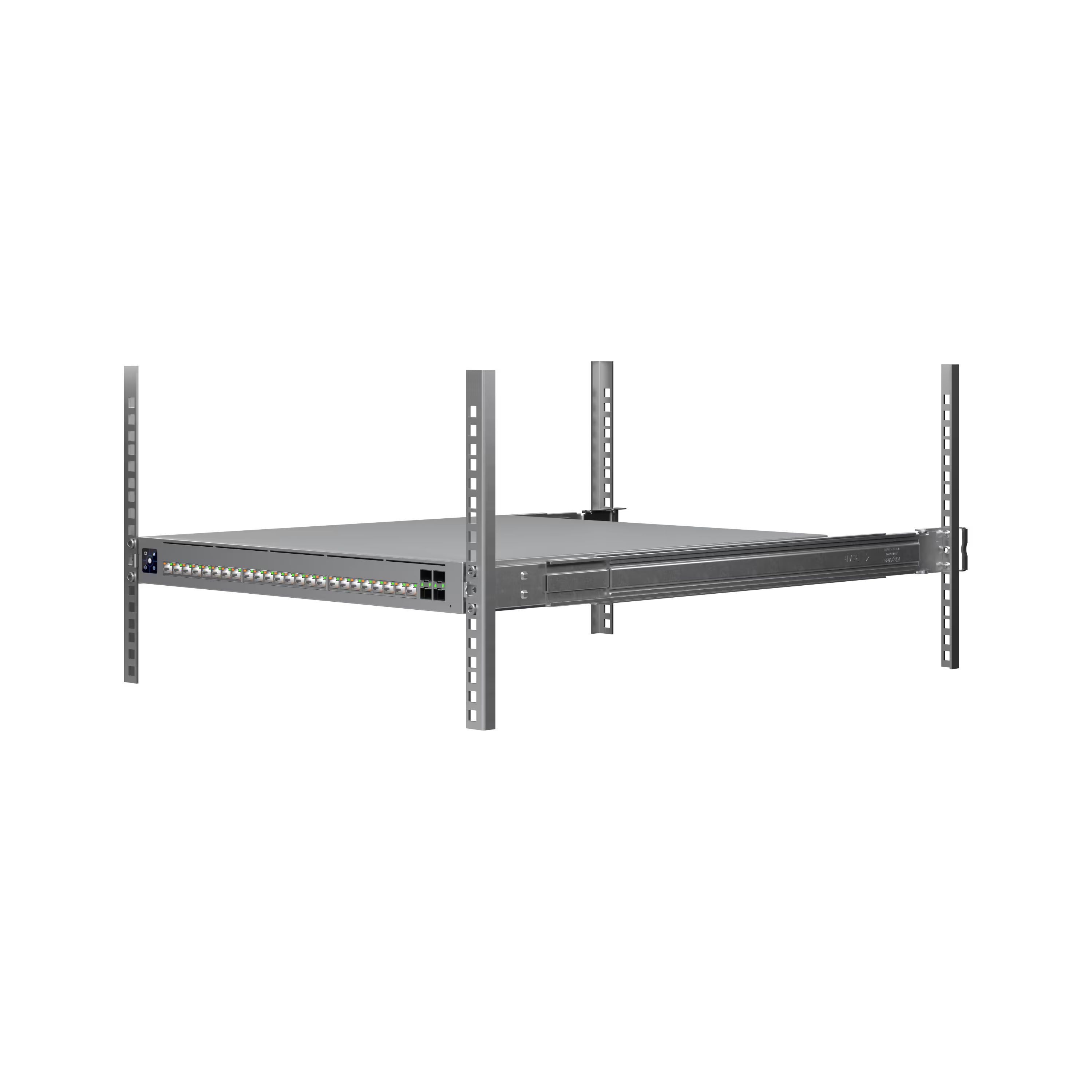

Supported Rack Depth	482.6 mm (19") four-post racks; 650–1000 mm (25.6–39.4")
LCM Display	1.3" touchscreen
Fans	(4) Hot-swappable fan modules
ESD Protection	Air: ±12kV, Contact: ±12kV
Ambient Operating Temperature	-5 to 40°C (23 to 104°F)
Ambient Operating Humidity	10 to 90% noncondensing
