Ubiquiti AF60-LR airFiber 60 LR Long-Range 60 GHz PtP Radio
A long-range 60 GHz point-to-point radio for links beyond 12 km, with 1.95 Gbps throughput, a Gigabit Ethernet interface, passive PoE power and an included precision alignment kit.
12+ km1.95 Gbps1x GbEPassive PoE
Authorised Ubiquiti reseller1 Year Ubiquiti manufacturer warranty
12+ kmMaximum link range1.95 GbpsThroughput57-71 GHzOperating range22 WMaximum power
Long-range 60 GHz connectivity with precision alignment
The AF60-LR is designed for long-distance point-to-point links and combines a high-gain 60 GHz radio, Gigabit Ethernet, Bluetooth-assisted setup and a precision mounting system.
12+ km link range
The long-range radio is designed for links beyond 12 km when properly planned and aligned.
1.95 Gbps throughput
Throughput is 1.95 Gbps.
Gigabit Ethernet
A Gigabit Ethernet RJ45 port provides the wired network connection.
Precision alignment kit
The included precision alignment kit supports accurate installation and link optimisation.
Bluetooth setup
Bluetooth is available for initial setup through the supported Ubiquiti management workflow.
Passive PoE power
The radio accepts passive PoE and includes a 48V, 0.65A Gigabit PoE adapter.
UISP management
The AF60-LR is managed through UISP.
Pair required for a link
Two AF60-LR radios are required to create a complete point-to-point link.
i
Planning requirement
The AF60-LR is sold as an individual radio. A complete point-to-point link requires two compatible radios, clear link planning and precise alignment.
1 YearUbiquiti manufacturer warranty
Authorised reseller & manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti AF60-LR is backed by a 1-year Ubiquiti manufacturer warranty, with support provided in accordance with Ubiquiti's warranty terms and conditions.
Frequently asked questions
Helpful answers for the Ubiquiti AF60-LR.
What is the Ubiquiti AF60-LR?
The AF60-LR is a long-range 60 GHz point-to-point radio for high-capacity wireless links.
What is the link range of the AF60-LR?
The maximum link range is 12+ km, subject to link planning, alignment and environmental conditions.
What throughput does it support?
Throughput is 1.95 Gbps.
How many AF60-LR radios are needed?
Two radios are required to create a complete point-to-point link.
What network port is provided?
The AF60-LR provides one Gigabit Ethernet RJ45 port.
How is the radio powered?
It uses passive PoE and includes a 48V, 0.65A Gigabit PoE adapter.
Is a precision mount included?
Yes. A precision alignment kit is included.
What warranty does the Ubiquiti AF60-LR include?
The Ubiquiti AF60-LR is backed by a 1 Year Ubiquiti manufacturer warranty. DeviceDeal is an authorised Ubiquiti reseller.
(AF60-LR)
Features and highlights
A long-range 60 GHz point-to-point radio for links beyond 12 km, with 1.95 Gbps throughput, a Gigabit Ethernet interface, passive PoE power and an included precision alignment kit.
✓
12+ km link range
The long-range radio is designed for links beyond 12 km when properly planned and aligned.
✓
1.95 Gbps throughput
Throughput is 1.95 Gbps.
✓
Gigabit Ethernet
A Gigabit Ethernet RJ45 port provides the wired network connection.
✓
Precision alignment kit
The included precision alignment kit supports accurate installation and link optimisation.
✓
Bluetooth setup
Bluetooth is available for initial setup through the supported Ubiquiti management workflow.
✓
Passive PoE power
The radio accepts passive PoE and includes a 48V, 0.65A Gigabit PoE adapter.
✓
UISP management
The AF60-LR is managed through UISP.
✓
Pair required for a link
Two AF60-LR radios are required to create a complete point-to-point link.
Key product facts
12+ km: Maximum link range
1.95 Gbps: Throughput
57-71 GHz: Operating range
22 W: Maximum power
Planning requirement: The AF60-LR is sold as an individual radio. A complete point-to-point link requires two compatible radios, clear link planning and precise alignment.
Technical specifications
Product specifications for Ubiquiti model AF60-LR.
Product details
Brand
Ubiquiti
Model / SKU
AF60-LR
Product type
Long-range 60 GHz point-to-point radio
Maximum link range
12+ km
Throughput
1.95 Gbps
Hardware
Processor
Quad-core Arm Cortex-A7
Memory
256 MB DDR3
Network interface
1 x Gigabit Ethernet RJ45
Wireless and security
Frequency range
57-71 GHz
Channel bandwidths
2160 MHz / 1080 MHz
Wireless security
WPA2-PSK, AES
Power and management
Power method
Passive PoE
Maximum power consumption
22 W
Management
UISP
Setup
Bluetooth-assisted
Physical

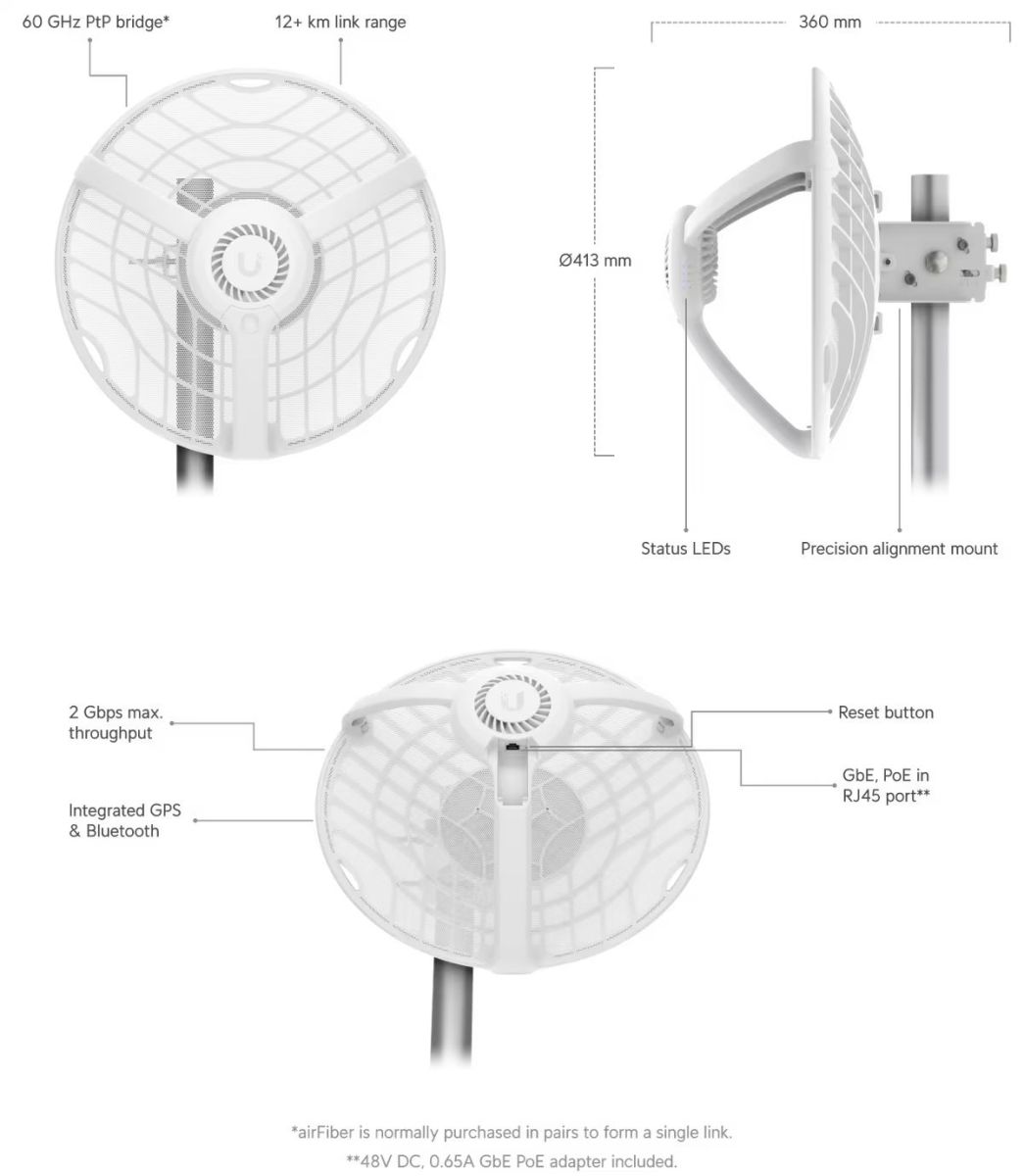

Dimensions
Dia. 413 x 360 mm
Weight without mount
1.5 kg
Weight with mount
2.7 kg
Enclosure materials
Aluminium and UV-stabilised polycarbonate
Pole compatibility
Dia. 25.4-76.2 mm
Included items
PoE adapter
48V, 0.65A Gigabit PoE adapter
Mounting
Precision alignment kit
Warranty
Manufacturer warranty
1 year Ubiquiti manufacturer warranty
Authorised reseller
DeviceDeal
SKU
AF60-LR
Barcode #
810010073310
Brand
Ubiquiti
Shipping Weight
6.1500kg
Shipping Width
0.320m
Shipping Height
0.460m
Shipping Length
0.460m
1 YearUbiquiti manufacturer warranty
Authorised reseller & manufacturer warranty
Purchase with confidence from DeviceDeal, an authorised Ubiquiti reseller. The Ubiquiti AF60-LR is backed by a 1-year Ubiquiti manufacturer warranty.
Warranty support is provided in accordance with Ubiquiti's warranty terms and conditions.
