24TB data-centre capacity
Provides 24TB of storage capacity in a 3.5-inch internal HDD form factor.
WD 24TB Ultrastar DC HC580 3.5-inch SATA 6Gb/s Data Center Hard Drive - WUH722424ALE6L4 / 0F62796
model# 0F62796
-
SKU: 0F62796
- Pick Up Available
- Australian Warranty
- Checkout Securely
Western Digital Ultrastar Internal Hard Drive

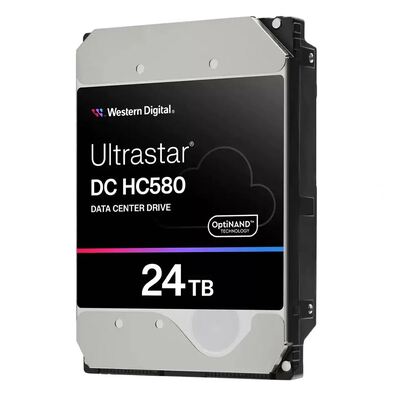

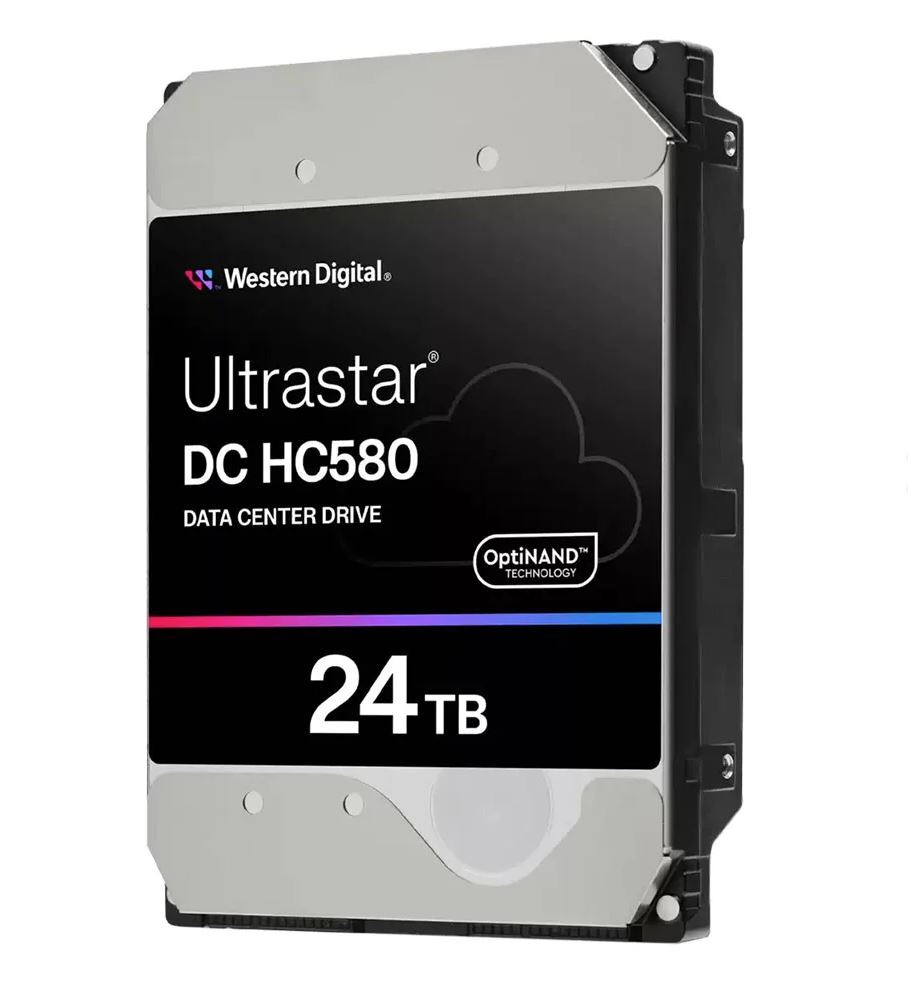

WD Ultrastar DC HC580 24TB SATA Enterprise Hard Drive 0F62796
A 24TB 3.5-inch Western Digital Ultrastar DC HC580 data-centre hard drive with SATA 6Gb/s, 7200 RPM, 512MB cache, CMR recording and an up to 298MB/s supplied transfer rate.
24TB capacitySATA 6Gb/s7200 RPM512MB cache
Product overview
The supplied information identifies the HC580 as a high-capacity internal data-centre hard drive. Listed technologies include improved OptiNAND, EAMR, a triple-stage actuator, HelioSeal and ArmorCache.
ArmorCache is described in the supplied specifications as improving performance and providing enterprise power-loss protection. Supplied applications include cloud and hyperscale storage, high-density data centres, distributed file systems, Apache Hadoop® storage, hybrid cloud environments and hyperconverged infrastructure servers.
Choosing the right HDD or SSD?
Compare storage types, capacities and options in the DeviceDeal Storage & Hard Drives guide.
Manufacturer warranty and authorised reseller
This product is covered by a 5-year limited Western Digital manufacturer warranty. DeviceDeal is an authorised reseller of Western Digital products.
Frequently asked questions
What is the capacity and form factor of the WD 0F62796?
The WD 0F62796 provides 24TB of storage capacity in a 3.5-inch internal hard-drive form factor.
What interface and performance figures are listed?
The supplied information lists SATA 6Gb/s, 7200 RPM, a 512MB cache and a transfer rate of up to 298MB/s.
What recording and security details are supplied?
The drive is listed with CMR recording technology and Base (SE) security.
Which HC580 technologies are identified?
The supplied content lists improved OptiNAND, EAMR, a triple-stage actuator, HelioSeal and ArmorCache.
What compatibility, endurance and temperature ranges are listed?
Compatibility is listed for Windows, Windows Server and Linux, with 550TB/year endurance, 5°C to 60°C operating temperature and -40°C to 70°C non-operating temperature.
What warranty applies to the WD 0F62796?
It is covered by a 5-year limited Western Digital manufacturer warranty. DeviceDeal is an authorised reseller of Western Digital products.
(0F62796)
Features and highlights
A 24TB 3.5-inch Western Digital Ultrastar DC HC580 data-centre hard drive with SATA 6Gb/s, 7200 RPM, 512MB cache, CMR recording and an up to 298MB/s supplied transfer rate.
SATA 6Gb/s interface
Uses the SATA 6Gb/s interface stated in the supplied product information.
7200 RPM and 512MB cache
The supplied specifications list a 7200 RPM disk speed and 512MB cache.
Up to 298MB/s
A transfer rate of up to 298MB/s is listed in the supplied specifications.
CMR and OptiNAND
CMR recording and improved OptiNAND technology are listed for this HC580 model.
Enterprise HDD technologies
EAMR, triple-stage actuator, HelioSeal and ArmorCache are identified in the supplied content.
Key product details
- 24TB data-centre capacity
- SATA 6Gb/s interface
- 7200 RPM and 512MB cache
- Up to 298MB/s
- CMR and OptiNAND
- Enterprise HDD technologies
Technical specifications
WD Ultrastar DC HC580 24TB SATA Enterprise Hard Drive 0F62796
Product details
| SKU | 0F62796 |
|---|---|
| Product family | Ultrastar DC HC580 |
| Model number | WUH722424ALE6L4 |
| Drive type | Internal data-centre hard drive |
Storage and performance
| Capacity | 24TB |
|---|---|
| Form factor | 3.5-inch |
| Interface | SATA 6Gb/s |
| Transfer rate | Up to 298MB/s |
| Disk speed | 7200 RPM |
| Recording technology | CMR |
| Cache size | 512MB |
| Security | Base (SE) |
Compatibility and environment
| Compatibility | Windows; Windows Server; Linux |
|---|---|
| Operating temperature | 5°C to 60°C |
| Non-operating temperature | -40°C to 70°C |
| Endurance | 550TB/year |
Physical and included
| Dimensions (L × W × H) | 5.79" × 4" × 1.03" |
|---|---|
| Weight | 670 g |
| In the box | Ultrastar DC HC580 Data Center HDD |
Supplied applications
| Applications | Cloud and hyperscale storage; massive scale-out and high-density data centres; distributed file systems; primary and secondary storage for Apache Hadoop® for Big Data analytics; hybrid cloud environments; hyperconverged infrastructure servers |
|---|
Warranty
| Warranty | 5-year limited warranty |
|---|
| SKU | 0F62796 |
| Barcode # | 829686008830 |
| Brand | Western Digital |
| Shipping Weight | 0.7000kg |
Manufacturer warranty
Western Digital warranty coverage
This product is covered by a 5-year limited Western Digital manufacturer warranty.
Warranty coverage and claims are subject to Western Digital's applicable manufacturer warranty terms, eligibility requirements and product assessment. Please retain your DeviceDeal tax invoice as proof of purchase.
DeviceDeal is an authorised reseller of Western Digital products.
