The supplied design uses easy-load wristband cartridges and automatically sets print speed according to the installed cartridge, up to 4 inches per second.
Zebra ZD510 Direct Thermal Wristband Printer 300dpi USB Ethernet Wi-Fi
Model # ZD51013-D0PB02FZ
-
SKU: ZD51013-D0PB02FZ
- Pick Up Available
- Australian Warranty
- Checkout Securely

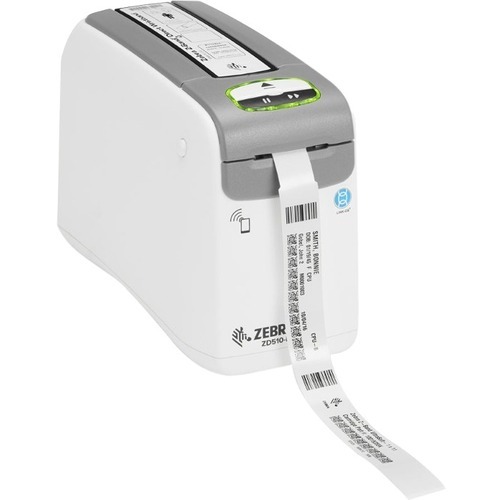

Zebra ZD510 direct thermal wristband desktop printer
The Zebra ZD510 is a 300dpi direct thermal wristband printer with easy-load wristband cartridges, USB, USB Host, Ethernet, Wi-Fi and Bluetooth Low Energy connectivity.
Direct thermal wristbands300dpiUSB and EthernetWi-Fi and BLE
Direct thermal printing supports barcodes, text and graphics for compatible healthcare, amusement, water-park and entertainment wristbands.
USB, USB Host, Ethernet, Wi-Fi and Bluetooth Low Energy are listed for supported integration and setup workflows.
Media and printer status
An illuminated media-low or media-out indicator, head-up sensor, instant media calibration and print-length odometer support daily operation.
Programming and data support
ZPL or ZPL II and XML-enabled printing are supplied, together with Unicode compliance for multi-language printing.
Serviceable desktop construction
The dual-wall impact-resistant frame includes tool-less printhead and platen replacement, a Real Time Clock and Link-OS software support.

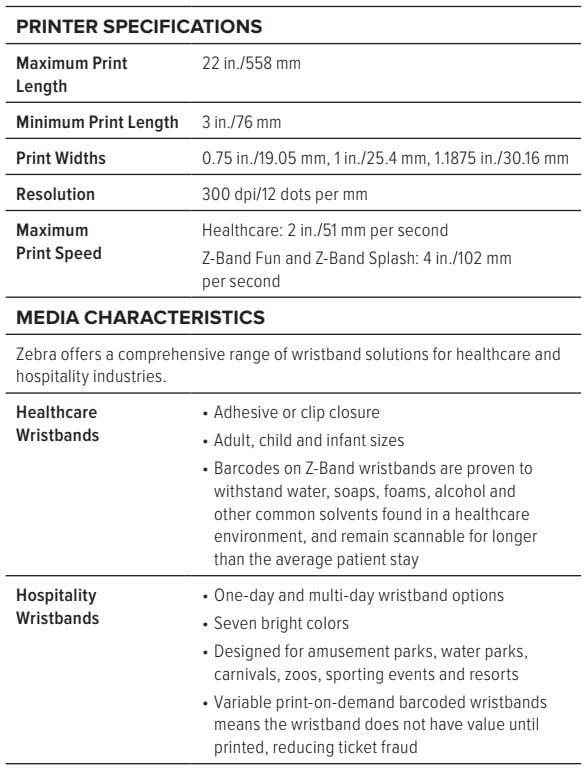

Key specifications
| Print method | Direct thermal |
|---|---|
| Resolution | 300dpi |
| Print speed | Automatically set by cartridge, up to 4 inches per second |
| Output | Barcodes, text and graphics |
| Programming | ZPL or ZPL II; XML-enabled printing |
| Memory | 512MB Flash and 256MB SDRAM |
| Connectivity | USB Host, USB, Ethernet, Wi-Fi and Bluetooth Low Energy |
| Optional wireless detail | 802.11ac and Bluetooth 4.1 dual radio |
| Media handling | Easy-load wristband cartridge and instant media calibration |
| Construction | Dual-wall impact-resistant plastic |
| Dimensions | 127mm W x 178mm H x 242mm D |
| Loading clearance | 153mm above printer |
| Energy qualification | ENERGY STAR qualified |
| Warranty | Two-year standard warranty |
Frequently asked questions
What does the ZD510 print?
It directly prints barcodes, text and graphics onto compatible wristband media.
How fast does it print?
Print speed is set automatically by the installed cartridge, up to 4 inches per second.
What clearance is required for cartridge loading?
The supplied dimensions note requires 153mm of clearance above the printer.
(ZD51013-D0PB02FZ)
Interfaces/Ports
| USB | Yes |
Media Types & Handling
| Media Type | Wristband |
Memory
| Standard Memory | 256 MB |
Miscellaneous
| Energy Star | Yes |
Power Description
| Power Source | AC Supply |
Network & Communication
| Bluetooth | Yes |
| Ethernet | Yes |
| Wireless LAN | Yes |
General Information
| Product Type | Direct Thermal Printer |
| Manufacturer Part Number | ZD51013-D0PB02FZ |
| Manufacturer Website Address | http://www.zebra.com/ap/en.html |
| Manufacturer | Zebra Technologies Corporation |
| Product Model | ZD510-HC |
| Product Name | ZD510-HC, Direct Thermal Printer, Mono, Ethernet/Wireless LAN/Bluetooth/USB |
| Brand Name | Zebra |
Physical Characteristics
| Height | 178 mm |
| Width | 127 mm |
| Depth | 242 mm |
Technical Information
| Application/Usage | Desktop |
| Maximum Print Width | 30.16 mm (1.19") |
| Recommended Use | Wristband Print |
| Maximum Mono Print Speed | 51 mm/s |
| Print Color Capability | Monochrome |
| Maximum Print Length | 558 mm |
| Maximum Print Resolution (dpi) | 300 |
| SKU | ZD51013-D0PB02FZ |
| Brand | Zebra |
| Shipping Weight | 2.6600kg |
| Shipping Width | 0.026m |
| Shipping Height | 0.036m |
| Shipping Length | 0.030m |
Manufacturer Warranty
