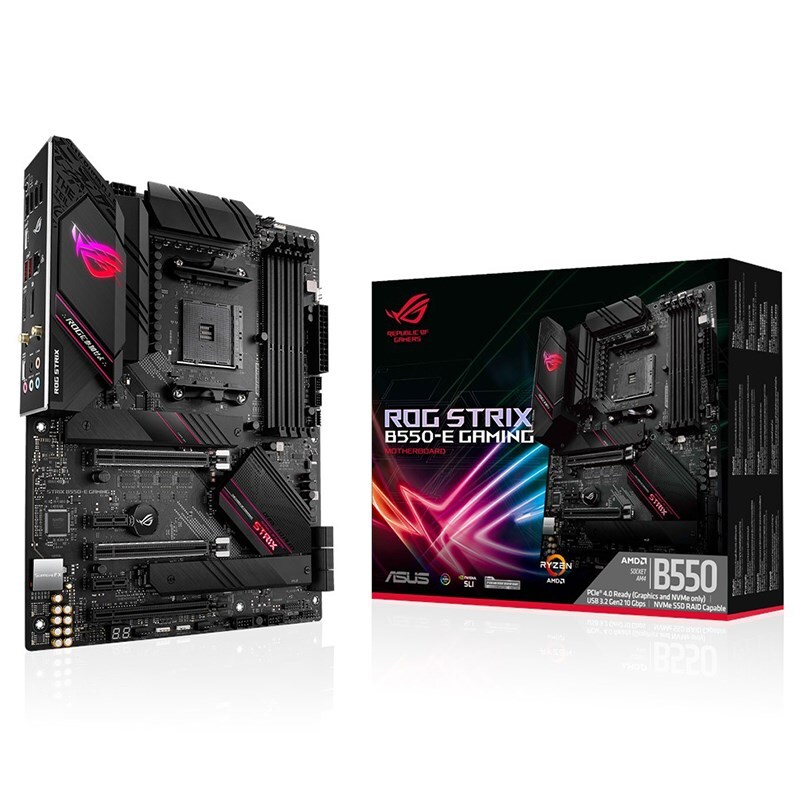

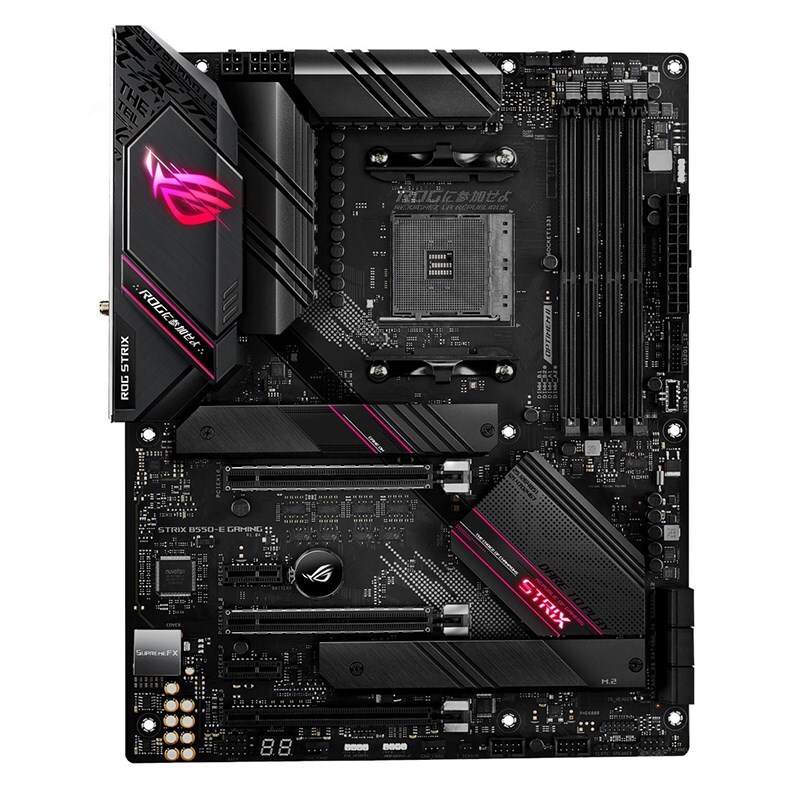

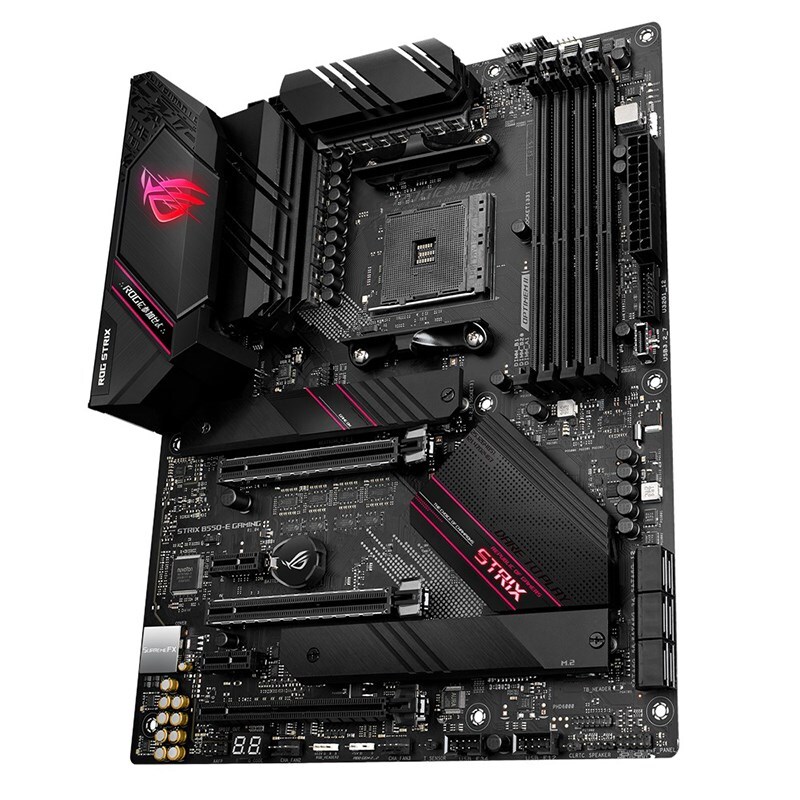

ASUS ROG STRIX B550-E GAMING AM4 ATX Motherboard
Model # ROG STRIX B550-E GAMING
-
SKU: ROG-STRIX-B550-E-GAMING
- Pick Up Available
- Australian Warranty
- Checkout Securely
ASUS ROG STRIX B550-E GAMING AM4 ATX Motherboard - Memory Support: 4x DIMM DDR4 Slots (128GB, 4400 MHz O.C) - Expansion Slots: 2x PCIe 4.0 x16 (x16 or dual x8), 1x PCIe 3.0 x16 (x4 Mode) & 2x PCIe 3.0 x1 - Storage Support: 2x M.2 Slot & 6x SATA 6Gb/s Connectors - Network: Intel® Wi-Fi 6 AX200, Bluetooth 5.1 & Intel® I225-V 2.5Gb Ethernet - ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A - Rear USB Ports: 3x USB 3.2 Gen 2 (1x USB-C), 4x USB 2.0 & 1x USB 2.0
(ROG-STRIX-B550-E-GAMING)
| Brand | ASUS |
|---|---|
| Series | ROG |
| Model | STRIX B550-E GAMING |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU. Refer to ASUS website for CPU support list. |
| Chipset | AMD B550 |
|---|
| Number of Memory Slots | 4×288pin |
|---|---|
| Memory Standard | 3rd Gen AMD Ryzen Processors DDR4 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory Next Generation AMD Ryzen PRO Processors DDR4 5100(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3200/ 3000/ 2800/ 2666/ 2400/ 2133 MHz Un-buffered Memory * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists). |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 3rd Gen AMD Ryzen Processors 2 x PCIe 4.0 x16 (x16 or dual x8) |
|---|---|
| PCI Express 3.0 x16 | AMD B550 Chipset 1 x PCIe 3.0 x16 (x4 mode) * * Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2 |
| PCI Express x1 | 2 x PCIe 3.0 x1 |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | 3rd Gen AMD Ryzen Processors: 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIe 4.0 x4 mode) AMD B550 Chipset: 1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)* * When the M.2_2 Socket 3 is populated, SATA6G_5/6 ports will be disabled. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Integrated Graphics Processor 1 x DisplayPort 1.2 1 x HDMI 2.1 (4K@60HZ) * Graphics specifications may vary between CPU types. |
|---|
| Audio Chipset | ROG SupremeFX High Definition Audio CODEC S1220A |
|---|---|
| Audio Channels | 7.1 Channels * Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1-Channel audio. |
| LAN Chipset | Intel I225-V |
|---|---|
| Max LAN Speed | 10/100/1000/2500Mbps |
| Wireless LAN | Intel Wi-Fi 6 AX200 2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO Supports dual band frequency 2.4/5 GHz Supports channel bandwidth: HT20/HT40/HT80/HT160 |
| Bluetooth | Bluetooth v5.1* * BT 5.1 function will be ready in Windows 10 build 19041 or later. |

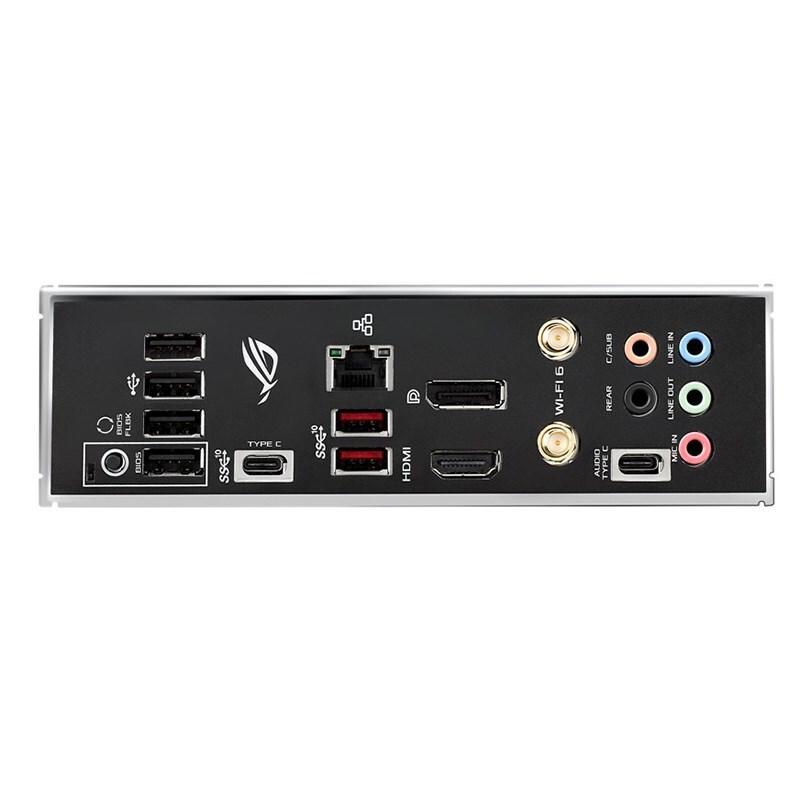

| Back I/O Ports | 1 x Intel I225-V 2.5Gb Ethernet 1 x DisplayPort 1 x HDMI 3 x USB 3.2 Gen 2 (2 x Type-A+1 x USB Type-C) 5 x USB 2.0 (1 for audio USB Type-C) 5 x Audio jack(s) 1 x BIOS FlashBack Button(s) ASUS Wi-Fi module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0) |
|---|
| Onboard USB | 1 x USB 3.2 Gen2 connector support additional 1 USB ports (20-pin, Type-C) 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s) 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s) |
|---|---|
| Other Connectors | 1 x CPU Fan connector(s) 1 x CPU OPT Fan connector(s) 3 x Chassis Fan connector(s) 1 x AIO_PUMP connector 1 x AAFP connector 2 x Aura RGB Strip Header(s) 2 x Addressable Gen 2 header(s) 1 x Thunderbolt header(s) 1 x System panel(s) 1 x Thermal sensor connector(s) 1 x Clear CMOS jumper(s) 1 x Q-Code |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin EATX Power connector(s) 1 x 8-pin ATX 12V Power connector(s) 1 x 4-pin ATX 12V Power connector(s) |
| Features | Multi-GPU Support: Supports NVIDIA 2-Way SLI Technology Supports AMD 3-Way CrossFireX Technology Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst VI - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Features Armoury Crate - Aura Creator - Aura Sync Ai noise cancelling microphone AI Suite 3: - 5-way Optimization TPU EPU DIGI+ VRM Fan Xpert 4 Turbo APP - EZ update WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode FlexKey ASUS Special Features: Aura Sync - Standard RGB header(s) - Addressable Gen 2 RGB header(s) ASUS Q-Design - ASUS Q-CODE - ASUS Q-DIMM - ASUS Q-LED (DRAM [yellow], CPU [red], VGA [white], Boot Device [yellow green) - ASUS Q-Slot ASUS Thermal Solution - Aluminum M.2 heatsink ASUS EZ DIY - BIOS Flashback button - BIOS FlashBack LED - Clear CMOS header - Procool - Pre-mounted I/O shield - SafeSlot Rear audio USB Type-C connector BIOS: 256MB Flash ROM, UEFI AMI BIOS Manageability: WOL by PME, PXE Operating System: Windows 10 64-bit |
|---|
| SKU | ROG-STRIX-B550-E-GAMING |
| Barcode # | 4718017750264 |
| Brand | ASUS |
| Shipping Weight | 2.0000kg |
Manufacturer Warranty: 3 Years Limited Warranty
