Enterprise Rackmount NAS

Reliable, scalable and massive enterprise virtualization and storage solution.

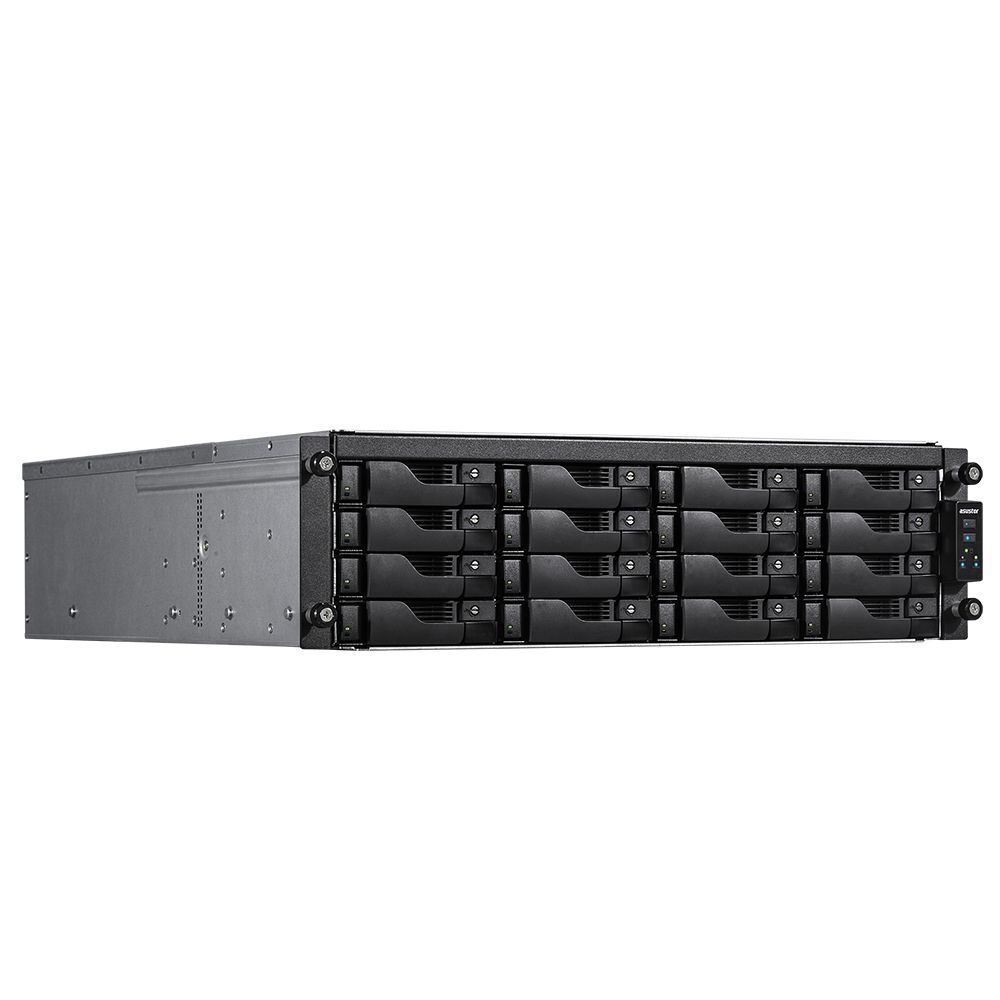

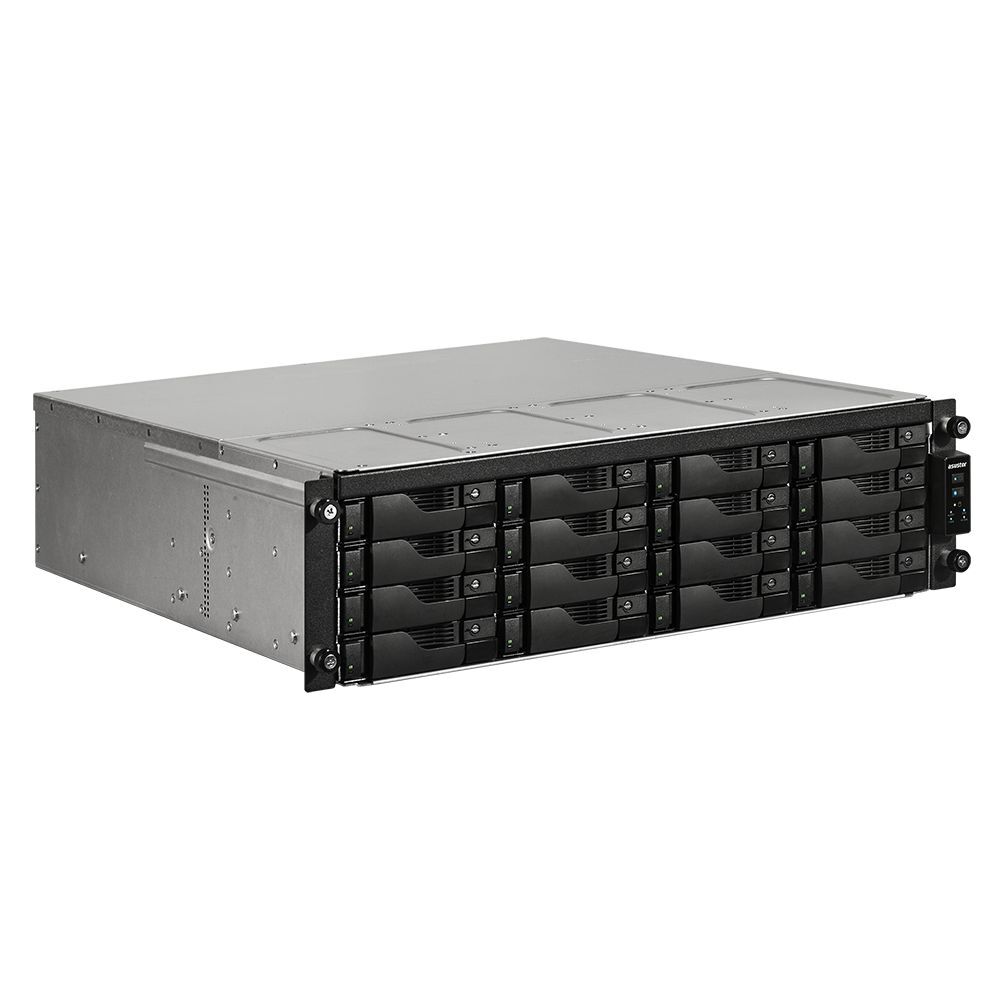

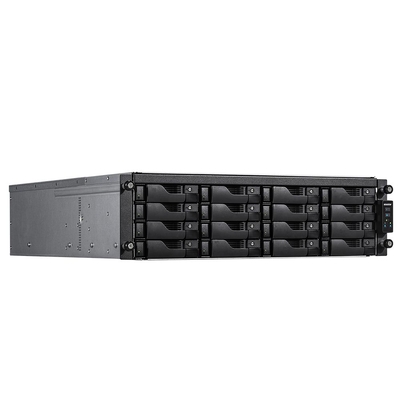

ASUSTOR AS7116RDX Lockerstor 16-bay rackmount NAS with Intel Xeon processing, ECC memory, NVMe caching, enterprise storage protocols and PCIe expansion.

16 Bay3U Rackmount NAS

XeonQuad-Core CPU

8GBECC DDR4-2666

PCIeNetwork and SAS Expansion

Key Features

Intel Xeon 9th generation Quad-Core CPU
Server-grade ECC memory: 8 GB ECC DDR4-2666 (Max 128GB, 32GB x 4)
3U chassis design, 16 SATA drive bays
Dual M.2 NVMe SSD ports for fast caching
Complete iSCSI/IP-SAN and NFS support. VMware, Citrix and Hyper-V ready.
Supports Virtualization and Docker apps
PCIe slots for 10/25/40/50 Gigabit Ethernet cards as well as SAS cards.
Windows ACL support combined with Windows AD infrastructure enhances management efficiency for business applications

Technical Overview

Processor	Intel Xeon 9th generation Quad-Core CPU
Memory	8 GB ECC DDR4-2666 (Max 128GB, 32GB x 4)
Chassis	3U chassis design
Drive Bays	16 SATA drive bays
SSD Cache	Dual M.2 NVMe SSD ports
Storage Protocols	Complete iSCSI/IP-SAN and NFS support
Virtualization	VMware, Citrix, Hyper-V, Virtualization and Docker apps
Expansion	PCIe slots for 10/25/40/50 Gigabit Ethernet cards and SAS cards
Business Integration	Windows ACL support with Windows AD infrastructure

Post-Quantum Cryptography (PQC) Ready: ADM Prepared for Future Threats

ASUSTOR has officially upgraded ADM to support PQC Hybrid TLS encryption certified by the US NIST. This fully adopts the official version of the Kyber algorithm, X25519+ML-KEM 768, and in ADM 5.1 and later, is automatically enables this feature through TLS 1.3 without requiring any configuration. This protects against the Harvest Now, Decrypt Later threat. As long as your browser supports PQC, it will immediately establish a post-quantum cryptography (PQC) encrypted secure connection, and the connection status will be clearly displayed through the ADM interface, ensuring that data stored on your ASUSTOR NAS can withstand future quantum computer threats.

Intel Xeon Quad-Core CPU

The Lockerstor 12R/16R Pro features a powerful Intel 9th generation Xeon with four cores. Not only is the Xeon extremely fast in both read and write speeds, but also lends incredible performance to virtual machines and Docker apps.

Powerful Hardware and Top flight performance

Intel Xeon 9th generation Quad-Core CPU Supports and uses ECC RAM. PCIe support for 10/25/40/50 GbE cards as well as SAS cards. Dual M.2 NVMe SSD ports for fast caching. USB 3.2 Gen-2 Type A/Type C

360° Backup solution and enterprise virtualization application

MyArchive cold storage backups
Snapshot Center, Cloud Backup Center, DataSync Center
Complete iSCSI/IP-SAN and NFS support
VMware, Citrix and Hyper-V ready
Supports Virtualization and Docker apps

Server-grade ECC memory

ECC memory is memory usually used in servers for detection and correction of the most common kinds of data corruption. This can help prevent data loss due to electromagnetic interference or crashes, making the NAS the Lockerstor 16R pro our most stable NAS ever.

High efficient and energy saving

The Lockerstor 12R pro and 16R pro are equipped with server–grade redundant 80 PLUS Platinum PSUs. The efficient power supplies installed ensure stability when running your NAS for various apps like virtualization. The included power supplies also increase energy efficiency as they are up to 94% efficient in 50% load and remain efficient at almost any load. This enables enterprise customers to save power and money while also being green. With internal hard drive hibernation, the Lockerstor 16R pro consume only 51.5 W of power while normal operation only consumes 121.7 W of power.

Agile Expandability

The Lockerstor 12R Pro and 16R Pro help businesses meet the expansion needs of tomorrow, today. The Lockerstor 12R Pro and 16R Pro come equipped with two x4 PCIe slots and one x8 slot for SAS cards to use SAS drives and SAS expansion boxes, allowing easier capacity expansion and seamless integration with existing server drives. Moreover, the PCI Express slots also enable seamless expansion of 10GbE /25GbE / 40GbE / 50GbE network card, enabling greater speeds than ever before.

24/7 Reliability and Durability

All ASUSTOR NAS are designed for and are suitable for 24/7 use. ASUSTOR NAS devices have also undergone rigorous tests, such as drop tests and burn tests to test durability in extreme conditions. Heatsinks were added to sensitive components to dissipate heat, helping to maintain the longevity of the device.

Frequently Asked Questions

Product FAQs

Answers based only on the product information supplied for this item.

Which processor does the ASUSTOR AS7116RDX use?

The supplied description lists an Intel Xeon 9th generation quad-core CPU.

How much ECC memory is included?

It includes 8 GB ECC DDR4-2666 memory, with a supplied maximum of 128GB using 32GB x 4.

What chassis and drive-bay configuration is listed?

The supplied description lists a 3U chassis design with 16 SATA drive bays.

Does it include M.2 NVMe caching?

Yes. The supplied description includes dual M.2 NVMe SSD ports for fast caching.

Which storage and virtualization platforms are supported?

The supplied description lists iSCSI/IP-SAN, NFS, VMware, Citrix, Hyper-V, virtualization and Docker apps.

Which PCIe expansion options are listed?

It lists PCIe slots for 10/25/40/50 Gigabit Ethernet cards and SAS cards.

Does the supplied description include PQC support?

Yes. It states that ADM supports PQC Hybrid TLS encryption and automatically enables X25519+ML-KEM 768 through TLS 1.3 in ADM 5.1 and later when the browser supports PQC.

Is the NAS described for 24/7 use?

Yes. The supplied description states that all ASUSTOR NAS are designed for and suitable for 24/7 use.

(AS7116RDX)

Hardware Specifications
CPU	CPU Model	Intel Xeon E-2224
	CPU Architecture	x64 64-bit
	CPU Frequency	Quad-Core 3.4GHz up to 4.6GHz
Memory	Memory	8GB DDR4-2666 ECC UDIMM
	Memory Module Pre-installed	8GB (1x 8GB)
	Total Memory Slots	4
	Memory Expandable up to	128GB (4x 32GB) Support mixed capacity
	Flash Memory	8GB USB DOM
Storage	Drive Bays	16
	M.2 Drive Slots	2
	Compatible Drive Type	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD M.2 22110 NVMe M.2 2280 NVMe M.2 2280 SATA 3 M.2 2260 SATA 3 M.2 2242 SATA 3
	M.2 PCIe Interface	PCIe 3.0 x4
	Maximum Drive Bays with	28
	Supports Hot Swappable Drives

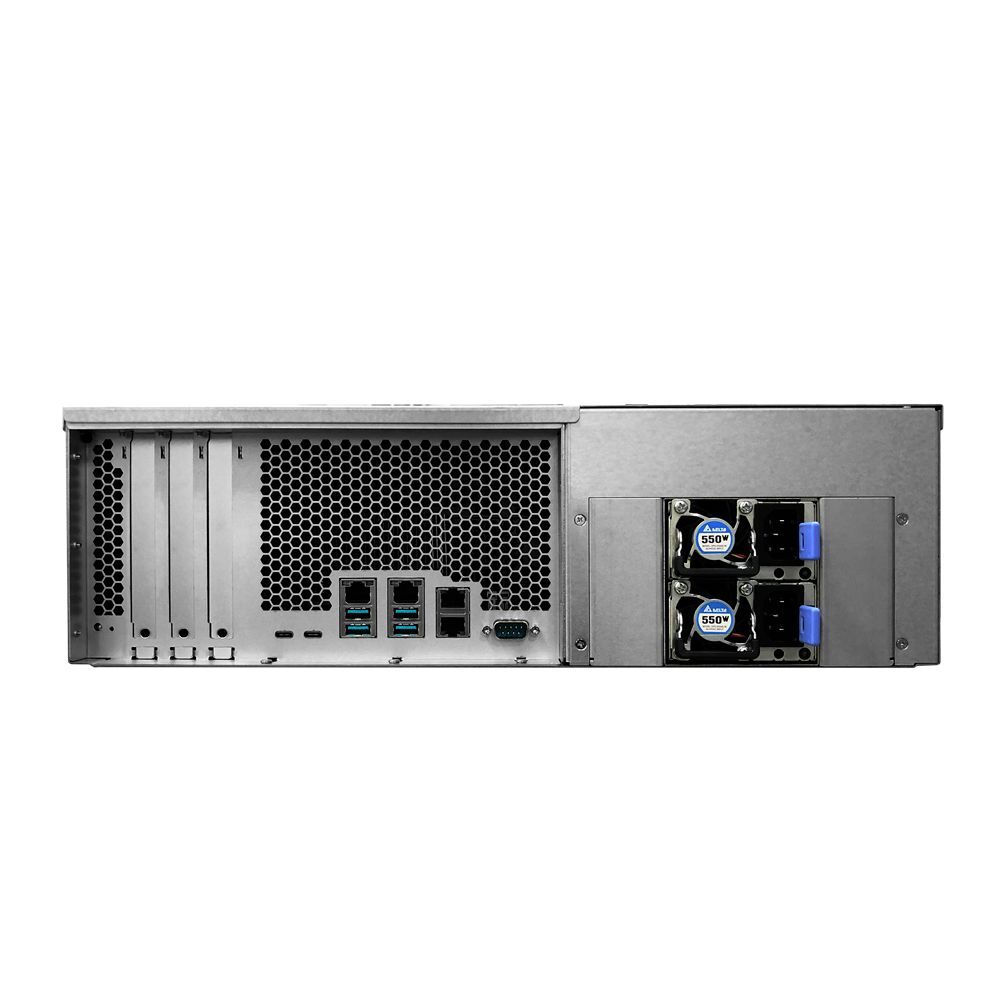

External Ports	Expansion	4x USB 3.2 Gen 2 (10Gbps) Type-A 2x USB 3.2 Gen 2 (10Gbps) Type-C
	Network	4x Gigabit Ethernet (1G/100M)
	PCIe Expansion Slots	2x Gen3x4 slots (x4 link) ; 1x Gen3x8 slots (x8 link) for optional 10/25/40/50 GbE card and SAS card
	Multimedia Output	N/A
Others	System Fan	3x 60mm
	Power Supply Unit / Adapter	550W x2
	Input Power Voltage	100V to 240V AC
	Redundant power supply
	Service LED Indicator
	Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS
	Warranty	5 Years
Operation	Power Consumption	121.7W (Operation); 51.5W (Disk Hibernation) 7.55 W (Sleep Mode);
	Noise Level	N/A
	Operation Temperature	0°C~40°C (32°F~104°F)
	Storage Temperature	-20°C~70°C (-4°F~158°F)
	Humidity	5% to 95% RH
Size and Weight	Size	132(H) x 439(W) x 535(D) mm
	Weight	15.3 (kg) / 39.6(lb)
