Lockerstor 12R Pro Gen2

The Lockerstor 12R Pro and 16R Pro Gen2 Bring Rising and Ryzen Speeds!

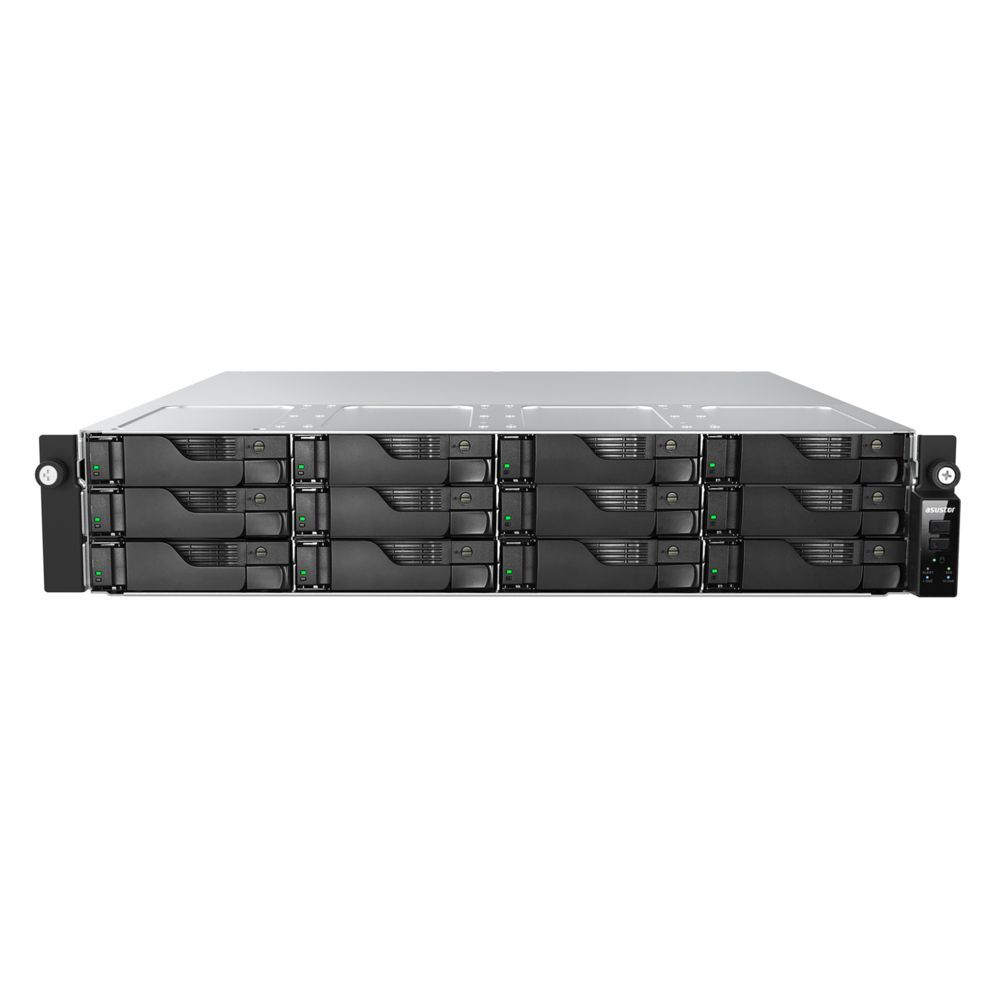

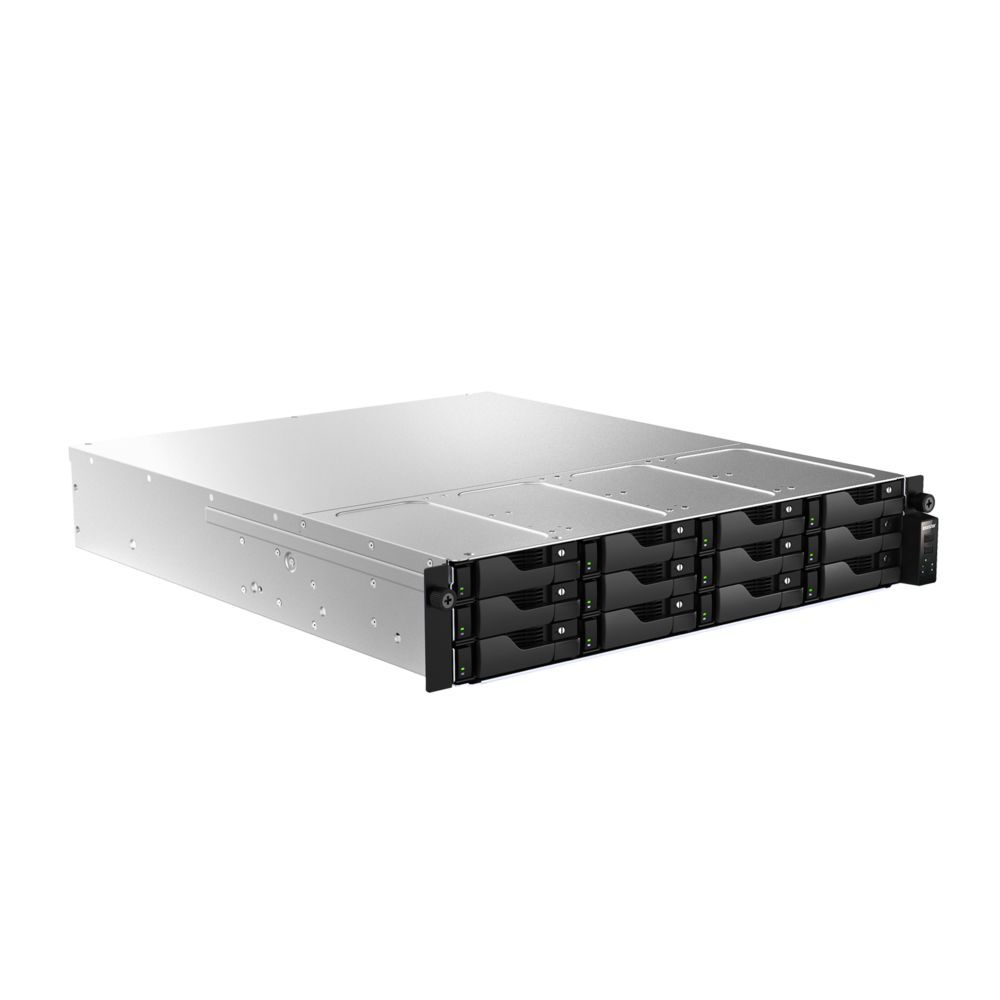

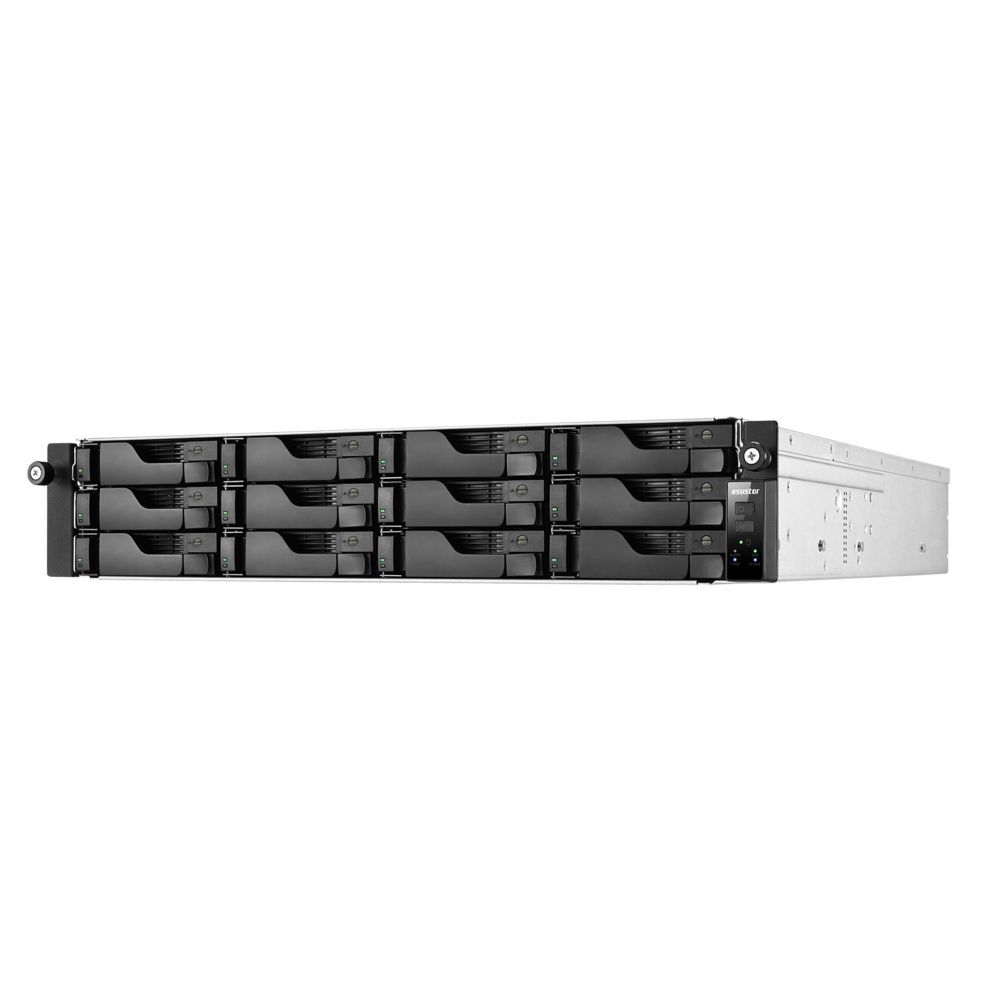

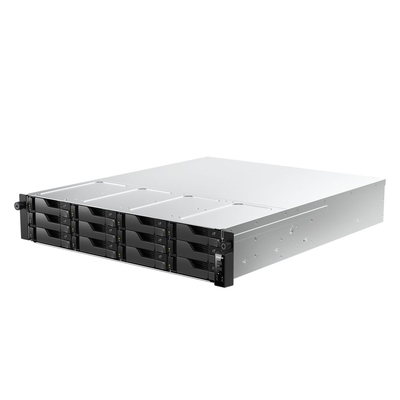

ASUSTOR AS7212RDX 12-bay rackmount NAS with AMD Ryzen 7 Pro processing, 16GB ECC DDR5, dual 10GbE, PCIe 5.0 expansion and redundant power supplies.

12 BayRackmount NAS

8 Cores16 Threads

16GBECC DDR5-4800

Dual 10GbEEthernet

Supplied Product Overview

ASUSTOR Lockerstor 12R Pro S7212RDX 12-Bay NAS, AMD Ryzen 7 Pro 3.8GHz up to 5.3GHz, 16GB DDR5, PCIe 5.0 x4, SATA, 4x USB 3.2 Gen 1 Type-A

Key Features

Powered by the AMD Ryzen 7 Pro 7745 processor with 8 cores and 16 threads
Equipped with 16 GB ECC DDR5-4800 memory, expandable up to 192 GB
Dual 10GbE + Dual Gigabit Ethernet
Expansion slots: PCIe 5.0 x8 and PCIe 5.0 x4
Supports PCIe Gen5 SSDs
Dual redundant 80 PLUS Platinum power supplies
Supports Wake on LAN on the Gigabit Ethernet ports

Technical Overview

Processor	AMD Ryzen 7 Pro 7745 with 8 cores and 16 threads; 3.8GHz up to 5.3GHz
Memory	16 GB ECC DDR5-4800, expandable up to 192 GB
Ethernet	Dual 10GbE + Dual Gigabit Ethernet
Expansion Slots	PCIe 5.0 x8 and PCIe 5.0 x4
SSD Support	PCIe Gen5 SSDs
Power	Dual redundant 80 PLUS Platinum power supplies
Remote Wake	Wake on LAN on the Gigabit Ethernet ports
Additional Supplied Connectivity	PCIe 5.0 x4, SATA, 4x USB 3.2 Gen 1 Type-A

Source-text note: The supplied product name uses “S7212RDX” while the SKU field is “AS7212RDX”. Both supplied references have been preserved without using external information.

Frequently Asked Questions

Product FAQs

Answers based only on the product information supplied for this item.

Which processor does the ASUSTOR AS7212RDX use?

The supplied description lists an AMD Ryzen 7 Pro 7745 processor with 8 cores and 16 threads, operating at 3.8GHz up to 5.3GHz.

How much memory is included?

It includes 16 GB ECC DDR5-4800 memory, expandable up to 192 GB.

Which Ethernet connections are listed?

The supplied description lists dual 10GbE and dual Gigabit Ethernet.

Which PCIe expansion slots are included?

It lists PCIe 5.0 x8 and PCIe 5.0 x4 expansion slots.

Does it support PCIe Gen5 SSDs?

Yes. PCIe Gen5 SSD support is included in the supplied feature list.

What power supplies are listed?

The supplied description lists dual redundant 80 PLUS Platinum power supplies.

Does it support Wake on LAN?

Yes. The supplied description lists Wake on LAN on the Gigabit Ethernet ports.

How many drive bays are listed?

The product name and supplied overview describe a 12-bay NAS.

(AS7212RDX)

Hardware Specifications
CPU	CPU Model	AMD Ryzen 7 Pro
	CPU Architecture	x64 64-bit
	CPU Frequency	3.8GHz up to 5.3GHz
Memory	Memory	16GB ECC DDR5-4800 UDIMM
	Memory Module Pre-installed	16GB (1x 16GB)
	Total Memory Slots	4
	Memory Expandable up to	192GB (4x 48GB) Support mixed capacity
	Flash Memory	32GB SATA DOM
Storage	Drive Bays	12
	M.2 Drive Slots	1
	Compatible Drive Type	3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD M.2 2280 NVMe
	M.2 PCIe Interface	PCIe 5.0 x4
	Maximum Drive Bays with	36
	Supports Hot Swappable Drives
External Ports	Expansion	4x USB 3.2 Gen 1 Type-A
	Network	2 x Gigabit Ethernet (1G/100M, WOL) 2 x 10Gigabit Ethernet (10G/1G)
	PCIe Expansion Slots	1 x Gen5 x8 slot (x8 link); 1 x Gen5 x4 slot (x4 link) for optional 10/25/40/50 GbE card and SAS card
	Multimedia Output	HDMI x1 (for service only)
Others	System Fan	3x 60mm
	Power Supply Unit / Adapter	550W x2
	Input Power Voltage	100V to 240V AC
	Redundant power supply
	Service LED Indicator
	Certification	FCC, CE, VCCI, BSMI, C-TICK, KCC, BIS, UKCA
	Warranty	5 Years
Operation	Power Consumption	102W (Operation); 99W (Disk Hibernation);
	Noise Level	N/A
	Operation Temperature	0°C~40°C (32°F~104°F)
	Storage Temperature	-20°C~70°C (-4°F~158°F)
	Humidity	5% to 95% RH
Size and Weight	Size	88(H) x 439(W) x 576(D) mm
	Weight	14 kg / 30.9lb
