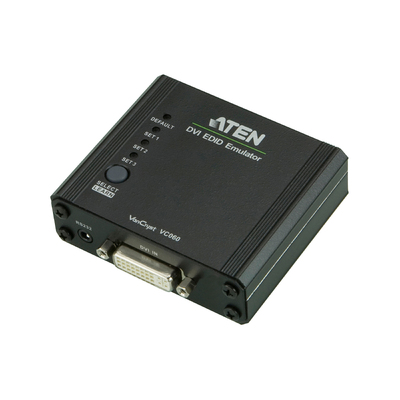

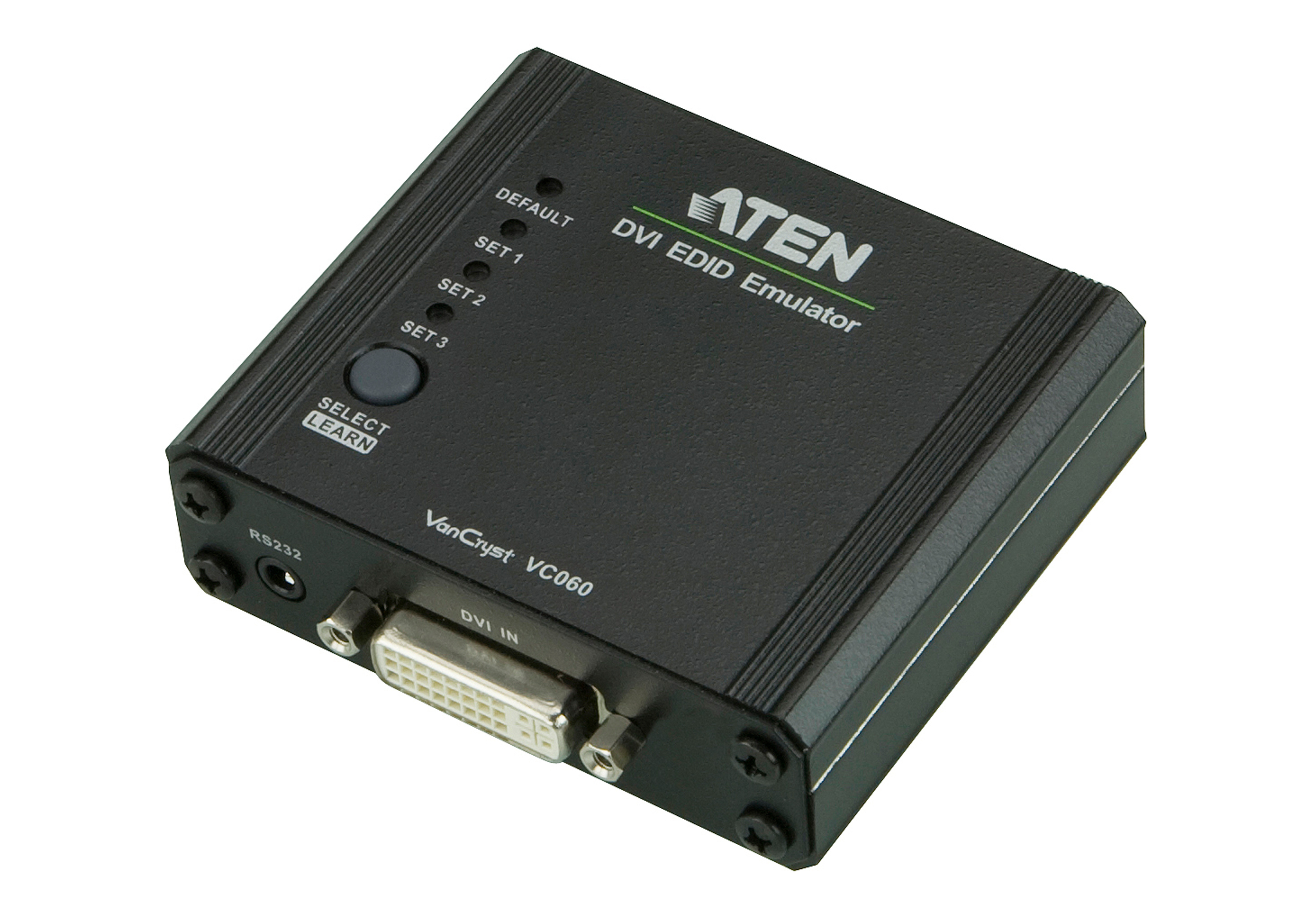

The ATEN VC060 is a DVI EDID Emulator, which is designed to emulate and store the EDID of a video display, providing constant and reliable EDID data for the a DVI source device to efficiently optimize video resolution.

The ATEN DVI EDID Emulator is a convenient tool that ensures smooth viewing experience for any video installation. The EDID Emulator provides three flexible methods for selecting and switching between EDID Modes: Default Mode, Programming Mode, and Learning Mode. It comes with an easy-to-use EDID Wizard that allows users to quickly view, store and manage EDID settings.

Package Contents

1x VC060 DVI EDID Emulator with Programmer
1x RS-232 Configuration Cable
1x USB to DC Power Cord
1x User Instructions

(VC060-AT)

Max. Video Resolution	WUXGA (1920 x 1200)
Data Rate	2.25 Gbits
Connectors
Power	1 x DC Jack
Power Consumption	DC5V:0.13W:1BTU
Environmental
Operating Temperature	0 - 50 ºC
Storage Temperature	-20 - 60 ºC
Humidity	0 - 80% RH, Non-Condensing
Physical Properties
Housing	Metal
Weight	0.15 kg ( 0.33 lb )
Dimensions (L x W x H)	7.90 x 7.86 x 2.45 cm (3.11 x 3.09 x 0.96 in.)
Carton Lot	5 pcs

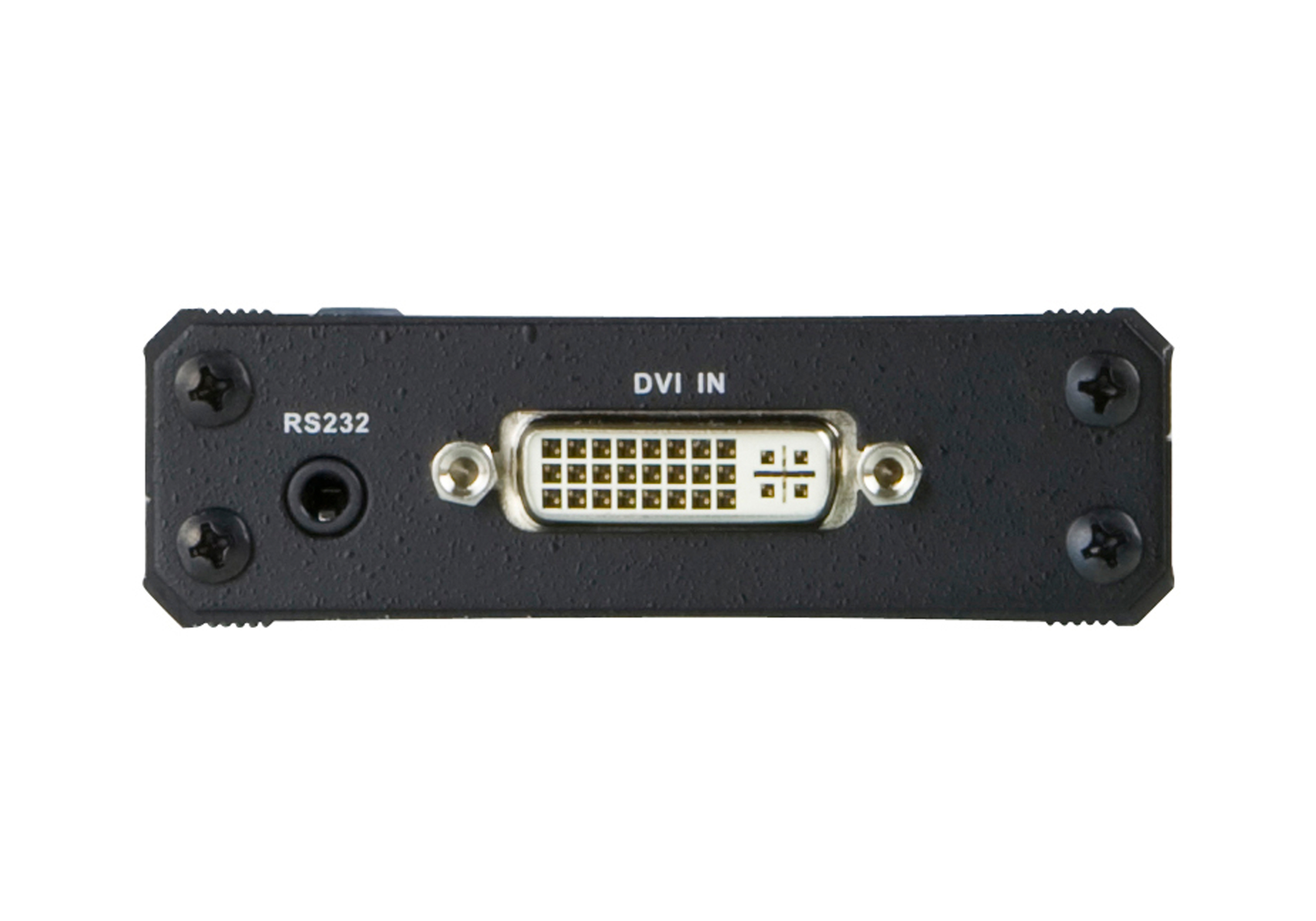

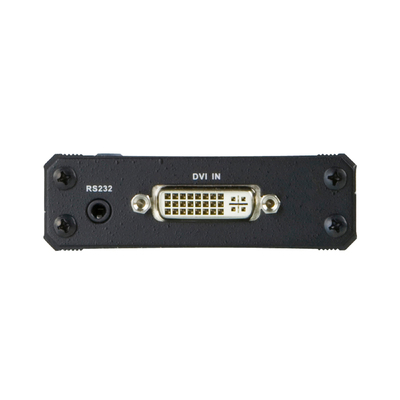

Video Input
Interfaces	1 x DVI-I Female (White)
Impedance	100 ?

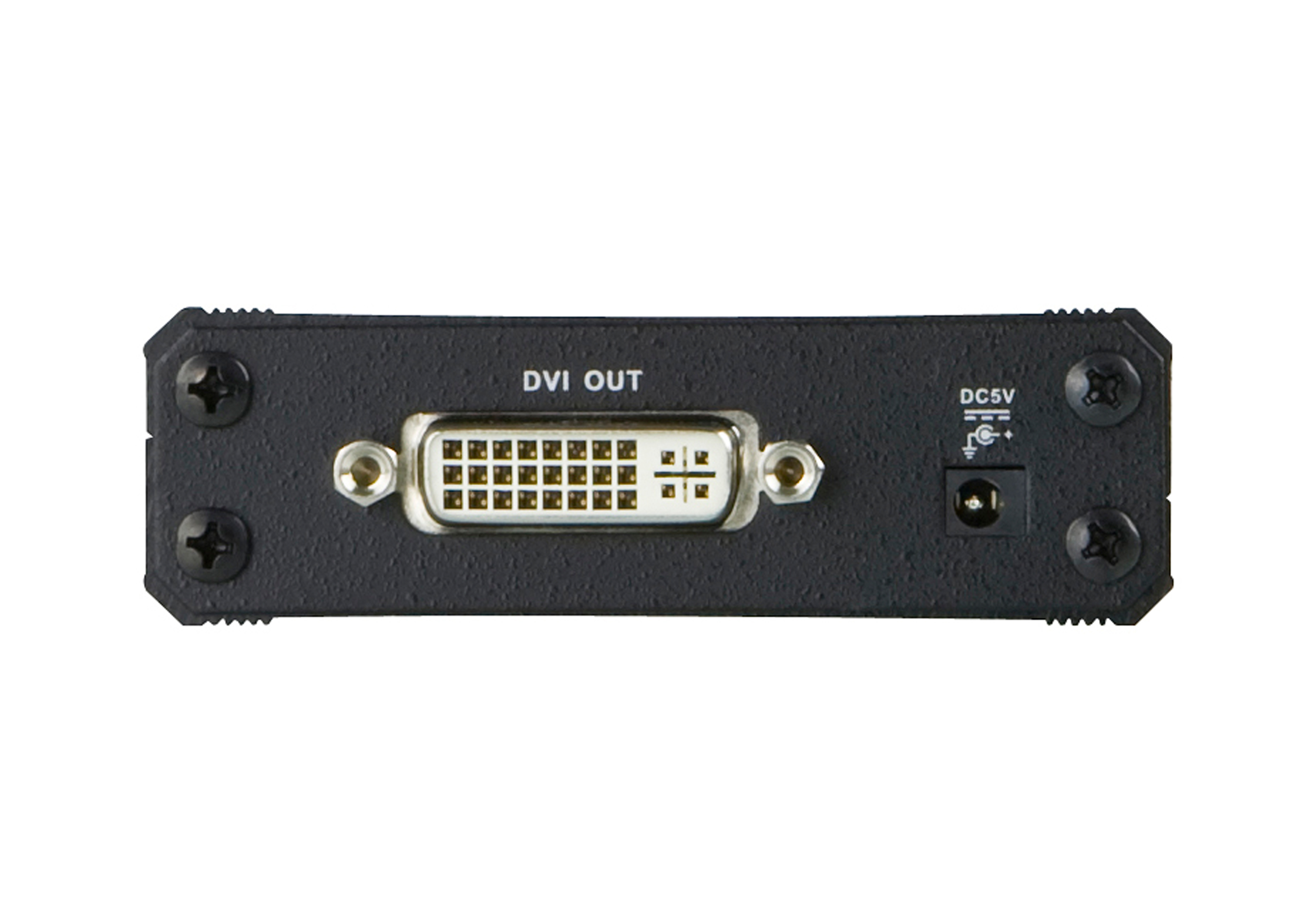

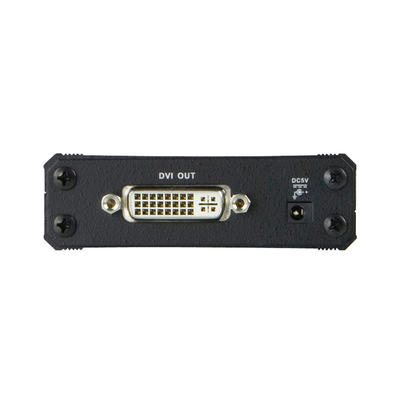

Video Output
Interfaces	1 x DVI-I Female (White)
Impedance	100 ?
EDID Settings	EDID Mode: Default / Learn / Customized (EDID Wizard support)
Note	For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
