Mini DisplayPort to HDMI

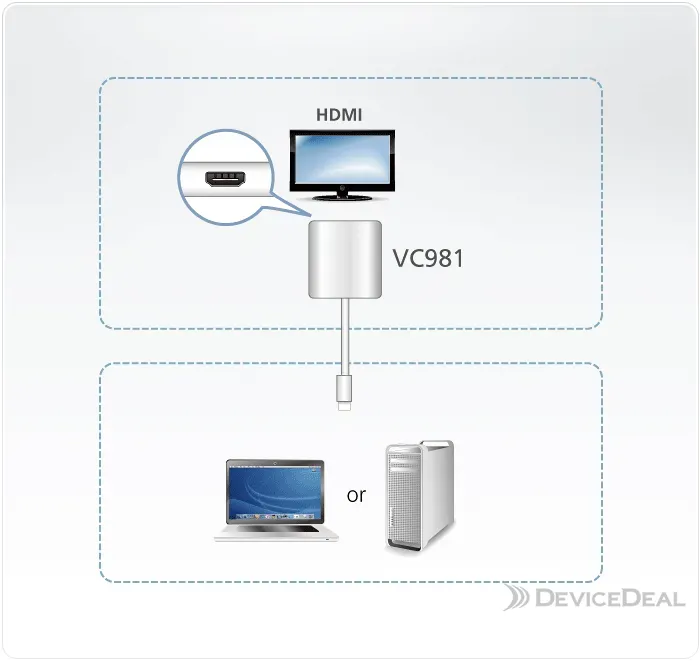

A male Mini DisplayPort input connects to a female HDMI Type-A output.

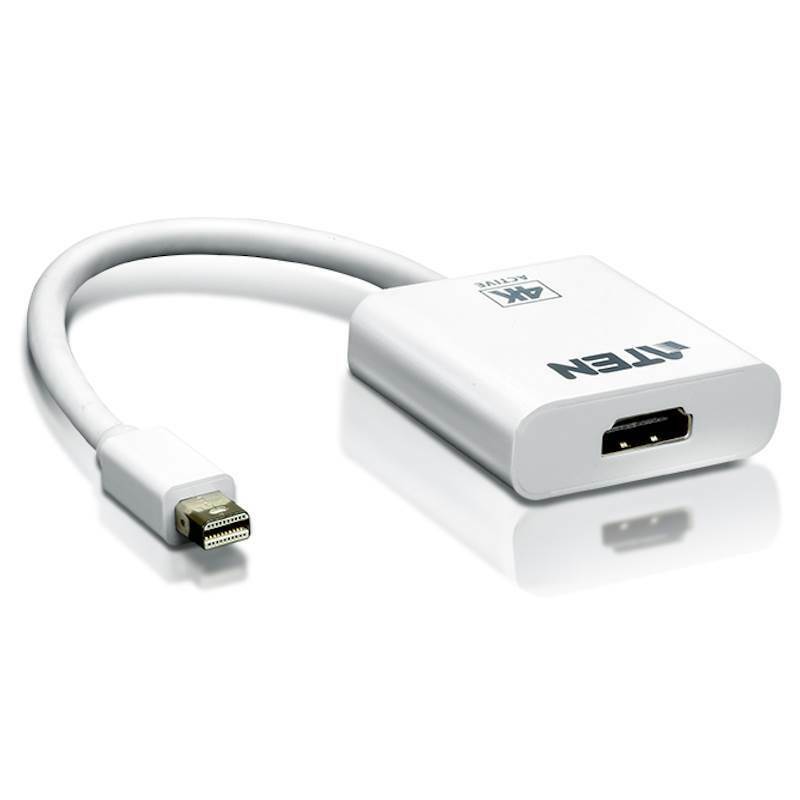

ATEN VC981 Mini DisplayPort to 4K HDMI Active Adapter
Model # VC981-AT
-
SKU: VC981-AT
- Pick Up Available
- Australian Warranty
- Checkout Securely
ATEN SKU VC981-AT
ATEN VC981-AT Mini DisplayPort to 4K HDMI Active Adapter
The ATEN VC981-AT is an active adapter for connecting a Mini DisplayPort source to an HDMI display with embedded audio.
It supports resolutions up to 3840 x 2160 at 30Hz or 1920 x 1200 at 60Hz and complies with DisplayPort 1.2a, HDMI and HDCP 1.3.
Mini DisplayPort to HDMI3840 x 2160 at 30HzActive adapter12-month warrantyDeviceDeal authorised ATEN reseller
Product overview
4K output
The supplied specification lists 3840 x 2160 at 30Hz as the maximum 4K resolution.
Audio over HDMI
The HDMI output carries audio as well as video according to the supplied specification.
Source review: The supplied source contains corrupted degree symbols in part of the environmental table. The Celsius operating and storage ranges have been retained without the corrupted characters.
Frequently asked questions
Which source connector does the VC981 use?
One male Mini DisplayPort connector is listed.
Which display connector is provided?
One female HDMI Type-A output is listed.
What maximum 4K resolution is stated?
3840 x 2160 at 30Hz is listed.
Does the adapter carry audio?
Yes. Audio output through the HDMI Type-A connection is stated.
What warranty is supplied?
The source lists a 12-month limited ATEN manufacturer warranty.
(VC981-AT)
Features
ATEN VC981-AT Mini DisplayPort to 4K HDMI Active Adapter
Video
- Mini DisplayPort input
- HDMI Type-A output
- 3840 x 2160 at 30Hz
- 1920 x 1200 at 60Hz
Standards
- DisplayPort 1.2a
- HDMI with 3D, Deep Color and 4K stated
- HDCP 1.3
- 297MHz maximum pixel clock
Physical
- Plastic housing
- 0.04kg
- 17.50 x 4.50 x 1.50cm
- HDMI audio output
Confirm the Mini DisplayPort source and HDMI display support the intended resolution and refresh rate.
Technical specifications
ATEN VC981-AT Mini DisplayPort to 4K HDMI Active Adapter
| Product details | |
|---|---|
| Brand | ATEN |
| Model / SKU | VC981-AT |
| Product type | Active Mini DisplayPort to HDMI adapter |
| Video and audio | |
| Video input | 1 x Mini DisplayPort male, white |
| Video / audio output | 1 x HDMI Type-A female, black |
| Maximum pixel clock | 297MHz |
| Maximum resolutions | 3840 x 2160 at 30Hz; 1920 x 1200 at 60Hz |
| Compliance | DisplayPort 1.2a; HDMI 3D, Deep Color and 4K; HDCP 1.3 |
| Physical and environment | |
| Housing | Plastic |
| Weight | 0.04kg |
| Dimensions (L x W x H) | 17.50 x 4.50 x 1.50cm |
| Operating temperature | 050°C |
| Storage temperature | -2060°C |
| Humidity | 080% RH, non-condensing |
| SKU | VC981-AT |
| Barcode # | 672792006777 |
| Brand | Aten |
| Shipping Weight | 0.1300kg |
| Shipping Width | 0.020m |
| Shipping Height | 0.210m |
| Shipping Length | 0.120m |
| Shipping Cubic | 0.000504000m3 |
Warranty information
ATEN VC981-AT Mini DisplayPort to 4K HDMI Active Adapter
12-Month Limited ATEN Manufacturer Warranty
DeviceDeal is an authorised ATEN reseller. This product is covered by a 12-month limited ATEN manufacturer warranty in Australia, as listed in the supplied product information.
