Brother 5WDC0300156 COMPACT DOCUMENT SCANNER with Touchscreen LCD display & WiFi (25ppm)
Model # 5WDC0300156
-
SKU: ADS-1700W
- Pick Up Available
- Australian Warranty
- Checkout Securely

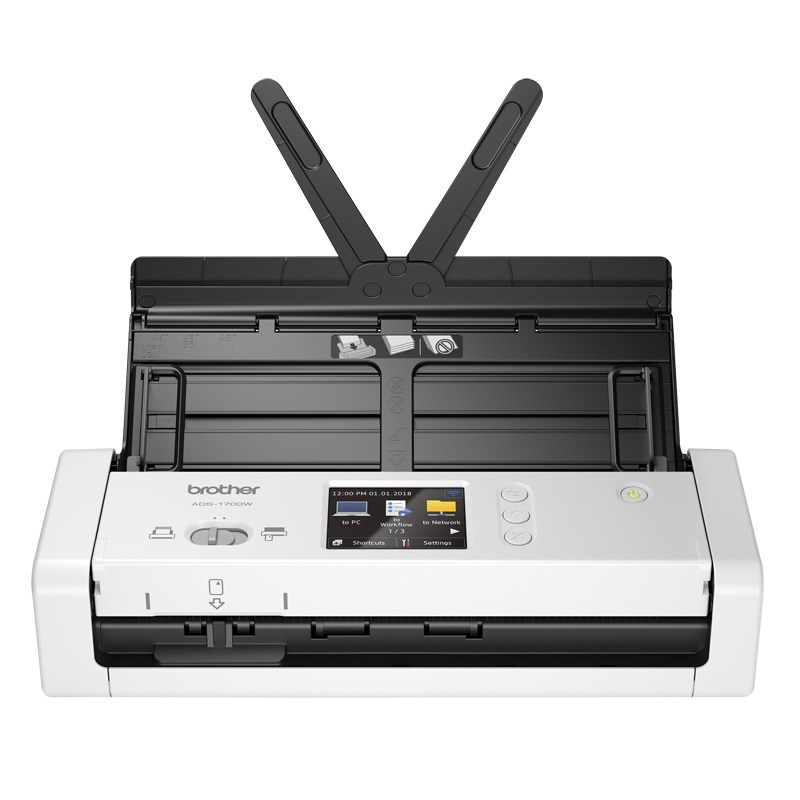

Brother ADS-1700W Compact Wireless Document Scanner
A compact document scanner with 25 ppm scanning, duplex capture, a 20-sheet automatic document feeder, 7.1 cm colour touchscreen, USB and wireless connectivity.
Compact document capture
Scan from a small desktop footprint
The Brother ADS-1700W combines a sheet-fed automatic document feeder with a compact design for desks where space is limited. It supports two-sided documents, multi-page contracts and plastic ID cards.
A 7.1 cm colour touchscreen can store up to 20 shortcuts for frequently used scan destinations, while wireless connectivity supports use with a mobile phone or tablet.
Product details
Technical specifications
| General | |
|---|---|
| Brand | Brother |
| Model / SKU | ADS-1700W |
| Supplied listing reference | 5WDC0300156 |
| Product type | Compact document scanner |
| Functions | Scan only |
| Scanning and handling | |
| Scan speed | 25 ppm for A4/LTR at 300 dpi |
| Duplex scanning | Yes |
| Automatic document feeder | Up to 20 sheets |
| Resolution | Up to 1200 × 1200 dpi |
| Bit depth | 48-bit input / 24-bit output colour |
| Imaging technology | Dual CIS |
| Supported items | Two-sided documents, multi-page documents and plastic ID cards |
| Controls and connectivity | |
| Display | 7.1 cm LCD colour touchscreen |
| Custom shortcuts | Up to 20 |
| USB | Hi-Speed USB 2.0 and SuperSpeed USB 3.0 |
| Wireless LAN | TCP/IP IPv4/IPv6; IEEE 802.11b/g/n infrastructure mode; IEEE 802.11g Wi-Fi Direct |
| Software platforms | Windows and Mac |
| Physical and warranty | |
| Dimensions (W × D × H) | 300 × 103 × 83 mm |
| Weight | 1.4 kg |
| Warranty | 12 months return to base |
Helpful answers
Frequently asked questions
How fast is the Brother ADS-1700W?
The supplied page lists 25 ppm performance for A4 or Letter documents at 300 dpi.
Does the ADS-1700W scan both sides?
Yes. Duplex scanning is listed.
How many sheets fit in the feeder?
The supplied automatic document feeder capacity is up to 20 sheets.
Which connections are available?
The supplied page lists USB 2.0, USB 3.0 and wireless LAN, including Wi-Fi Direct.
Can it scan plastic ID cards?
Yes. Plastic ID cards are included in the supplied paper-handling description.
(ADS-1700W)
| Dimensions | 300(W) x 103(D) x 83(H)mm |
| Duplex Print Option | Duplex Scan |
| Functions | Scan only |
| Interface | USB: Hi-Speed USB2.0, Superspeed USB3.0 | Wireless LAN: Wireless Network TCP/IP (IPv4) (IPv6) IEEE 802.11b/g/n (Infrastructure Mode), IEEE 802.11g (Wi-Fi Direct) |
| LCD/LED Diplay | 7.1cm LCD colour touchscreen |
| Paper Handling | Up to 20 sheets |
| Print Head Pins | |
| Print Speed (cps) | 25 ppm |
| Product Type | Scanner |
| Resolution | Up to 1200 x 1200 dpi |
| Ribbon Cartridge | |
| Series | ADS |
| Speed | |
| Supplies Compatibility | |
| Warranty | 12 Months Return To Base |
| Weight | 1.4KG |
| Bit Depth | 48 bit input / 24 bit output colour |
| Imaging Technology | Dual CIS |
| Model | ADS |
| Performance | 25 ppm(A4/LTR 300 dpi) |
| Software | Windows / Mac |
| Barcode Support‡ | Yes |
|---|---|
| Barcode Types Supported | Code 39, Code 128, Codabar, UPC-E, EAN13 / JAN13, QR Code, PDF417, ITF, GS1-128, UPC-A, EAN8 / JAN8, Code 93, Data Matrix |
| Color Dropout | Red, Blue, Green |
| Paper Jam Sensor | No |
| Scanner Services | Hole Punch Removal, Edge Fill, Background Removal, Continuous Scanning, 2-in-1 Scanning, USB Direct Interface, Plastic Card Scanning, Deskew Support |
| SKU | ADS-1700W |
| Barcode # | 4977766792233 |
| Brand | Brother |
| Shipping Weight | 1.3800kg |
| Shipping Width | 0.160m |
| Shipping Height | 0.200m |
| Shipping Length | 0.380m |
| Shipping Cubic | 0.012160000m3 |
Manufacturer Warranty
Be The First To Review This Product!
Help other Device Deal users shop smarter by writing reviews for products you have purchased.
