Brother · DS-940DW

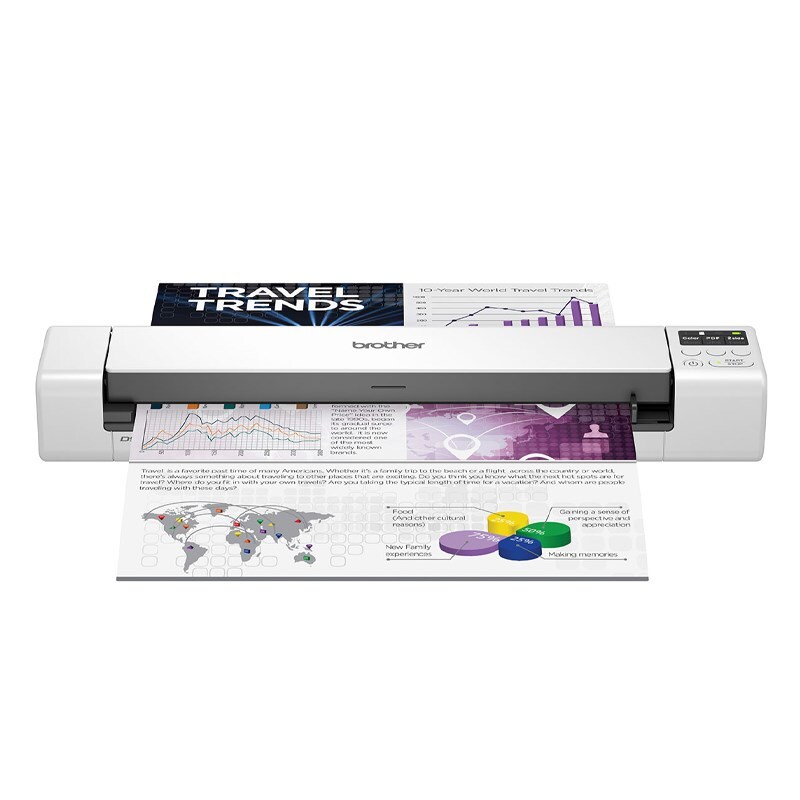

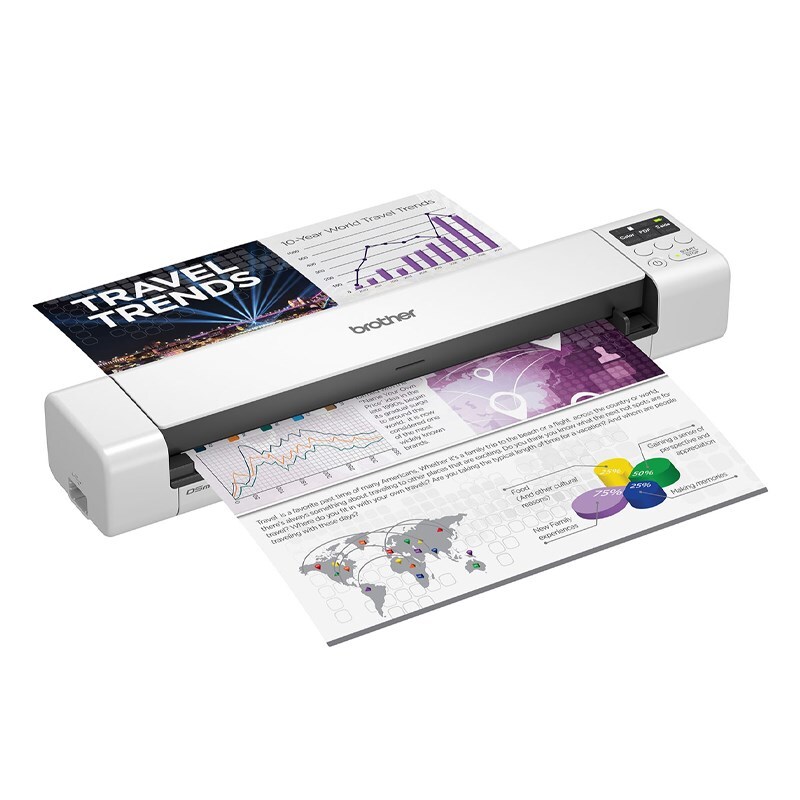

Brother DS-940DW Portable Duplex A4 Wi-Fi Scanner

A mobile single-sheet scanner with duplex scanning up to 15 ppm, built-in battery, Wi-Fi, USB 3.0, microSD expansion and U-path paper control.

Duplex up to 15 ppmDouble-sided portable scanning

Wi-Fi and USBFlexible wired or wireless use

Built-in batteryScanning without a power connection

Product overview

Portable duplex scanning with flexible connectivity

The Brother DS-940DW combines portable duplex scanning with a built-in Li-ion battery, Wi-Fi and an LCD control panel. Brother iPrint&Scan is listed for viewing and sharing documents on compatible Apple, Android and Windows devices.

Its U-path paper-control system returns the document over the top of the scanner, reducing the clear space needed behind the unit. The supplied information covers A4 documents, receipts and ID cards, plus optional storage through a microSD card.

Product details

Technical specifications

Supplied product information
Brand	Brother
SKU / model	DS-940DW
Scanner type	Mobile single-sheet-fed scanner with U-path paper control
Paper size	A4
Scanning mode / speed	Duplex; up to 15 ppm
Scan resolution	600 dpi
Scanning technology	Dual CIS
Light source	LED array
Interfaces	USB and Wi-Fi
Power	Built-in Li-ion battery; USB 3.0 stated
Expandable storage	microSD card
Dimensions	319 × 63.1 × 45.1 mm
Weight	0.699 kg
Media size range	50.8215.9 mm wide; 86.41,828.8 mm long
U-path media range	74215.9 mm wide; 105297 mm long; 5280 g/m²
Plastic cards	85.60 × 53.98 mm landscape; up to 1.00 mm, or embossed face up to 1.24 mm
File formats stated	TIFF, JPEG, PDF, secured PDF, signed PDF, PDF/A-1b and searchable PDF
What's in the box	DS-940DW, quick setup/product safety guide, USB cable and warranty
Warranty stated	12 months / 1 year return to base

Helpful answers

Frequently asked questions

Does the DS-940DW scan both sides?

Yes. Duplex scanning at up to 15 pages per minute is stated.

Can it scan without being plugged into power?

Yes. The supplied description lists a built-in Li-ion battery.

Which connections are listed?

USB and Wi-Fi are included in the approved specifications.

What does the U-path system do?

It returns the document over the top of the scanner, reducing the space required behind it.

Can storage be expanded?

Yes. Optional microSD-card storage is stated.

(DS-940DW)

General

Brand: Brother

Manufacturer Warranty: 12 Months

Model Number: DS-940DW

Paper Size: A4

Scanner Type: Mobile single sheet fed scanner with U-path paper control system

Product Dimensions: 319x63.1x45.1mm

Product Weight: 0.699 kg

Connectivity

Interface: USB, Wi-Fi

Operating Systems: Windows® 4 TWAIN, WIA, Windows 7, 8.1,10 (32 & 64 bit editions), Windows Server 2019, 2016, 2012R2, 2012, Macintosh ICA, macOS 10.12.x, 10.13.x, 10.14.x, Linux SANE

Software: Windows: iPrint&Scan for Windows PC, Nuance® PaperPort SE 14, Kofax Power PDF Standard v3, Remote Setup, NewSoft® Presto!® BizCard 6, MacOS: iPrint&Scan for macOS, Remote Setup, NewSoft® Presto!® BizCard 7

Media Handling

Media Sizes: Width 50.8 - 215.9mm, Length 86.4 – 1828.8mm U-path paper control system: Width 74 - 215.9mm, Length 105 – 297mm, Receipts: Width 74 - 79.38mm, Length 105 – 355.6mm Card: Plastic Card (Landscape): Width - 85.60mm, Length - 53.98mm

Media Weight: 35gsm - 270gsm (single paper), 52 - 80 gsm (U-path paper control system) Card: Plastic Card up to 1.00mm, Embossed face up to 1.24mm

Scanner Features

Scan Resolution: 600 dpi

Scan Time: 15 ppm

Scanning Technology: Dual CIS (contact Image Sensor)

Light Source: LED Array

File Format: Including TIFF (BW only), JPEG (Greyscale/Colour), PDF, Secured PDF, Signed PDF, PDF/A-1b, Searchable PDF

Package Contents

What's in the box?: DS-940DW device, Quick setup guide / Product safety guide, USB cable, Warranty

SKU	DS-940DW
Barcode #	4977766800655
Brand	Brother
Shipping Weight	1.1000kg
Shipping Width	0.080m
Shipping Height	0.170m
Shipping Length	0.380m
Shipping Cubic	0.005168000m3
