Brother · ADS-1800W

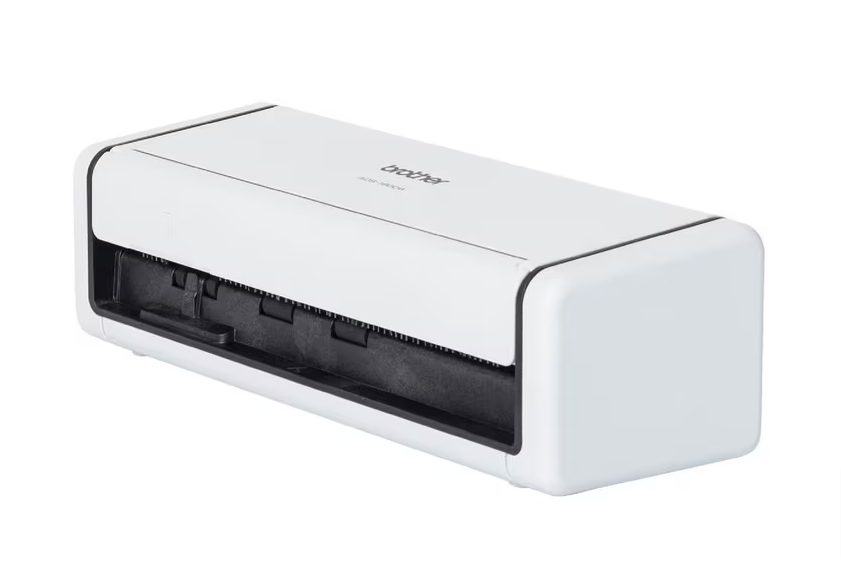

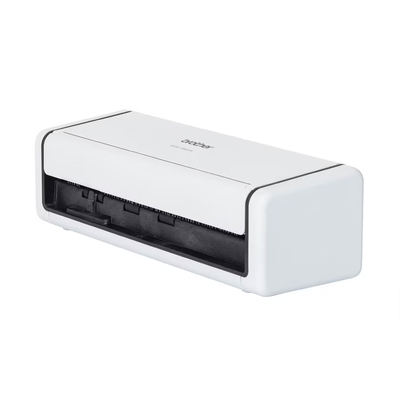

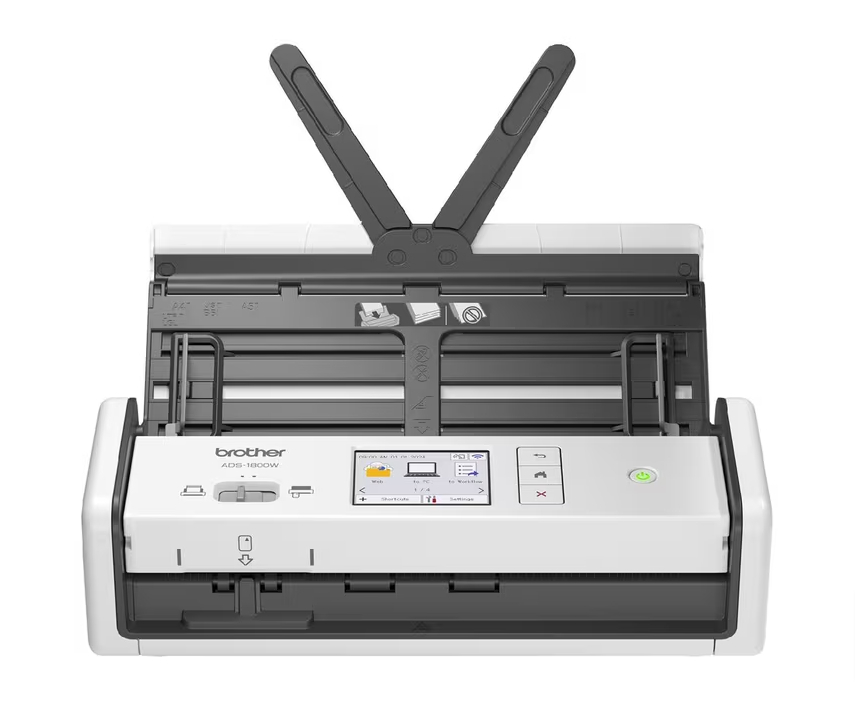

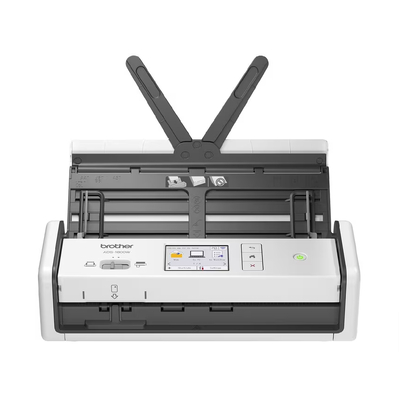

Brother ADS-1800W A4 Duplex Wireless Document Scanner

A compact A4 document scanner with 30 ppm or 60 ipm two-sided colour scanning at 300 dpi, a 20-sheet ADF, 2.8-inch touchscreen, Wi-Fi and USB Type-C connectivity.

30 ppm / 60 ipmTwo-sided colour speed at 300 dpi

20-sheet ADFAutomatic duplex document handling

2.8-inch touchscreenUp to 20 custom shortcuts

Wi-Fi + USB-CFlexible supplied connectivity

Portable scanning

Capture documents from more locations

Wireless network connectivity, cloud scanning and USB Type-C power support allow the ADS-1800W to work with most external batteries or power banks described on the supplied page.

Documents can be saved to file, email server, USB host or network, or scanned directly to a PC. A dedicated slot handles plastic ID cards.

Media and workflow

Automate recurring scan tasks

The 20-sheet automatic document feeder supports automatic duplexing and media up to 128 gsm. Zero-touch auto starting and up to 20 touchscreen shortcuts reduce repetitive setup.

The supplied software description includes PowerPDF and PaperPort for creating, converting, editing, sharing, searching and organising documents.

Product details

Technical specifications

General
Brand	Brother
Model / SKU	ADS-1800W
Product type	Compact A4 document scanner
Colour	White
Scanning and handling
Scan speed	30 ppm / 60 ipm two-sided colour at 300 dpi
Automatic document feeder	20 sheets
Duplex scanning	Automatic
Listed resolution	1200 × 1200
Media weight	Up to 128 gsm
Card handling	Dedicated plastic ID card slot
Controls and connectivity
Display	2.8-inch colour touchscreen
Shortcuts	Up to 20
Connectivity	Wi-Fi and USB Type-C
Power option	Compatible with most external batteries or power banks via USB Type-C
Scan destinations	File, email server, USB host, network and PC
Software	PowerPDF and PaperPort
Warranty
Warranty	12 months

Helpful answers

Frequently asked questions

What are the ADS-1800W scan speeds?

The supplied page lists 30 ppm or 60 ipm for two-sided colour scanning at 300 dpi.

How many pages fit in the ADF?

The automatic document feeder holds 20 sheets.

Can it scan plastic ID cards?

Yes. A dedicated plastic ID card slot is listed.

Which connections are supplied?

The supplied content lists Wi-Fi and USB Type-C connectivity.

Can it run from an external battery?

The supplied page states compatibility with most external batteries or power banks via USB Type-C.

(ADS-1800W)

General

Brand

Brother
Manufacturer's Warranty

12 month
Paper Size

A4
Barcode

4977766832304
Descriptive Colour

White
Included Accessories

USB Cable Type-C
Model Number

ADS-1800W
Product Dimensions (mm)

287W x 101D x 85H mm
Product Weight (kg)

1.42 kg
USB Cable Included

Yes

Connectivity

Device Connection

Wireless, Wired

Manufacturer

Country of Manufacture

China
Part Number

5WDF0300156

Performance

Software Bundle Provided

iPrint&Scan

Power

Maximum Wattage

1
Number of Batteries Required

1

Quantity

Units Per Pack/Carton

1
Pack/Carton Quantity

1
Total Individual Units

1

Scanner Features

Max Supported Document Size

A4
Scan resolution (DPI x DPI)

1200 x 1200
Colour Depth

Yes
Document Feeder Type

Manual load
Form Factor

Yes
Scan Time (seconds)

2
Scanning Max Speed (ppm)

30
Type

Document scanner

SKU	ADS-1800W
Barcode #	4977766832304
Brand	Brother
Shipping Weight	2.0600kg
Shipping Width	0.198m
Shipping Height	0.370m
Shipping Length	0.160m
