WorkForce DS-32000

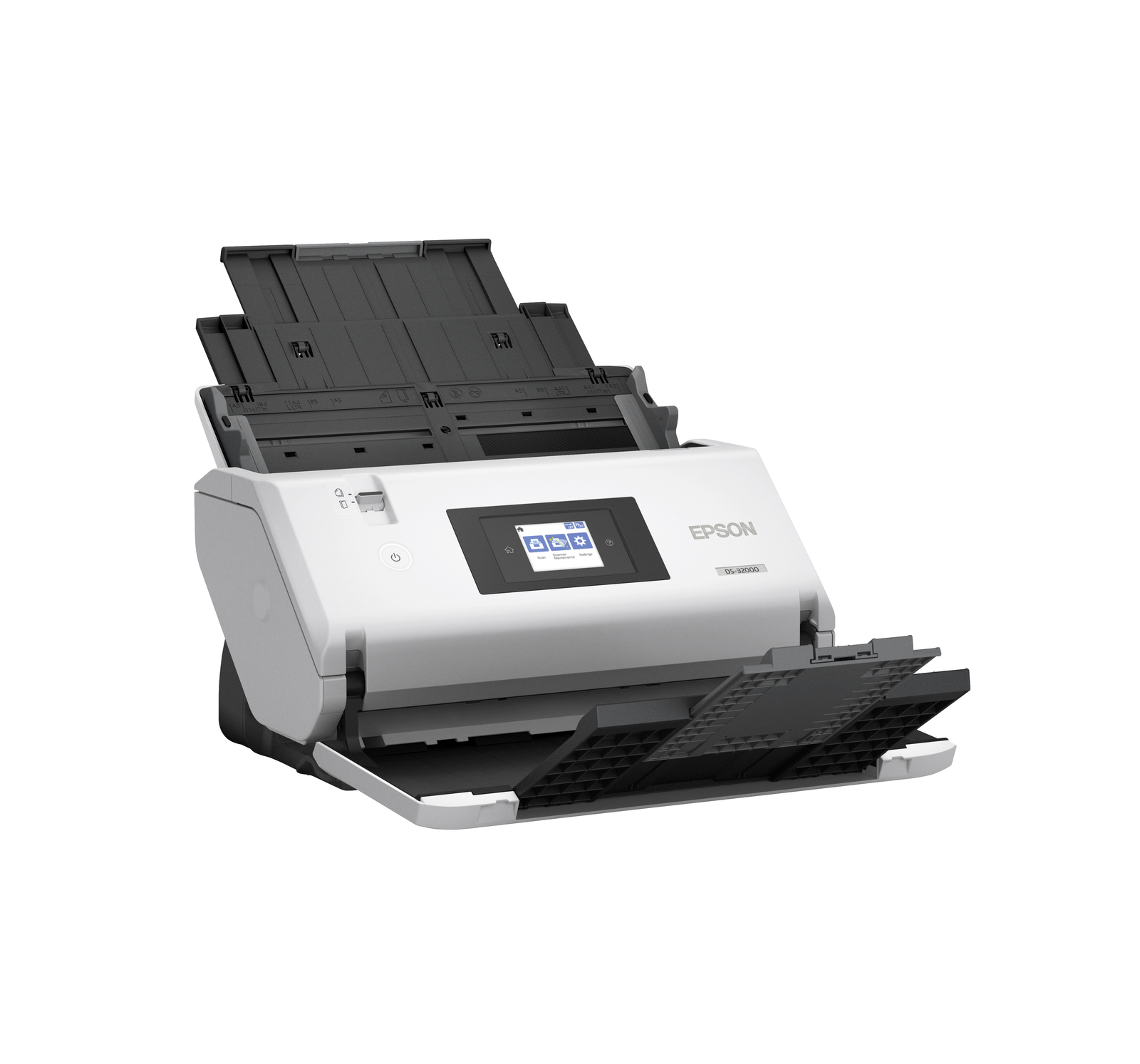

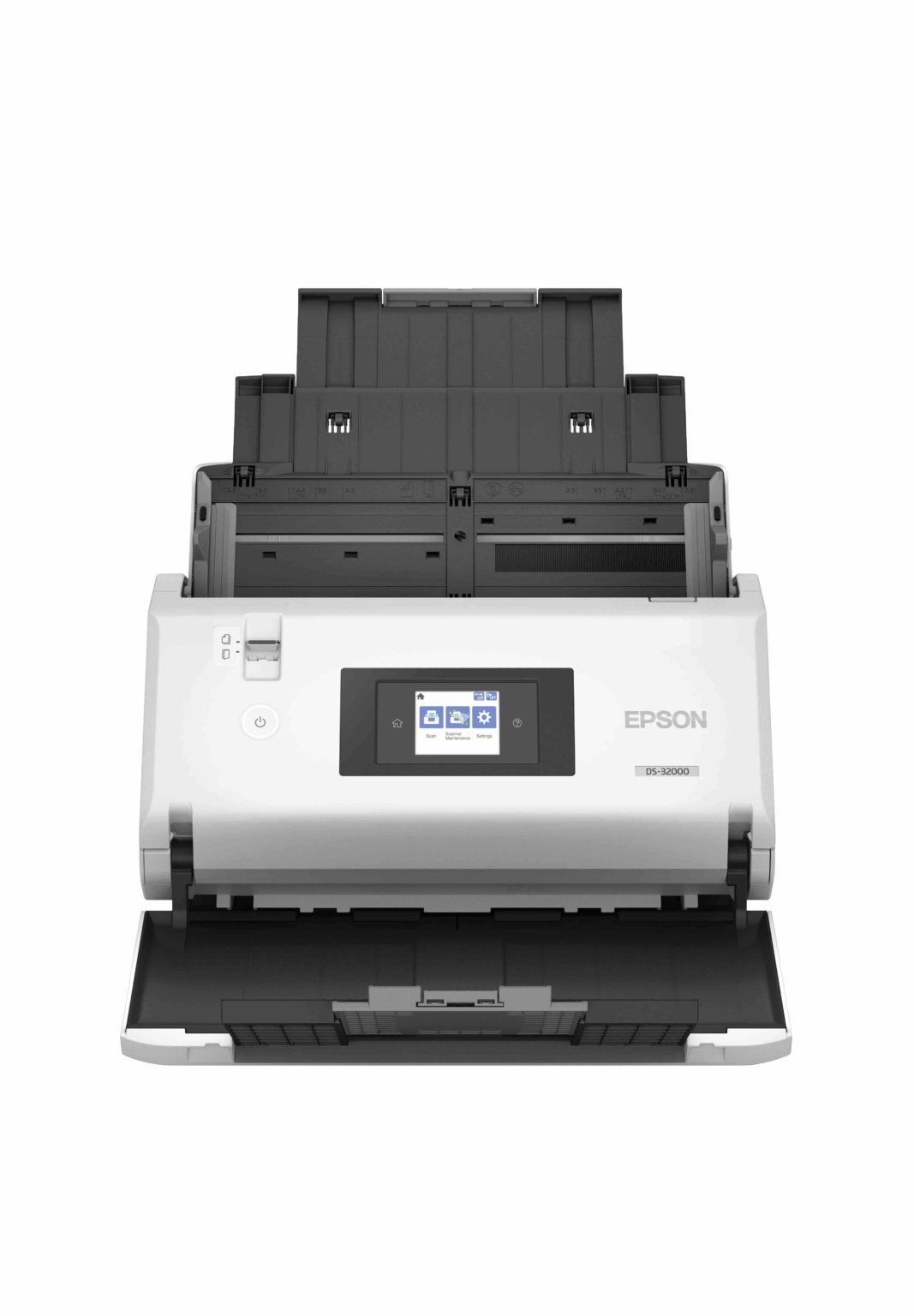

Name: Epson WORKFORCE DS-32000 Fast A3 sheetfed scanner DS-32000
Brand: EPSON
SKU: DS-32000
Price: 5816 AUD
Availability: OutOfStock

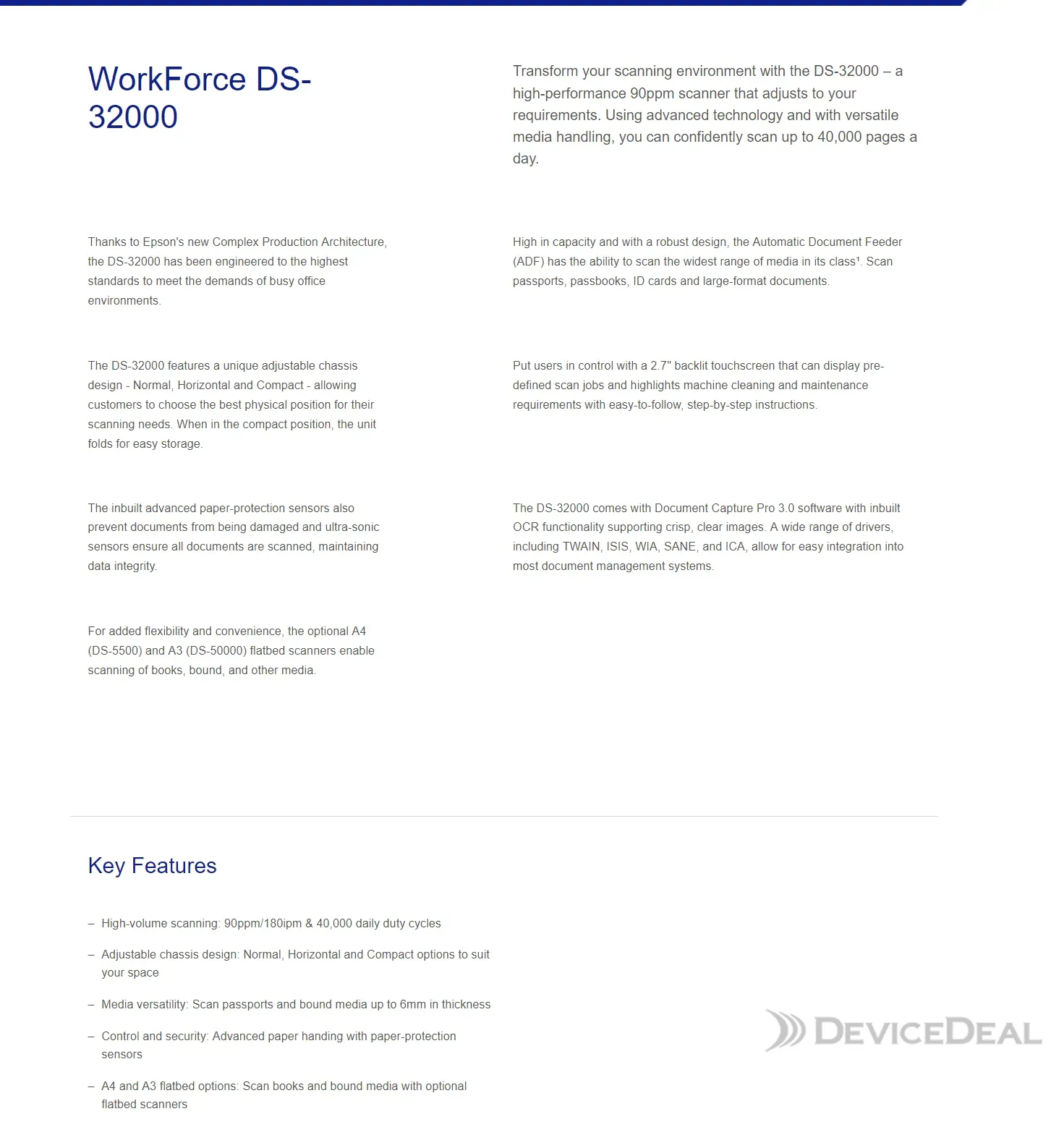

Transform your scanning environment with the DS-32000 – a high-performance 90ppm scanner that adjusts to your requirements. Using advanced technology and with versatile media handling, you can confidently scan up to 40,000 pages a day.

Thanks to Epson's new Complex Production Architecture, the DS-32000 has been engineered to the highest standards to meet the demands of busy office environments.

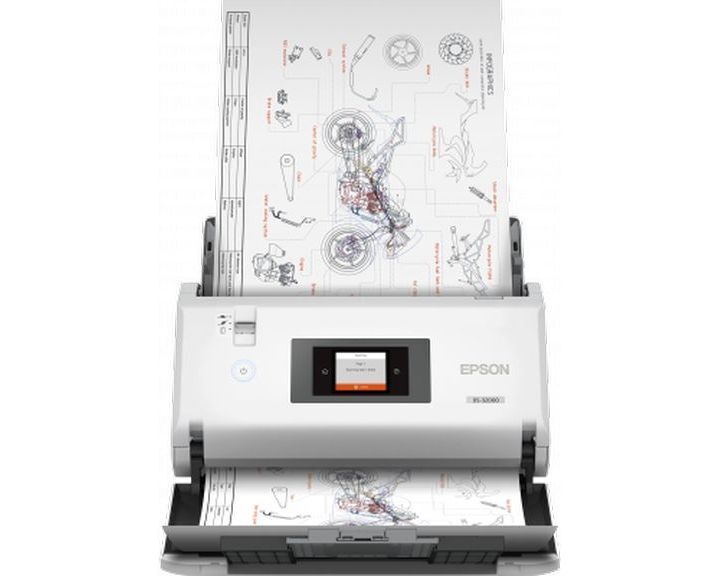

High in capacity and with a robust design, the Automatic Document Feeder (ADF) has the ability to scan the widest range of media in its class¹. Scan passports, passbooks, ID cards and large-format documents.

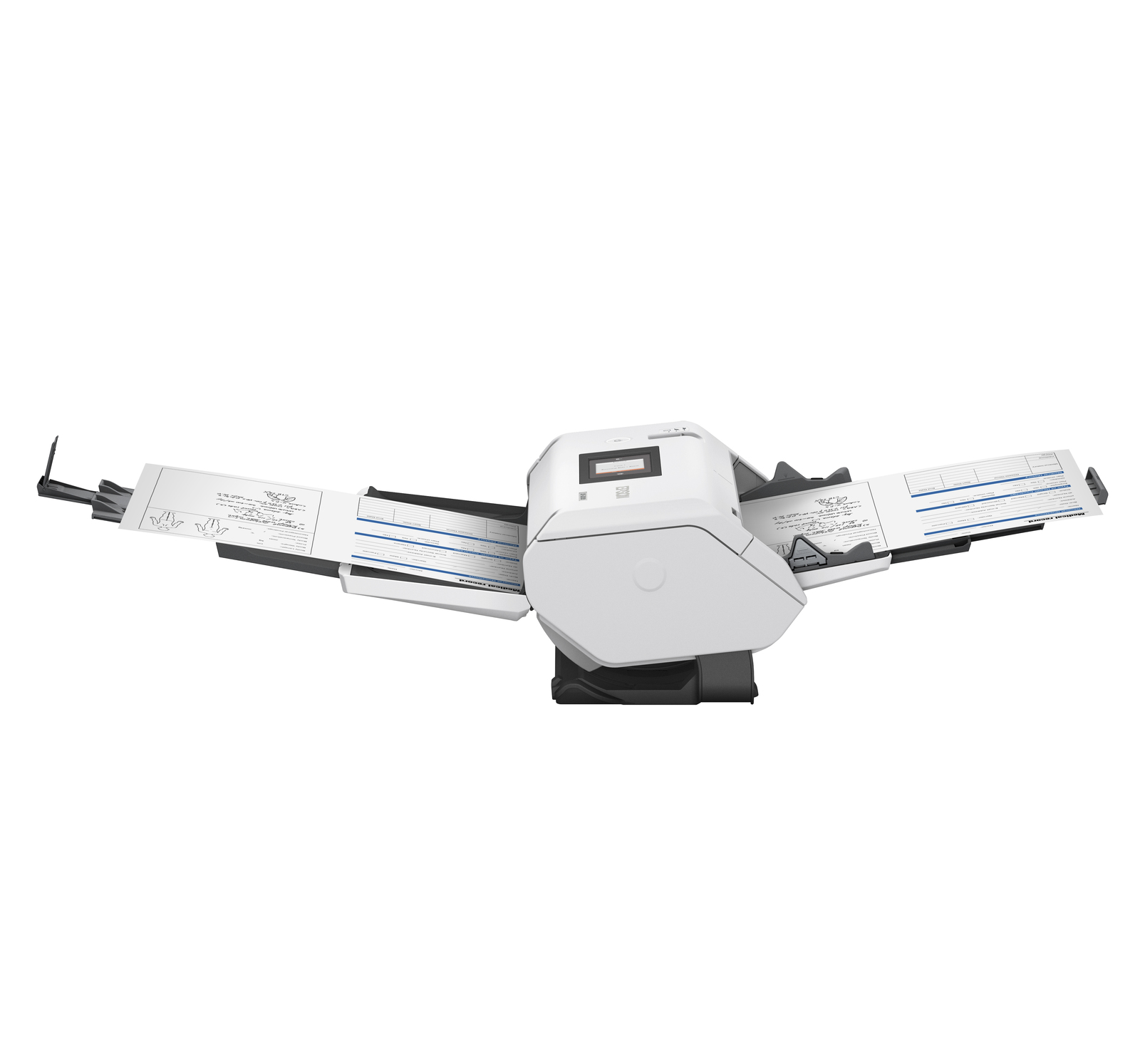

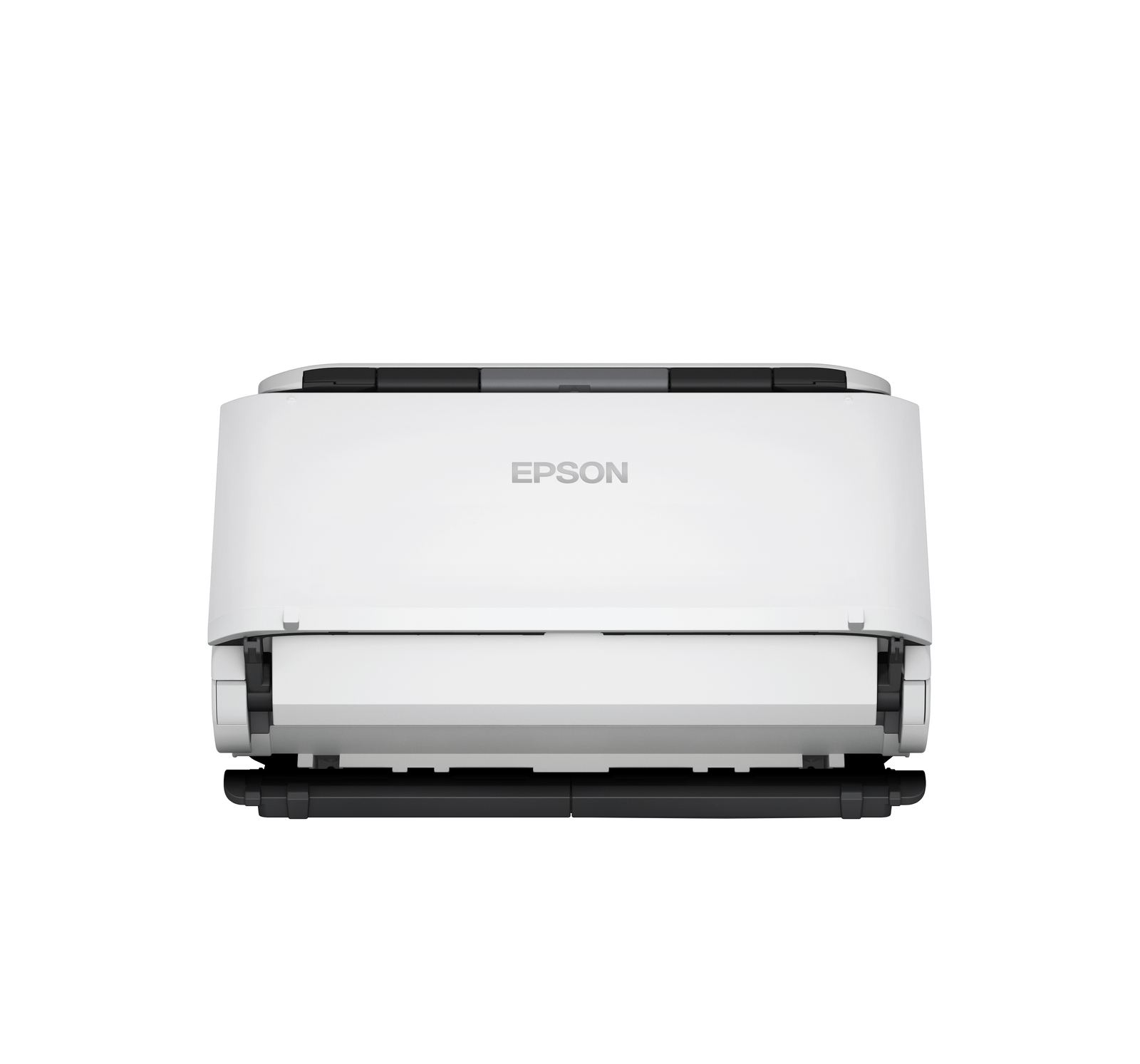

The DS-32000 features a unique adjustable chassis design - Normal, Horizontal and Compact - allowing customers to choose the best physical position for their scanning needs. When in the compact position, the unit folds for easy storage.

Put users in control with a 2.7" backlit touchscreen that can display pre-defined scan jobs and highlights machine cleaning and maintenance requirements with easy-to-follow, step-by-step instructions.

The inbuilt advanced paper-protection sensors also prevent documents from being damaged and ultra-sonic sensors ensure all documents are scanned, maintaining data integrity.

The DS-32000 comes with Document Capture Pro 3.0 software with inbuilt OCR functionality supporting crisp, clear images. A wide range of drivers, including TWAIN, ISIS, WIA, SANE, and ICA, allow for easy integration into most document management systems.

For added flexibility and convenience, the optional A4 (DS-5500) and A3 (DS-50000) flatbed scanners enable scanning of books, bound, and other media.

Key Features

High-volume scanning: 90ppm/180ipm & 40,000 daily duty cycles
Adjustable chassis design: Normal, Horizontal and Compact options to suit your space
Media versatility: Scan passports and bound media up to 6mm in thickness
Control and security: Advanced paper handing with paper-protection sensors
A4 and A3 flatbed options: Scan books and bound media with optional flatbed scanners

WORKFORCE DS-32000

Fast A3 sheetfed scanner

Innovative, 90ppm, heavy-duty A3 document scanner with the flexibility and performance to meet a variety of scanning environments.

Tech Specs

Product features and specifications are subject to change without prior notice.

Technology

Scanner type

Sheetfed Scanner

Optical Resolution (ADF)

600 DPI x 600 DPI (Horizontal x Vertical)

Scanning Resolution

50 DPI x 1,200 DPI (Horizontal x Vertical)

Optical Resolution

Main 600 DPI x Sub 600 DPI

ADF Minimum Document Size

50.8 mm x 69 mm (Horizontal x Vertical)

ADF Maximum Document Size

304.8 mm x 5,588 mm (Horizontal x Vertical)

Paper Formats

A3, A4, A5, A8, A7, A6, Business cards, Postcard, Legal, B5, B6, B4, Tabloid, Plastic cards, SRA3

Colour Depth

Input: 10 Bits Colour / 30 Bits Monochrome , Output: 8 Bits Colour / 24 Bits Monochrome

Ultrasonic Sensor

Yes

Application

High Capacity, General Office
Scanner

Optical Sensor

CIS (Contact Image Sensor)

Light Source

ReadyScan LED technology

Output Resolution

600 DPI
Scan speed

Scanning Speed

Monochrome: 90 pages/min - Color: 90 pages/min measured with size: A4 , resolution: 300 dpi, Monochrome: 180 image/min - Color: 180 image/min measured with size: A4 , resolution: 300 dpi
Paper / Media Handling

ADF Paper Setting Capacity

120 Sheets

ADF Paper weight

Auto loading: 20 - 413 g/m², Manual loading:20 - 413 g/m²

Automatic Document Feeder Type

Single pass dual scanning

Reliability Daily Duty Cycle

40,000 pages

multifunction

120 Sheets Standard

Automatic Document Feeder

120 pages

Document size - Flatbed

n/a, A3, A4, A5, A6, A7, A8, C4 (Envelope), C5 (Envelope), C6 (Envelope), Postcard, Business cards, Plastic cards

Duplex Scan

Yes
Scanning Features

Features

Advanced Colour Dropout / Enhance, Skip blank page, Punch holes removal, Automatic de-skew, RGB colour enhance, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Descreening, Barcode Recognition

Output formats

BMP, JPEG, TIFF, multi-TIFF, PDF, searchable PDF, secure PDF, PDF/A, JPEG(Colour/Greyscale), PNG, docx, xlsx, pptx

File compression features

TIFF Compression (JPEG(7) , CCITT G4, LZW), PDF Compression, JPEG compression

Advanced document integration

Scan to Email, Scan to Microsoft SharePoint®, Scan to Print, Scan to Web folders, Scan to Network folders, Scan to USB, Computer (Epson Document Capture Pro), Microsoft SharePoint with Epson Document Capture Pro

Image Improvement

Dust removal, Colour correction, Unsharp Mask with Noise Reduction

Scanning Volume

40,000 pages per day
Connectivity

Interfaces

USB 3.0, USB

Push scan features

Yes (with Document Capture Suite)
General

Supply Voltage

AC 100 V - 240 V

Energy Use

20 Watt (Operation), 11 Watt (ready), 1.4 Watt (sleep mode), 0.1 Watt (Power off)

Product dimensions

371‎ x 208 x 219 mm (Width x Depth x Height)

Product weight

5.8 kg

Drivers

TWAIN, WIA, ISIS (Web download), Epson Scan2 (TWAIN), ICA (Mac)

Included Software

Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Scan 2

Compatible Operating Systems

Mac OS 10.6+, Windows 10, Windows 7, Windows 8, Windows 8.1, Windows Server 2003, Windows Server 2008 (32/64bit), Windows Server 2012 R2, Windows Server 2016, Windows Vista, Windows XP SP3

Sound Power

Operation: 6.7 B (A)

Sound Pressure

Operation: 53 dB (A)

Noise Level

Operation: 67 dB (A)

Humidity

Operation 15% - 80%, Storage 15% - 85%

Temperature

Operation 5° C - 35° C, Storage 60° C - 25° C

What's in the box

AC Adaptor, Main unit, USB 3.0 cable, User guide, User manual (CD)

Options

Roller Assembly Kit
LCD and Memory Cards

LCD screen

Type: Colour, Touchscreen, Diagonal: 6.8 cm
Scan

Optical Resolution

600 DPI x 600 DPI (Horizontal x Vertical)
