General

Brand

Brother

Manufacturer Warranty

12 Months

Model Number

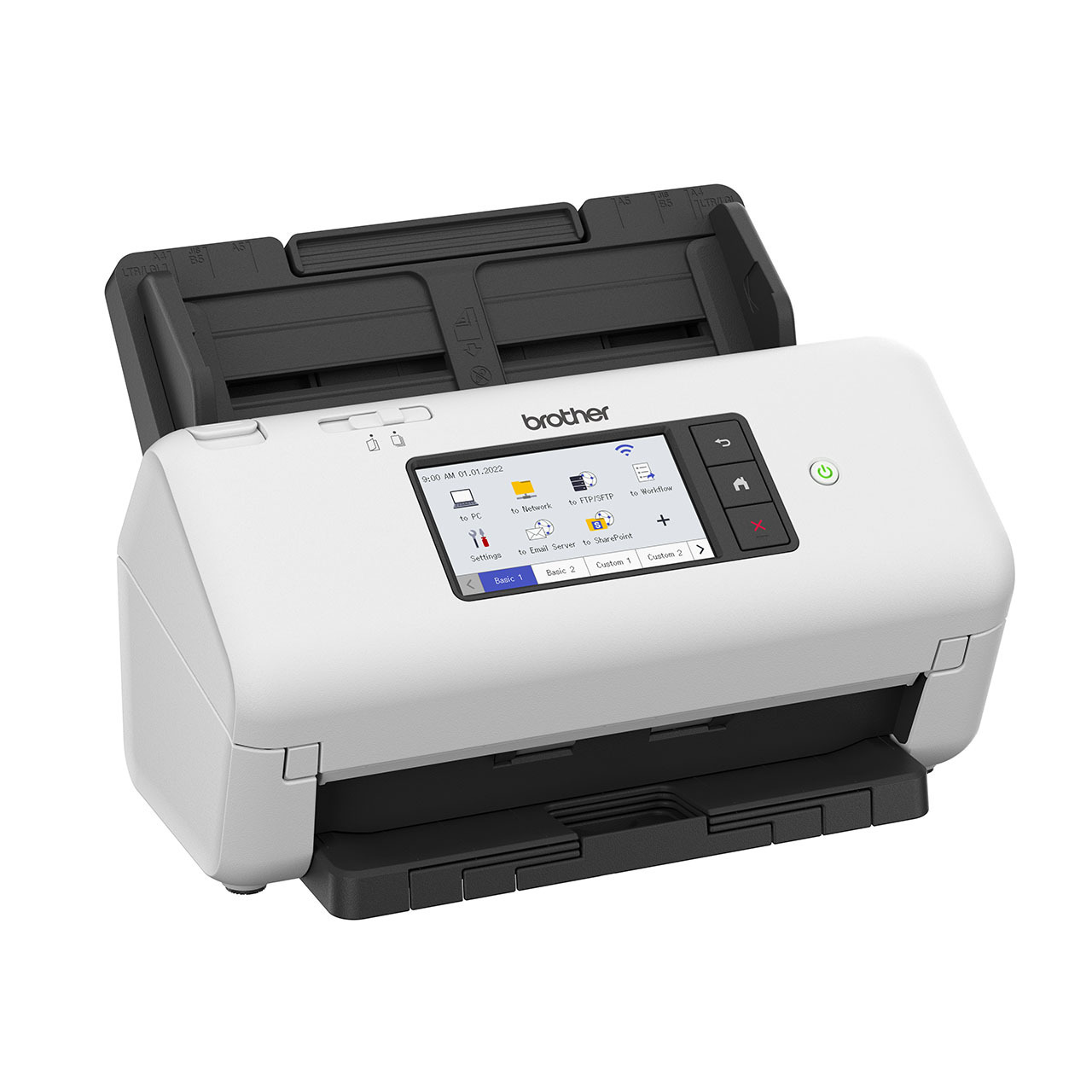

ADS-4700W

Paper Size

A4

Scanner Type

Dual CIS (Contact Image Sensor)

Product Dimensions

299x215x190mm

Product Weight

2.75 kg

Connectivity

Interface

USB, Wi-Fi & Ethernet

Operating Systems

Windows: TWAIN, ISIS, WIA, WIndows 11, Windows 10 (Home|Pro|Education|Enterprise) (32 or 64 bit editions), Windows 8.1(32 or 64 bit editions), Windows 7 SP1 (32 or 64 bit editions), Windows Server 2019, 2016, 2012R2, 2012 Mac: AirPrint Scan Support, TWAIN macOS 10.14.x or greater

Software

Windows: Brother ScanEssentials, Brother iPrint&Scan for Desktop, Kofax PaperPort, Kofax Power PDF Standard v3, Remote Setup Mac: Brother iPrint&Scan for Desktop, Remote Setup

Media Handling

Automatic Document Feeder

80 Sheets

Media Sizes

Width: 50.8 - 215.9mm, Height: 50.8 - 355.6mm, Long Paper: 5,000mm

Plastic Card

Length (ISO): 85.60mm, Width (ISO): 53.98mm

Media Types

Plain Paper, Thin Paper, Thick Paper, Thicker Paper, Recycled Paper, Business Card, Plastic Card

Media Weight

Paper Weight: 40 - 200gsm, Paper Thickness: 0.08 - 0.28mm Plastic Card Thickness: Up to 1.32mm embossed, up to 1.10mm without emboss

Scanner Features

Scan resolution (DPI x DPI)

600 x 600

Scan Time (seconds)

40ppm/ 80ipm

Image Processing

Auto Deskew(Feed), Detect End of Page, Margin Setting, Auto Image Rotation, Edge Fill, Tear Fill , Punch Hole Removal, Auto Colour Detect Adjust, Blank Page Removal, Diffusion Adjustment - Grey, Colour Tone Adjustment

File Format

Including PDF (single, multi, PDF/A-1b, secured, signed), JPEG, TIFF (single, multi)

Standard Functions

Scan to PC, Image, Network (SMB), Email Server, Workflow, FTP/SFTP, SharePoint(On Premise), Brother Webconnect, Scan to HTTP(S), Brother Apps Background Processing, Colour Drop, Edge Emphasis, Moire Reduction, Vertical Streak Reduction5, B&W Threshold Adjustment⁵, Character Correction, B&W Inversion, Noise Reduction, Remove Ruled Line, 2in1 Scan, 1to2 Scan, Carrier Sheet Mode,

Direct Scan

Scan directly to a USB flash memory storage Plastic Card Mode, Single Page Scan, Continuous Scan, Multi Feed Detection, Half Speed Mode, Barcode Detection, JPEG Compression, Digital Imprinter, Custom TWAIN Profiles

Feed Control

Ultra Sonic Multi Feed Sensor, Separation Switch, Scan Preview, CIS Cleaning Alarm Auto Start Scan, Continuous Scan, Resume Scan, Document Separation

Package Contents

What's in the box?

ADS machine, detachable ADF, Power supply cord, AC adapter, USB Cable, Quick setup guide, Product safety guide. Warranty
