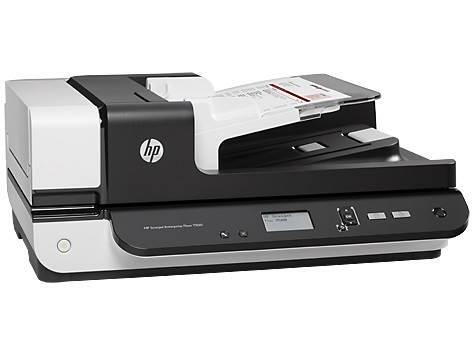

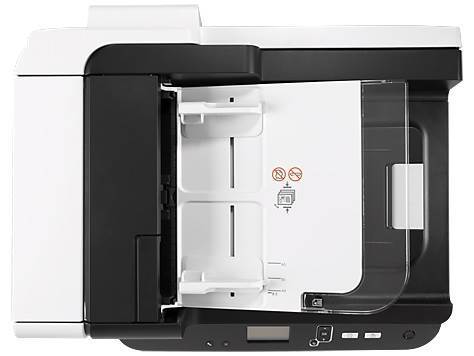

SCANJET ENTERPRISE FLOW 7500 S2 FLATBED SCANNER / 50 PPM 100 IPM / UP TO 600 DPI / RDDC 2000 PAGES / ADF CAPACITY 100 SHEETS / USB / ADF SINGLE PASS DUPLEX Scan up to 100 pages at a time, and choose from a variety of sizes—up to 34 inches/86 cm long. Scan books, ledgers, notes, cards and more using the legal-size flatbed scanner. Customize scanning profiles and easily access them, using the four-line LCD display. Simplify scanning tasks with HP Smart Document Scan Software and automatically enhance images for ideal scans. Seamlessly integrate this scanner into existing workflows, using full-featured drivers. Optimize scans with built-in OCR capabilities, then save in a variety of file formats. Select from several scan-to destinations. Add metadata for easy search, archiving and sharing. Scan with confidence—HP EveryPage technology keep scan projects running smoothly. Count on all-day operation—scan up to 3000 pages a day. Easily monitor the system specs and status of your scanner using HP Web Jetadmin.

(L2725B)

Specs

Specifications

HP ELITE DRAGONFLY DC1015 (PDF 6MB)

default

Product number: L2725B

Scanner type: Flatbed, ADF

Ideal for: Fast workgroup scanning that can be integrated into an existing document management system or operate as a standalone solution.

Scan Resolution

Scan Resolution, Optical: Up to 600 dpi

Scan Resolution, Hardware: Up to 600 x 600 dpi

Output Resolution Dpi Settings: 75; 100; 150; 200; 240; 300; 400; 500; 600

Scan Speed

Automatic document feeder scan speed: Up to 50 ppm/100 ipm (b&w, color, grayscale, 200 dpi)

Scanner Specifications

Duty cycle (daily): Recommended daily duty cycle: 3000 pages

Bit Depth: 24-bit

Auto document feeder capacity: Standard, 100 sheets

Scan size, maximum: 216 x 356 mm

Scan size (ADF), maximum: 216 x 864 mm

Scan size ADF (minimum): 70 x 148 mm

Scan size, minimum: 25.4 x 25.4 mm

Scan input modes: Front panel scan to HP Smart Document Scan Software; HP Document Copy; software scan using HP Smart Document Scan Software; user application via TWAIN, ISIS, WIA or Kofax VRS drivers

Scan file format: PDF (image-only, searchable, MRC, PDF/A, encrypted), TIFF (single page, multi-page, compressed: G3, G4, LZW, JPEG), DOC, RTF, WPD, XLS, TXT, XML, XPS, HTML, OPF, JPG, BMP, PNG

Scanning options (ADF): Single-pass duplex

Duplex ADF scanning: Yes

Scan technology: Charge Coupled Device (CCD)

Levels of grayscale: 256

Color scanning: Yes

Multifeed detection: Yes, ultrasonic

Light source (scanning): Light Emitting Diode (LED)

Scanner advanced features: Image enhancements such as blank page removal, crop, deskew, orientation; barcode detection; batch separation; document merge; HP EveryPage technology

Memory: 768 MB

Connectivity and Communications

Network ready: None

Connectivity, standard: 1 Hi-Speed USB 2.0

Connectivity, optional: Silex SX-DS-3000U1 Fast Ethernet USB Device Server; Silex SX-3000GB Gigabit Ethernet USB Device Server; Silex SX-DS-3000WAN 802.11n Wireless and Gigabit Ethernet USB Device Server; Silex SX-DS-4000U2 High Performance Gigabit Ethernet USB Device Server

Twain version: Version 2.1

Control panel: 9 front-panel buttons: Tools, Cancel, Navigation buttons (Up, Down, OK/Select, Back), Simplex Scan, Duplex Scan, Sleep (with LED illumination); 4-line back-lit LCD
