Epson · B11B263501

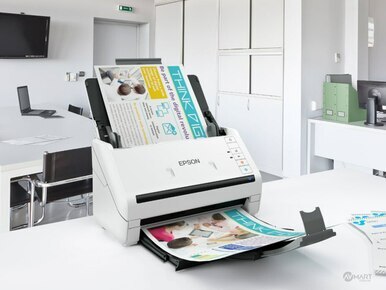

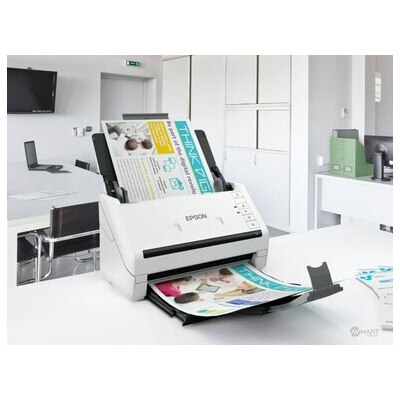

Epson WorkForce DS-570W II A4 Duplex Document Scanner

A one-pass duplex A4 colour document scanner with 35 ppm or 70 ipm scanning, a 50-sheet ADF, USB 3.0 and Wi-Fi connectivity.

35 ppm / 70 ipmOne-pass duplex scanning

50-sheet ADFMulti-page document handling

4,000 sheets/daySupplied daily duty cycle

USB + Wi-FiWired and wireless connections

Efficient document capture

Scan both sides in one pass

The WorkForce DS-570W II is listed at 35 ppm or 70 ipm for A4 document scanning at 300 dpi. Its 50-sheet automatic document feeder and supplied 4,000-sheet daily duty cycle support multi-page document workflows.

Slow Mode is supplied for crumpled or fragile documents, while the Active Separation Roller System and Double Feed Detection Skip support challenging media such as envelopes and pages with attached notes.

Flexible workflows

Connect, process and share documents

USB 3.0 and Wi-Fi connectivity are listed. Supplied software supports scanning to Dropbox, SharePoint, Evernote and Google Drive, with searchable PDF creation and OCR.

The media list includes plastic cards, A4, A5, A6, B5, business cards, Letter and Legal documents, plus A3 through digital stitching. Paper weights from 27 to 413 gsm are supplied.

Product details

Technical specifications

General
Brand	Epson
Model	WorkForce DS-570W II
SKU	B11B263501
Scanner type	Sheet-fed, one-pass duplex A4 colour scanner
Dimensions	296 × 169 × 176 mm
Weight	3.7 kg
Scanning and media
Scan speed	35 ppm / 70 ipm at 300 dpi
Optical resolution	600 × 600 dpi
Automatic document feeder	50 sheets
Daily duty cycle	4,000 sheets
Document size	50.8 × 50.8 mm to 215.9 × 6096 mm
Paper weight	27413 gsm
Output formats	JPEG, TIFF, multi-TIFF, PDF, searchable PDF, secure PDF and PDF/A
Connectivity and software
Interfaces	USB and Wi-Fi
Software	Epson Document Capture for Mac, Epson Document Capture Pro for Windows and Epson Scan 2
Drivers	TWAIN and ISIS; ISIS listed as available by web download
What's in the box	Scanner, setup sheet, warranty / registration card, USB cable, software CD-ROM, AC adapter and cable
Warranty	12 months return to base

Helpful answers

Frequently asked questions

What are the DS-570W II scan speeds?

The supplied page lists 35 ppm or 70 ipm at 300 dpi.

How many sheets fit in the ADF?

The automatic document feeder capacity is 50 sheets.

Which connections are listed?

USB and Wi-Fi are listed.

Can it handle A3 originals?

A3 is listed through digital stitching.

What is the supplied daily duty cycle?

The supplied duty cycle is up to 4,000 sheets per day.

(B11B263501)

Specification:

General

Brand: Epson

Manufacturer Warranty: 12 Months

Model Number: DS-570WII

Paper Size: A4

Scanner Type: Sheet Feed, one pass duplex A4 colour scanner

Product Dimensions: 296x169x176mm

Product Weight: 3.7 kg

Connectivity

Interface: USB & Wi-Fi

Operating Systems: Mac OS 11.0.x, Mac OS 10.7.x, Mac OS 10.8.x, Mac OS 10.9.x, Mac OS X, Mac OS X 10.6.8, Windows 11, Windows 10, Windows 7, Windows 7 x64, Windows 8, Windows 8 (32/64 bit), Windows 8 RT, Windows 8.1, Windows 8.1 x64 Edition, Windows Server 2008 (32/64bit), Windows Server 2008 R2, Windows Server 2012 (64bit), Windows Server 2012 R2, Windows Vista, Windows Vista x64, Windows server 2003 R2, XP Professional x64 Edition

Software: Epson Document Capture (Mac only), Epson Document Capture Pro (Windows only), Epson Scan 2

Media Handling

Automatic Document Feeder: 50 Sheets

Media Sizes: Plastic card (in portrait scanning only), A4, A5, A6, B5, Business card, Letter and Legal, A3 size supported by digital stitching, ADF Minimum size: 50.8mm x 50.8mm (Horizontal x Vertical), ADF Maximum size: 215.9mm x 6096mm (Horizontal x Vertical)

Media Weight: 27-413 g/m2

Scanner Features

Scan resolution (DPI x DPI): 600 x 600

Scan Time (seconds): 35ppm/ 70ipm

Light Source: 3 Colour RGB LED

Document Enhancement Tools: Skip blank page, A3 stitching, Punch holes removal, Automatic de-skew, Automatic multidocument recognition, Dual Image Output (Windows only), Auto-rotation, Text enhancement, Unsharp Mask (USM), Descreening, Automatic Folder Creation, Barcode Recognition, Full Zonal OCR
