Epson DS-790WN A4 Network Document Scanner ADF Duplex Ethernet
Model # B11B265201
-
SKU: B11B265501
Don't pay: $1,349.00
$1,198.00
SAVE $151.00 (11%)
- Pick Up Available
- Australian Warranty
- Checkout Securely

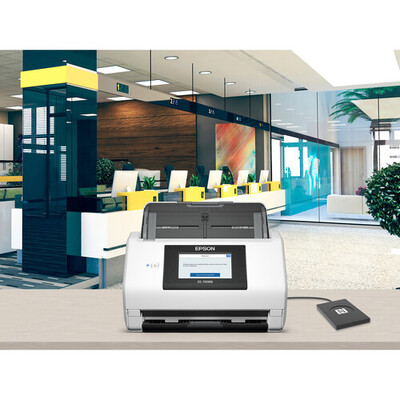

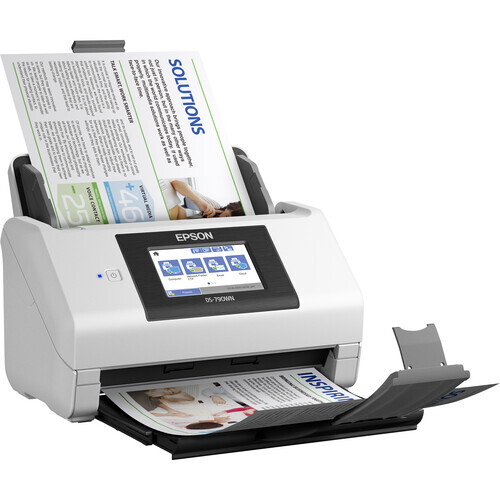

Epson WorkForce DS-790WN A4 Network Document Scanner
A one-pass duplex A4 colour scanner with 45 ppm or 90 ipm scanning, a 100-sheet ADF, touchscreen control, USB, Wi-Fi and Ethernet.
Network document capture
Share scanning across the workplace
The WorkForce DS-790WN combines USB 3.0, Wi-Fi, Wi-Fi Direct and Gigabit Ethernet connectivity. The supplied ScanWay function supports standalone scanning to network, cloud, email or USB without a PC.
An LCD touchscreen supports job creation, while locally or remotely configured user accounts and LDAP support are listed for authentication workflows.
High-volume handling
Process double-sided document batches
One-pass duplex scanning is listed at 45 ppm or 90 ipm at 300 dpi. A 100-sheet automatic document feeder and supplied 7,000-sheet daily duty cycle support larger scanning workloads.
The supplied media list covers plastic cards, A4, A5, A6, B5, business cards, Letter, Legal and custom sizes, with A3 supported through digital stitching and long documents up to 215.9 × 6096 mm.
Product details
Technical specifications
| General | |
|---|---|
| Brand | Epson |
| Model | WorkForce DS-790WN |
| SKU | B11B265501 |
| Scanner type | Sheet-fed, one-pass duplex A4 colour scanner with LCD touchscreen |
| Dimensions | 296 × 212 × 217 mm |
| Weight | 3.7 kg |
| Scanning and media | |
| Scan speed | 45 ppm / 90 ipm at 300 dpi |
| Optical resolution | 600 dpi |
| Scanning technology | Contact Image Sensor (CIS) |
| Automatic document feeder | 100 sheets |
| Daily duty cycle | 7,000 sheets |
| Paper weight | 27413 gsm |
| File formats | BMP, JPEG, TIFF, multi-TIFF, PDF, searchable PDF, secure PDF, PDF/A and PNG |
| Connectivity and workflow | |

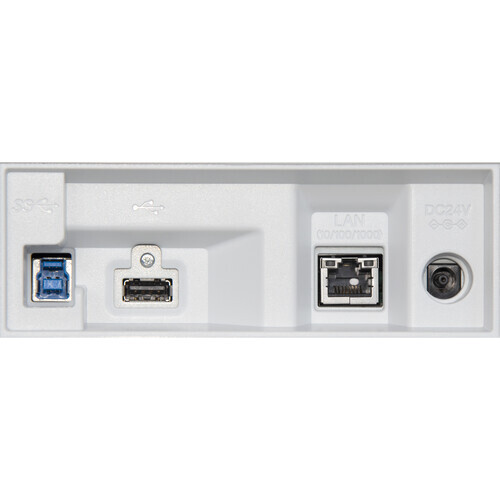

| Interfaces | USB 3.0, Wi-Fi, Wi-Fi Direct and Gigabit Ethernet |
| Standalone destinations | Network, cloud, email and USB |
| Authentication | Local or remote user accounts; LDAP support listed |
| Software | Document Capture Pro 2.0, Document Capture Pro Server 2.0, Authentication Edition, Epson Document Capture for Mac and Epson Scan 2 |
| Warranty | 12 months return to base |
Helpful answers
Frequently asked questions
What are the DS-790WN scan speeds?
The supplied page lists 45 ppm or 90 ipm at 300 dpi.
How many sheets fit in the ADF?
The automatic document feeder capacity is 100 sheets.
Can it scan without a PC?
Yes. ScanWay standalone scanning to network, cloud, email or USB is listed.
Which network connections are included?
Wi-Fi, Wi-Fi Direct and Gigabit Ethernet are listed, along with USB 3.0.
Which SKU should be used?
The page SKU is B11B265501, but its heading shows a conflicting model number that should be confirmed.
(B11B265501)
Specification:
General
- Brand
- Epson
- Manufacturer Warranty
- 12 Months
- Model Number
- DS-790WN
- Paper Size
- A4
- Scanner Type
- Sheet feed, one pass duplex A4 colour scanner with LCD touchscreen
- Product Dimensions
- 296x212x217mm
- Product Weight
- 3.7 kg
Connectivity
- Interface
- USB, Wi-Fi, Ethernet
- Operating Systems
- Windows® 11, 10, Windows 8/8.1, Windows 7, Windows Server®7 2012 R2, Windows Server 2012, Windows Server 2008 R2, Windows Server 2008, Windows Server 2003 R2, Windows Server 2003 SP2, Mac OS X® 10.9.5x – macOS® 12.x
- Software
- Document Capture Pro 2.0, Document Capture Pro Server 2.0, Document Capture Pro Server 2.0 Authentication Edition, Epson Document Capture (Mac only), Epson Scan 2
Media Handling
- Automatic Document Feeder
- 100 Sheets
- Media Sizes
- Plastic card (in portrait scanning only), A4, A5, A6, B5, business card, letter, legal and custom sizes (can set for up to 5 different paper types), A3 size supported by digital stitching ADF minimum size: 50.8mm x 50.8mm (horizontal x vertical) ADF maximum size: 215.9mm x 6096mm (horizontal x vertical)
- Media Weight
- 27-413 g/m2
Scanner Features
- Scan Resolution
- 600 dpi
- Scan Time
- 45ppm / 90ipm
- Scanning Technology
- Contact Image Sensor (CIS)
- Light Source
- 3 Colour RGB LED
- Document Enhancement Tools
- Standalone operation, skip blank page, automatic de-skew, auto-rotation, text enhancement
- File Format
- BMP, JPEG, TIFF, multi-TIFF, PDF, searchable PDF, secure PDF, PDF/A, PNG
Package Contents
- What's in the box?
- Epson WorkForce DS-790WN, Setup sheet, Warranty / registration card, USB cable, software CD-ROM, AC adapter & cable
| SKU | B11B265501 |
| Barcode # | 8715946697642 |
| Brand | EPSON |
| Shipping Weight | 5.0000kg |
| Shipping Width | 0.260m |
| Shipping Height | 0.320m |
| Shipping Length | 0.370m |
Manufacturer Warranty : 12 months return to base
