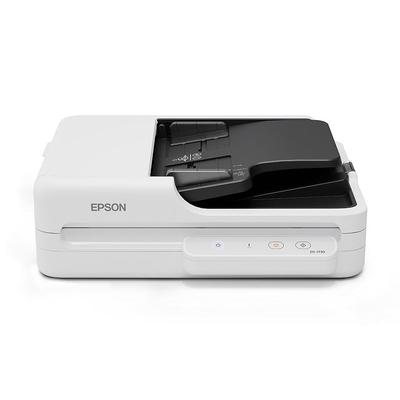

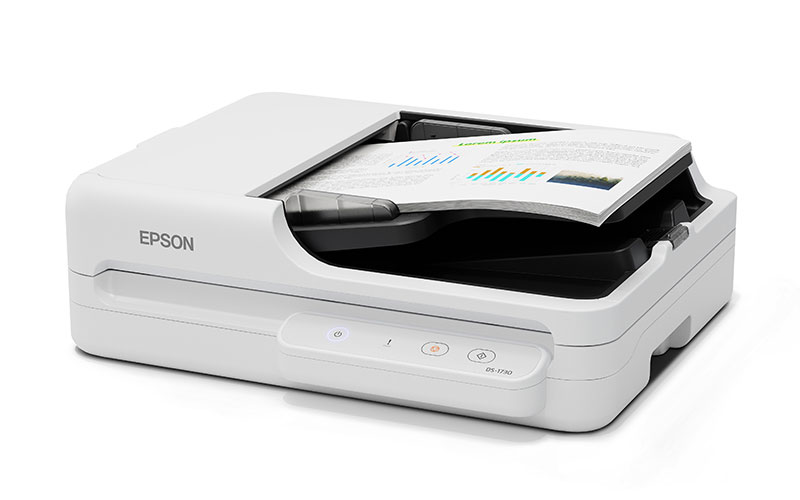

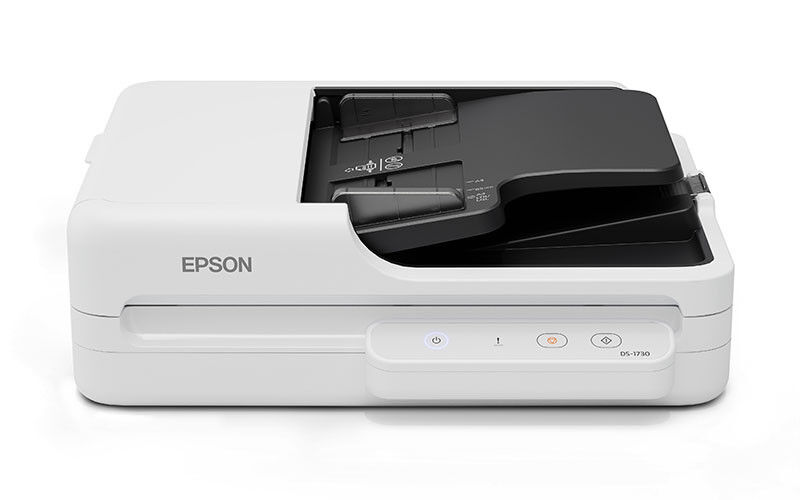

Epson WorkForce DS-1730 A4 Flatbed Document Scanner ADF USB
Model # B11B273501
-
SKU: B11B273501
Don't pay: $625.00
$527.00
SAVE $98.00 (16%)
- Pick Up Available
- Australian Warranty
- Checkout Securely
Epson WorkForce DS-1730 A4 Flatbed Document Scanner with ADF
An A4 flatbed colour scanner with a 60-sheet duplex ADF, 30 ppm or 60 ipm scanning, 1200 dpi flatbed resolution and USB 2.0 connectivity.

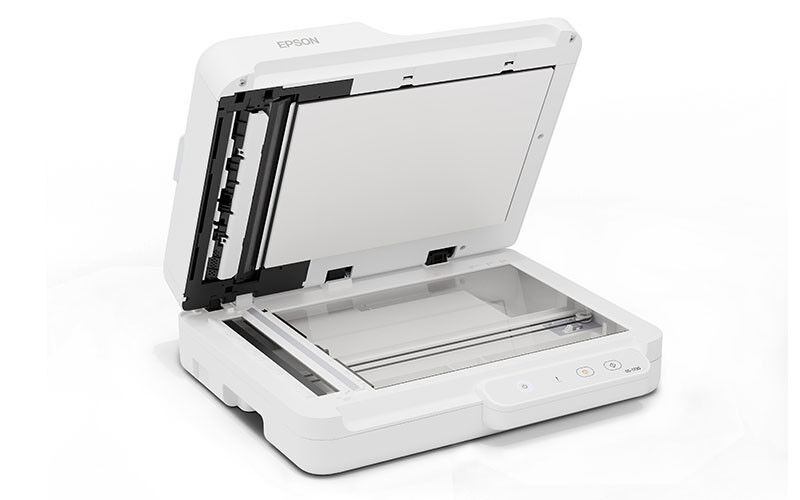

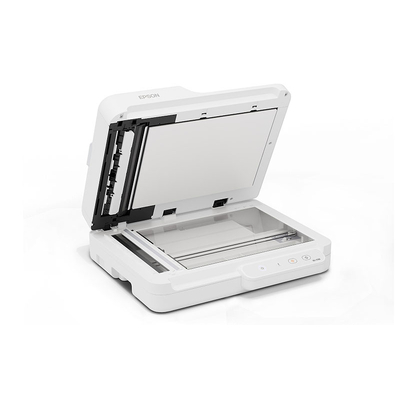

Flatbed and ADF scanning
Capture documents through two scanning paths
The WorkForce DS-1730 combines an A4 flatbed with a duplex automatic document feeder. The flatbed provides 1200 × 1200 dpi optical resolution, while the ADF is listed at 600 × 600 dpi.
The 60-sheet ADF scans monochrome and colour pages at 30 ppm or 60 ipm at 200 or 300 dpi. Its supplied peak daily duty cycle is 3,000 sheets.
Document workflow
Create searchable and editable files
Epson Document Capture Pro for Windows and Epson Document Capture for Mac are supplied for job profiles and document workflows. OCR supports searchable PDFs and editable Microsoft Office files, subject to the supplied platform limitations.
Image processing includes automatic colour detection, auto rotation, background removal, de-screening, edge fill, image adjustments, text enhancement and unsharp mask, with additional ADF functions such as blank-page skipping, colour dropout, stitching and punch-hole removal.
Product details
Technical specifications
| General | |
|---|---|
| Brand | Epson |
| Model | WorkForce DS-1730 |
| SKU | B11B273501 |
| Scanner type | Flatbed colour document scanner with duplex ADF |
| Dimensions | 425 × 351 × 135 mm |
| Weight | 4.82 kg |
| Scanning and media | |
| ADF scan speed | 30 ppm / 60 ipm monochrome and colour at 200 or 300 dpi |
| Optical resolution | Flatbed: 1200 × 1200 dpi; ADF: 600 × 600 dpi |
| Automatic document feeder | 60 sheets at 80 gsm |
| Peak daily duty cycle | 3,000 sheets |
| Maximum standard document size | 215.9 × 297 mm |
| ADF maximum length | 762 mm at 600 dpi; 3048 mm at 300 dpi |
| Paper weight | 50120 gsm |
| Flatbed document thickness | Up to 30 mm |
| Connectivity and software | |
| Interface | USB 2.0 |
| Output formats | BMP, JPEG, TIFF, multi-TIFF, PDF, searchable PDF, secure PDF, PDF/A and PNG |
| Software | Epson Scan 2, Document Capture Pro for Windows or Document Capture for Mac |
| Drivers | TWAIN and ISIS |
| Power requirements | AC 100240 V, 5060 Hz |
| Power consumption | Operation 9 W; ready 3.8 W; sleep 0.9 W; off 0.1 W |
Helpful answers
Frequently asked questions
Does the DS-1730 include both a flatbed and ADF?
Yes. It combines an A4 flatbed with a duplex automatic document feeder.
What are the supplied scan speeds?
The ADF is listed at 30 ppm or 60 ipm for monochrome and colour at 200 or 300 dpi.
What is the ADF capacity?
The supplied capacity is 60 sheets at 80 gsm.
What resolution does the flatbed provide?
The flatbed optical resolution is listed as 1200 × 1200 dpi.
Which interface is included?
USB 2.0 is listed.
(B11B273501)
| Product Name | WorkForce DS-1730 |
| Product Code | B11B273501 |
| Scanner type | Flatbed colour document scanner with duplex ADF |
| Scan speed | ADF: Monochrome & Colour: 30 ppm/60 ipm (200/300 dpi) |
| Optical resolution | Flatbed: 1,200 x 1,200 dpi ADF: 600 x 600 dpi |
| Sensor | Colour CIS x2 (ADF x1, Flatbed x1) |
| Light source | 3-colour RGB LED x2 (ADF x1, Flatbed x1) |
| Maximum document size | 215.9 mm x 297 mm |
| Paper formats | A4 (210 x 297 mm), A5 (148 x 210 mm), A6 (105 x 148 mm), B5, B6, Letter, Letter Legal |
| Scanning colour depth | Input: 30 Bits Colour / 10 Bits Monochrome Output: 24 Bits Colour / 8 Bits Monochrome |
| Peak daily duty cycle | 3,000 sheets |
| Automatic document feeder capacity | Input Capacity: 60 sheets (80 g/m2) Document Size Minimum: A6 (105 x 148mm) Document Size Maximum: 216 x 762mm (600 dpi) / 216 x 3048mm (300 dpi) Paper Weight 50 g/m² − 120 g/m² Duplex scan |
| Flatbed capacity | Document Size Maximum: 8.5" x 11.7" Maximum Document Thickness: Up to 30 mm (approx. 1 3/16") |
| Paper protection | ADF: Yes |
| Controls | Buttons: Power, Scan, Stop |
| Interface | USB 2.0 |
| Image processing options | ADF and Flatbed: Automatic Color Detection (Color/Grayscale/Black & White), Auto Rotation, Background Removal, De-Screening, Dual Image Output, Edge Fill, Image Adjustments (Brightness/Contrast/ Gamma), Skew Correction (Contents), Text Enhancement, Unsharp Mask, Watermark ADF: Blank Page Skip, Color Dropout & Enhance, Image Stitching, Punch Hole Removal, Skew Correction (Paper and/or Contents) |
| Output formats | BMP, JPEG, TIFF, multi-TIFF, PDF, searchable PDF, secure PDF, PDF/A, PNG |
| File compression features | Hardware JPEG compression, TIFF Compression (JPEG(7) , CITT G4, LZW), PDF Compression, JPEG compression |
| Other features | Continuous Scanning Mode, Mixed Media Scanning, Glass Dirt Detection |
| General | |
|---|---|
| Weight & dimensions (W x D x H) | 4.82 kg / 425 x 351 x 135 mm (Width x Depth x Height) |
| Power consumption | Operation: 9 W Ready: 3.8 W Sleep: 0.9 W Off: 0.1 W |
| Environmental conditions | Temperature (Operating): 5 °C to 35 °C Humidity (Operating): 15% – 80% (no condensation) |
| Power requirements | AC Input: 100 – 240 VAC/50 Hz – 60 Hz |
| Software & compatibility | |
|---|---|
| Available software | Epson Scan 2, Document Capture Pro (Windows®) or Document Capture (Mac®) |
| Driver support | TWAIN, ISIS Software requires Internet connection for download and installation |
| System requirements | |
|---|---|
| Windows 11, 10, Windows 8/8.1, Windows 7, Mac OS X® 10.7.5 – macOS® 15 Supported Epson Solutions: Epson Device Admin |
| SKU | B11B273501 |
| Barcode # | 9314020639838 |
| Brand | EPSON |
| Shipping Weight | 4.8200kg |
